G209 Galvanized Anchor Shackle | Screw Pin

US TYPE G209 SCREW PIN ANCHOR SHACKLE

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro-galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271G, Type IVA , Grade A; ASME B30.26
Temperature range: -20 to 200 centigrade degrees

Inquire Now

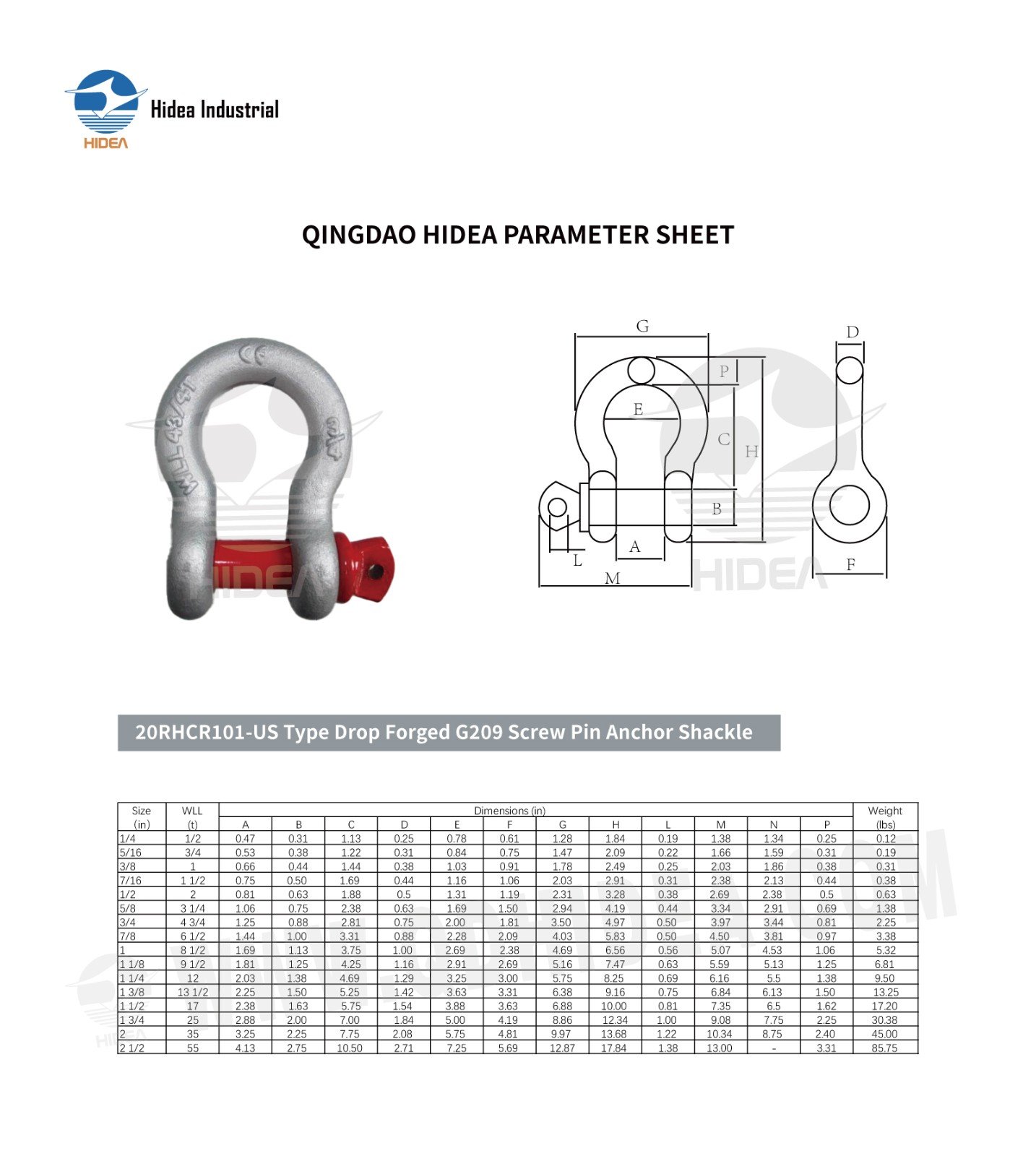

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR101-US Type Drop Forged G209 Screw Pin Anchor Shackle

Size
(in)

WLL
(t）

Dimensions(in)

Weight
(lbs)

1/4

1/2

0.47

0.31

1.13

0.25

0.78

0.61

1.28

1.84

0.19

1.38

1.34

0.25

0.12

5/16

3/4

0.53

0.38

1.22

0.31

0.84

0.75

1.47

2.09

0.22

1.66

1.59

0.31

0.19

3/8

0.66

0.44

1.44

0.38

1.03

0.91

1.78

2.49

0.25

2.03

1.86

0.38

0.31

7/16

11/2

0.75

0.50

1.69

0.44

1.16

1.06

2.03

2.91

0.31

2.38

2.13

0.44

0.38

1/2

0.81

0.63

1.88

0.5

1.31

1.19

2.31

3.28

0.38

2.69

2.38

0.5

0.63

5/8

31/4

1.06

0.75

2.38

0.63

1.69

1.50

2.94

4.19

0.44

3.34

2.91

0.69

1.38

3/4

43/4

1.25

0.88

2.81

0.75

2.00

1.81

3.50

4.97

0.50

3.97

3.44

0.81

2.25

7/8

61/2

1.44

1.00

3.31

0.88

2.28

2.09

4.03

5.83

0.50

4.50

3.81

0.97

3.38

81/2

1.69

1.13

3.75

1.00

2.69

2.38

4.69

6.56

0.56

5.07

4.53

1.06

5.32

11/8

91/2

1.81

1.25

4.25

1.16

2.91

2.69

5.16

7.47

0.63

5.59

5.13

1.25

6.81

11/4

2.03

1.38

4.69

1.29

3.25

3.00

5.75

8.25

0.69

6.16

5.5

1.38

9.50

13/8

13 1/2

2.25

1.50

5.25

1.42

3.63

3.31

6.38

9.16

0.75

6.84

6.13

1.50

13.25

11/2

2.38

1.63

5.75

1.54

3.88

3.63

6.88

10.00

0.81

7.35

6.5

1.62

17.20

13/4

2.88

2.00

7.00

1.84

5.00

4.19

886

12.34

1.00

9.08

7.75

2.25

30.38

3.25

2.25

7.75

2.08

5.75

4.81

9.97

13.68

1.22

10.34

8.75

2.40

45.00

21/2

4.13

2.75

10.50

2.71

7.25

5.69

12.87

17.84

1.38

13.00

−

3.31

85.75
