HIDEA Pear Shape Quick Link for Strong, Rust-Resistant Performance

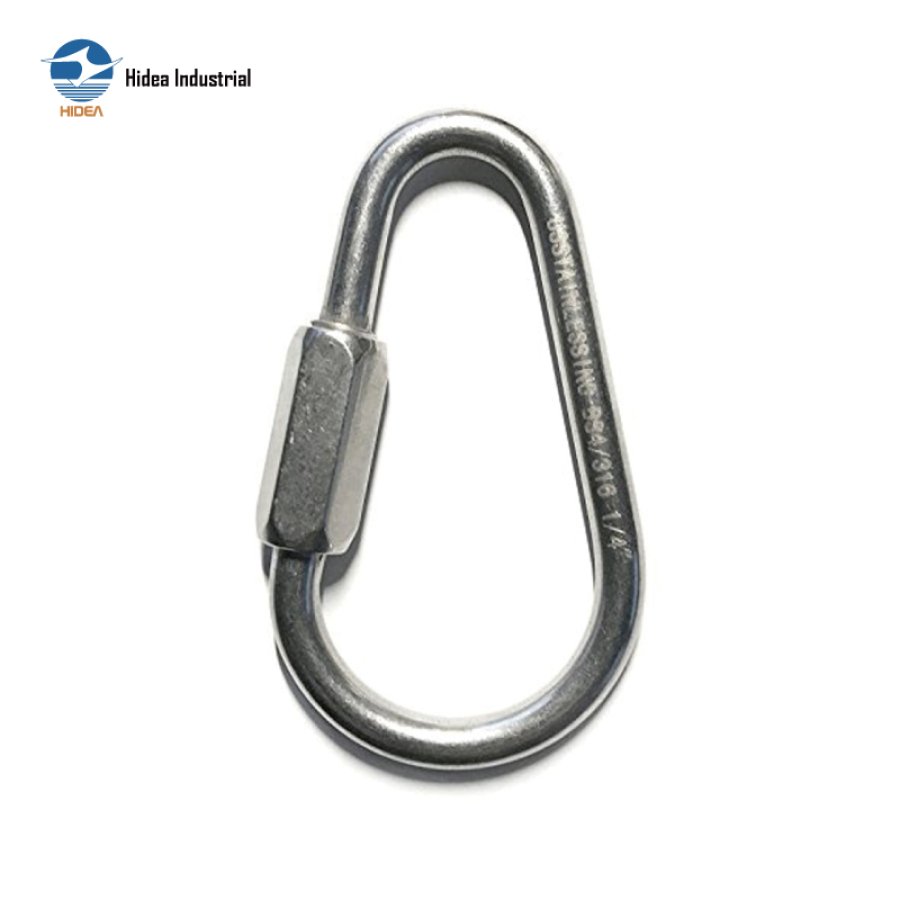

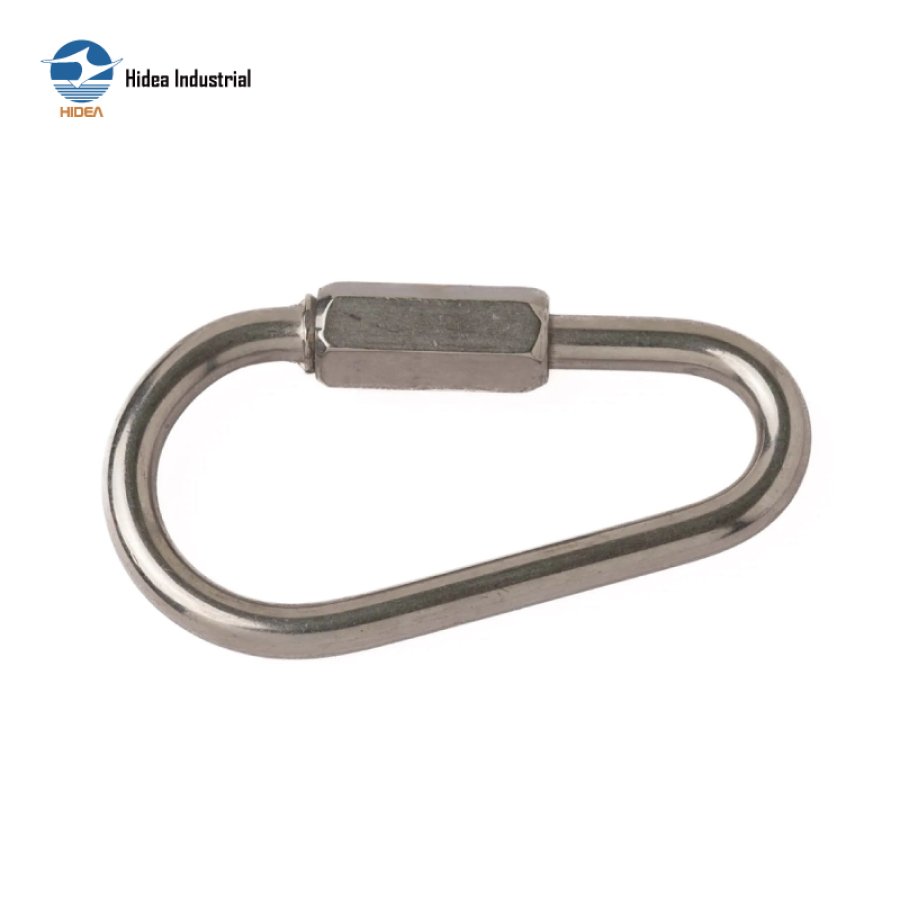

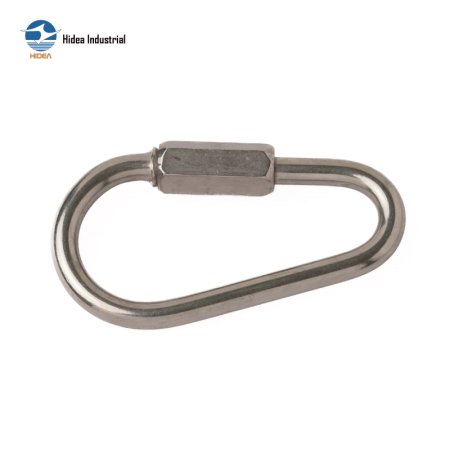

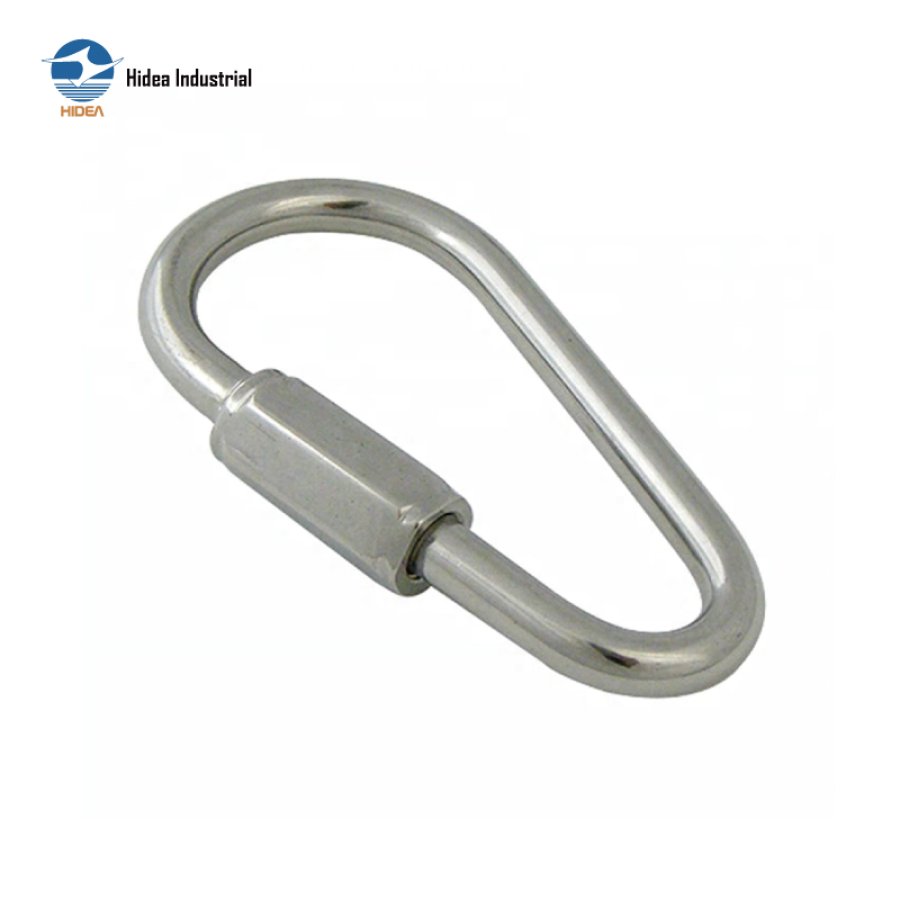

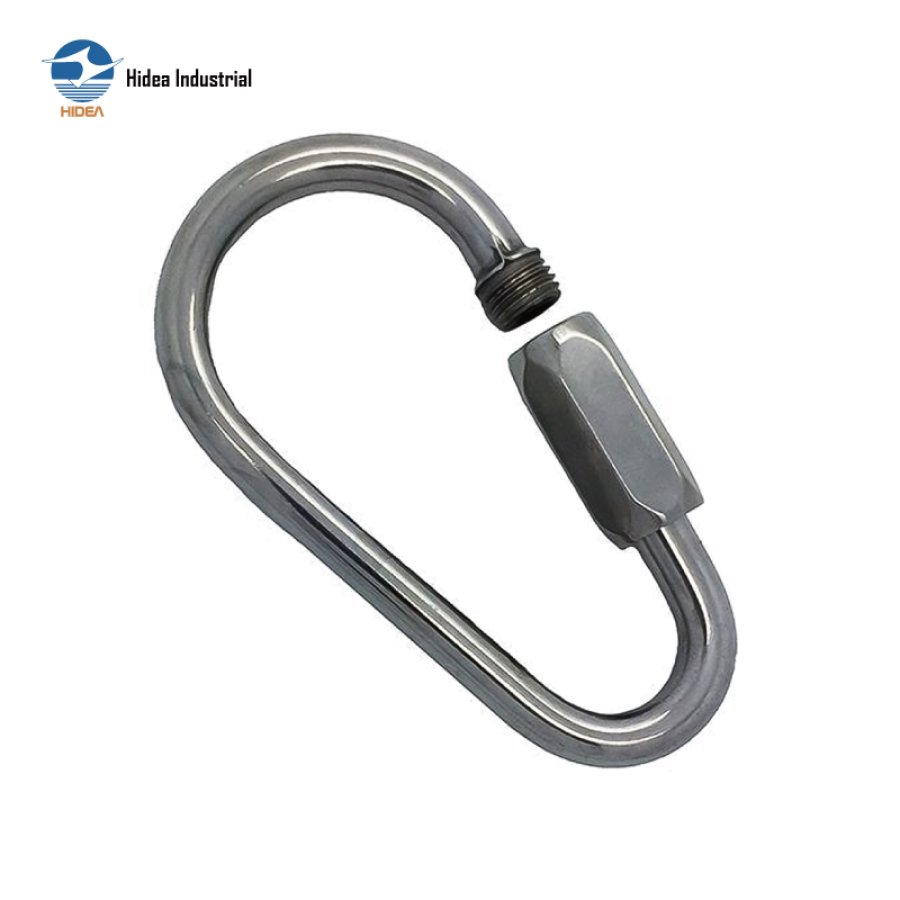

PEAR SHAPED QUICK LINK

Material & Surface: Carbon Steel Electro-Galvanized, OR Stainless Steel AISI304 / AISI316 Polished
Pear Shaped Quick Link, Pear Sahped Quick Connector with Locking Nut

Inquire Now

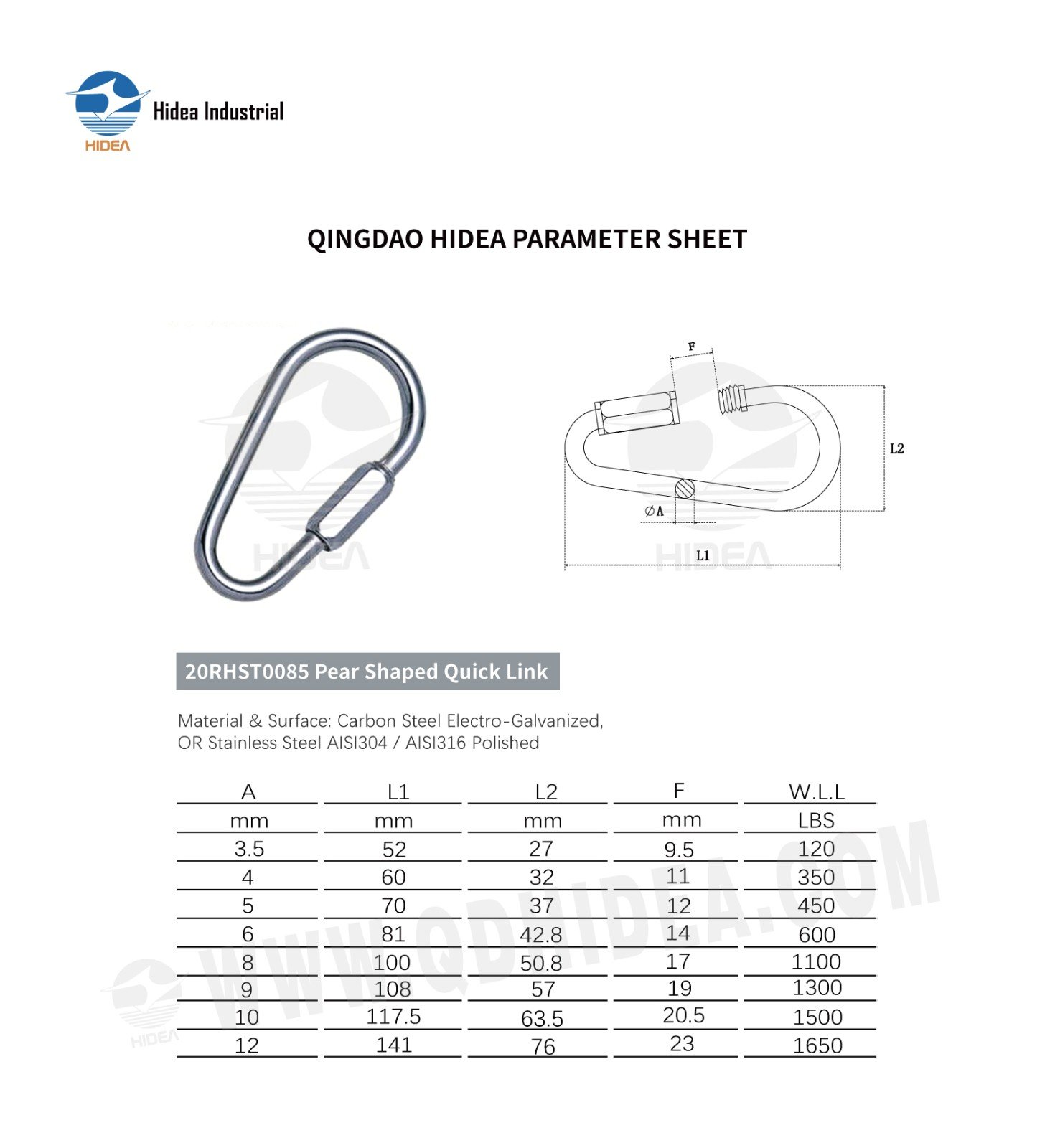

QINGDAO HIDEA PARAMETER SHEET FOR

20RHST0085 Pear Shaped Quick Link

A	L1	L2	F	W.L.L
mm	mm	mm	mm	LBS
3.5	52	27	9.5	120
4	60	32	11	350
5	70	37	12	450
6	81	42.8	14	600
8	100	50.8	17	1100
9	108	57	19	1300
10	117.5	63.5	20.5	1500
12	141	76	23	1650
