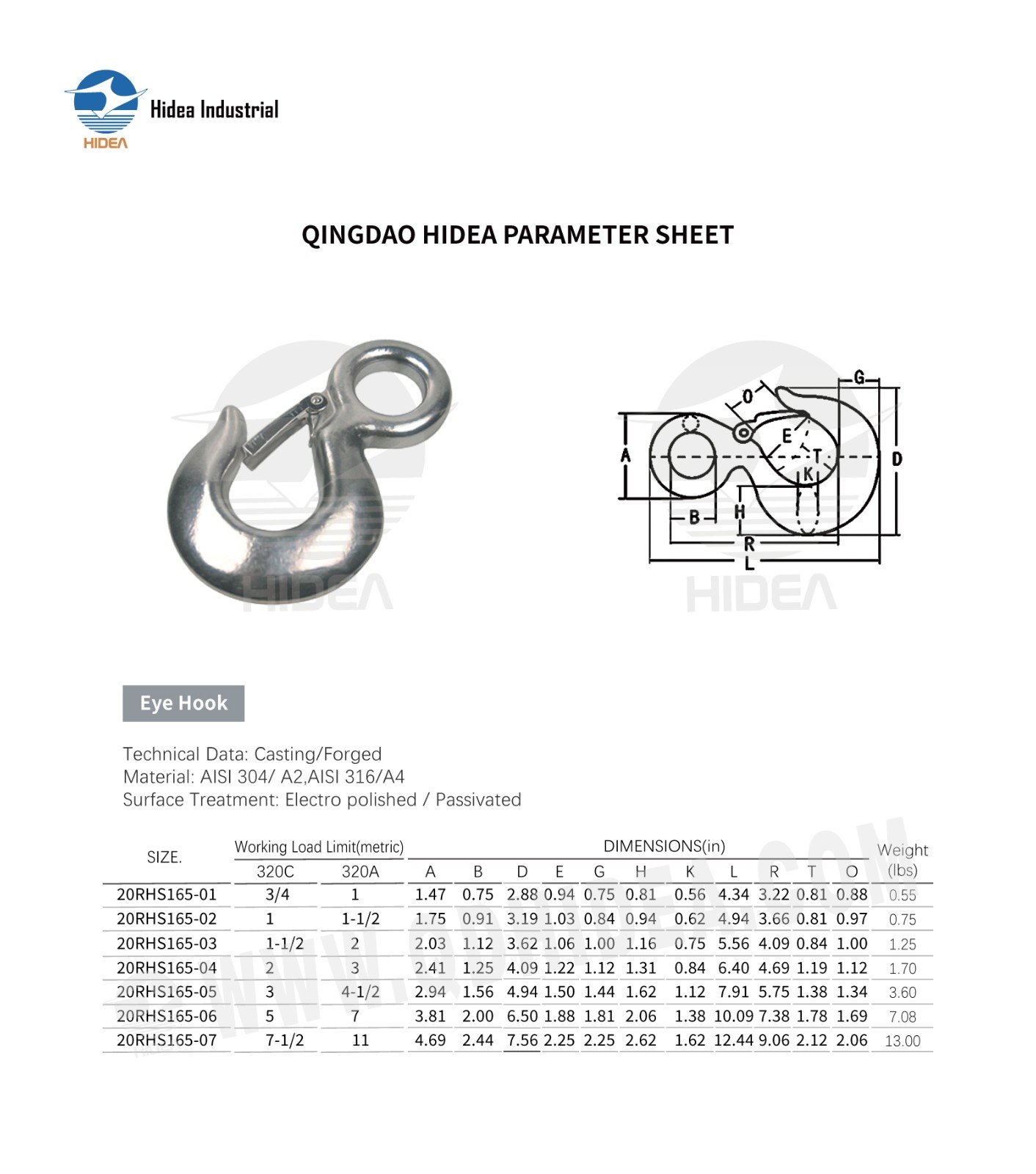

QINGDAO HIDEA PARAMETER SHEET FOR

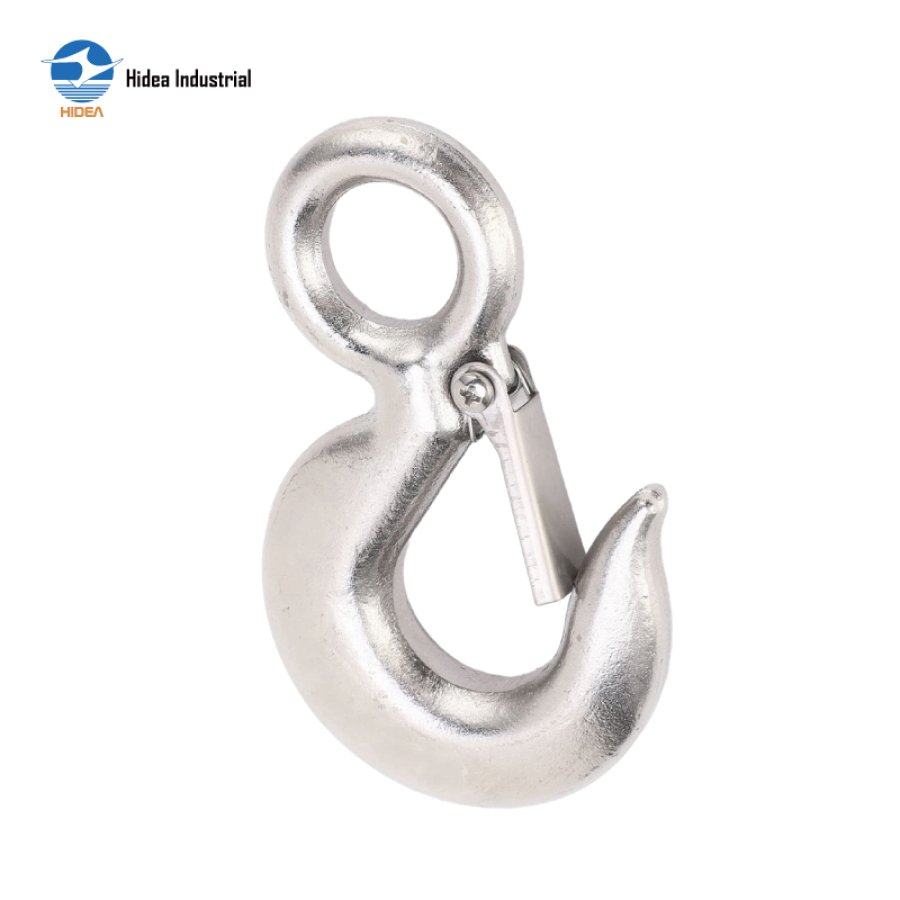

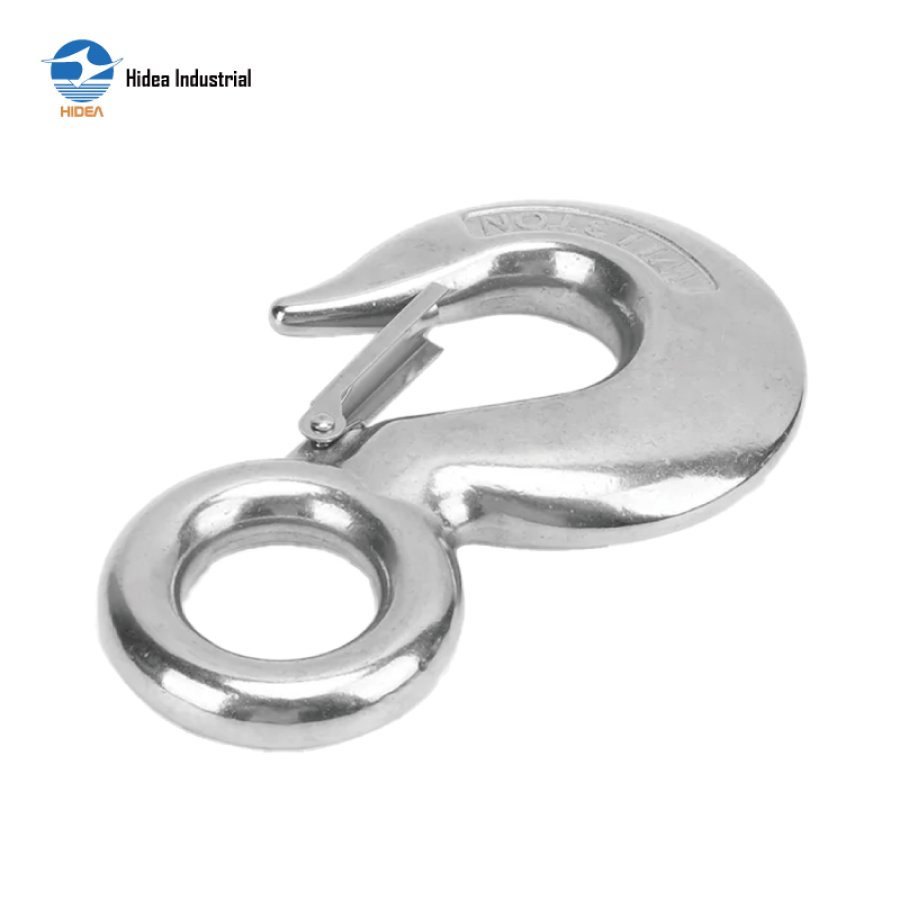

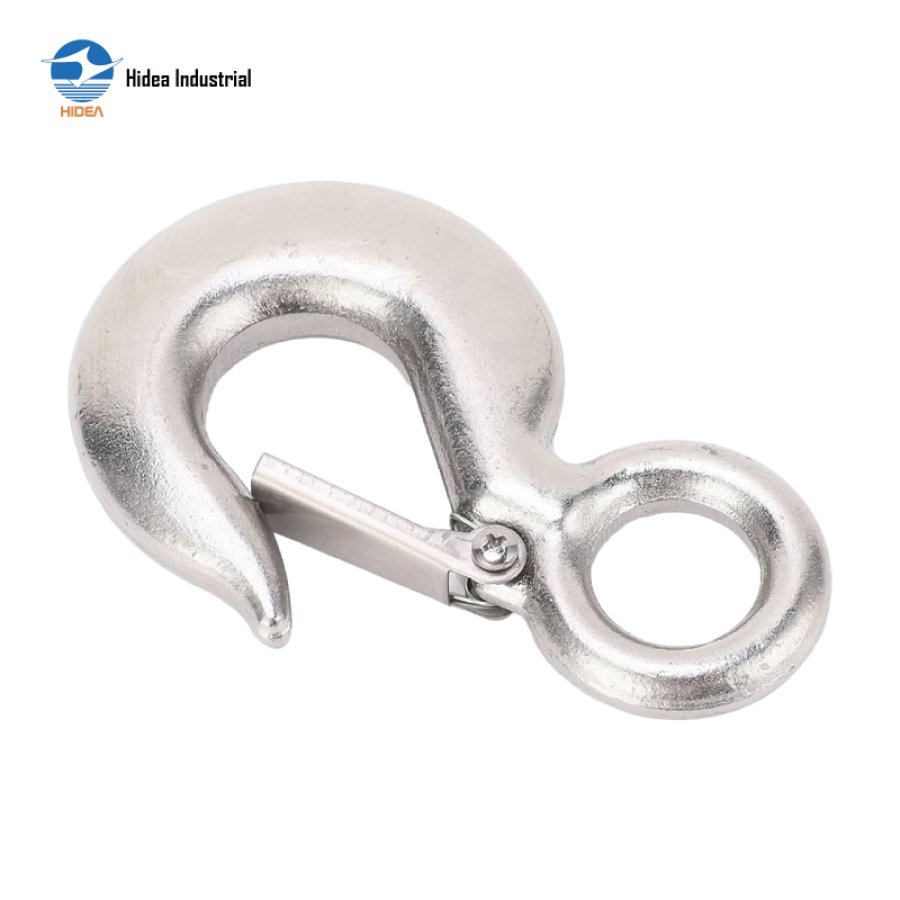

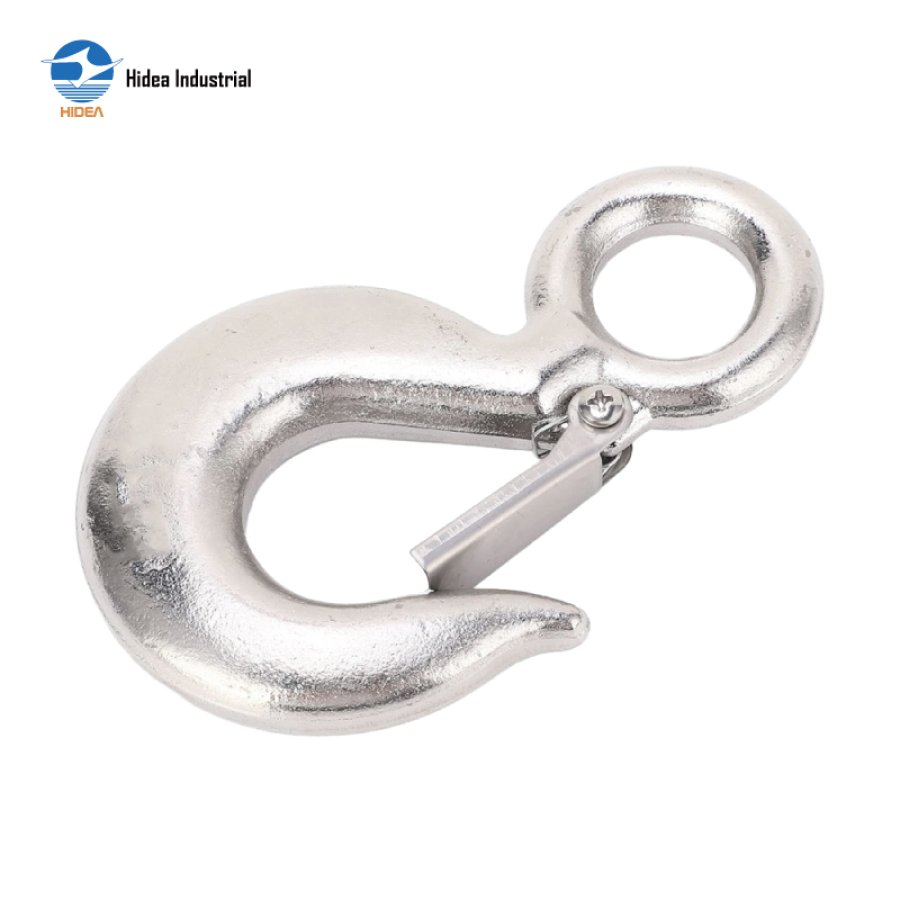

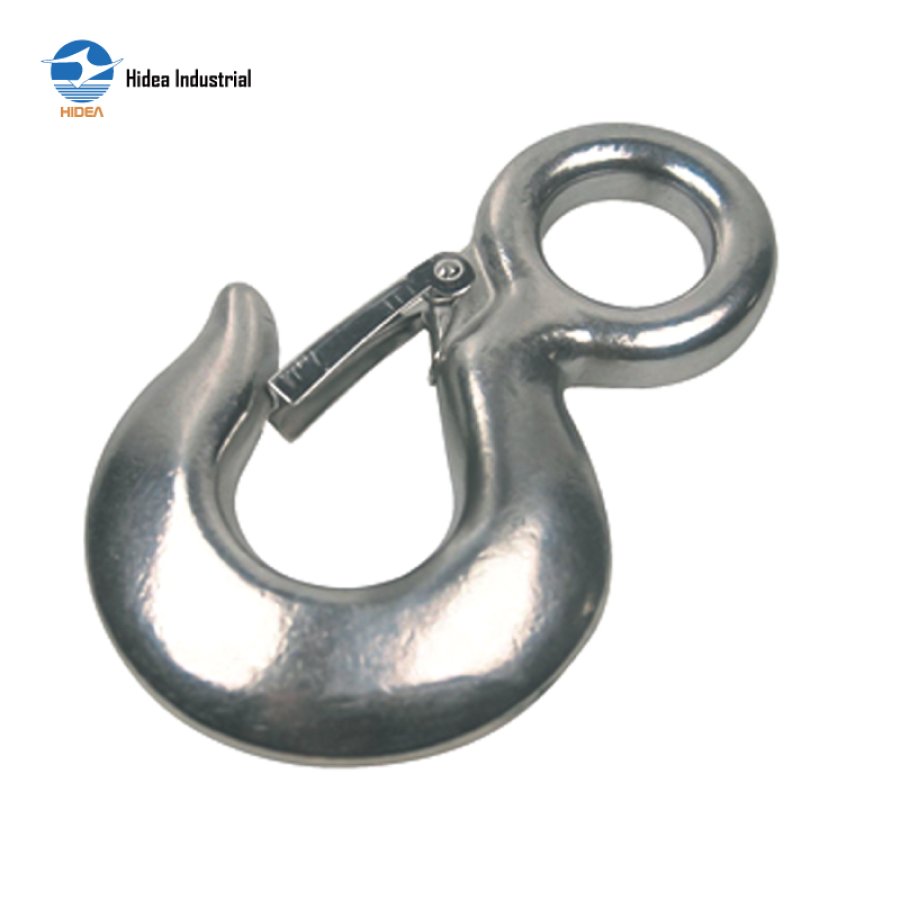

Eye Hook
| SIZE. | Working Load Limit(metric) | DIMENSIONS(in) | Weight (lbs) | ||||||||||
| 320C | 320A | A | B | D E | G | H | K | L R T | O | ||||
| 20RHS165-01 | 3/4 | 1 | 1.47 | 0.75 | 2.880.94 | 0.75 | 0.81 | 0.56 | 4.34 | 3.22 0.81 | 0.88 | 0.55 | |
| 20RHS165-02 | 1 | 1-1/2 | 1.75 | 0.91 | 3.191.03 | 0.84 | 0.94 | 0.62 | 4.94 3.66 0.81 | 0.97 | 0.75 | ||
| 20RHS165-03 | 1-1/2 | 2 | 2.03 | 1.12 | 3.621.06 | 1.00 | 1.16 | 0.75 | 5.56 4.09 0.84 | 1.00 | 1.25 | ||
| 20RHS165-04 | 2 | 3 | 2.41 | 1.25 | 4.091.22 | 1.12 | 1.31 | 0.84 | 6.40 4.69 1.19 | 1.12 | 1.70 | ||
| 20RHS165-05 | 3 | 4-1/2 | 2.94 | 1.56 | 4.941.50 | 1.44 | 1.62 | 1.12 | 7.91 5.75 1.38 | 1.34 | 3.60 | ||
| 20RHS165-06 | 5 | 7 | 3.81 | 2.00 | 6.501.88 | 1.81 | 2.06 | 1.38 | 10.09 7.38 1.78 | 1.69 | 7.08 | ||
| 20RHS165-07 | 7-1/2 | 11 | 4.69 | 2.44 | 7.562.25 | 2.25 | 2.62 | 1.62 | 12.44 9.06 2.12 | 2.06 | 13.00 | ||
