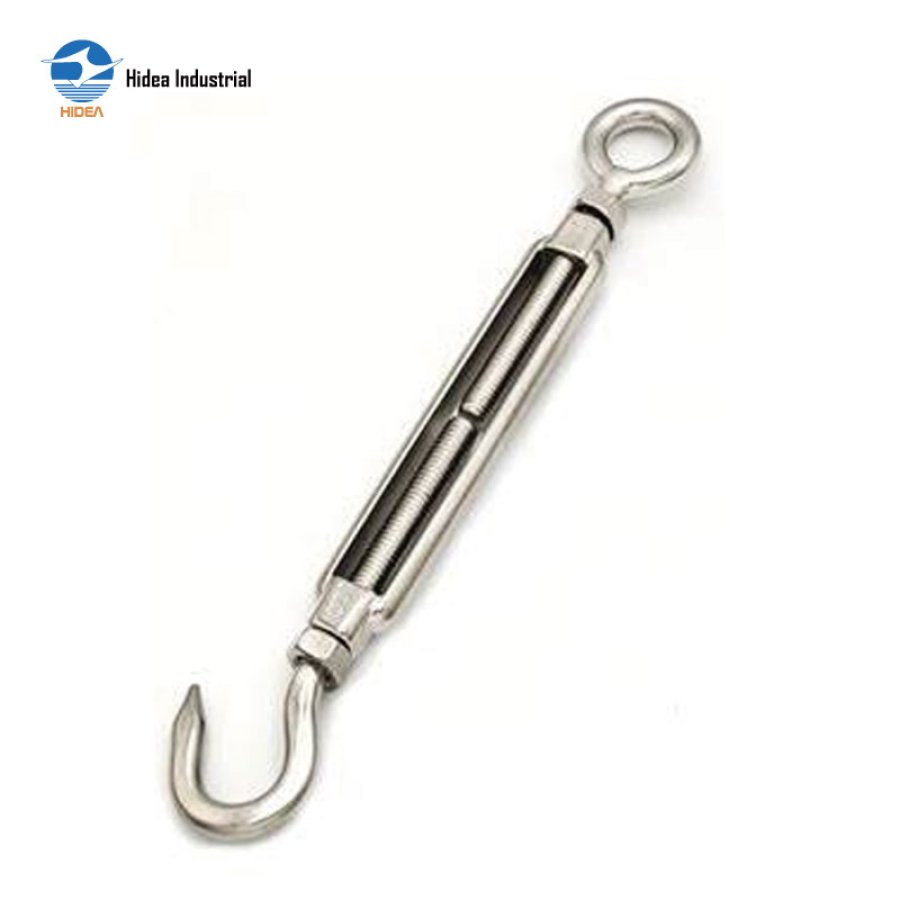

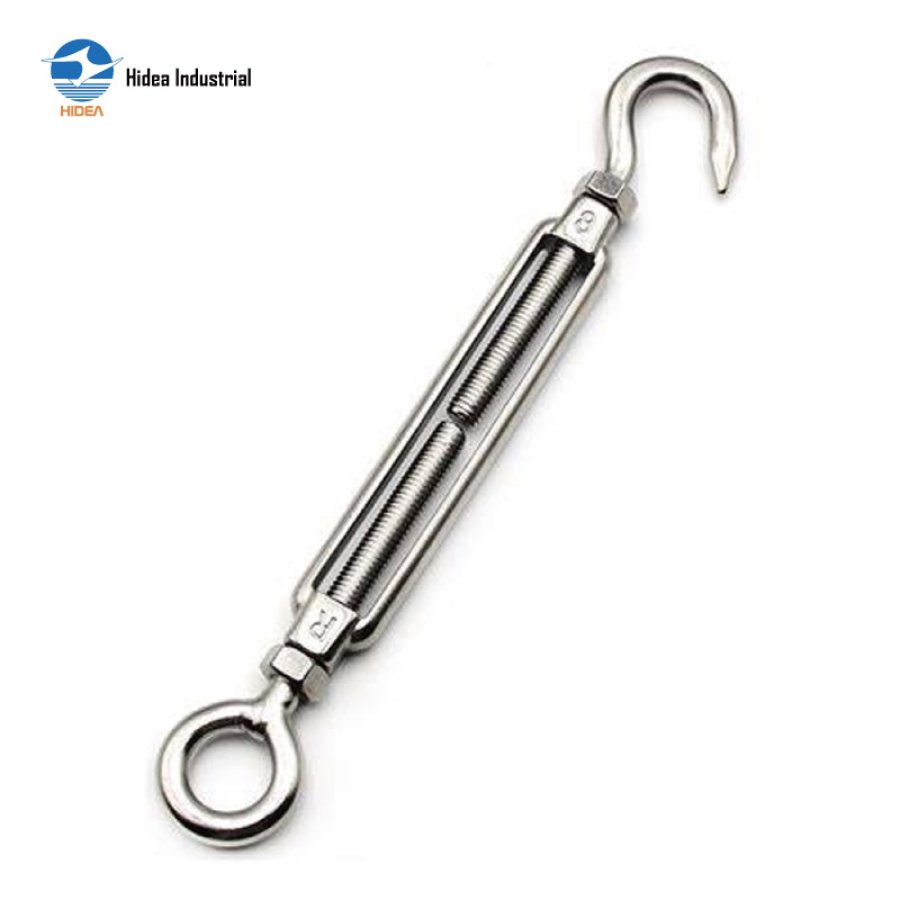

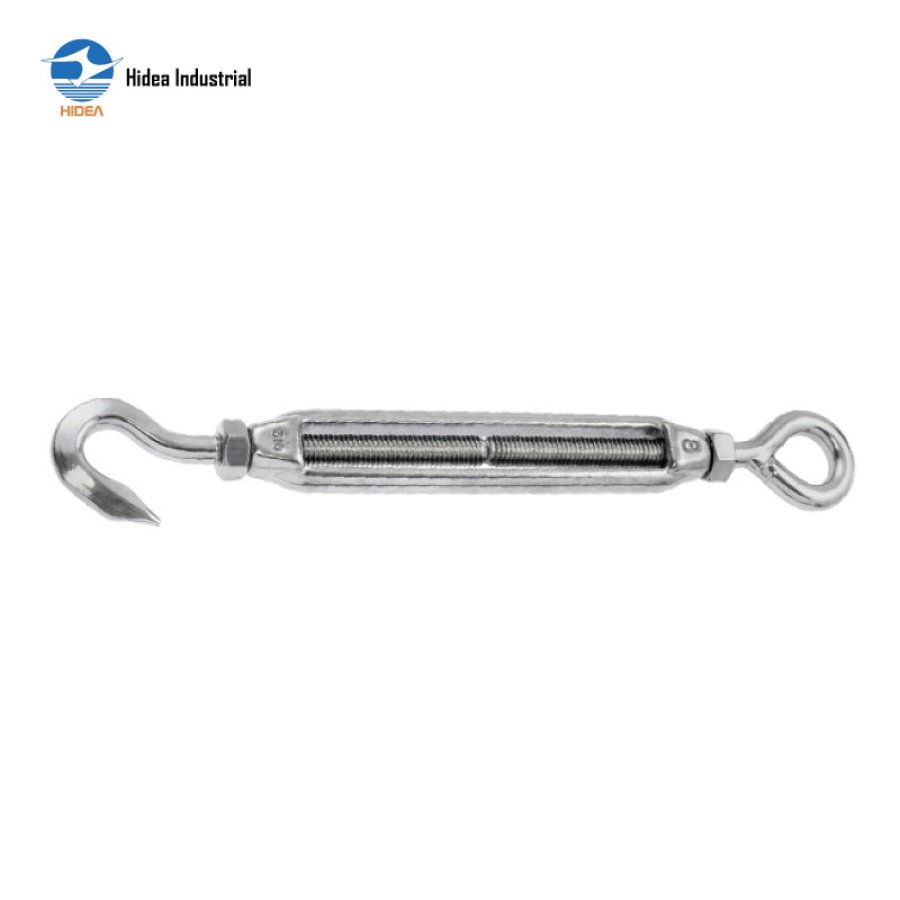

HIDEA Stainless Steel Hook & Eye Turnbuckle – Reliable Solution for Adjusting Loads in Marine and Industrial Applications

EU TYPE TURNBUCKLE (HOOK AND EYE)

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

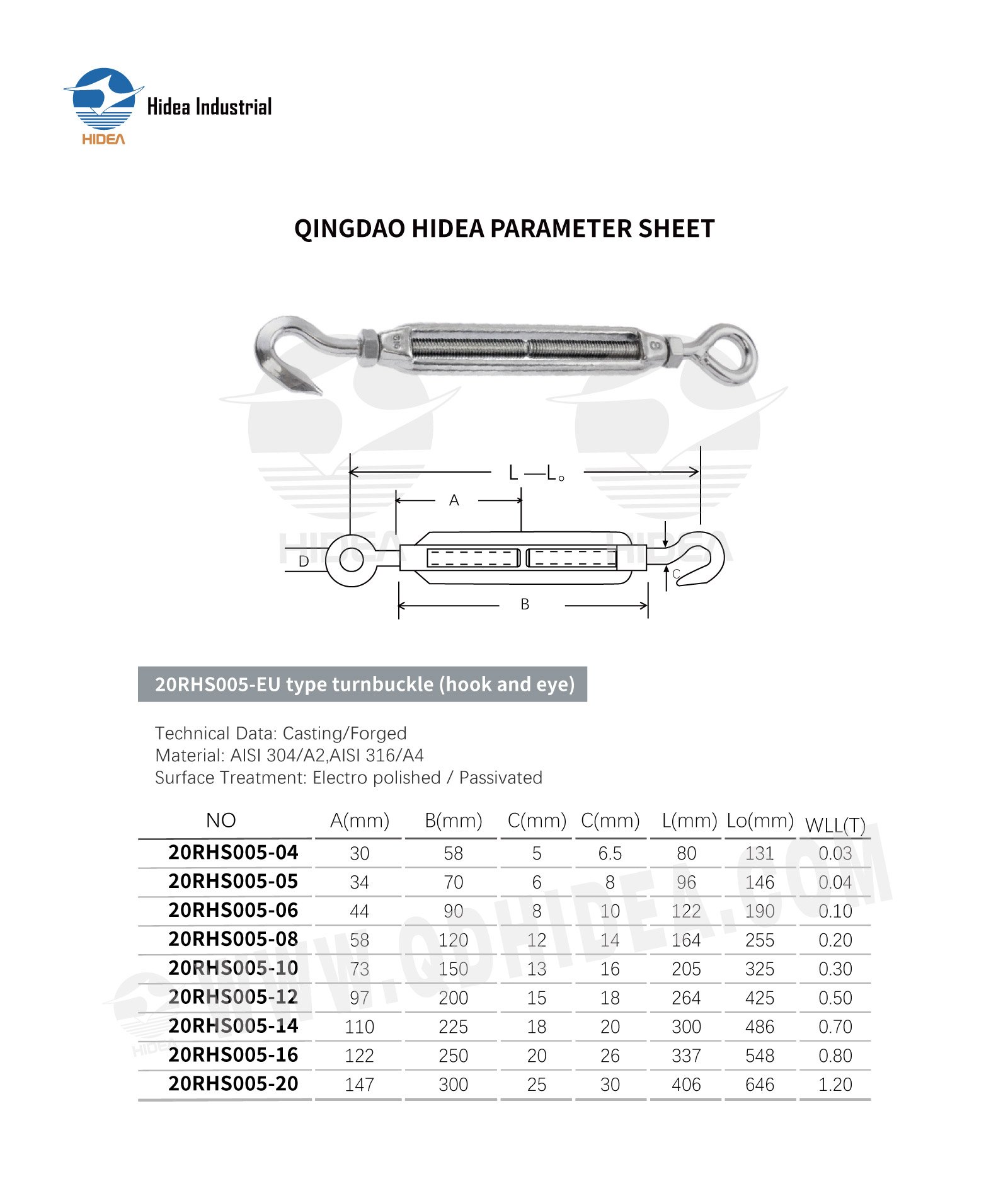

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS005-EU type turnbuckle(hook and eye)

NO	A(mm)	B(mm)	C(mm)	C(mm)	L(mm)	Lo(mm)	WLL(T)
20RHS005-04	30	58	5	6.5	80	131	0.03
20RHSO05-05	34	70	6	8.36	96	146	0.04
20RHSO05-06	44	90	8	10.14	122	190	0.10
20RHSO05-08	58	120	12	11.50	164	255	0.20
20RHS005-10	73	150	13	14.50	205	325	0.30
20RHSO05-12	97	200	15	17.50	264	425	0.50
20RHS005-14	110	225	18	12.80	300	486	0.70
20RHSO05-16	122	250	20	15.80	337	548	0.80
20RHS005-20	147	300	25	18.80	406	646	1.20
