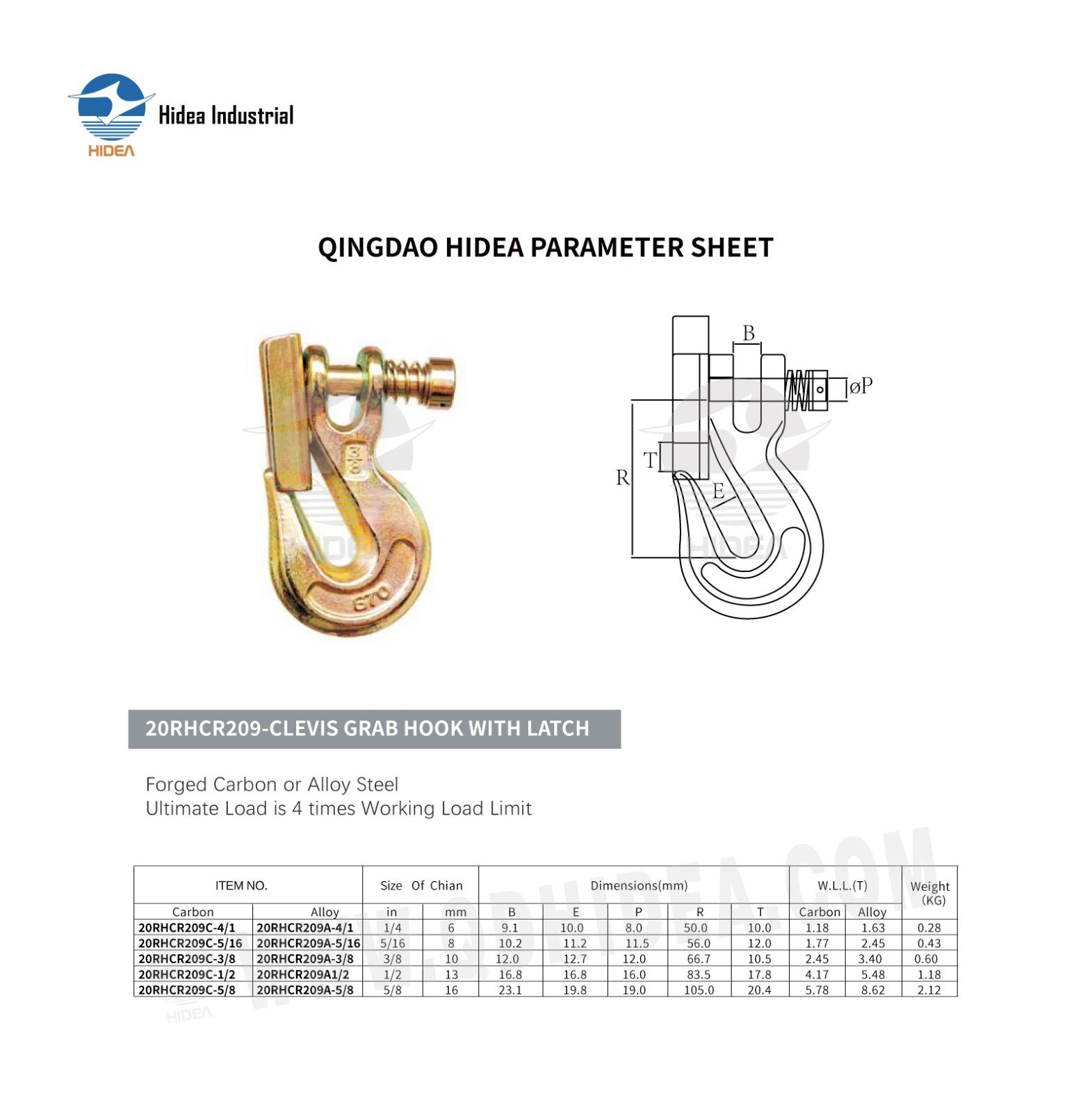

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR209-CLEVIS GRAB HOOK WITH LATCH
| ITEM NO. | Size Of Chian | Dimensions(mm) | W.L.L. (T) | Weight (KG) | ||||||||
| Carbon | Alloy | in | mm | B | E | P | R | T | Carbon | Alloy | ||
| 20RHCR209C-4/1 | 20RHCR209A-4/1 | 1/4 | 6 | 9.1 | 10.0 | 8.0 | 50.0 | 10.0 | 1.18 | 1.63 | 0.28 | |
| 20RHCR209C-5/16 | 20RHCR209A-5/16 | 5/16 | 8 | 10.2 | 11.2 | 11.5 | 56.0 | 12.0 | 1.77 | 2.45 | 0.43 | |
| 20RHCR209C-3/8 | 20RHCR209A-3/8 | 3/8 | 10 | 12.0 | 12.7 | 12.0 | 66.7 | 10.5 | 2.45 | 3.40 | 0.60 | |
| 20RHCR209C-1/2 | 20RHCR209A1/2 | 1/2 | 13 | 16.8 | 16.8 | 16.0 | 83.5 | 17.8 | 4.17 | 5.48 | 1.18 | |
| 20RHCR209C-5/8 | 20RHCR209A-5/8 | 5/8 | 16 | 23.1 | 19.8 | 19.0 | 105.0 | 20.4 | 5.78 | 8.62 | 2.12 | |
