Hidea Malleable Wire Rope Grip – Efficient Metalware for Cable Assembly.

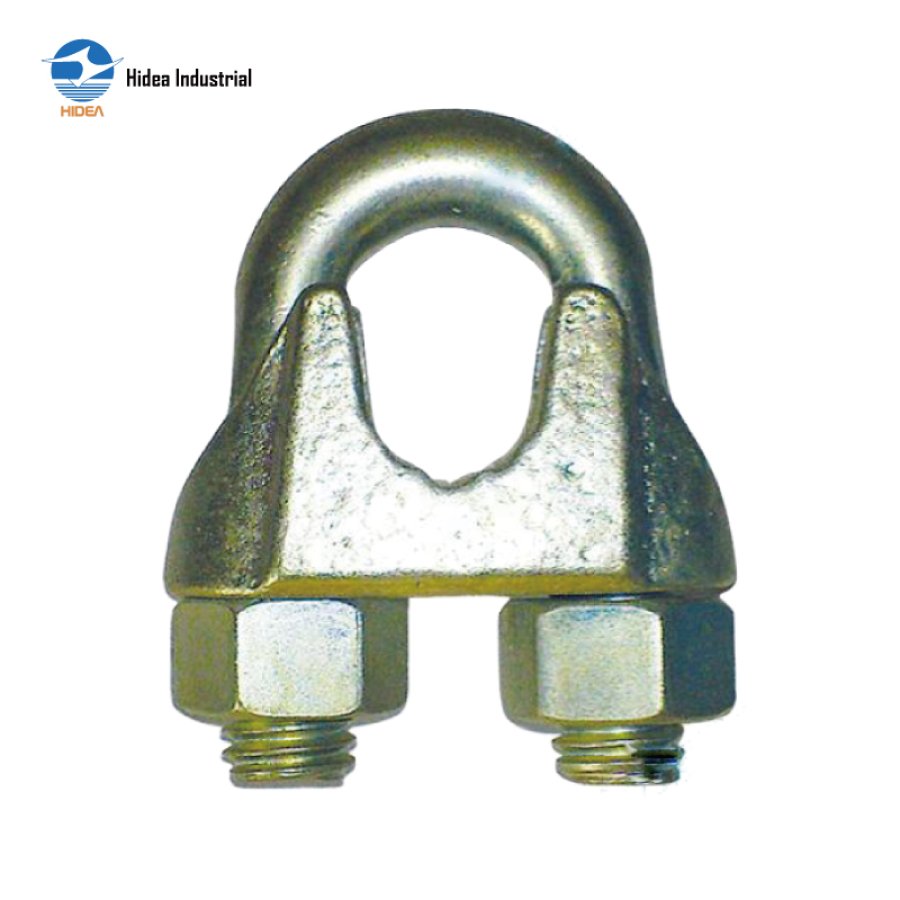

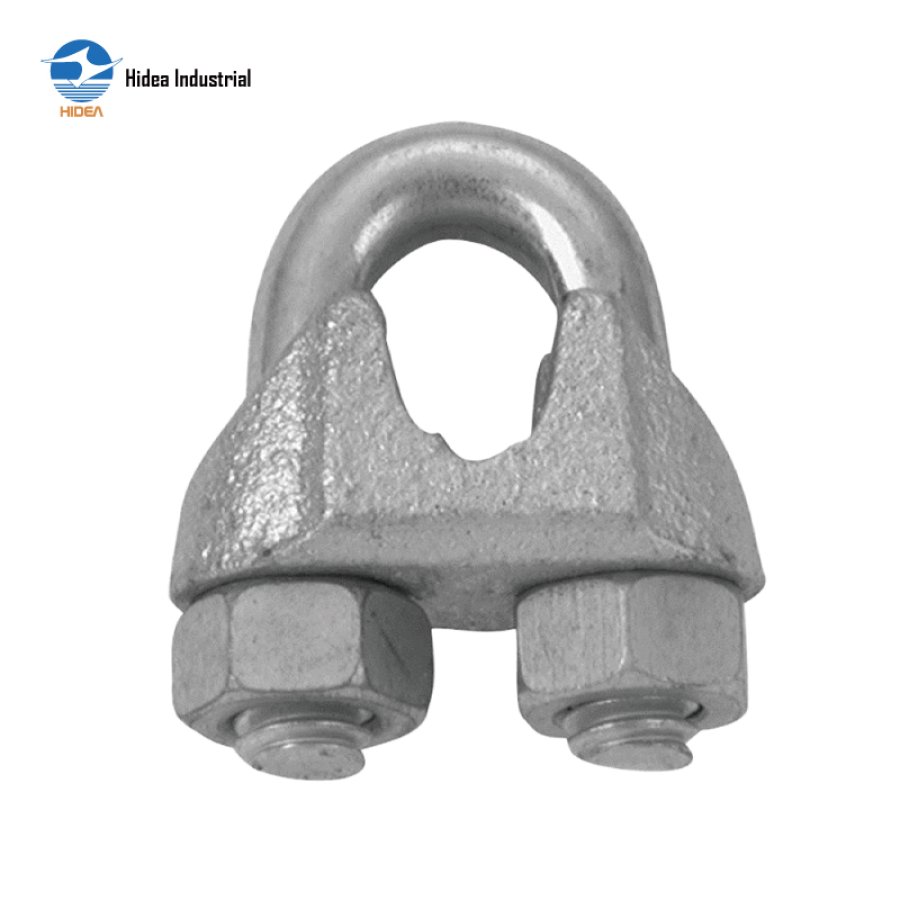

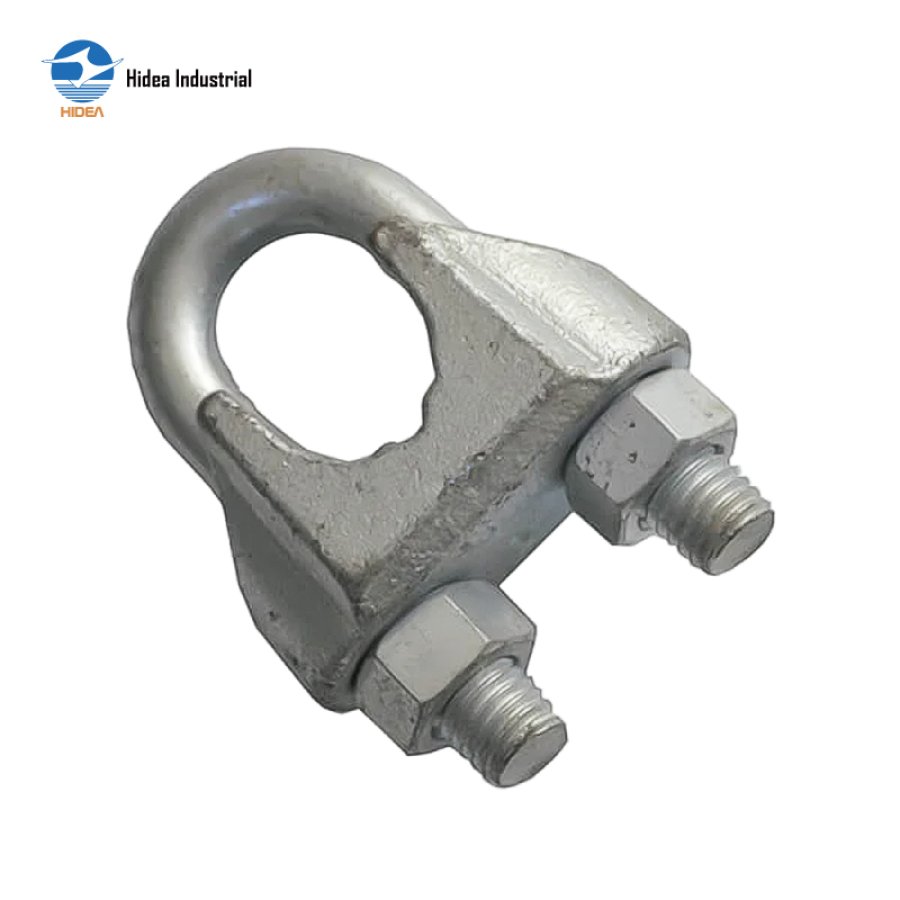

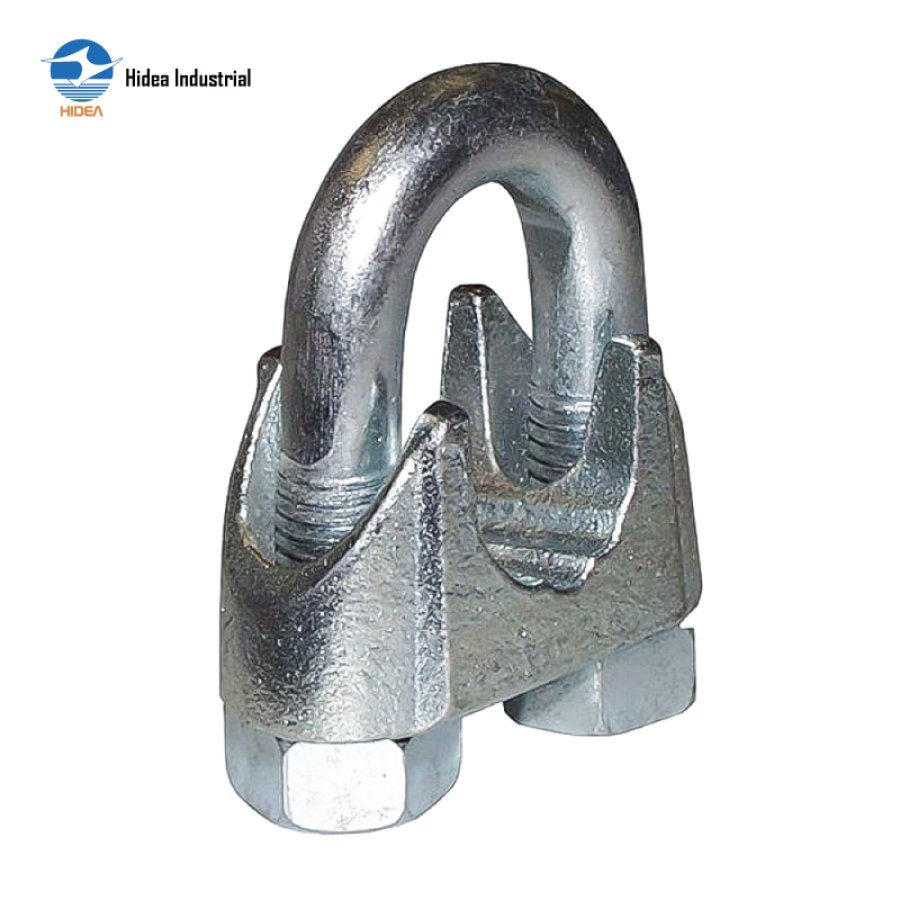

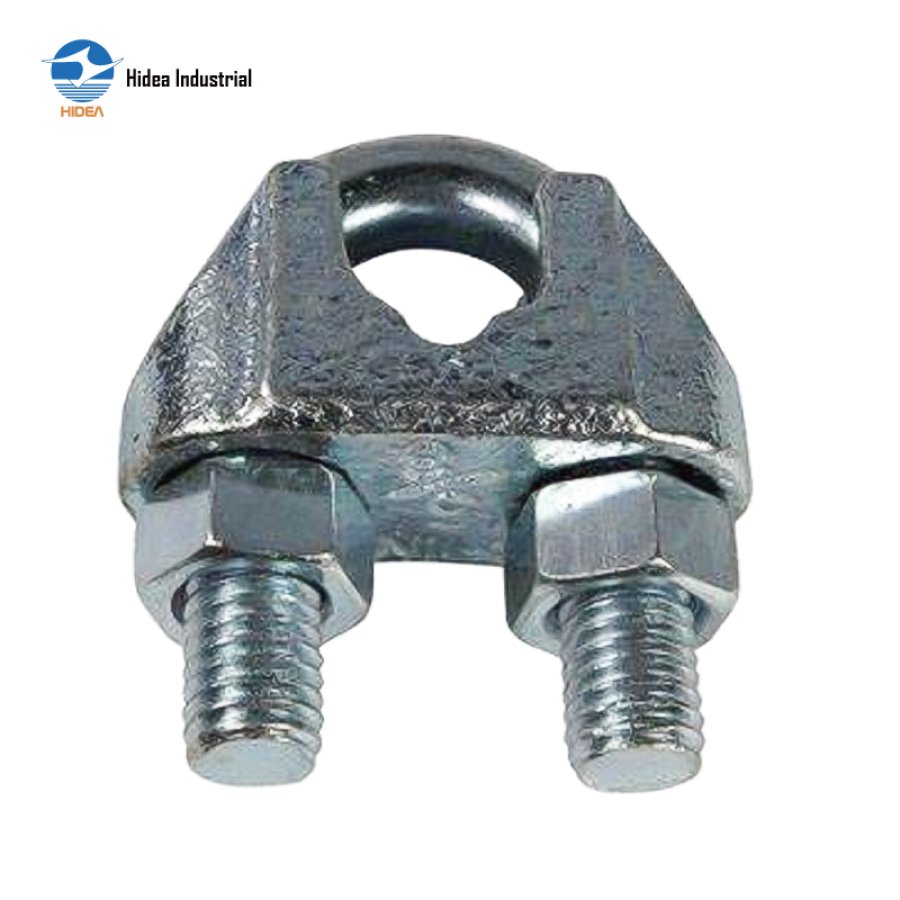

US TYPE GALV MALLEABLE WIRE ROPE CLIPS FF-C-450 TYPE1 CLASS 2

Casted Malleable Steel
Casted,quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Casted Malleable Wire Rope Clip meets FF-C-450, Type 1 Class 2 standards

Inquire Now

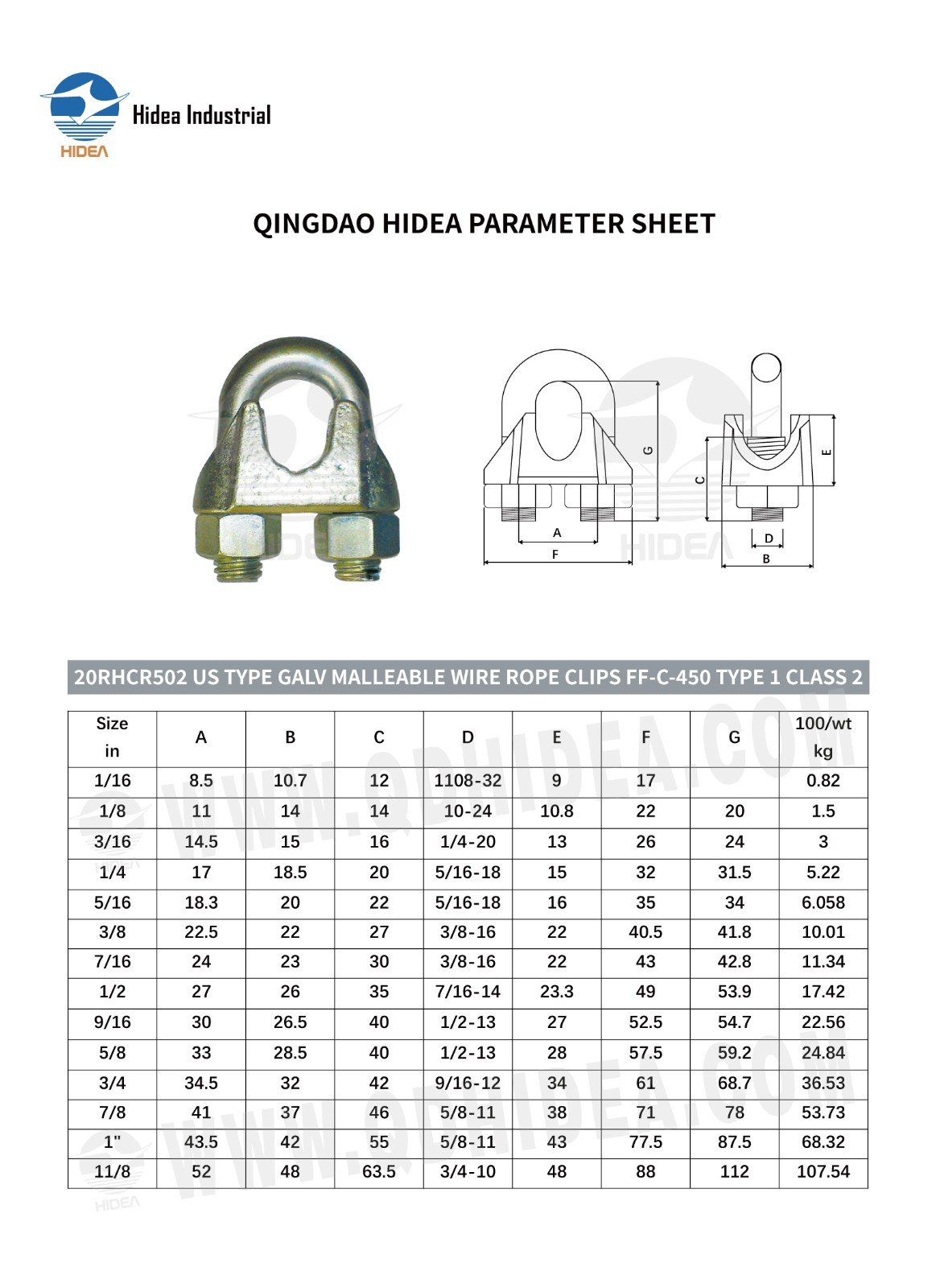

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR502 US TYPE GALV MALLEABLE WIRE ROPE CLIPS FF-C-450 TYPE1CLASS 2

Size in	A	B	C	D	E	F	G	100/wt kg
1/16	8.5	10.7	12	1108-32	9	17		0.82
1/8	11	14	14	10-24	10.8	22	20	1.5
3/16	14.5	15	16	1/4-20	13	26	24	3
1/4	17	18.5	20	5/16-18	15	32	31.5	5.22
5/16	18.3	20	22	5/16-18	16	35	34	6.058
3/8	22.5	22	27	3/8-16	22	40.5	41.8	10.01
7/16	24	23	30	3/8-16	22	43	42.8	11.34
1/2	27	26	35	7/16-14	23.3	49	53.9	17.42
9/16	30	26.5	40	1/2-13	27	52.5	54.7	22.56
5/8	33	28.5	40	1/2-13	28	57.5	59.2	24.84
3/4	34.5	32	42	9/16-12	34	61	68.7	36.53
7/8	41	37	46	5/8-11	38	71	78	53.73
1"	43.5	42	55	5/8-11	43	77.5	87.5	68.32
11/8	52	48	63.5	3/4-10	48	88	112	107.54
