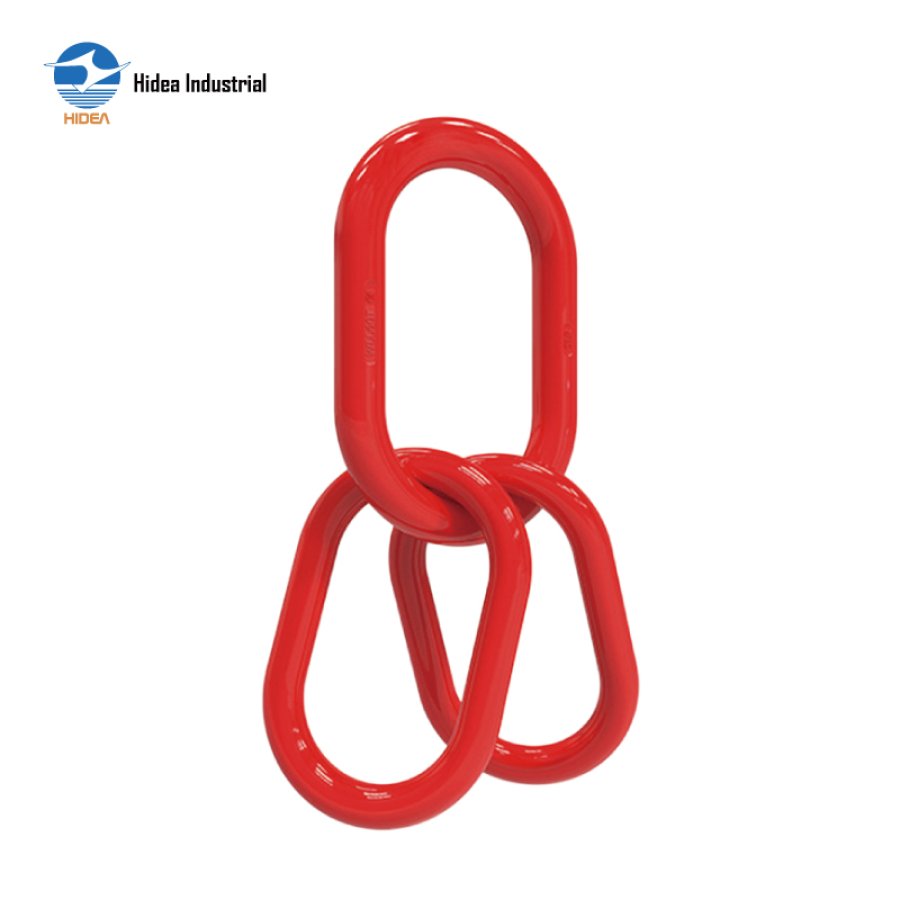

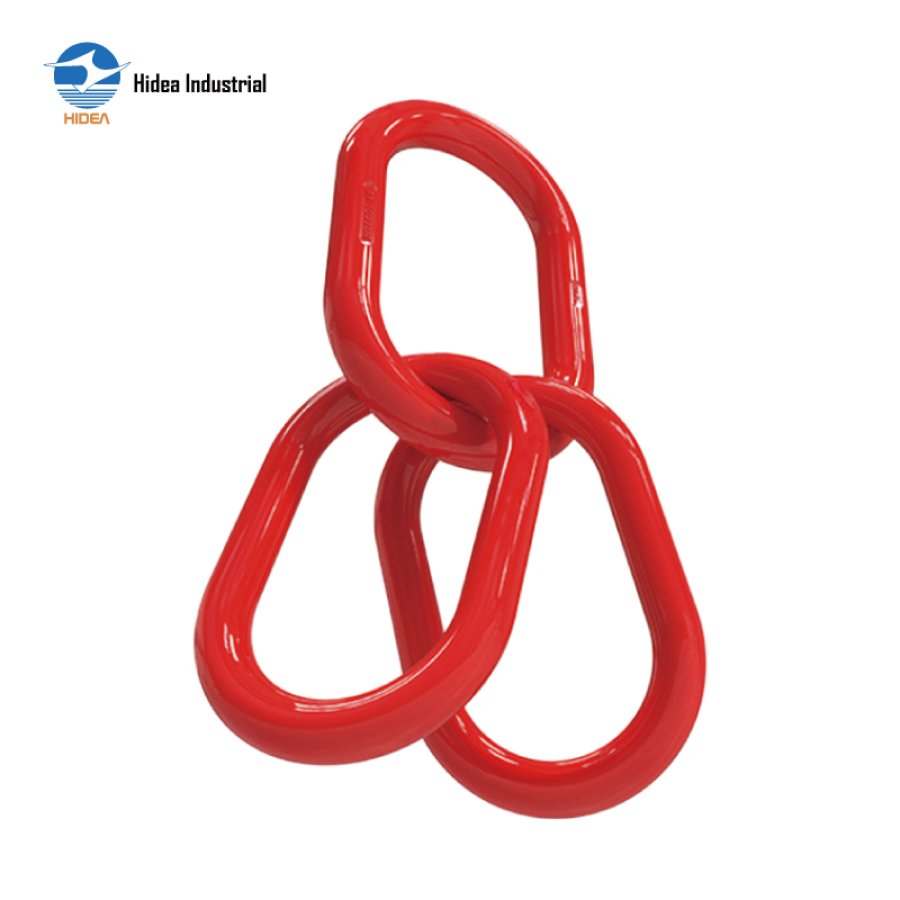

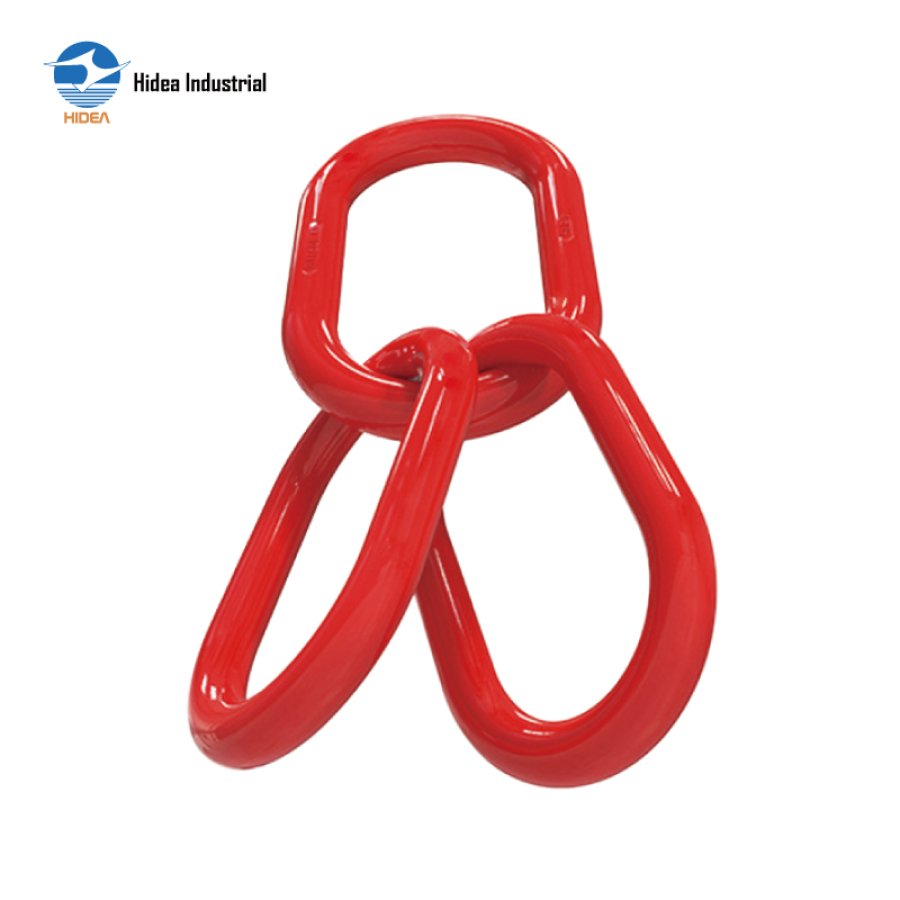

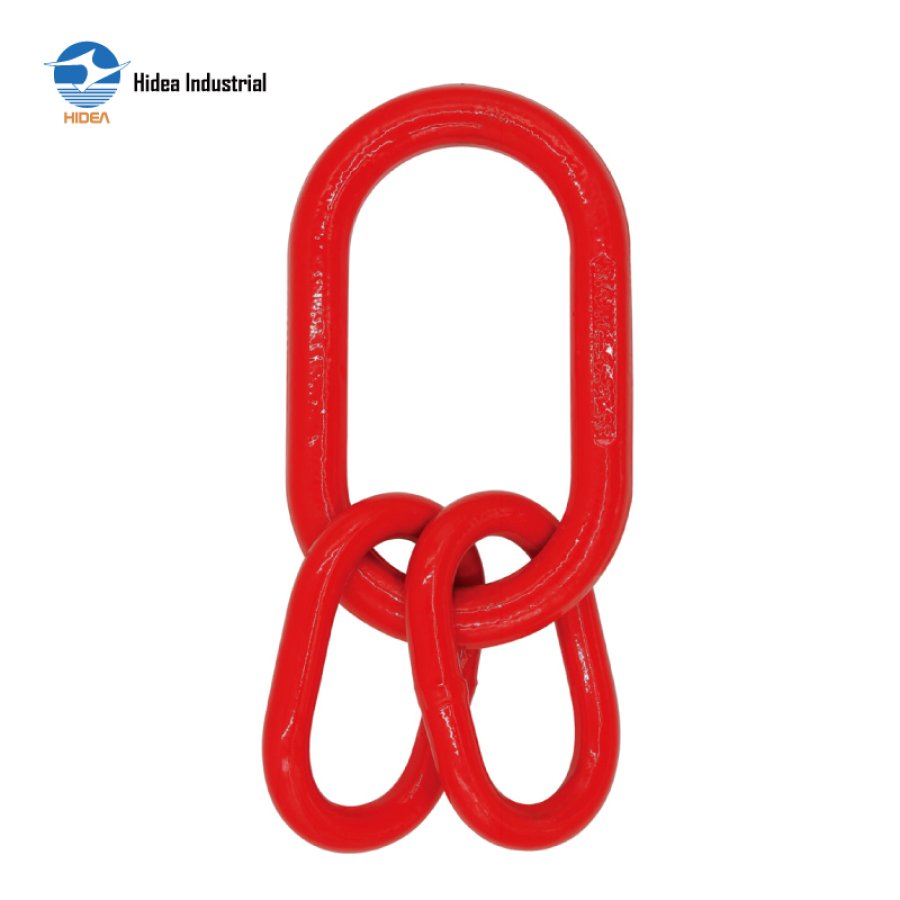

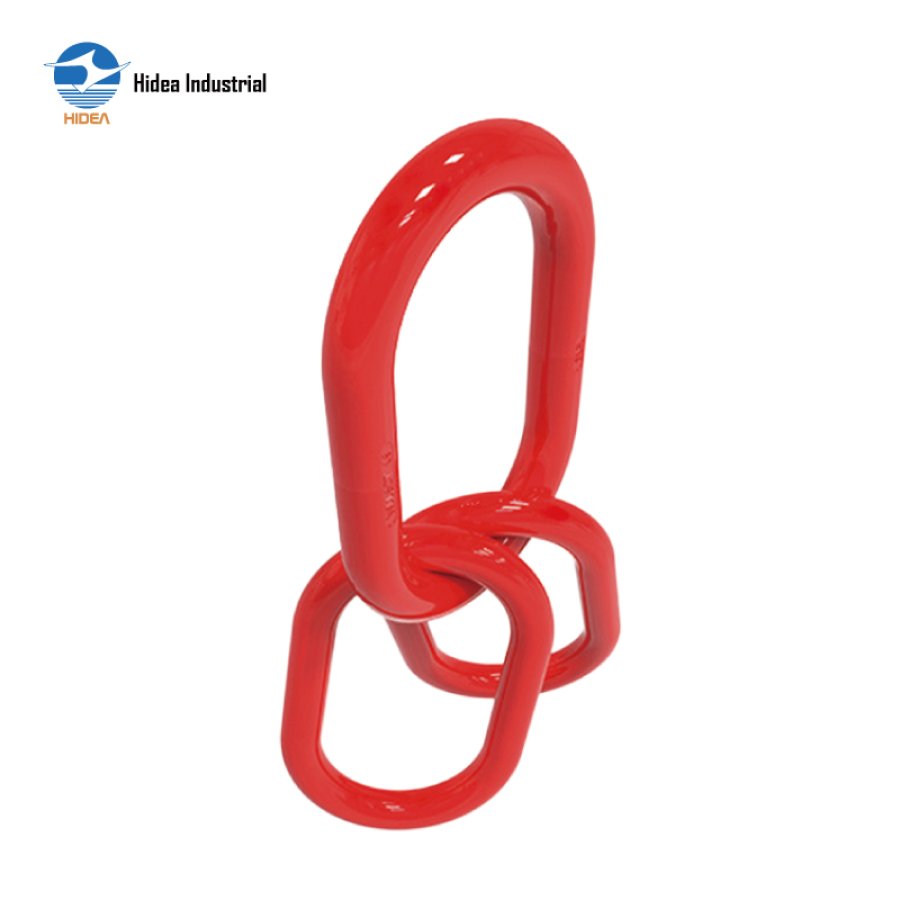

Top-Quality Hidea G80 Master Link Assembly for Wire Rope Slings & Chain Slings

G80 SUPER MASTER LINK ASSEMBLY/Material 20CrMnTi

Made of super alloy steel-Quenched and Tempered
Individually proof test at MPF
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

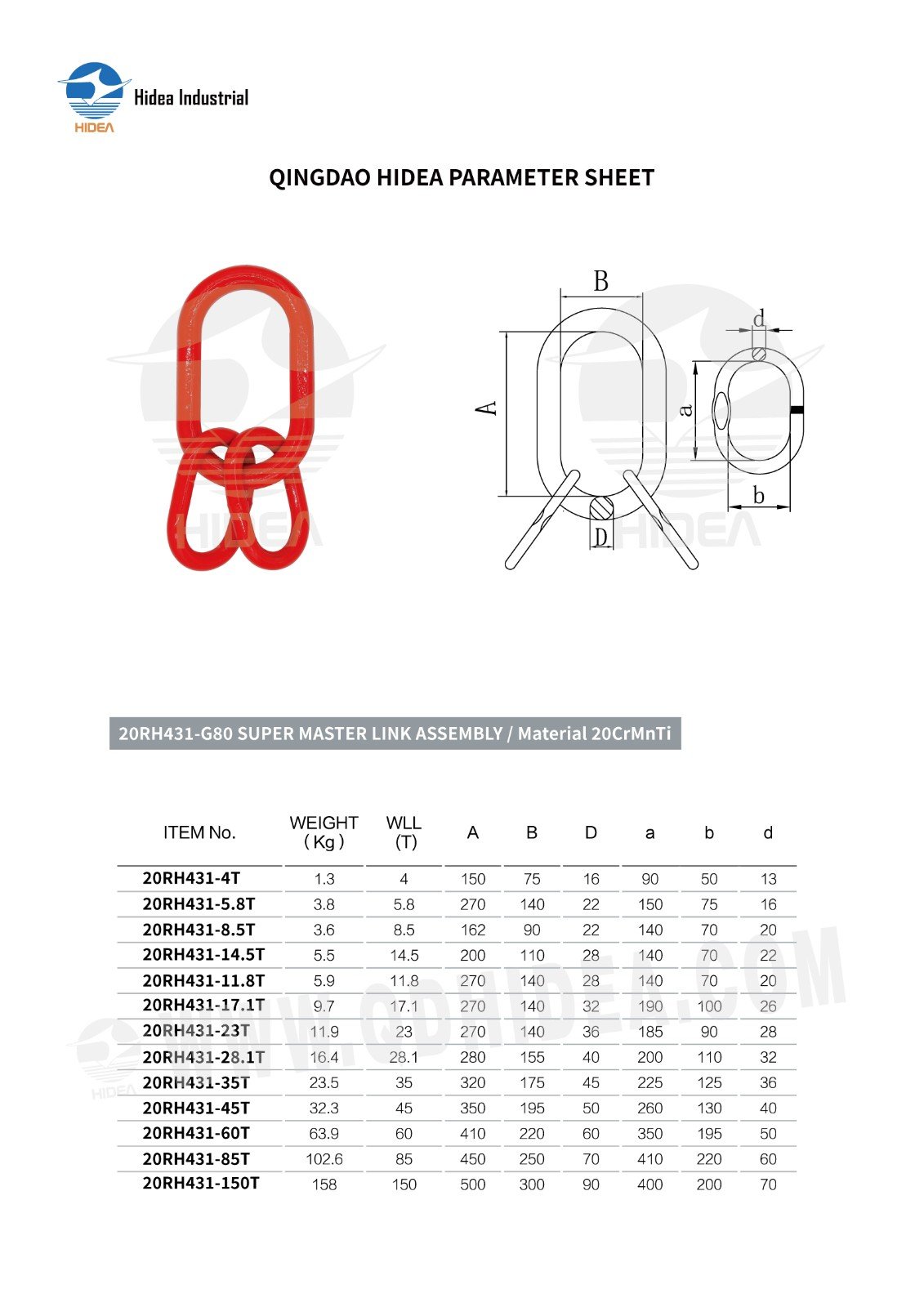

QINGDAO HIDEA PARAMETER SHEET FOR

20RH431-G80 SUPER MASTER LINK ASSEMBLY/Material 20CrMnTi

ITEM No.	WEIGHT (Kg)	WLL (T)	A	B	D	a	b	d
20RH431-4T	1.3	4	150	75	16	90	50	13
20RH431-5.8T	3.8	5.8	270	140	22	150	75	16
20RH431-8.5T	3.6	8.5	162	90	22	140	70	20
20RH431-14.5T	5.5	14.5	200	110	28	140	70	22
20RH431-11.8T	5.9	11.8	270	140	28	140	70	20
20RH431-17.1T	9.7	17.1	270	140	32	190	100	26
20RH431-23T	11.9	23	270	140	36	185	90	28
20RH431-28.1T	16.4	28.1	280	155	40	200	110	32
20RH431-35T	23.5	35	320	175	45	225	125	36
20RH431-45T	32.3	45	350	195	50	260	130	40
20RH431-60T	63.9	60	410	220	60	350	195	50
20RH431-85T	102.6	85	450	250	70	410	220	60
20RH431-150T	158	150	500	300	90	400	200	70
