Heavy-Duty Hidea Grade T8 Lifting Chain for Reliable and Precise Hoisting

GRADE T(8) LOAD CHAIN FOR HOISTS/BLOCKS

Material Super Alloy Steel

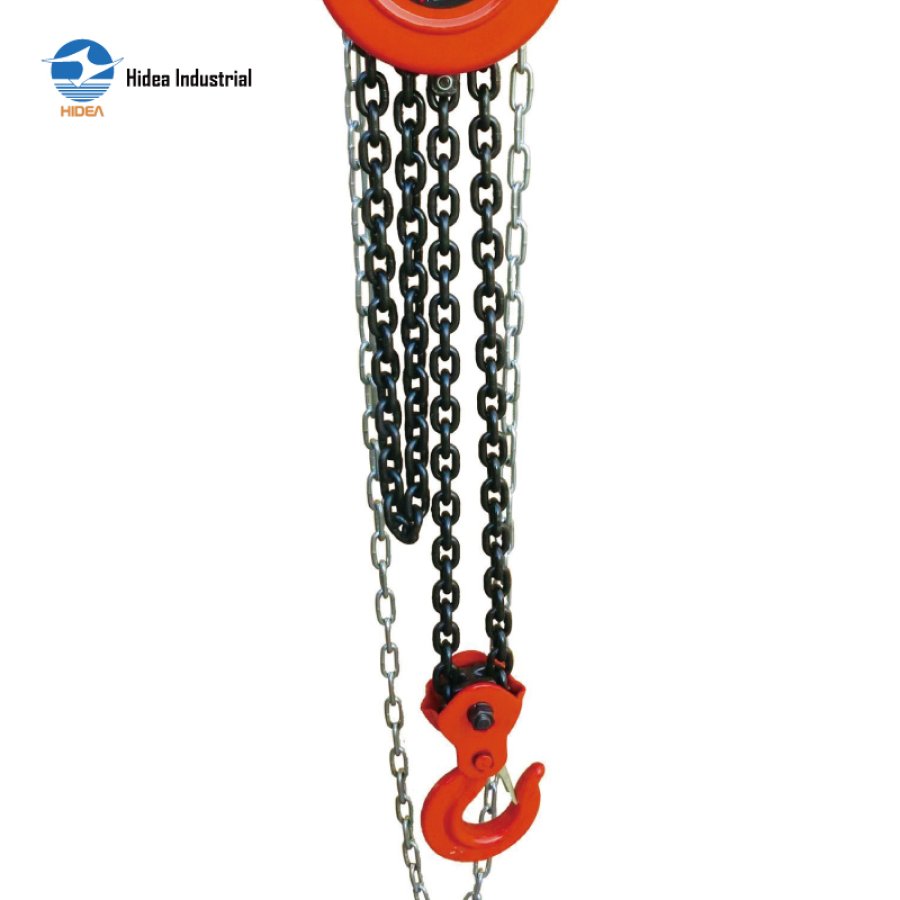

Lifting / Loading Chains for Manual Lever & Chain Hoist / Block
Proof Tested at minimum 2.5 times and ultimate load 4 times of working load

Inquire Now

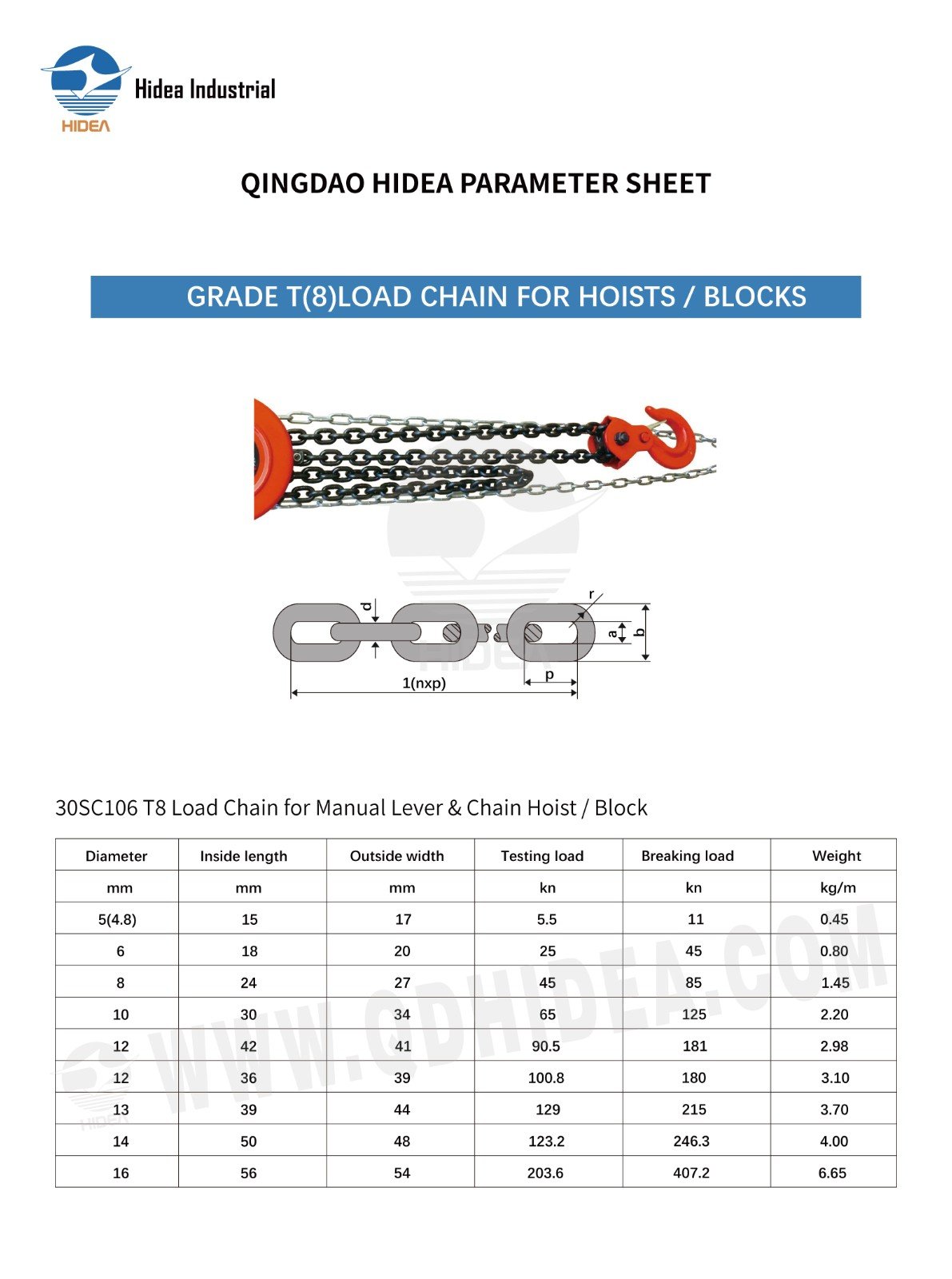

QINGDAO HIDEA PARAMETER SHEET FOR

30SC106 T8 Load Chain for Manual Lever&Chain Hoist/Block

Diameter	Inside length	Outside width	Testing load	Breaking load	Weight
mm	mm	mm	kn	kn	kg/m
5(4.8)	15	17	5.5	11	0.45
6	18	20	25	45	0.80
8	24	27	45	85	1.45
10	30	34	65	125	2.20
12	42	41	90.5	181	2.98
12	36	39	100.8	180	3.10
13	39	44	129	215	3.70
14	50	48	123.2	246.3	4.00
16	56	54	203.6	407.2	6.65
