Raw Material 100% high tenacity and tensile strength polyester yarns of low elongation for slings

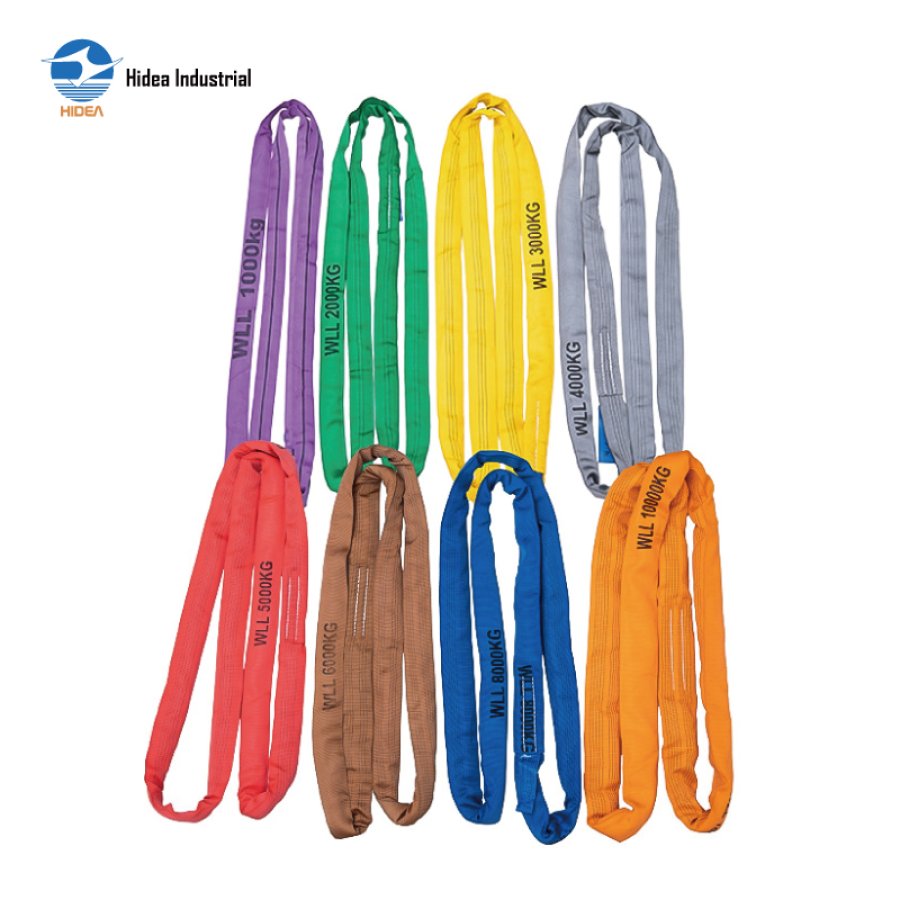

Colors coded and application properties constructed according to standards EN1492-2, also meeting ISO4878, machinery directive 2006/42/EC,ASME B30.9, and compliant with GS, CE safety requirements

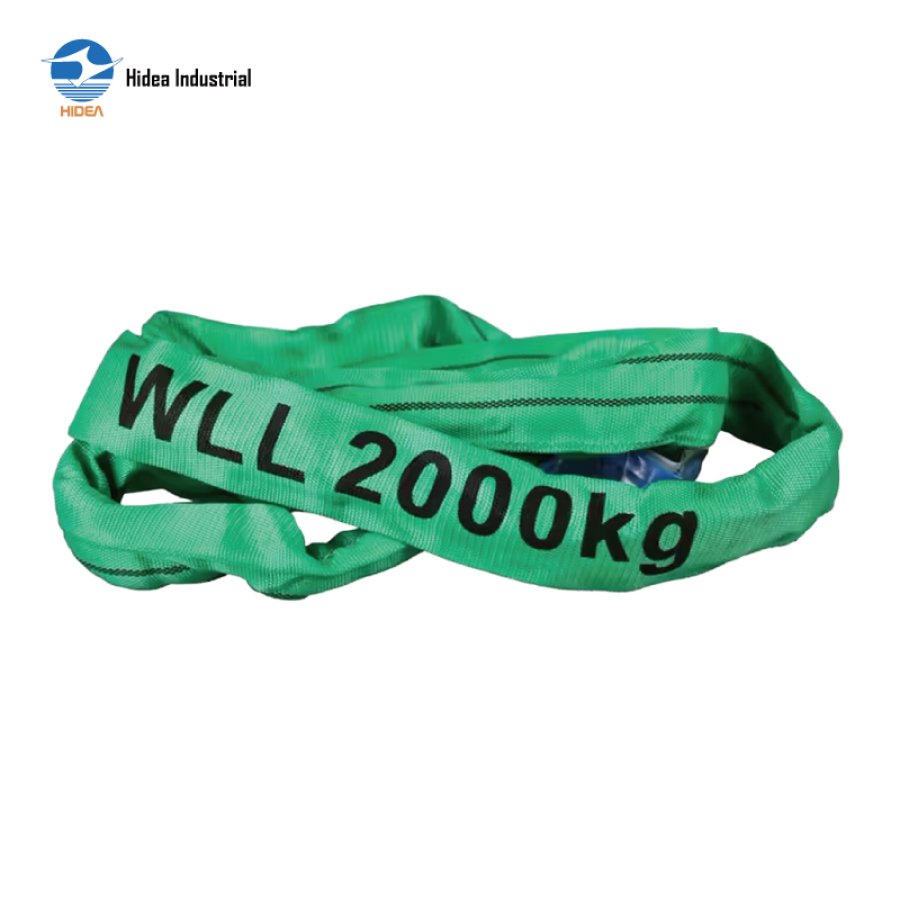

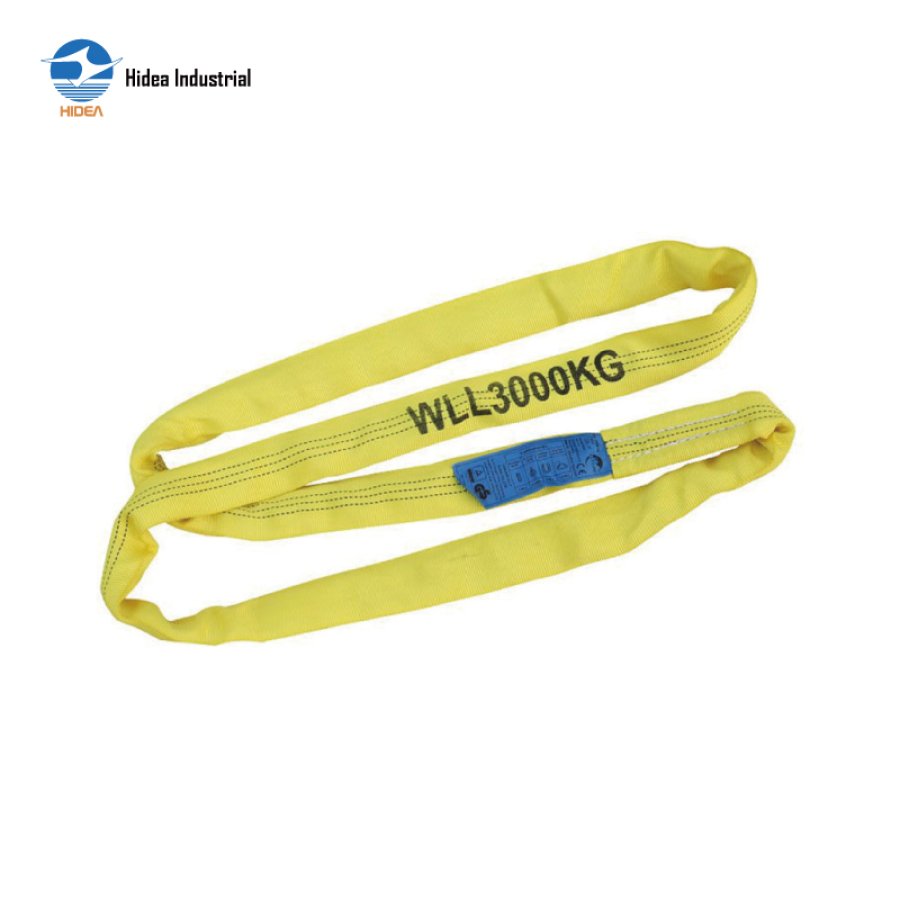

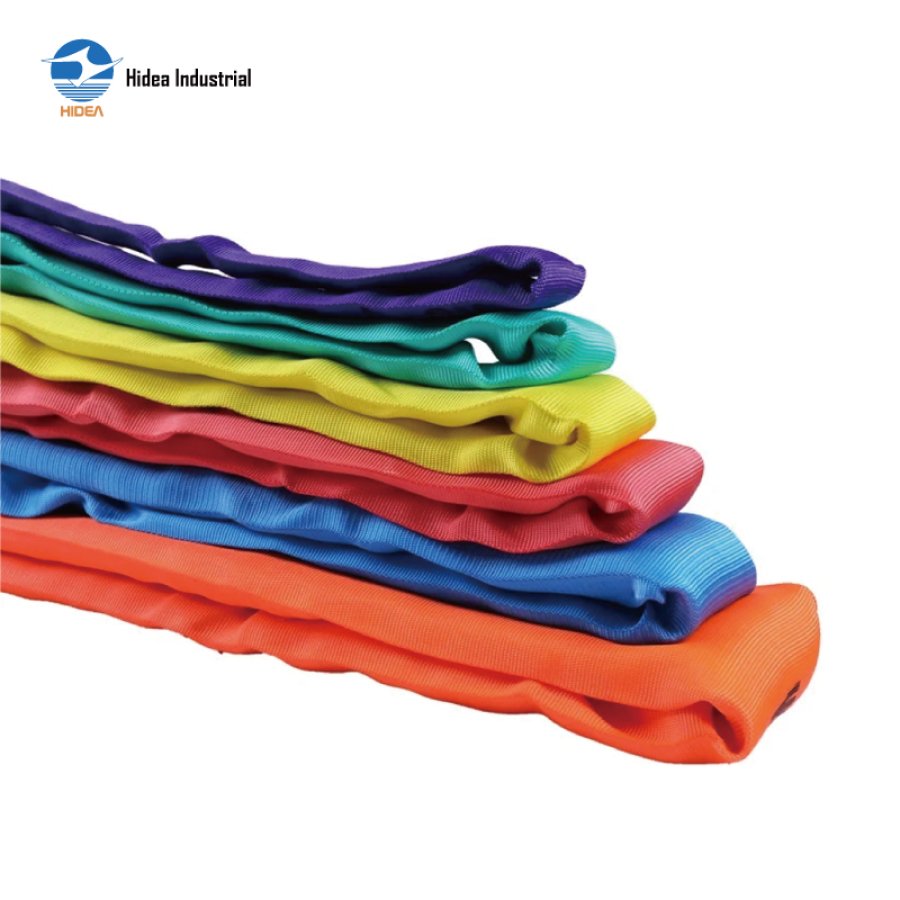

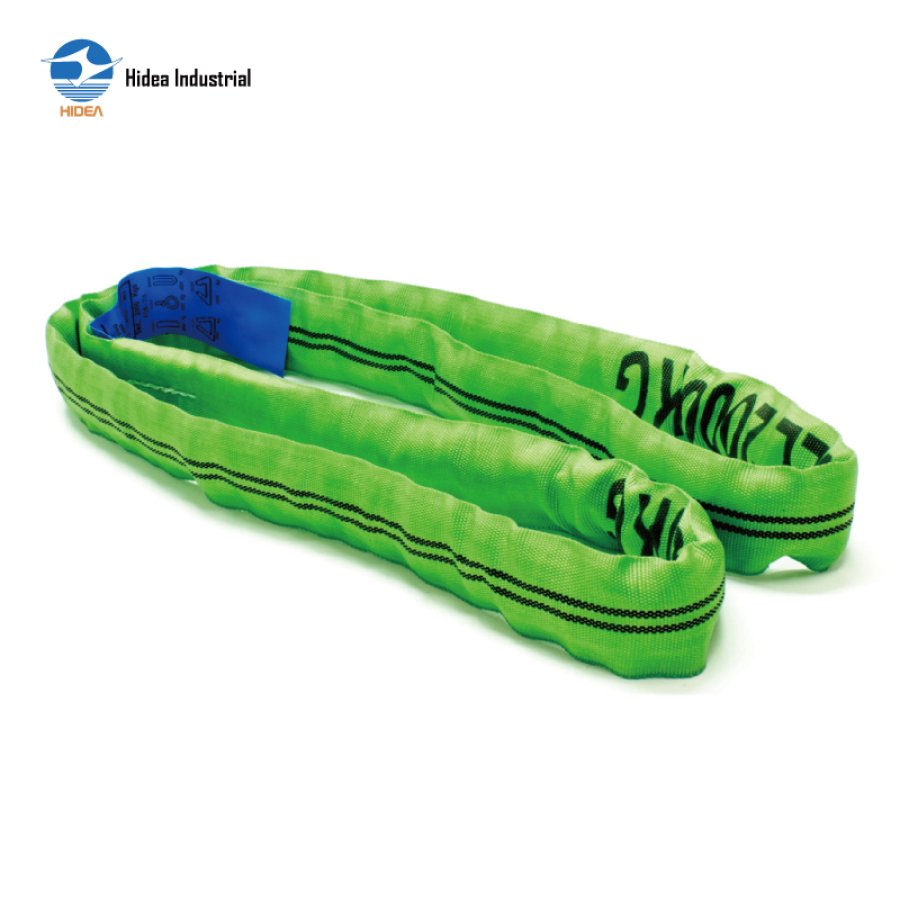

The endless round sling loop makes it a versatile and flexible style of Round Sling, maintaining all the basic webbing slings features plus more safety; the round sling outside constructed with a Woven Heavy Duty Sleeve in coded color for abrasion resistance and well meeting the rated load
Safety Factors 6:1, 7:1 and 8:1 available upon request; clearly marked with WLL and length on surface of sling and a tag with serial number and technical data

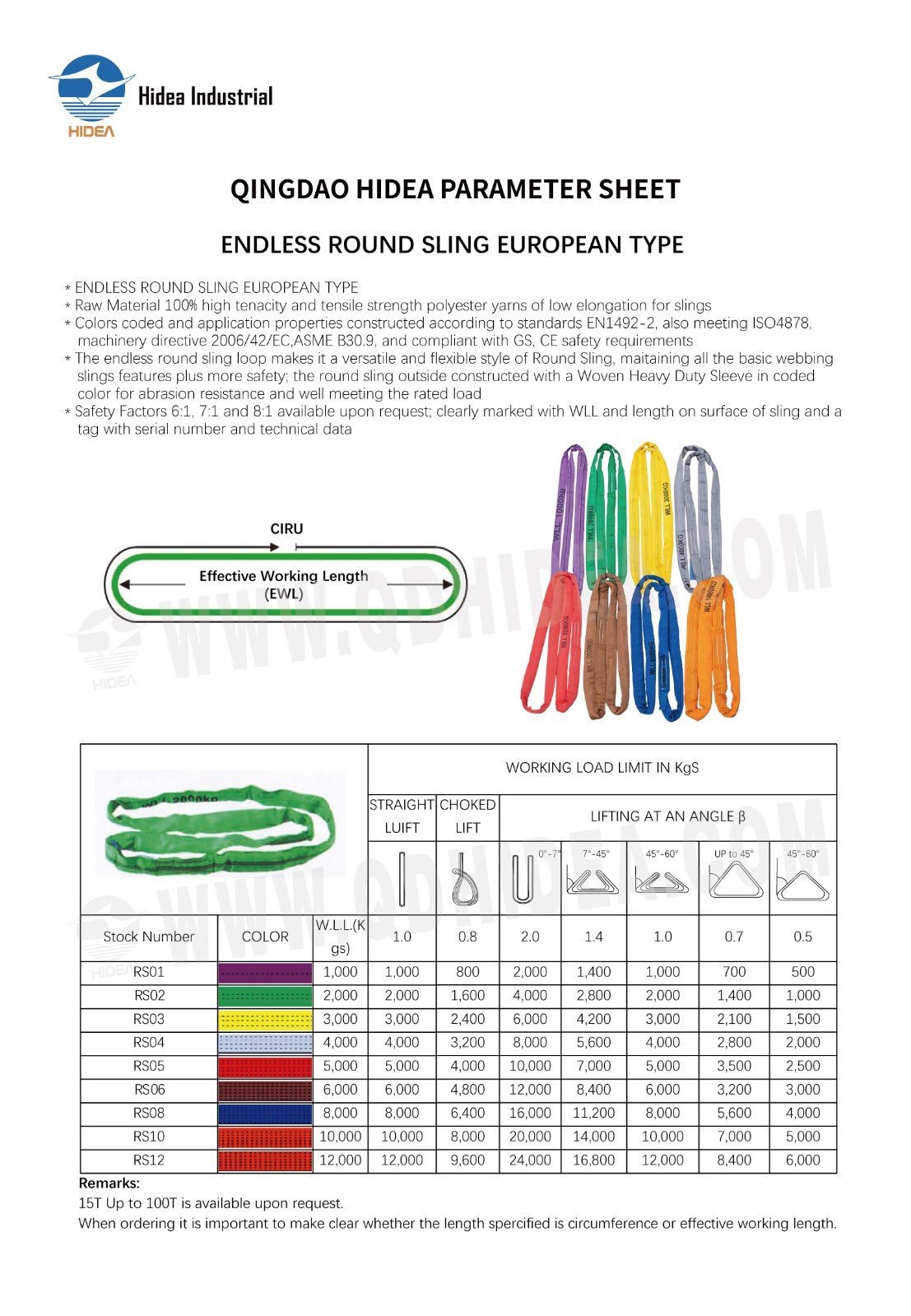

QINGDAO HIDEA PARAMETER SHEET FOR
ENDLESS ROUND SLING EUROPEAN TYPE
| WORKING LOAD LIMIT IN KgS | ||||||||||
| STRAIGHT LUIFT | CHOKED LIFT | LIFTING AT AN ANGLEβ | ||||||||
| 0°-7 | 7°-45° | 45° 60° | UP to 45° | 45° 60° | ||||||
| Stock Number | COLOR | W.L.L.(Kgs) | 1.0 | 0.8 | 2.0 | 1.4 | 10 | 0.7 | 0.5 | |
| RS01 | 1,000 | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 700 | 500 | ||
| RSO2 | 2,000 | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 1,400 | 1,000 | ||
| RSO3 | 3,000 | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 2,100 | 1,500 | ||
| RSO4 | 4,000 | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 2,800 | 2,000 | ||
| RS05 | 5,000 | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 3,500 | 2,500 | ||
| RS06 | 6,000 | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 3,200 | 3,000 | ||
| RS08 | 8,000 | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 5,600 | 4,000 | ||
| RS10 | 10,000 | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 7,000 | 5,000 | ||
| RS12 | 12,000 | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 8,400 | 6,000 | ||
