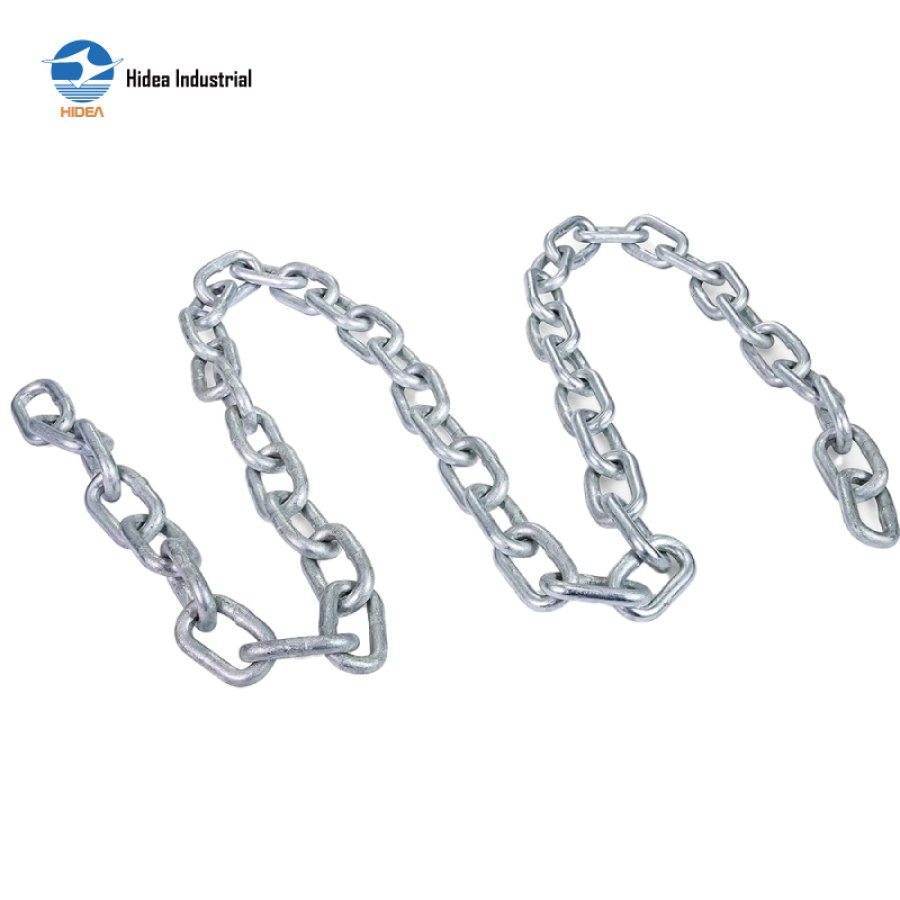

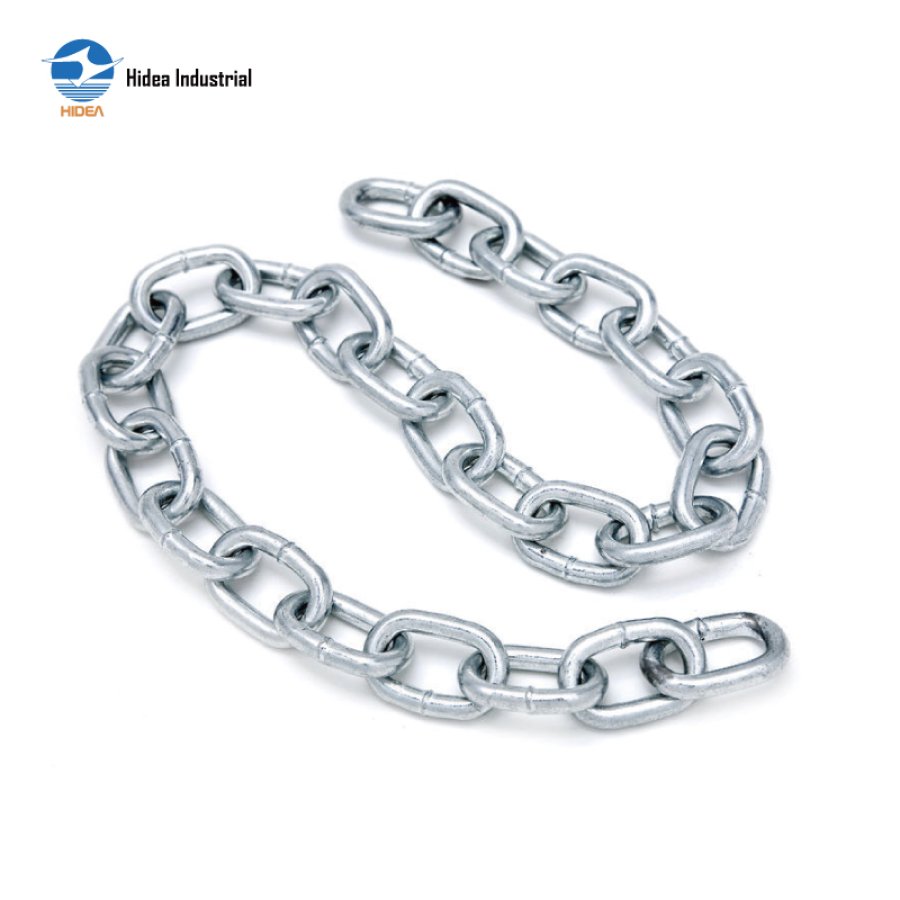

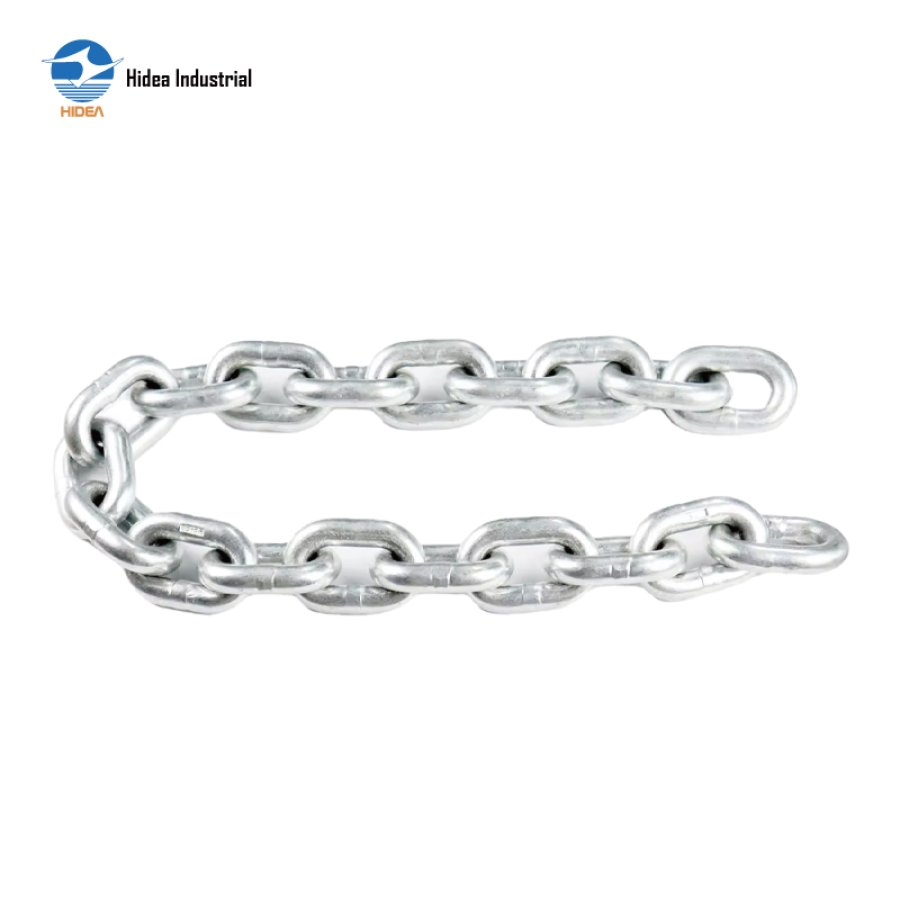

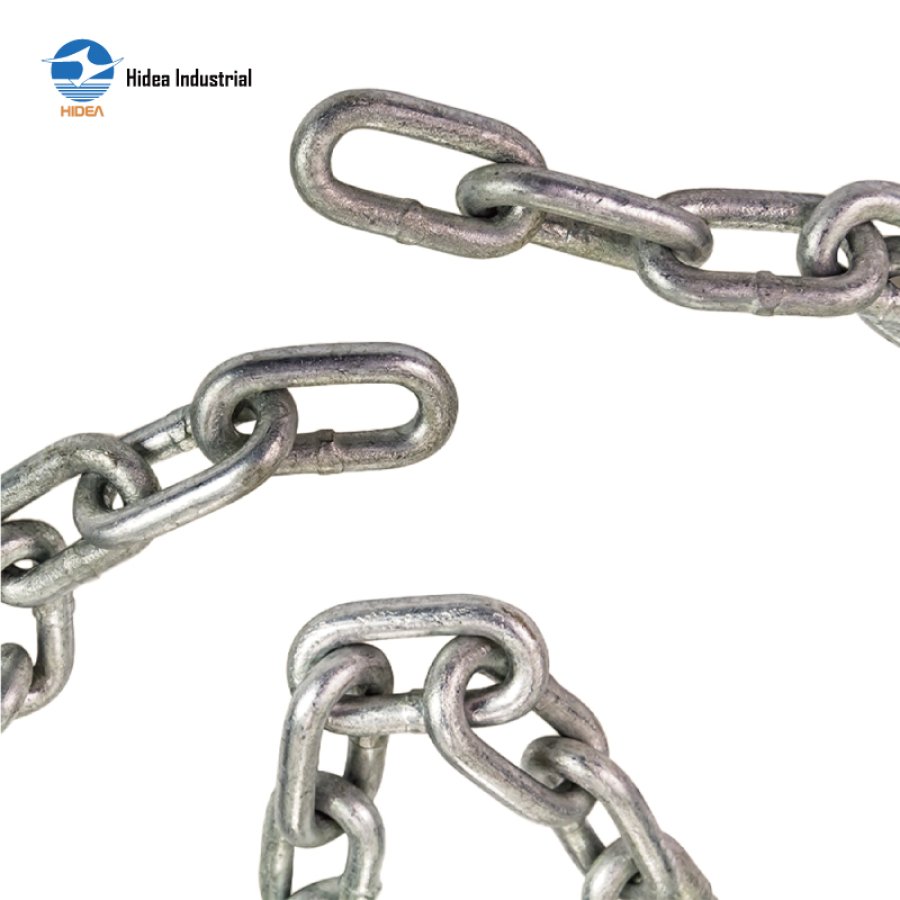

HIDEA Ordinary Short Link Chain – Premium Mild Steel Chains for Indoor & Outdoor Use

ORDINARY MILD STEEL SHORT LINK CHAIN BRITISH TYPE

Material: Carbon Steel Mild Steel
Surface Treatment: Electro OR Hot Dip galvanized, Blackened or as requested
Ordinary Mild Steel Short Link Chain British Type

Inquire Now

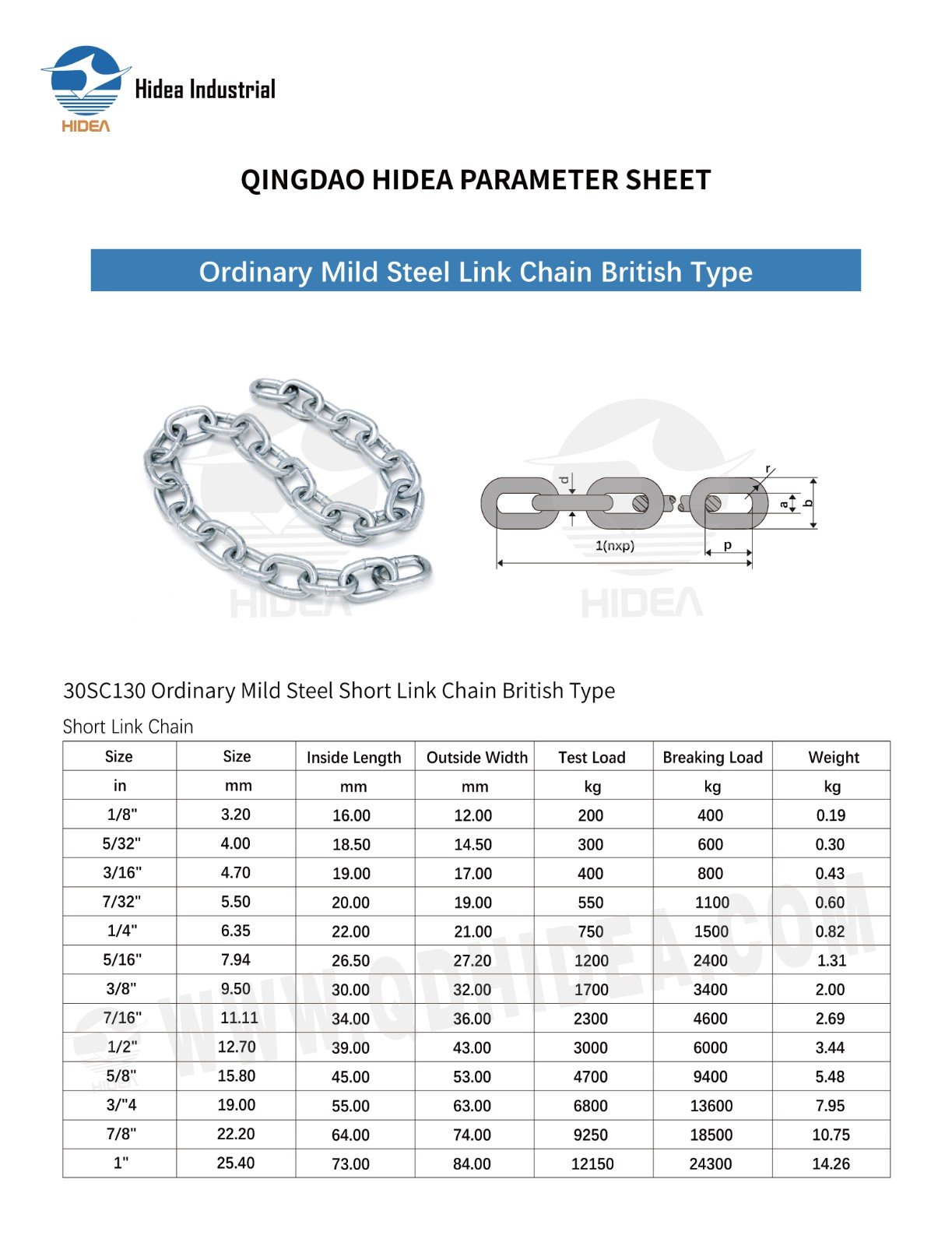

QINGDAO HIDEA PARAMETER SHEET FOR

30SC130 Ordinary Mild Steel Short Link Chain British Type

Size	Size	Inside Length	Outside Width	Test Load	Breaking Load	Weight
in	mm	mm	mm	kg	kg	kg
1/8"	3.20	16.00	12.00	200	400	0.19
5/32"	4.00	18.50	14.50	300	600	0.30
3/16"	4.70	19.00	17.00	400	800	0.43
7/32"	5.50	20.00	19.00	550	1100	0.60
1/4"	6.35	22.00	21.00	750	1500	0.82
5/16"	7.94	26.50	27.20	1200	2400	1.31
3/8"	9.50	30.00	32.00	1700	3400	2.00
7/16"	11.11	34.00	36.00	2300	4600	2.69
1/2"	12.70	39.00	43.00	3000	6000	3.44
5/8"	15.80	45.00	53.00	4700	9400	5.48
3/"4	19.00	55.00	63.00	6800	13600	7.95
7/8"	22.20	64.00	74.00	9250	18500	10.75
1"	25.40	73.00	84.00	12150	24300	14.26
