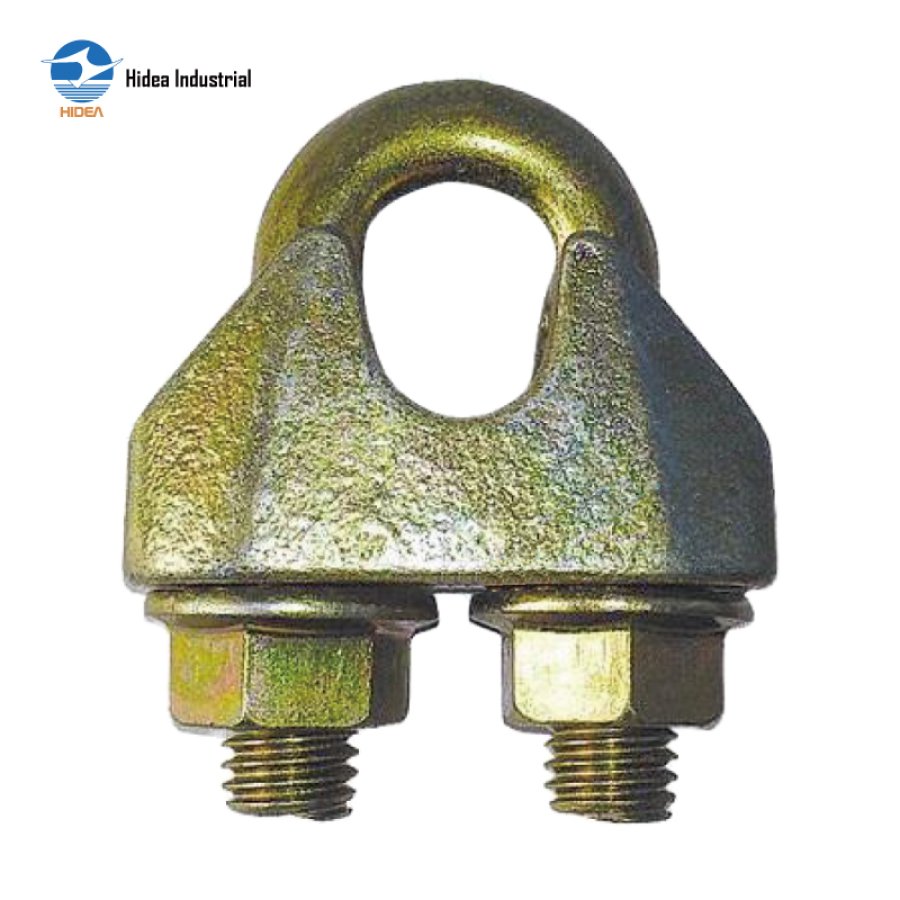

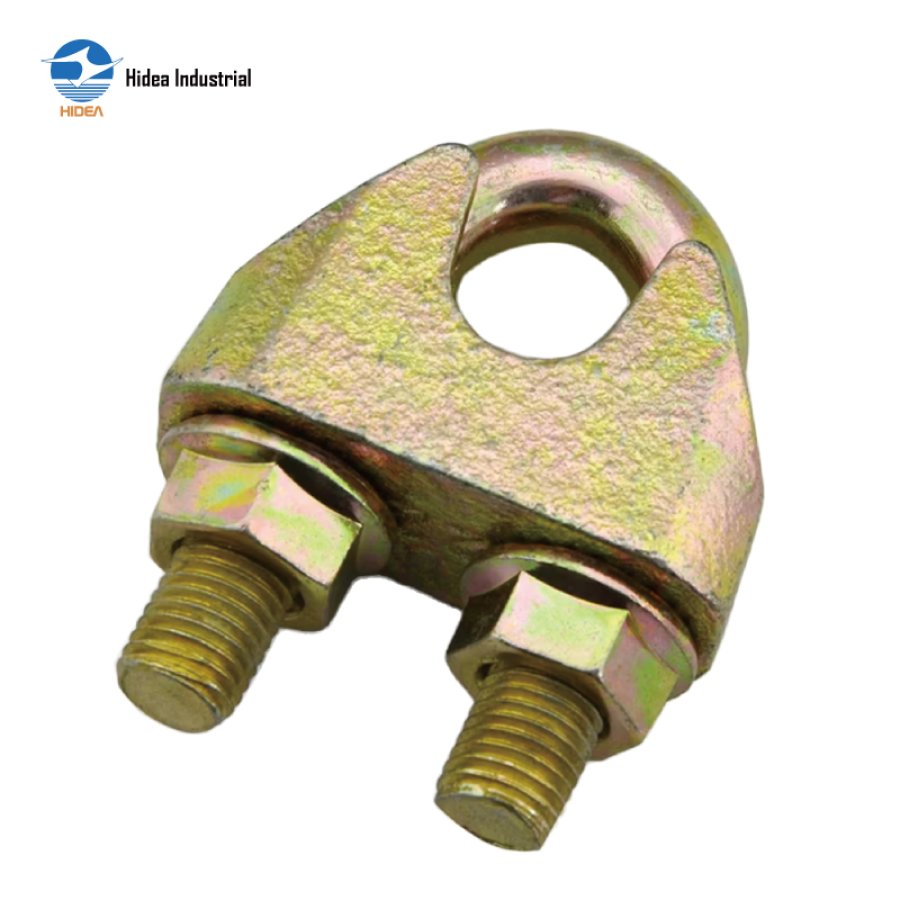

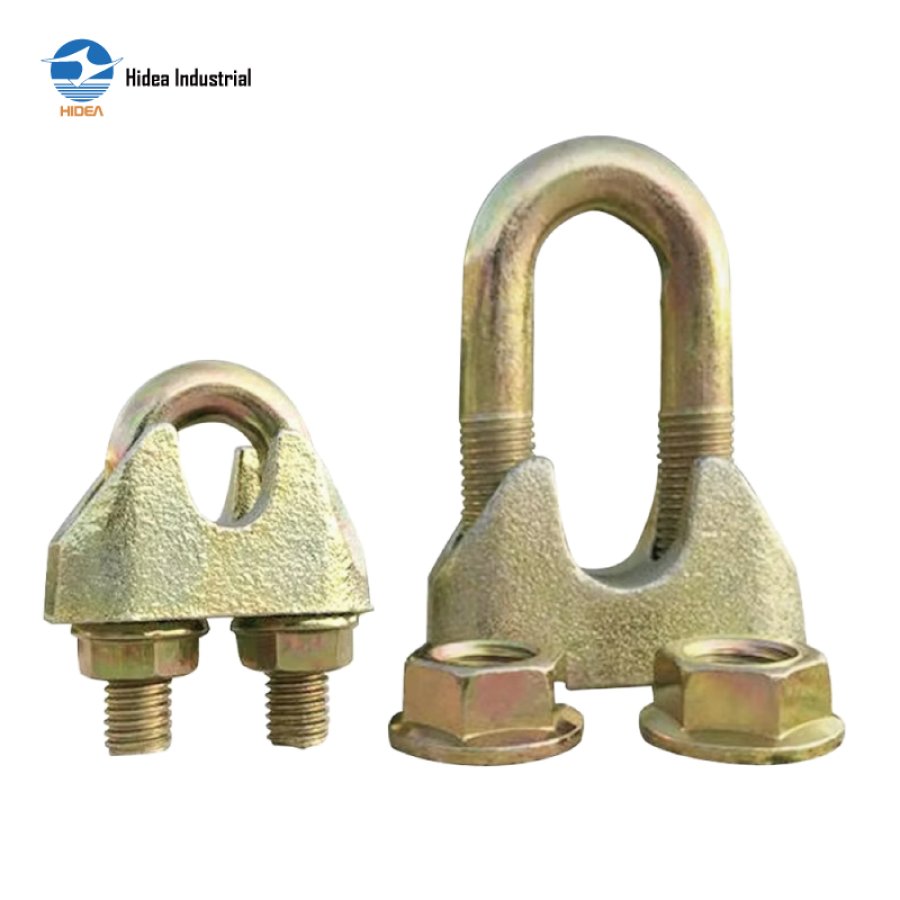

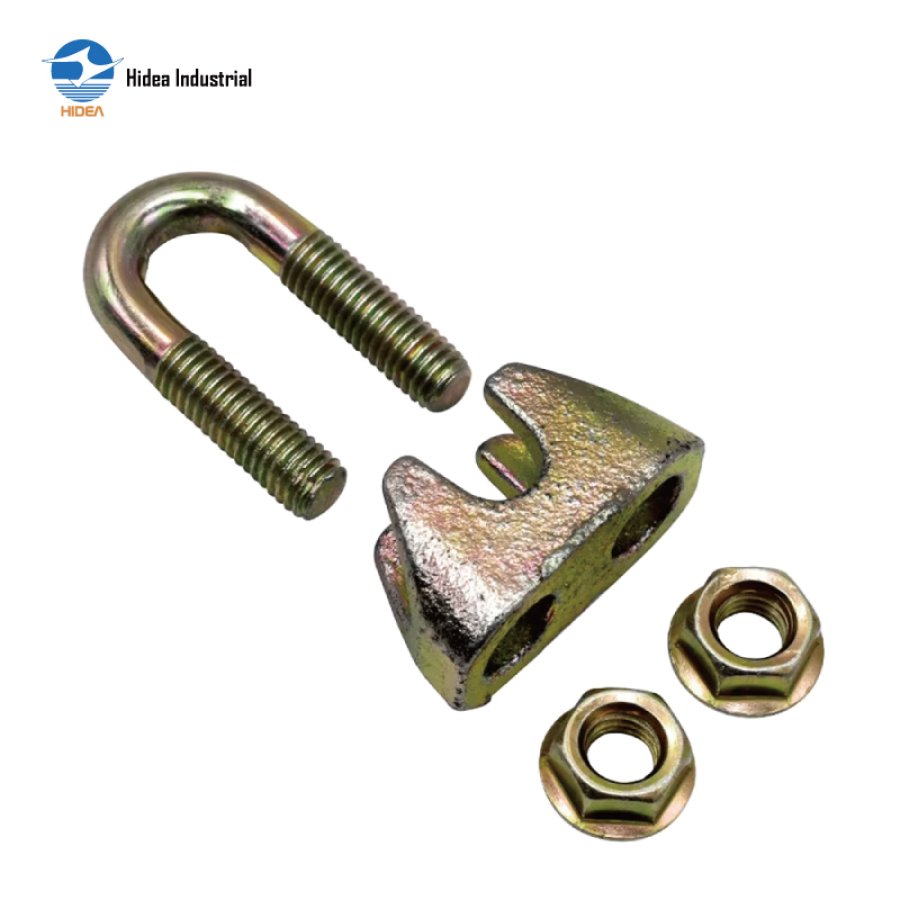

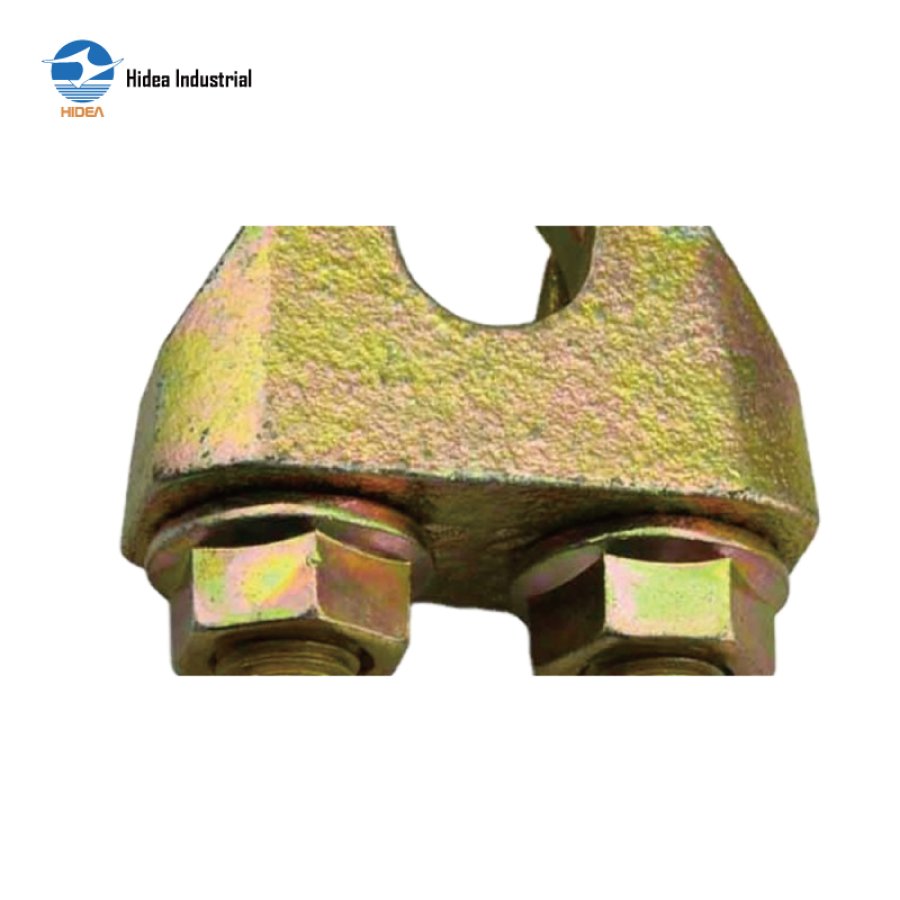

Hidea EN13411-5 Malleable U-Bolt Wire Rope Clip – Secure Wire Rope Connections for Rigging

EN13411-5 GALV. MALLEABLE WIRE ROPE CLIPS

Casted Malleable Steel
Casted,quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Casted Malleable Wire Rope Clip accrding to BS EN 13411-5 Annex A

Inquire Now

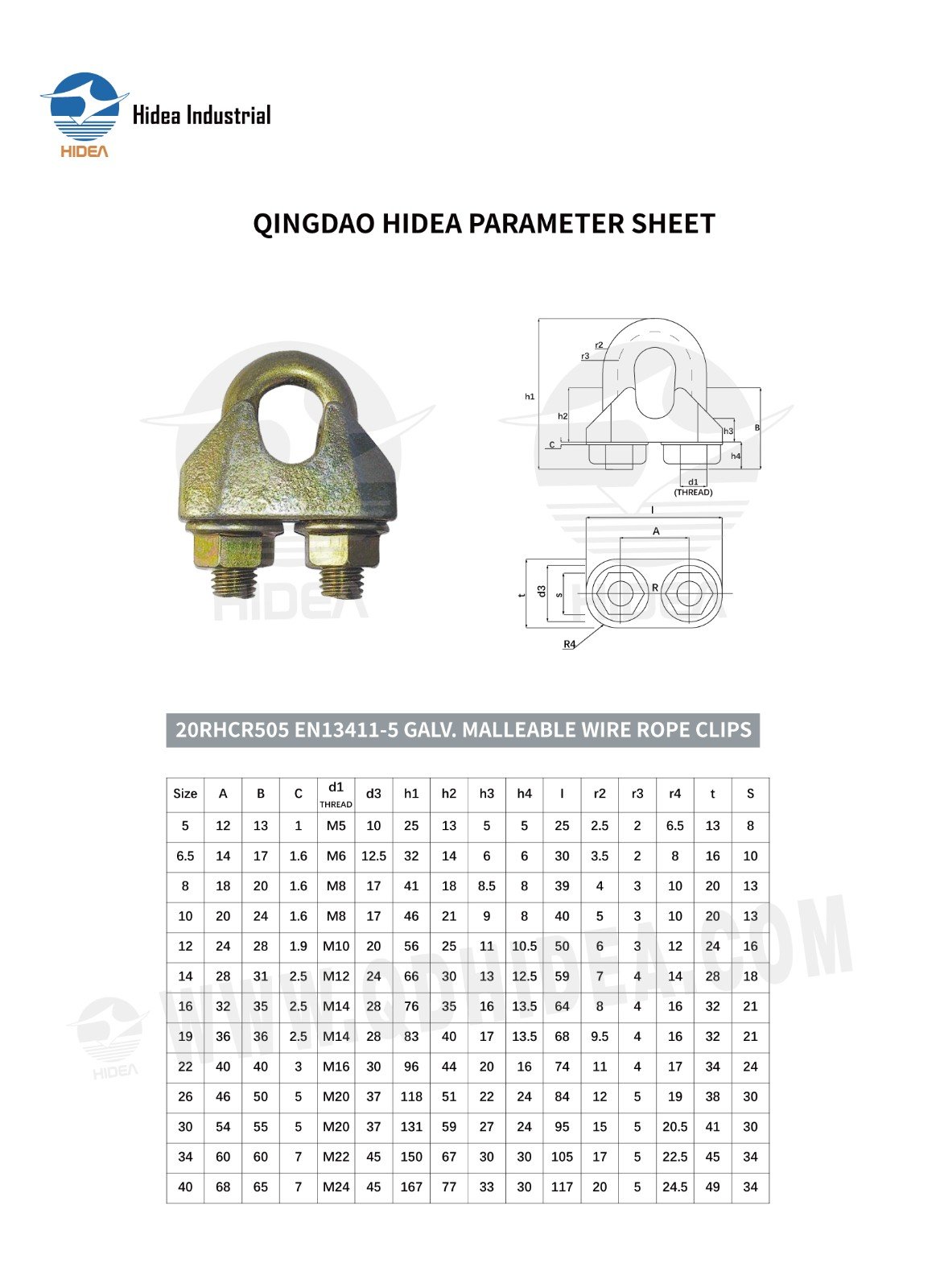

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR505 EN13411-5 GALV.MALLEABLE WIRE ROPE CLIPS

Size	A	B	C	d1 THREAD	d3	h1	h2	h3	h4	1	r2	r3	r4	t	S
5	12	13	1	M5	10	25	13	5	5	25	2.5	2	6.5	13	8
6.5	14	17	1.6	M6	12.5	32	14	6	6	30	3.5	2	8	16	10
8	18	20	1.6	M8	17	41	18	8.5	8	39	4	3	10	20	13
10	20	24	1.6	M8	17	46	21	9	8	40	5	3	10	20	13
12	24	28	1.9	M10	20	56	25	11	10.5	50	6	3	12	24	16
14	28	31	2.5	M12	24	66	30	13	12.5	59	7	4	14	28	18
16	32	35	2.5	M14	28	76	35	16	13.5	64	8	4	16	32	21
19	36	36	2.5	M14	28	83	40	17	13.5	68	9.5	4	16	32	21
22	40	40	3	M16	30	96	44	20	16	74	11	4	17	34	24
26	46	50	5	M20	37	118	51	22	24	84	12	5	19	38	30
30	54	55	5	M20	37	131	59	27	24	95	15	5	20.5	41	30
34	60	60	7	M22	45	150	67	30	30	105	17	5	22.5	45	34
40	68	65	7	M24	45	167	77	33	30	117	20	5	24.5	49	34
