Hidea G80 Master Link: Engineered for Strength and Durability

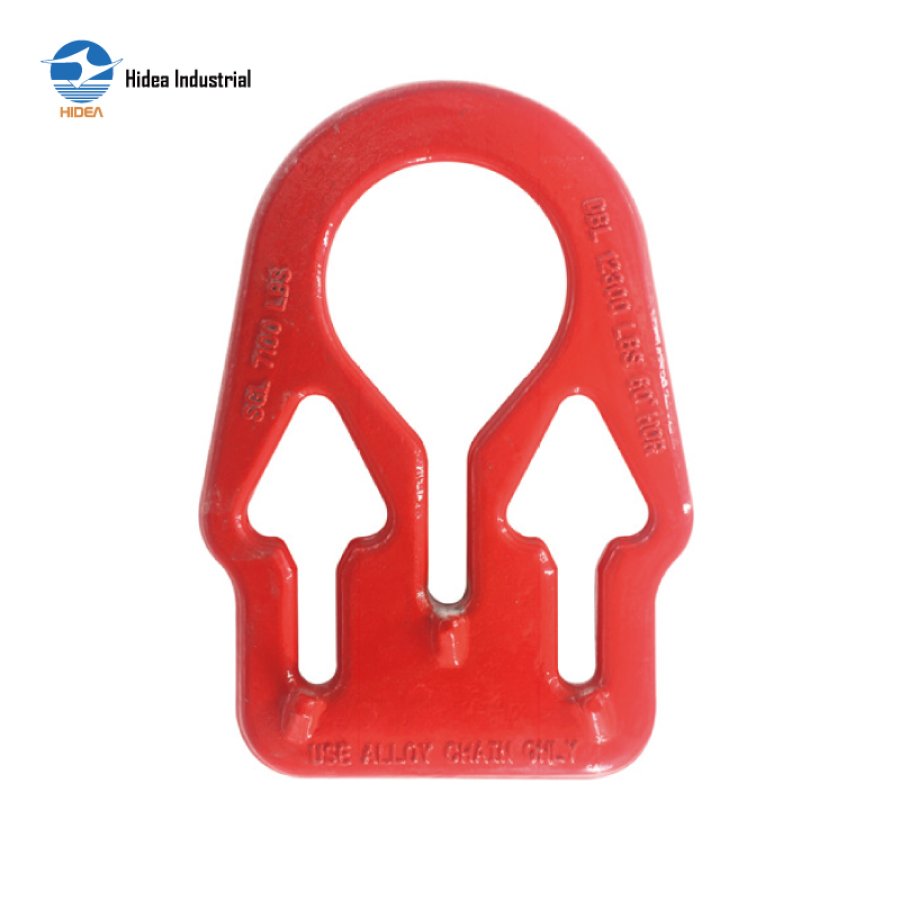

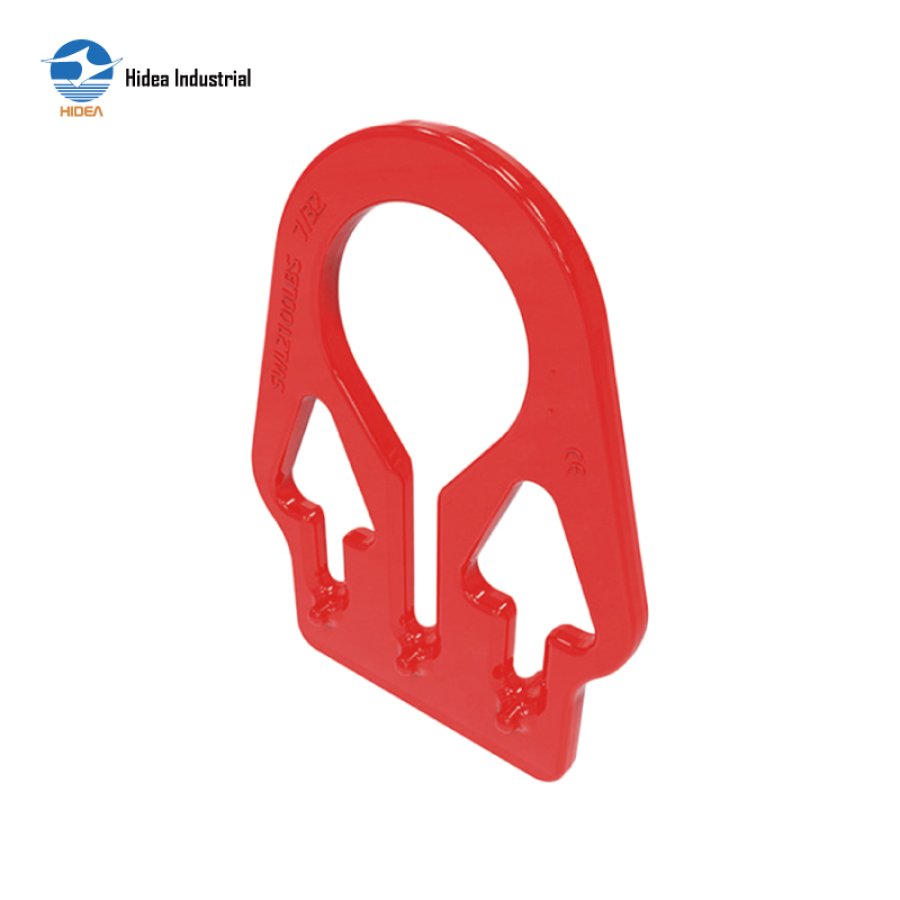

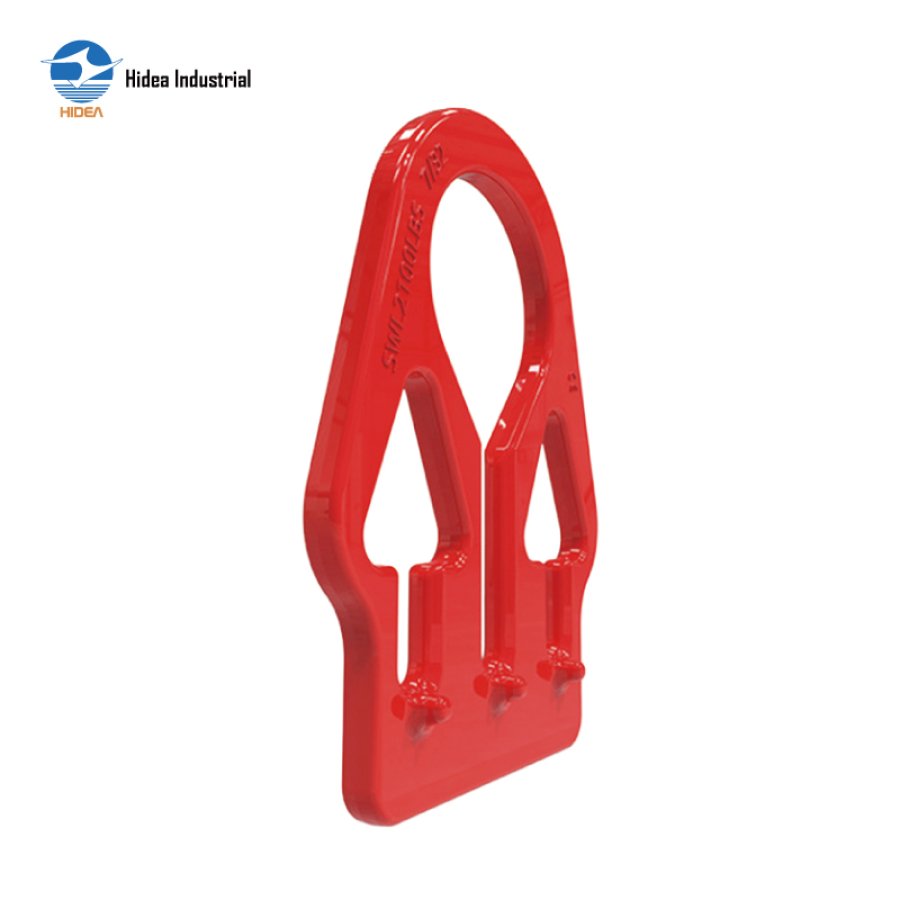

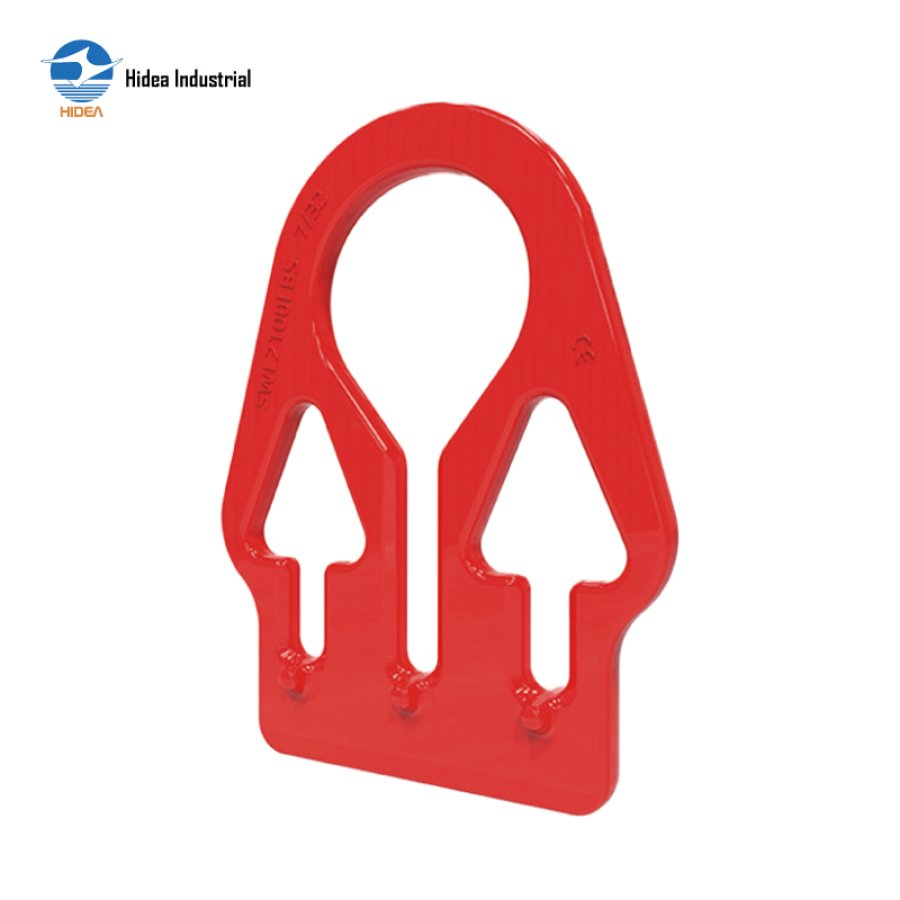

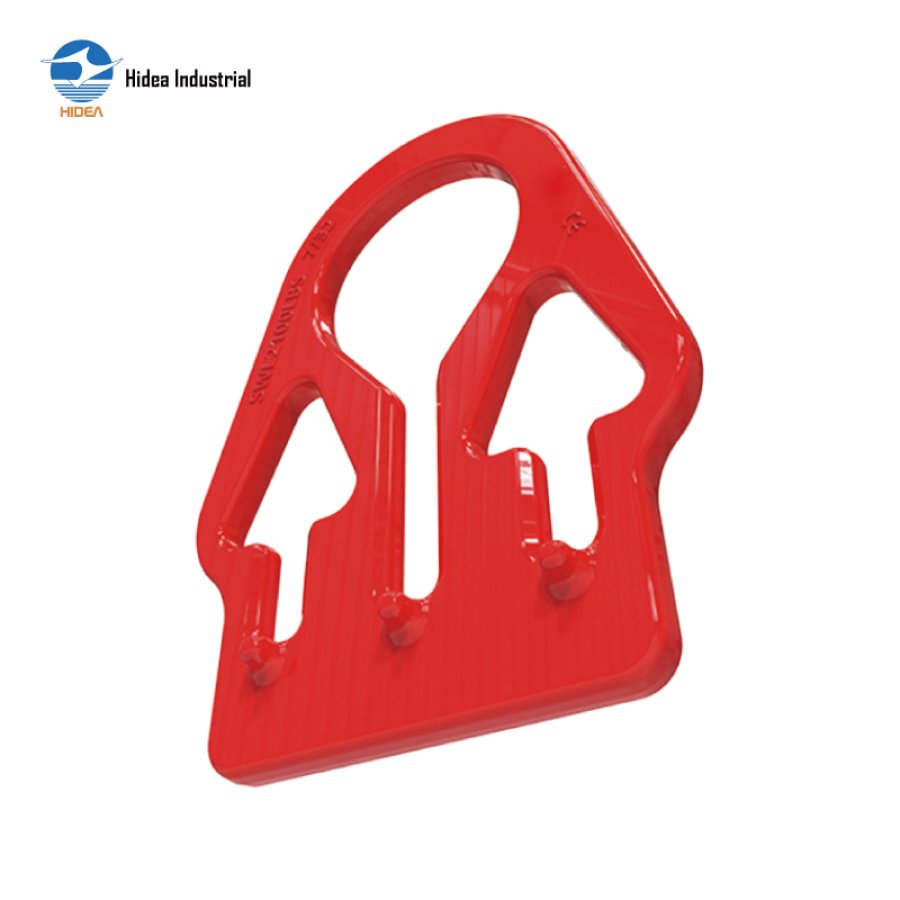

G80 MASTER LINK

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003
As master link in chain sling
Very convenient to connect chain

Inquire Now

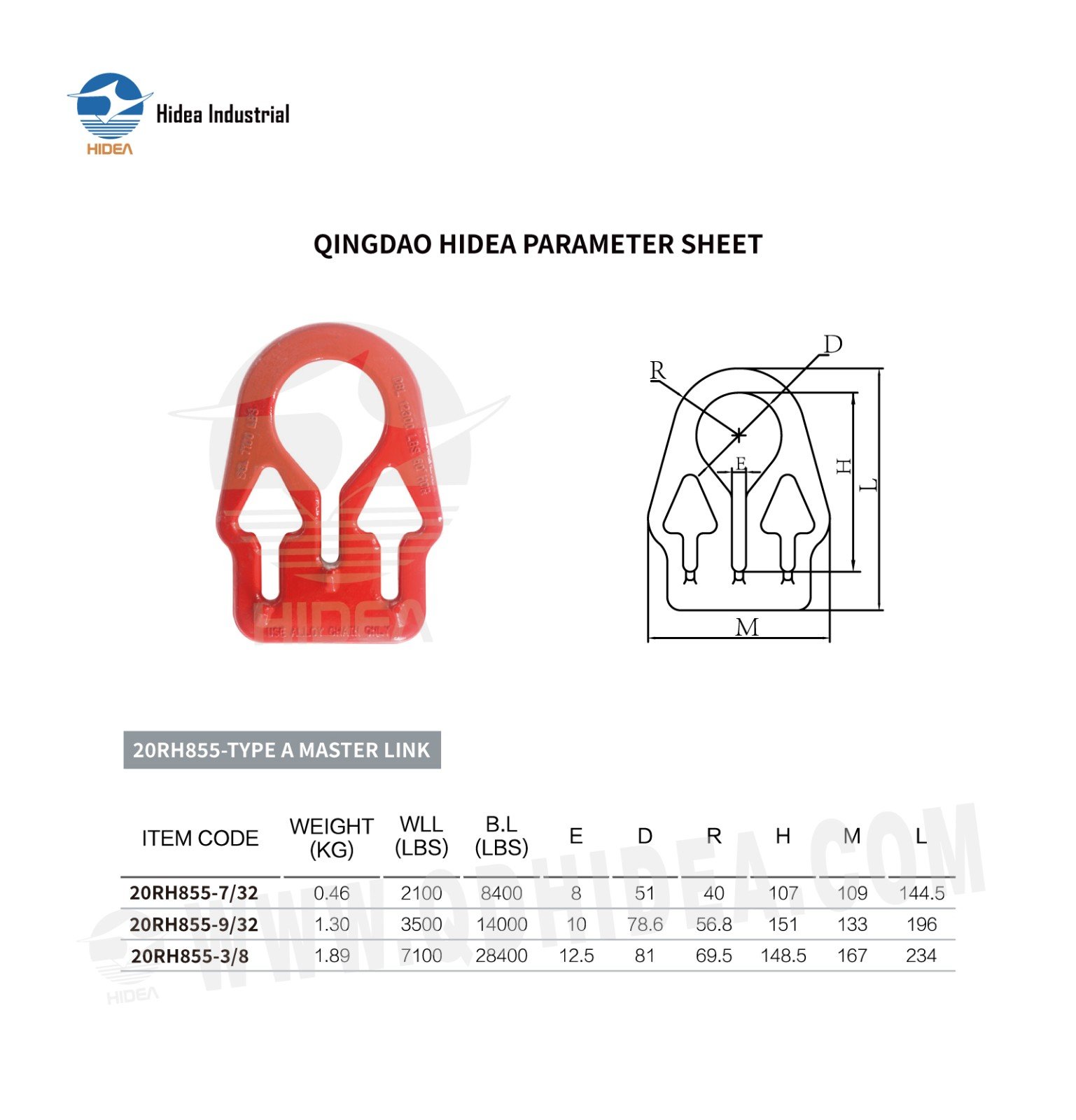

QINGDAO HIDEA PARAMETER SHEET FOR

20RH855-TYPE A MASTER LINK

ITEM CODE	WEIGHT (KG)	WLL (LBS)	B.L (LBS)	E	D	R	H	M	L

20RH855-7/32	0.46	2100	8400	8	51	40	107	109	144.5
20RH855-9/32	1.30	3500	14000	10	78.6	56.8	151	133	196
20RH855-3/8	1.89	7100	28400	12.5	81	69.5	148.5	167	234
