Hidea JIS Type Dee Shackle – Heavy Duty, High-Strength for Rigging and Marine Environments

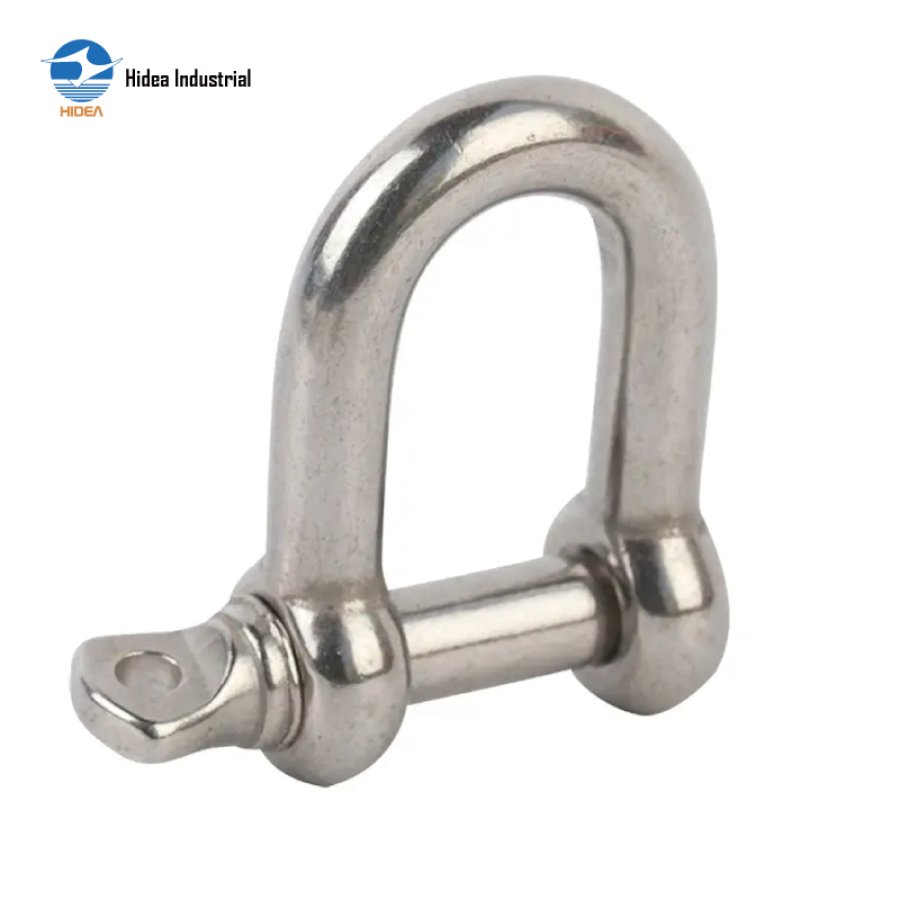

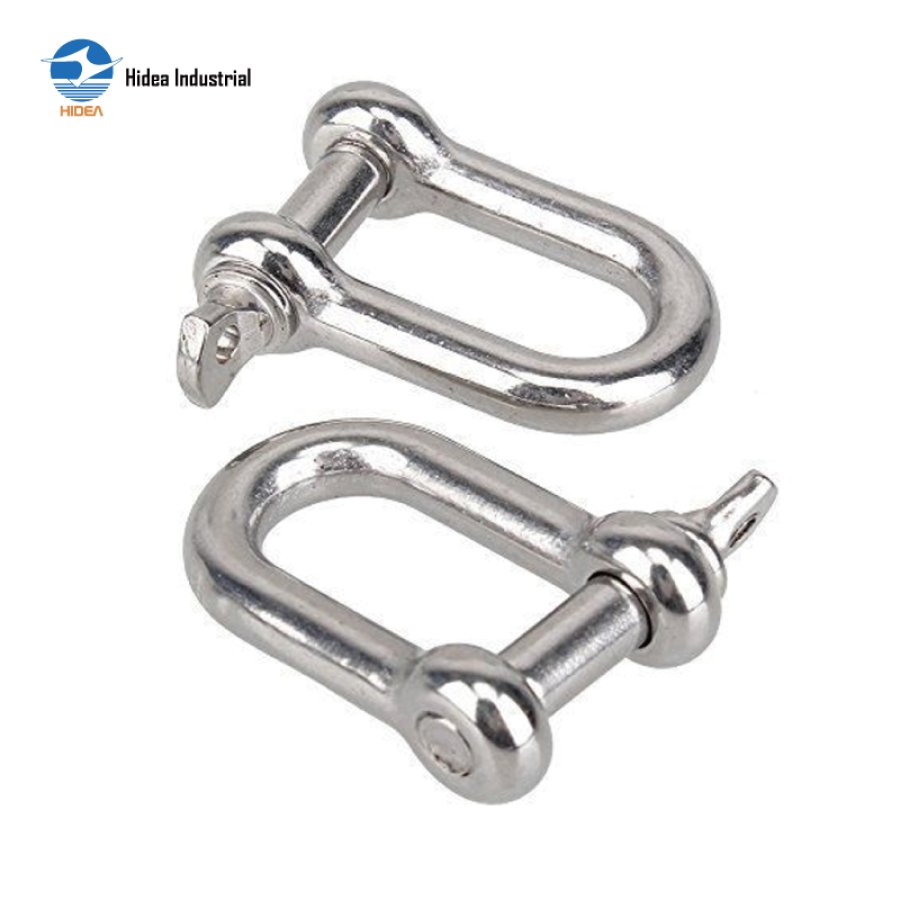

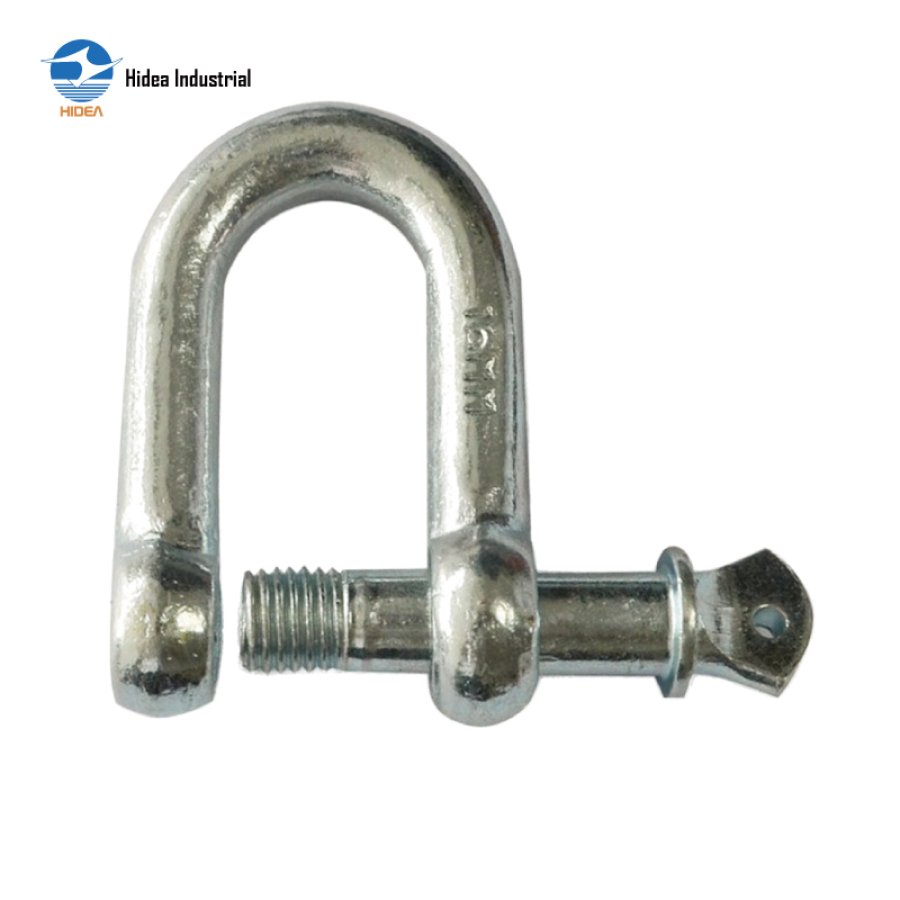

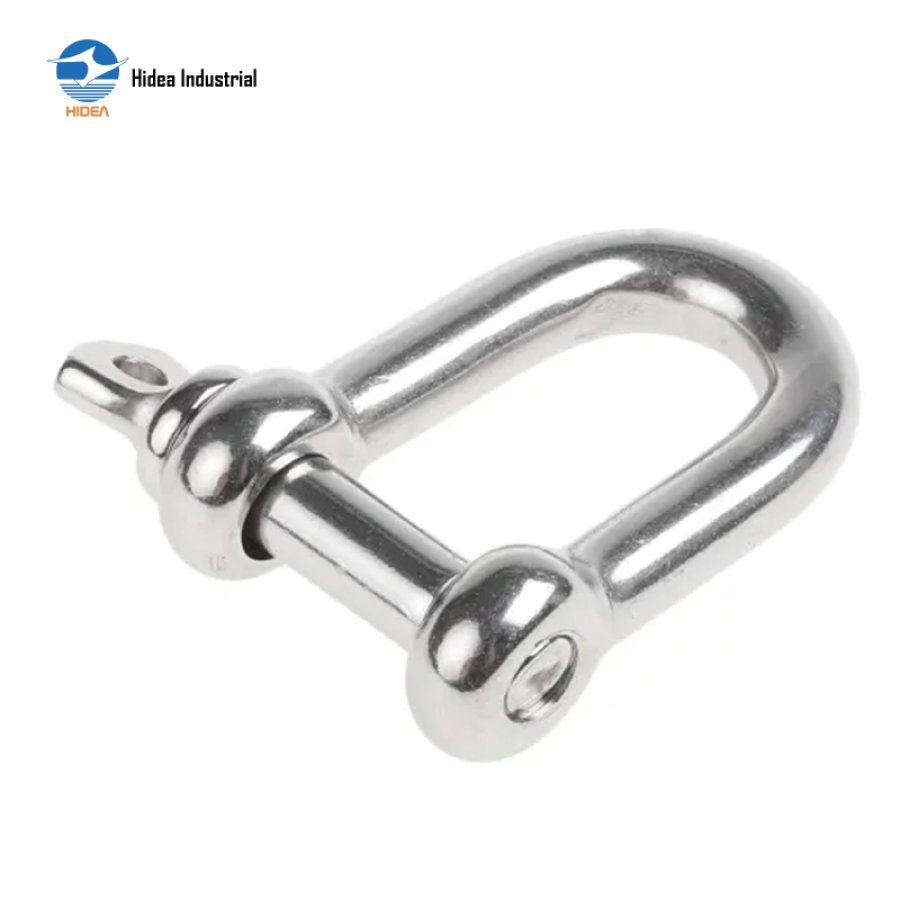

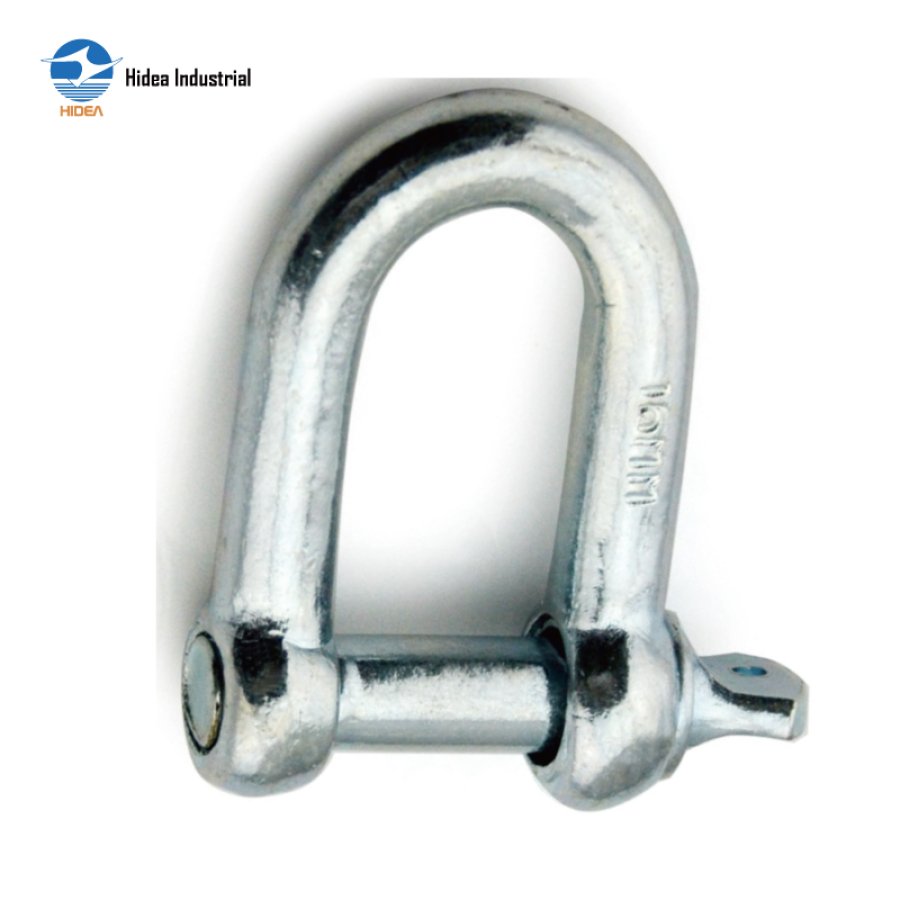

JIS TYPE DEE SHACKLE

Material: fine mild steel commercial shackle
Free forged with stamped sizes
Safety factor 5:1 & certificates available
Surface electro-galvanized (EG) OR powder coated OR self-colored OR as requested

Inquire Now

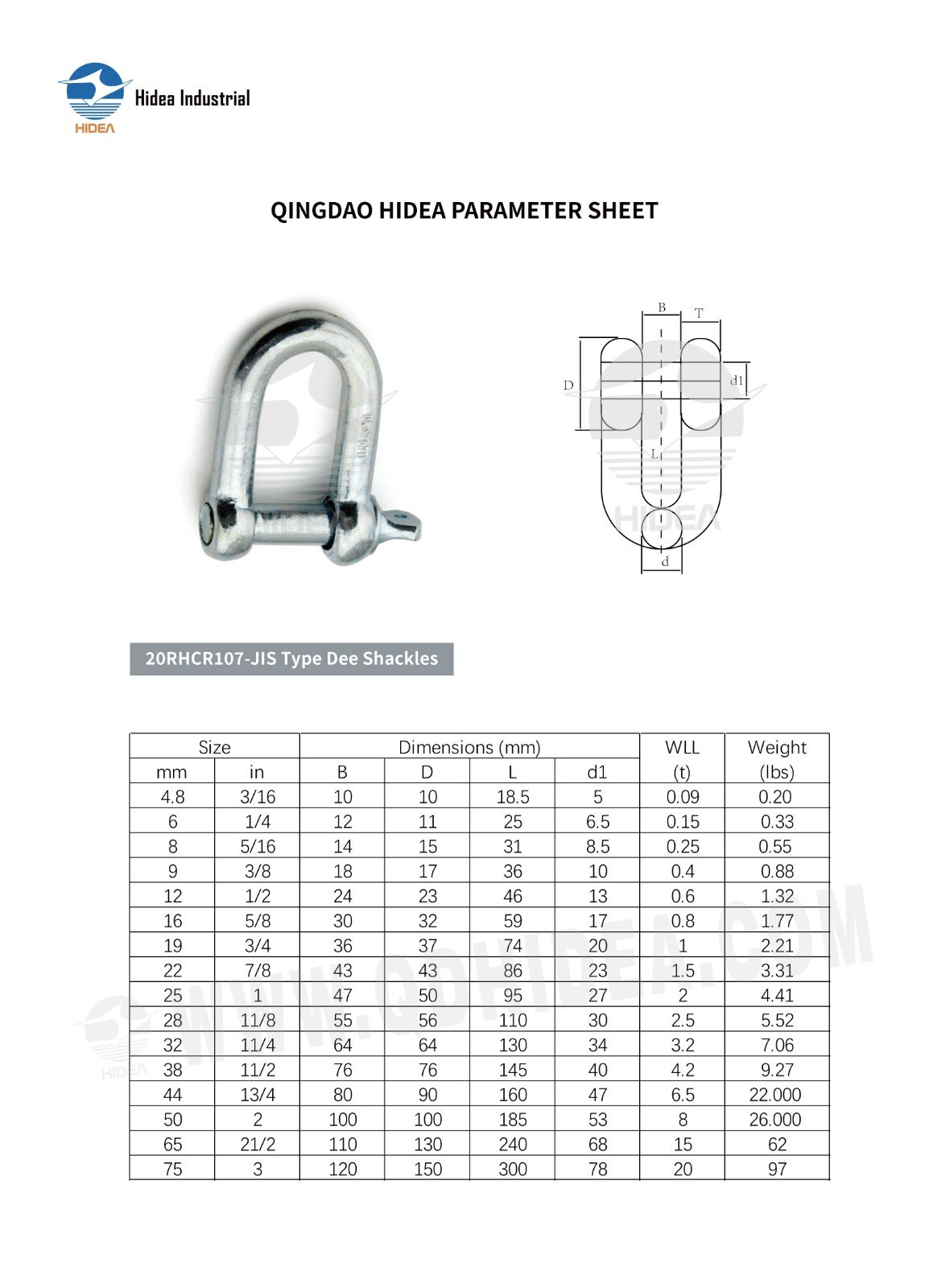

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR107-JIS Type Dee Shackles

Size		Dimensions(mm)				WLL (t)	Weight (Ibs)
mm	in	B	D	L	d1	WLL (t)	Weight (Ibs)
4.8	3/16	10	10	18.5	5	0.09	0.20
6	1/4	12	11	25	6.5	0.15	0.33
8	5/16	14	15	31	8.5	0.25	0.55
9	3/8	18	17	36	10	0.4	0.88
12	1/2	24	23	46	13	0.6	1.32
16	5/8	30	32	59	17	0.8	1.77
19	3/4	36	37	74	20	1	2.21
22	7/8	43	43	86	23	1.5	3.31
25	1	47	50	95	27	2	4.41
28	11/8	55	56	110	30	2.5	5.52
32	11/4	64	64	130	34	3.2	7.06
38	11/2	76	76	145	40	4.2	9.27
44	13/4	80	90	160	47	6.5	22.000
50	2	100	100	185	53	8	26.000
65	21/2	110	130	240	68	15	62
75	3	120	150	300	78	20	97
