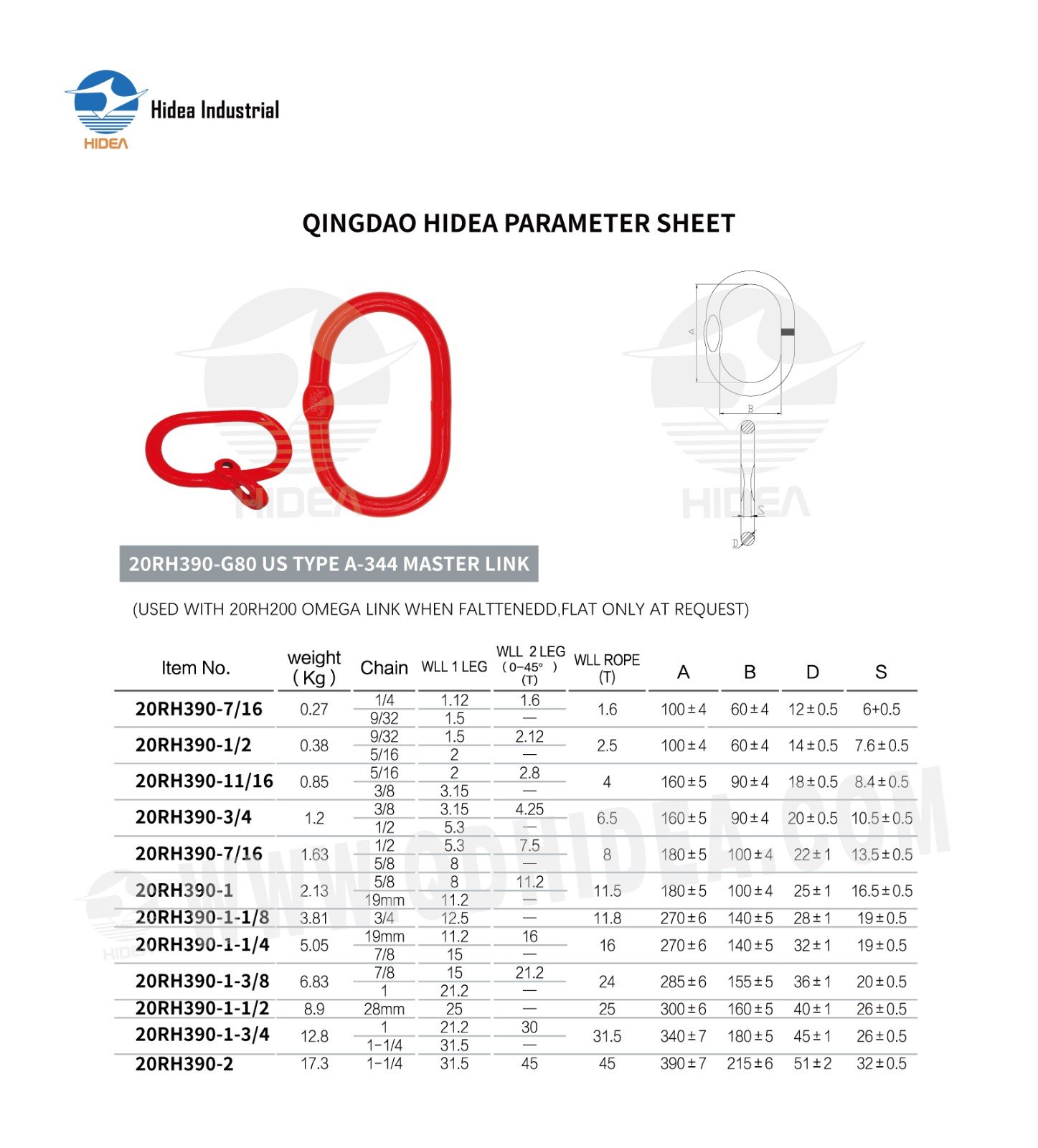

QINGDAO HIDEA PARAMETER SHEET FOR
20RH390-G80 US TYPE A-344 MASTER LINK
| Item No. | weight (Kg) | Chain | WLL 1LEG | WLL 2LEG (0-45°) (T) | WLL ROPE (T) | A | B | D | S |
| 20RH390-7/16 | 0.27 | 1/4 9/32 | 1.12 1.5 | 1.6 — | 1.6 | 100±4 | 60±4 | 12±0.5 | 6+0.5 |
| 20RH390-1/2 | 0.38 | 9/32 5/16 | 1.5 2 | 2.12 — | 2.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| 20RH390-11/16 | 0.85 | 5/16 3/8 | 2 3.15 | 2.8 — | 4 | 160±5 | 90±4 | 18±0.5 | 8.4±0.5 |
| 20RH390-3/4 | 1.2 | 3/8 1/2 | 3.15 5.3 | 4.25 一 | 6.5 | 160±5 | 90±4 | 20±0.5 | 10.5±0.5 |
| 20RH390-7/16 | 1.63 | 1/2 5/8 | 5.3 8 | 7.5 — | 8 | 180±5 | 100±4 | 22±1 | 13.5±0.5 |
| 20RH390-1 | 2.13 | 5/8 19mm | 8 11.2 | 11.2 - | 11.5 | 180±5 | 100±4 | 25±1 | 16.5±0.5 |
| 20RH390-1-1/8 | 3.81 | 3/4 | 12.5 | — | 11.8 | 270±6 | 140±5 | 28±1 | 19±0.5 |
| 20RH390-1-1/4 | 5.05 | 19mm 7/8 | 11.2 15 | 16 — | 16 | 270±6 | 140±5 | 32±1 | 19±0.5 |
| 20RH390-1-3/8 | 6.83 | 7/8 1 | 15 21.2 | 21.2 一 | 24 | 285±6 | 155±5 | 36±1 | 20±0.5 |
| 20RH390-1-1/2 | 8.9 | 28mm | 25 | 一 | 25 | 300±6 | 160±5 | 40±1 | 26±0.5 |
| 20RH390-1-3/4 | 12.8 | 1 1-1/4 | 21.2 31.5 | 30 — | 31.5 | 340±7 | 180±5 | 45±1 | 26±0.5 |
| 20RH390-2 | 17.3 | 1-1/4 | 31.5 | 45 | 45 | 390±7 | 215±6 | 51±2 | 32±0.5 |
