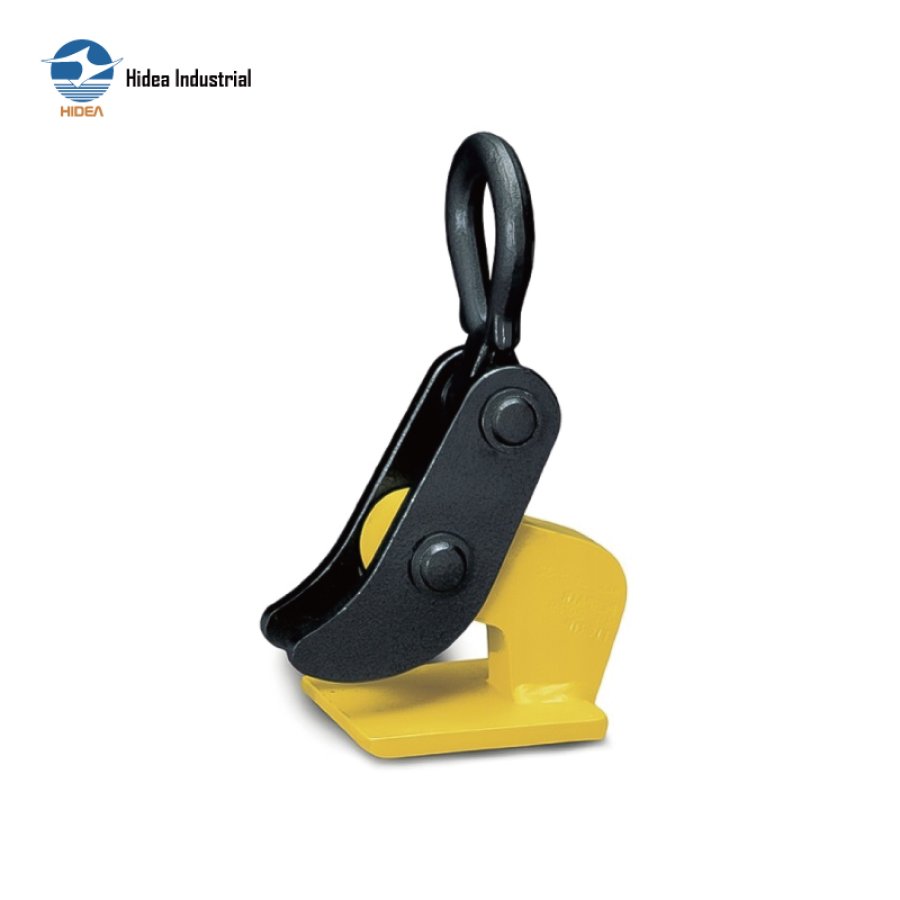

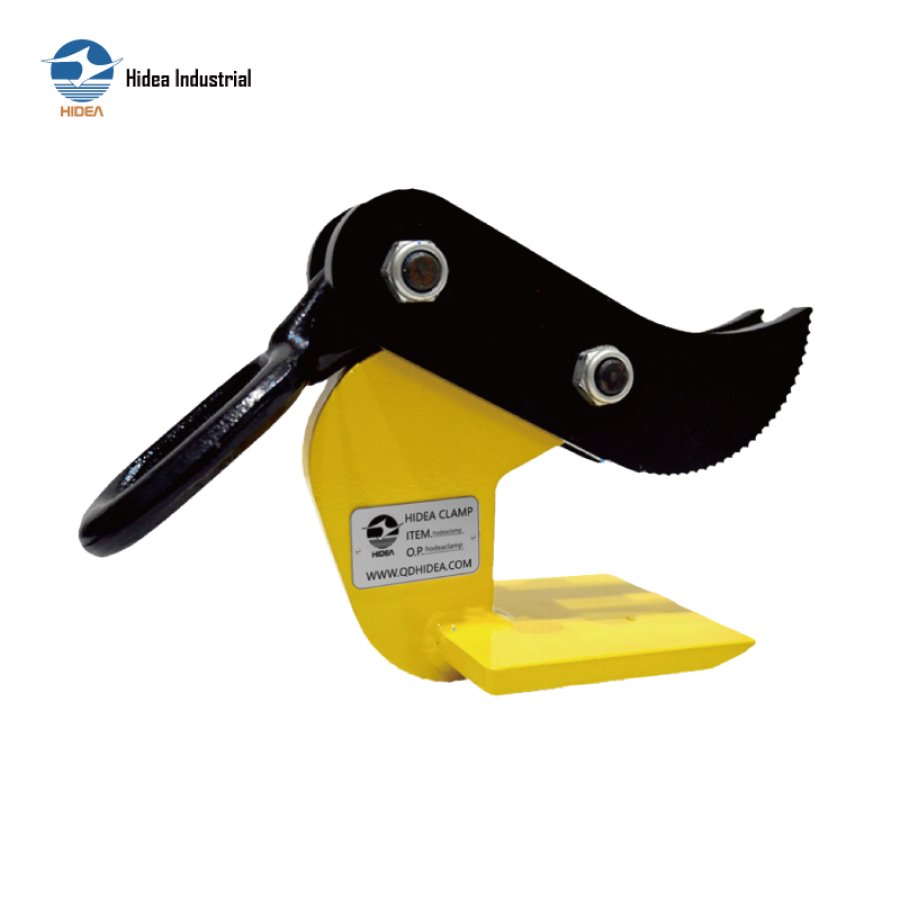

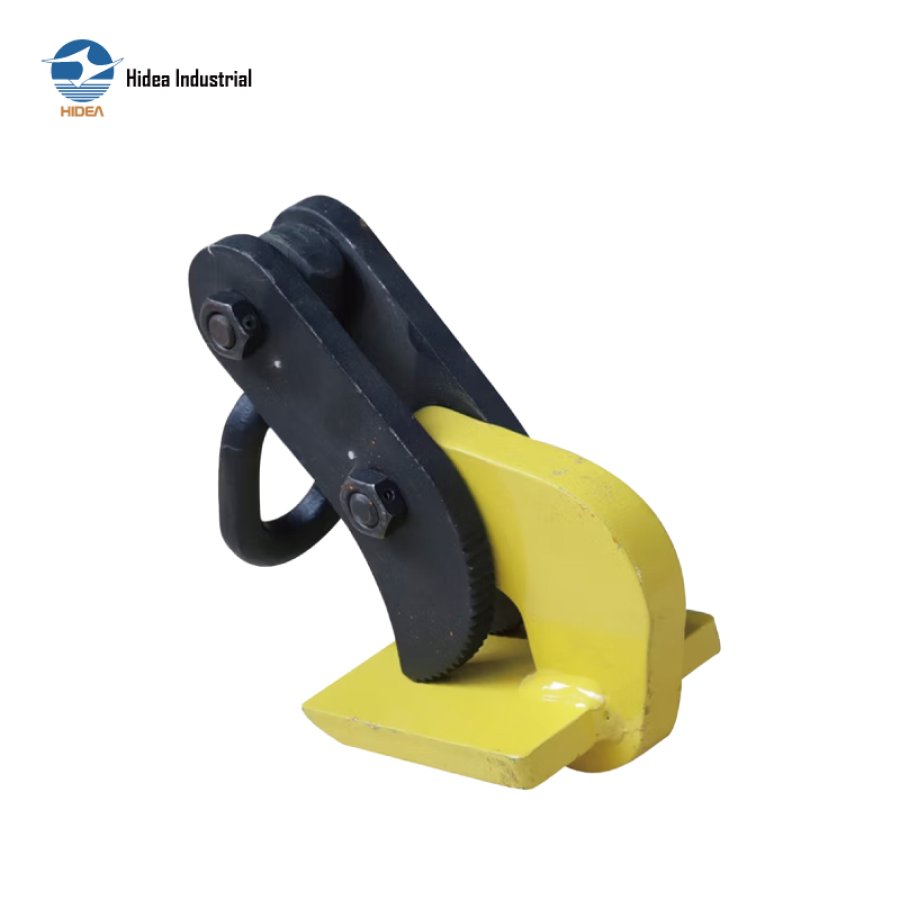

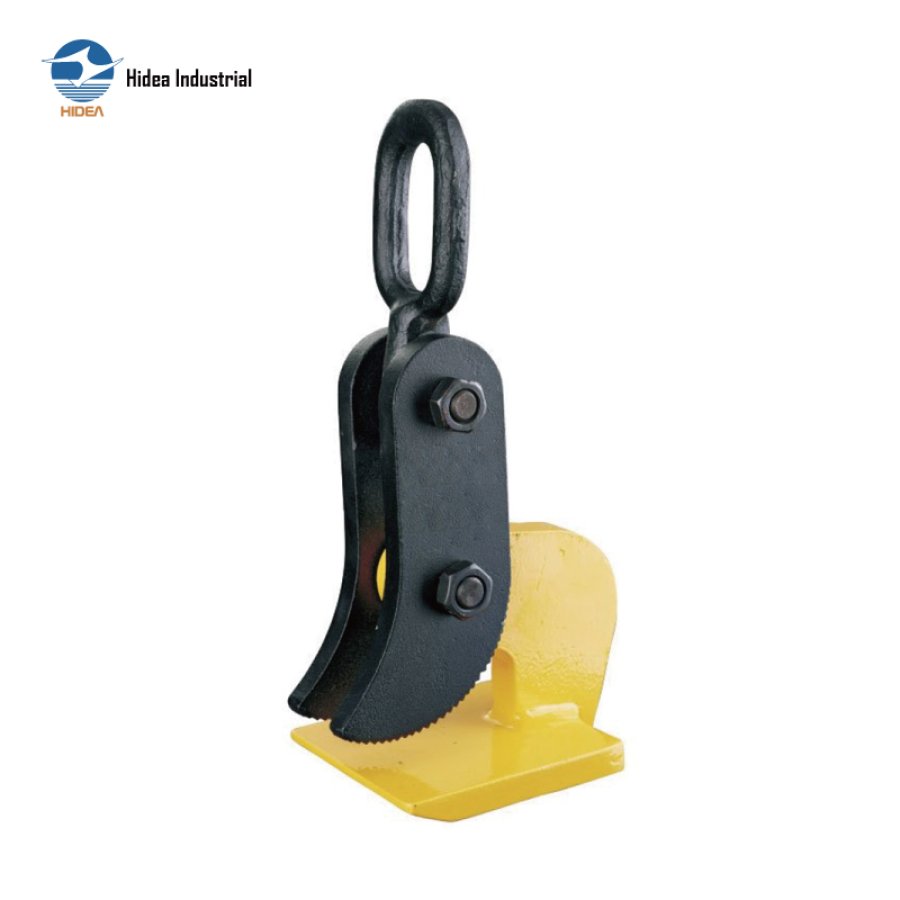

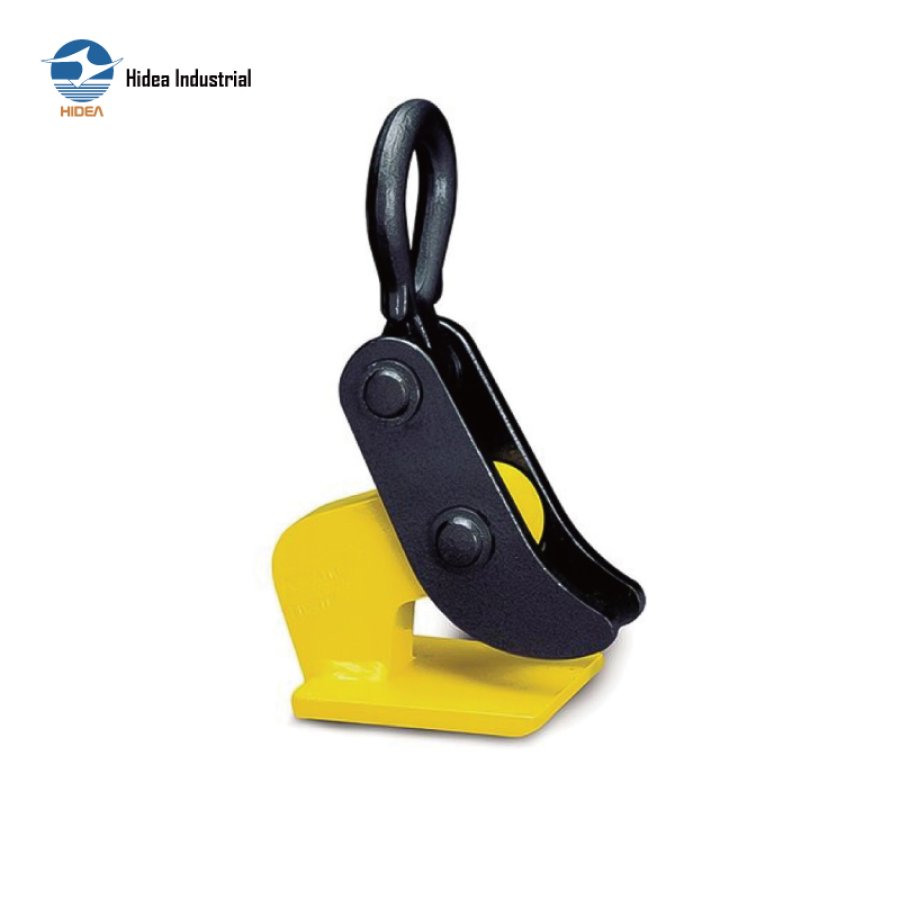

The YCH type horizontal plate lifting tongs clamps are designed to be used in pair with a two-legged chain system, suited for the transport of single plate with a minimum thickness of 5 mm as well as for plate bundles
The YCH Type lifting tongs of two-legged version is appropriate for normal size plates, for extra-large or long plates, it is recommended to use two sets of the two-legged lifting gears in conjunction with a spreader beam
In the standard version, the YCH type lifting tongs clamp is suitable for plates up to 1500mm width with a top angle of the chain up to the max of 90 degrees; the clamps with longer chains for larger plate widths are available upon request; and the working load limit (WLL) applies to a pair of lifting clamps, single clamp also available
The YCH type horizontal plate lifting tongs clamp meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

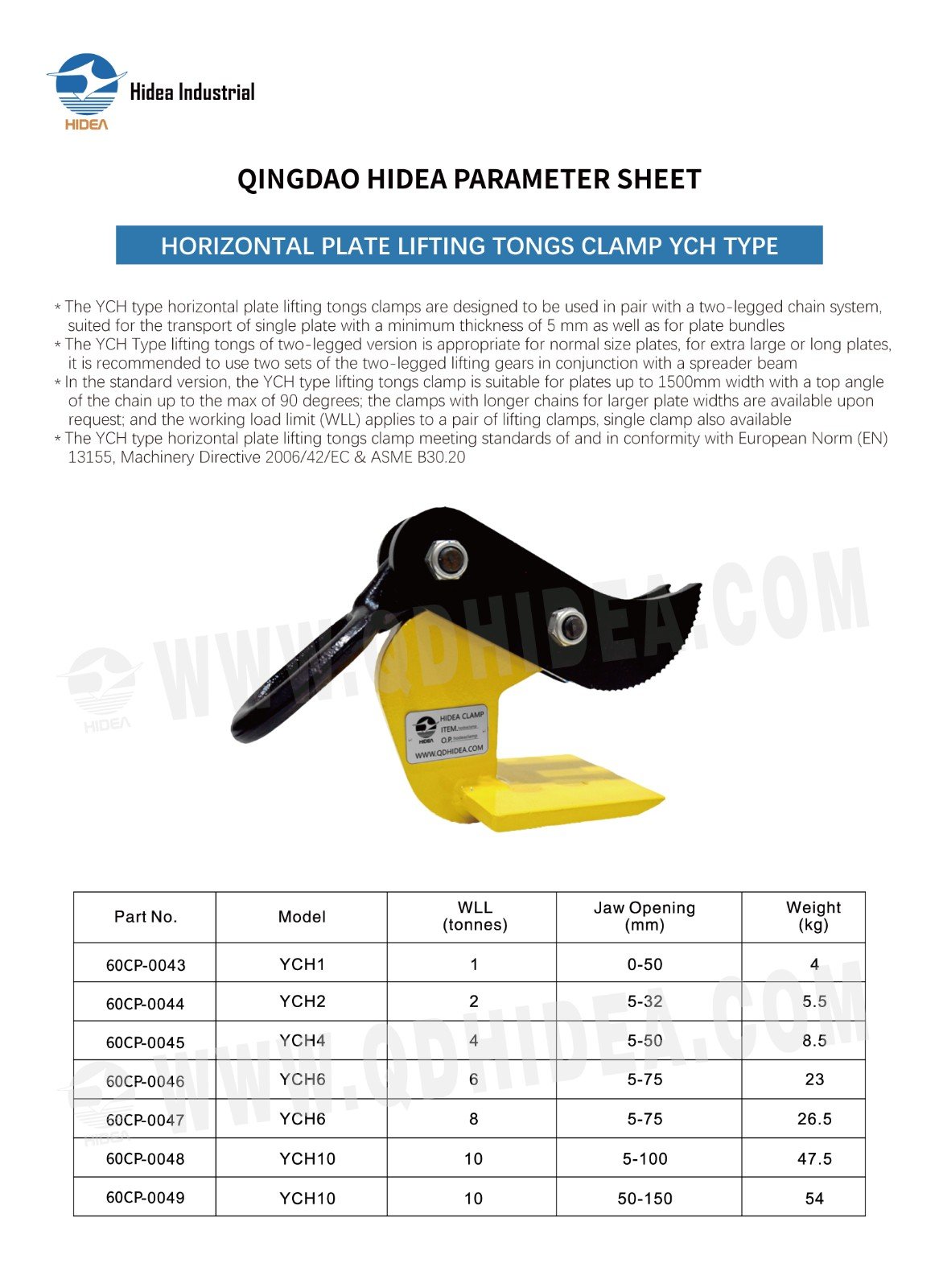

QINGDAO HIDEA PARAMETER SHEET FOR
HORIZONTAL PLATE LIFTING TONGS CLAMP YCH TYPE
| Part No. | Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg) |
60CP-0043 | YCH1 | 1 | 0-50 | 4 |
| 60CP-0044 | YCH2 | 2 | 5-32 | 5.5 |
| 60CP-0045 | YCH4 | 4 | 5-50 | 8.5 |
| 60CP-0046 | YCH6 | 6 | 5-75 | 23 |
| 60CP-0047 | YCH6 | 8 | 5-75 | 26.5 |
| 60CP-0048 | YCH10 | 10 | 5-100 | 47.5 |
| 60CP-0049 | YCH10 | 10 | 50-150 | 54 |
