Hidea G80 Chain-Rope Swivel Connector with Cradle: Key Features and Specifications

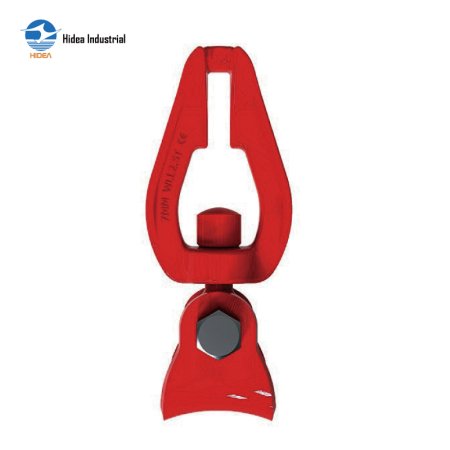

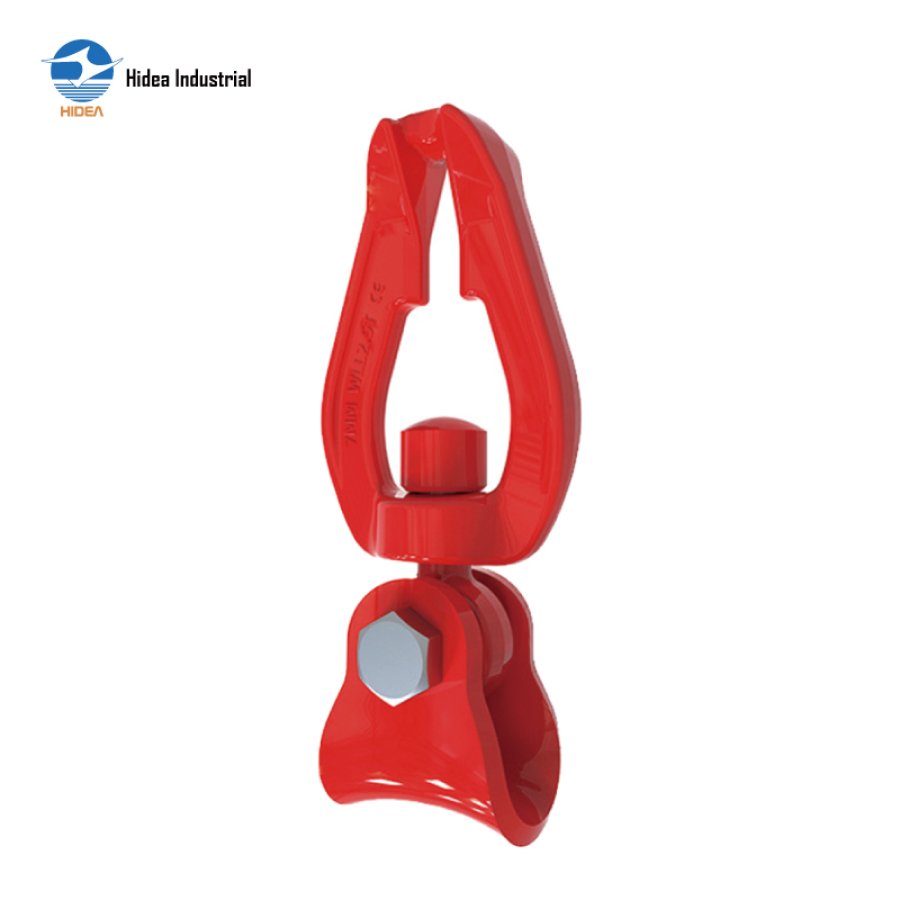

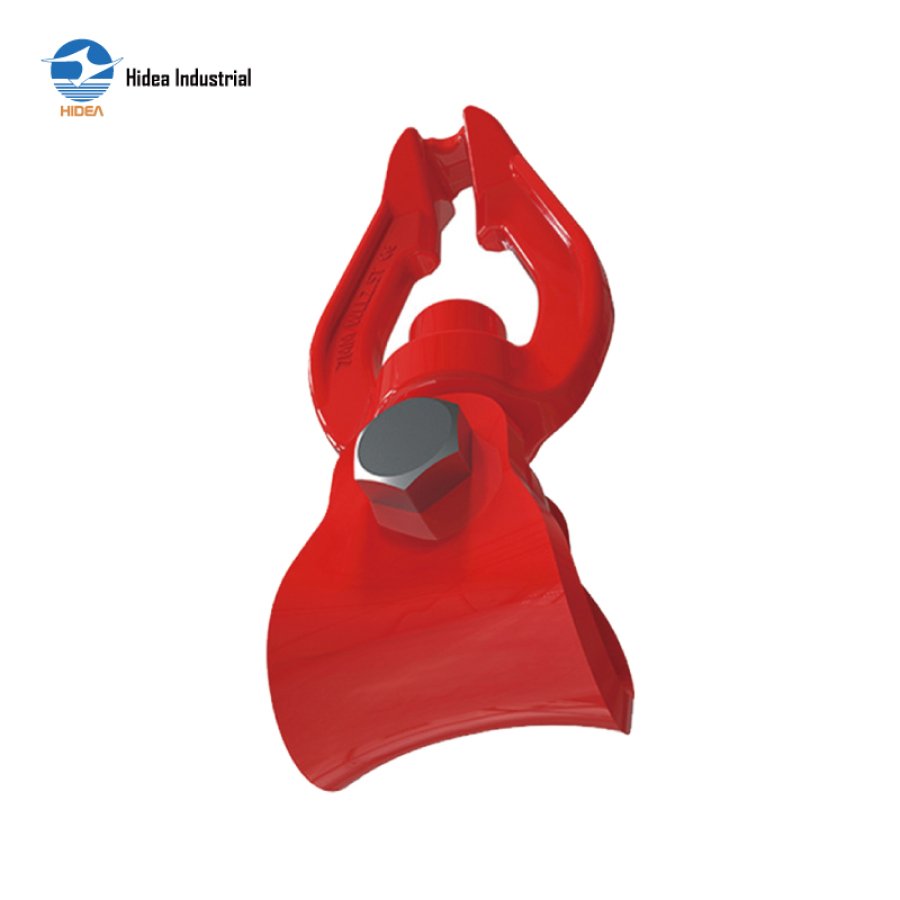

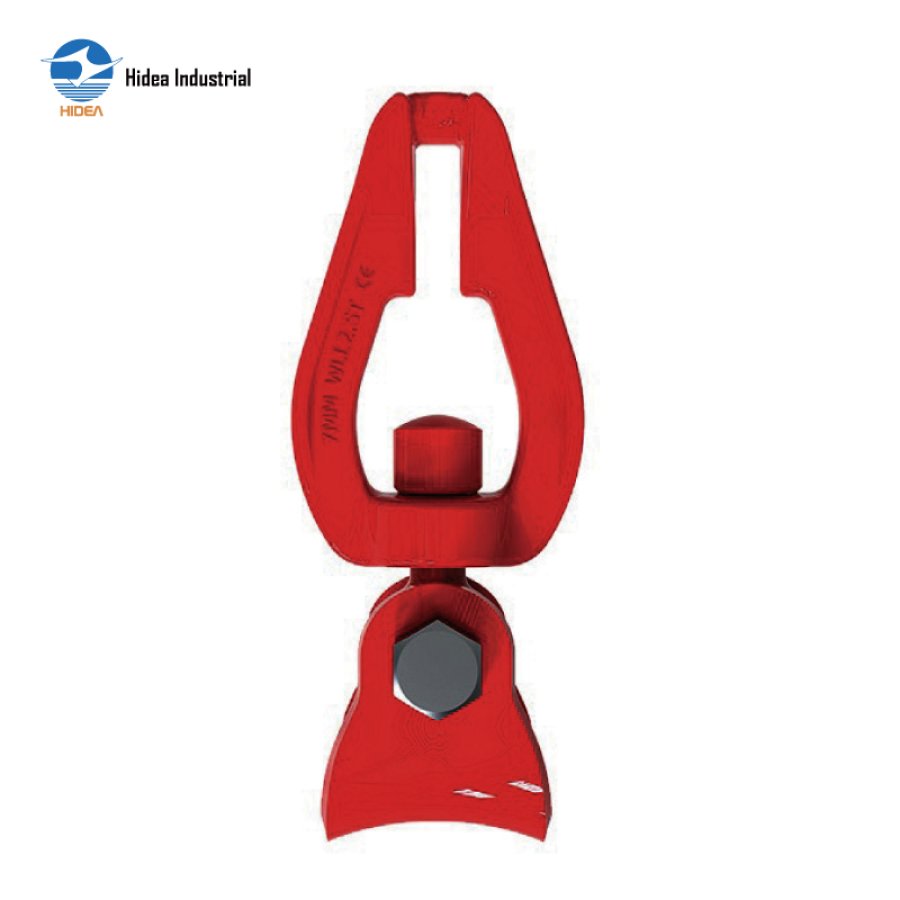

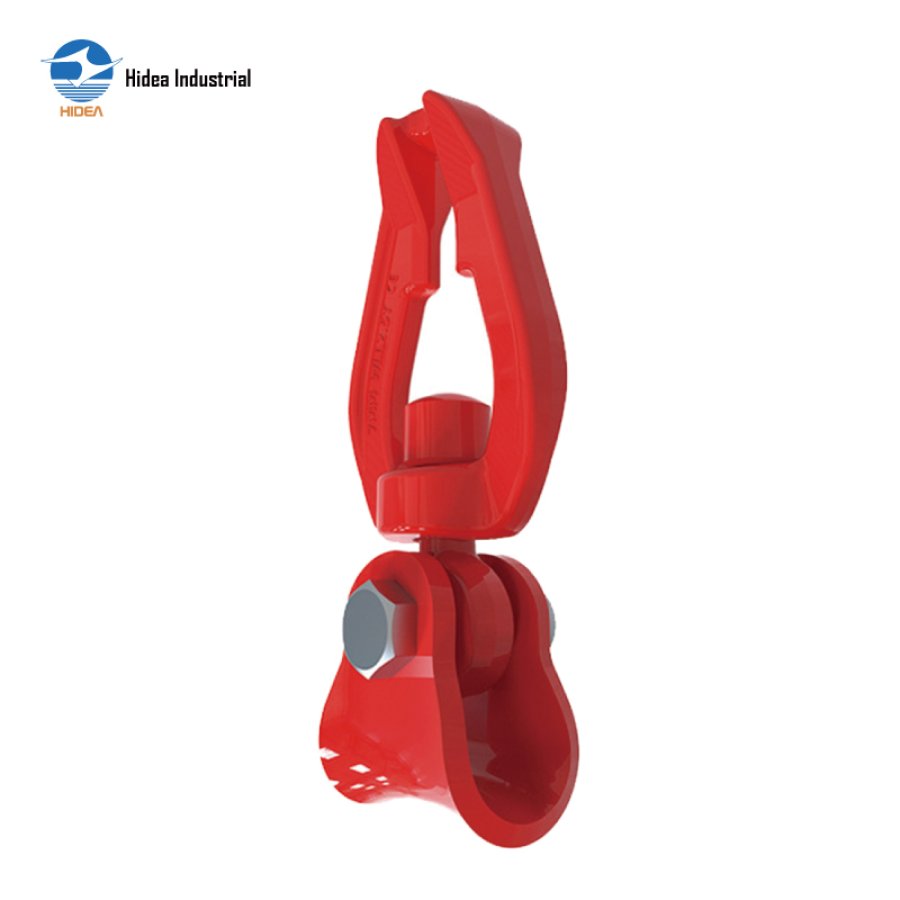

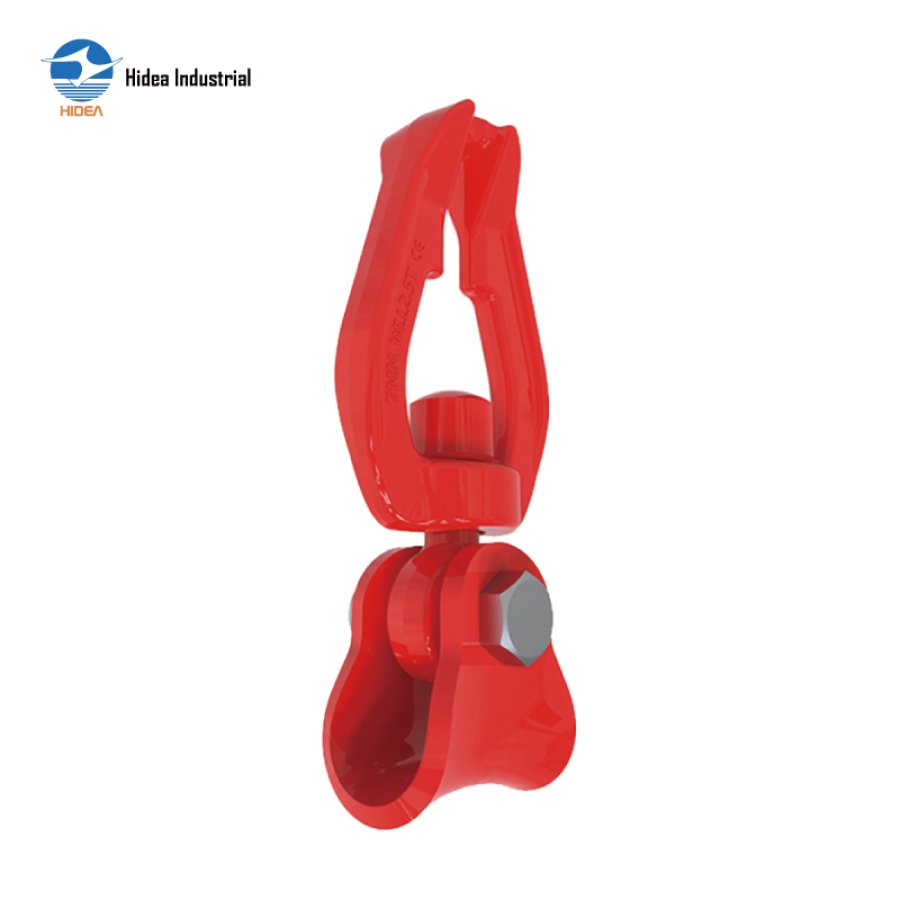

G80 CHAIN-ROPE SWIVEL CONNECTOR WITH CRADLE

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Breakage test
100% magnaflux crack detection
Can be Rotated under Non-load Conditions

Inquire Now

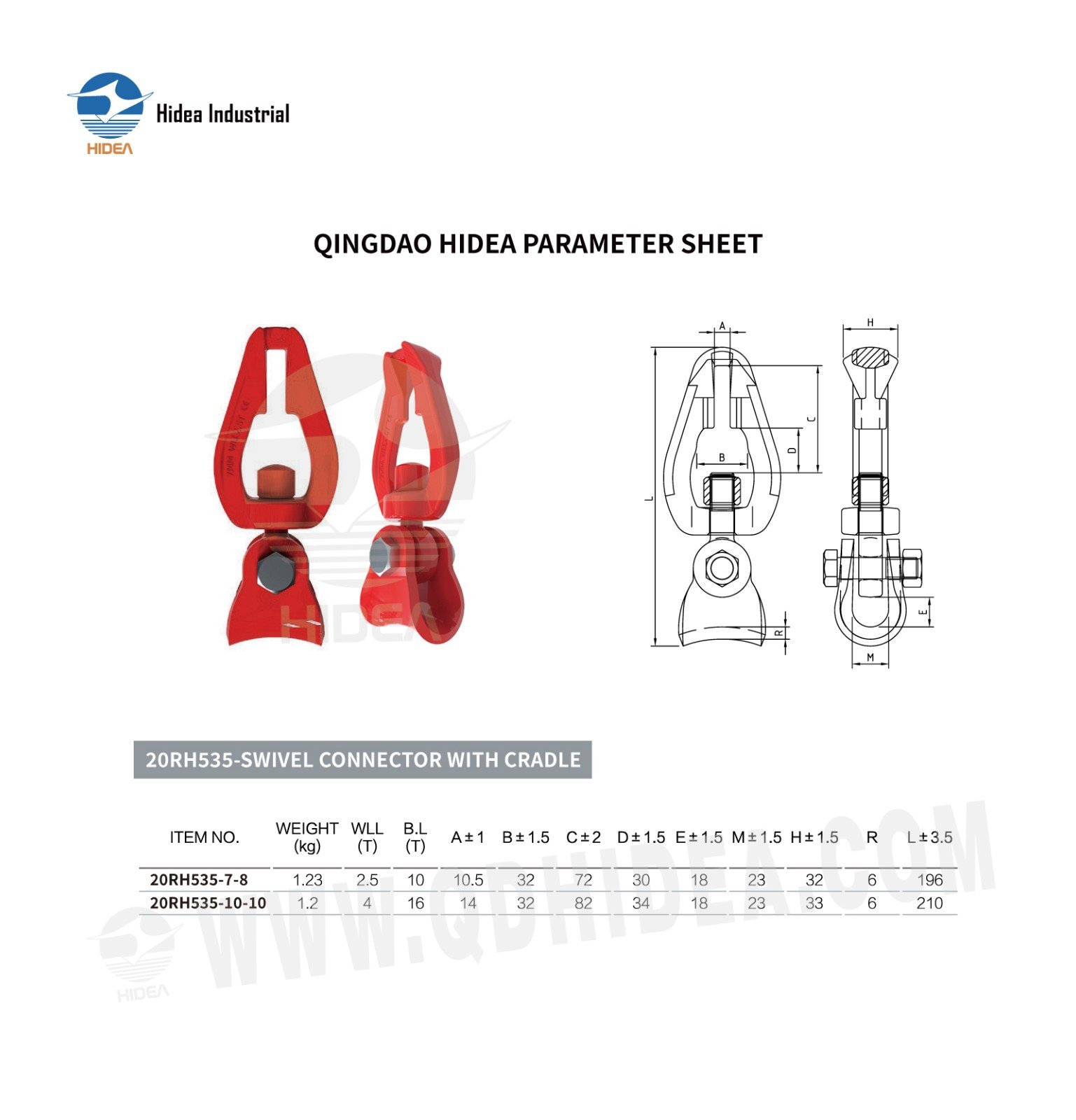

QINGDAO HIDEA PARAMETER SHEET FOR

20RH535-SWIVEL CONNECTOR WITH CRADLE

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1	B±1.5	C±2	D±1.5	E±1.5	M±1.5	H±1.5	R	L±3.5

20RH535-7-8	1.23	2.5	10	10.5	32	72	30	18	23	32	6	196
20RH535-10-10	1.2	4	16	14	32	82	34	18	23	33	6	210
