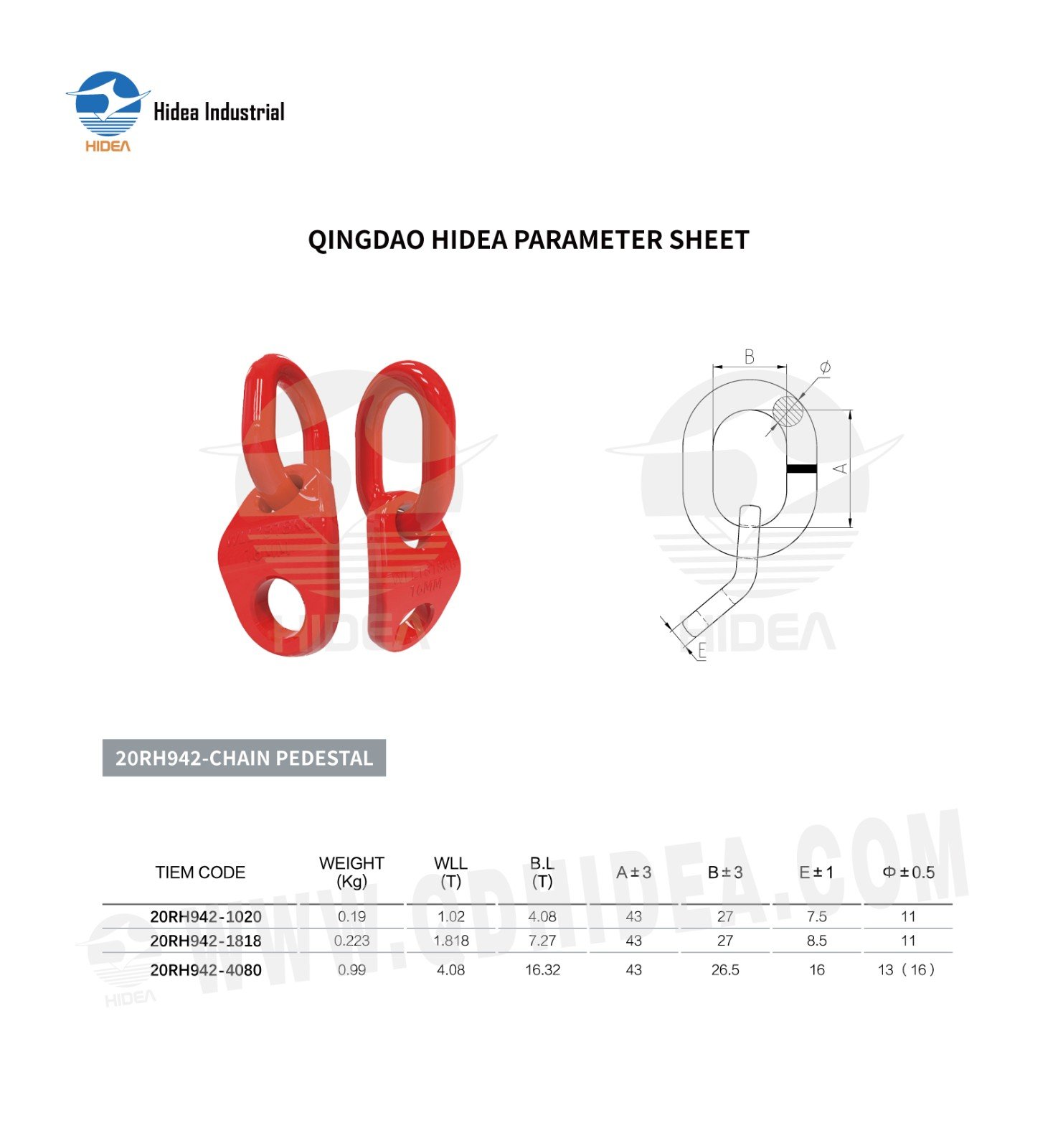

QINGDAO HIDEA PARAMETER SHEET FOR

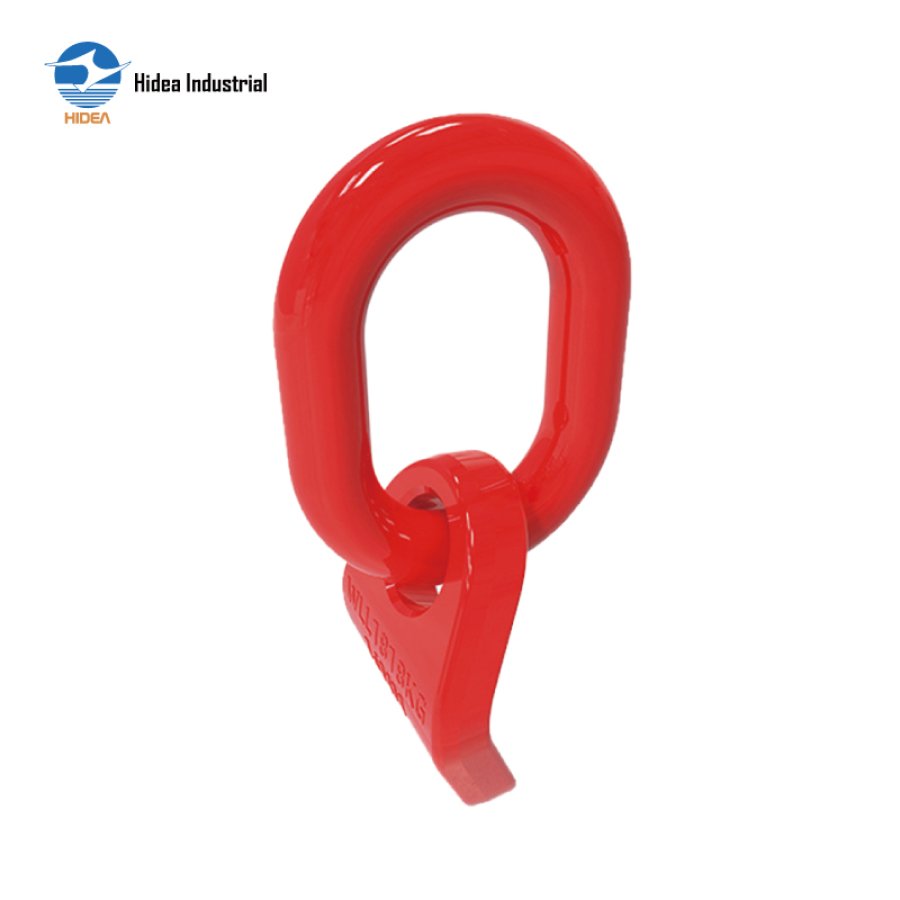

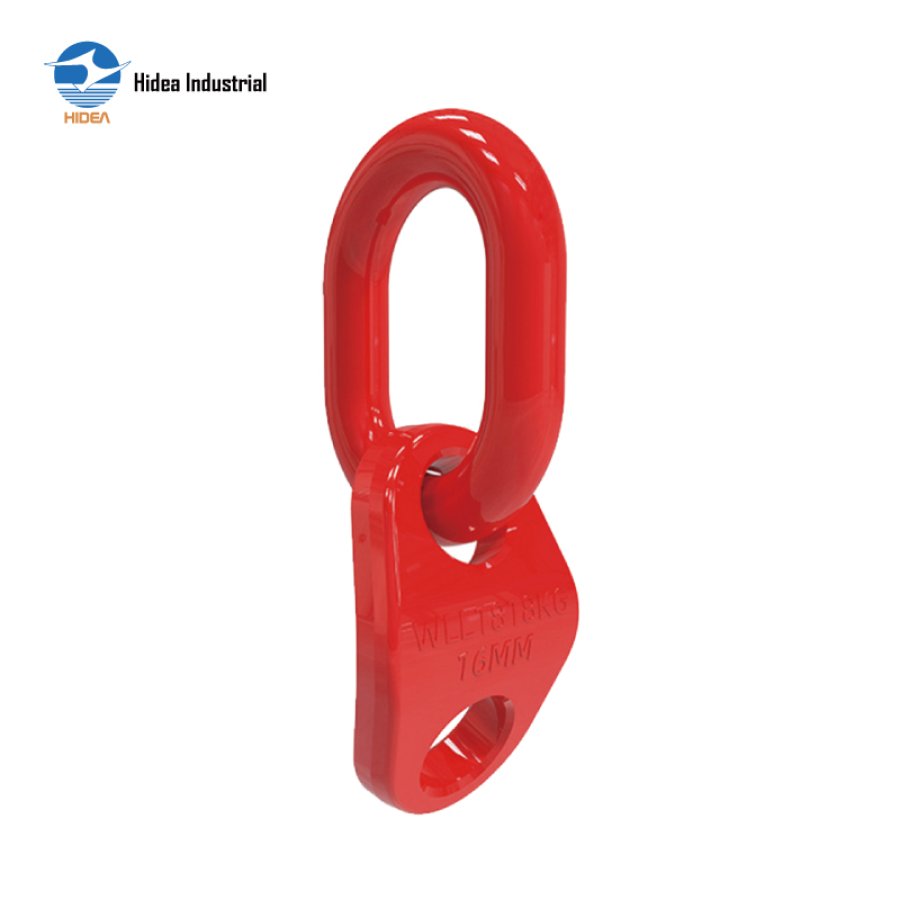

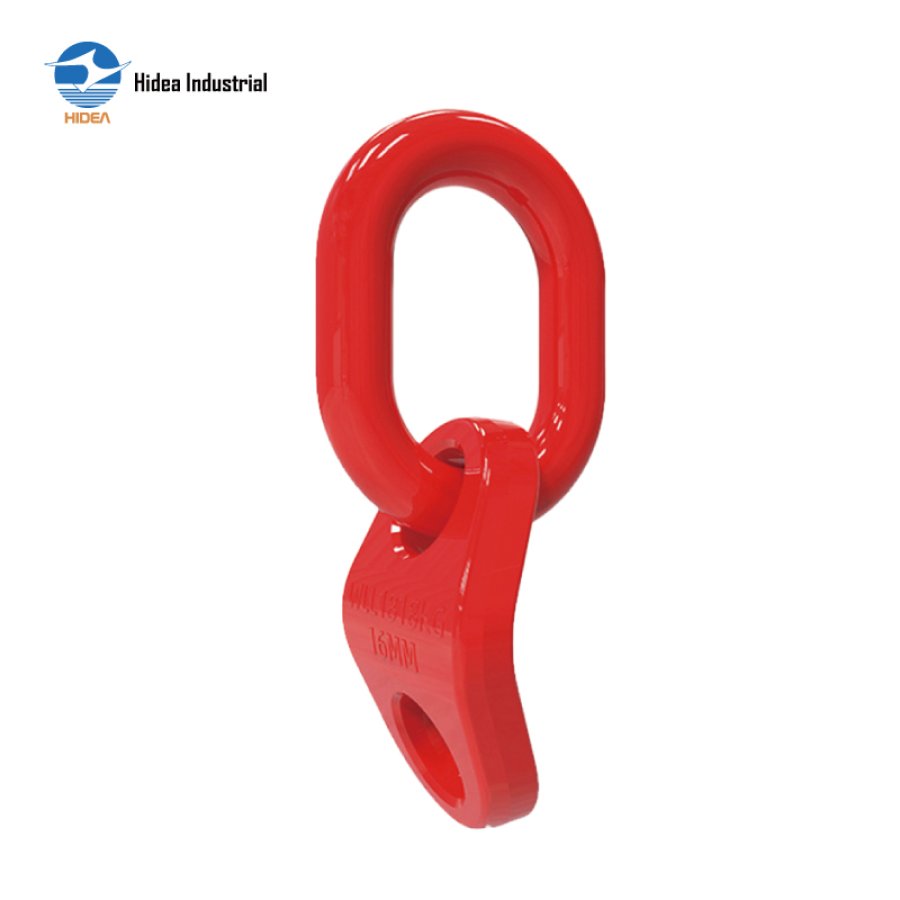

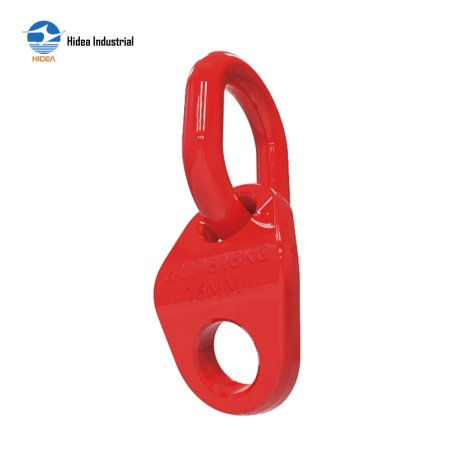

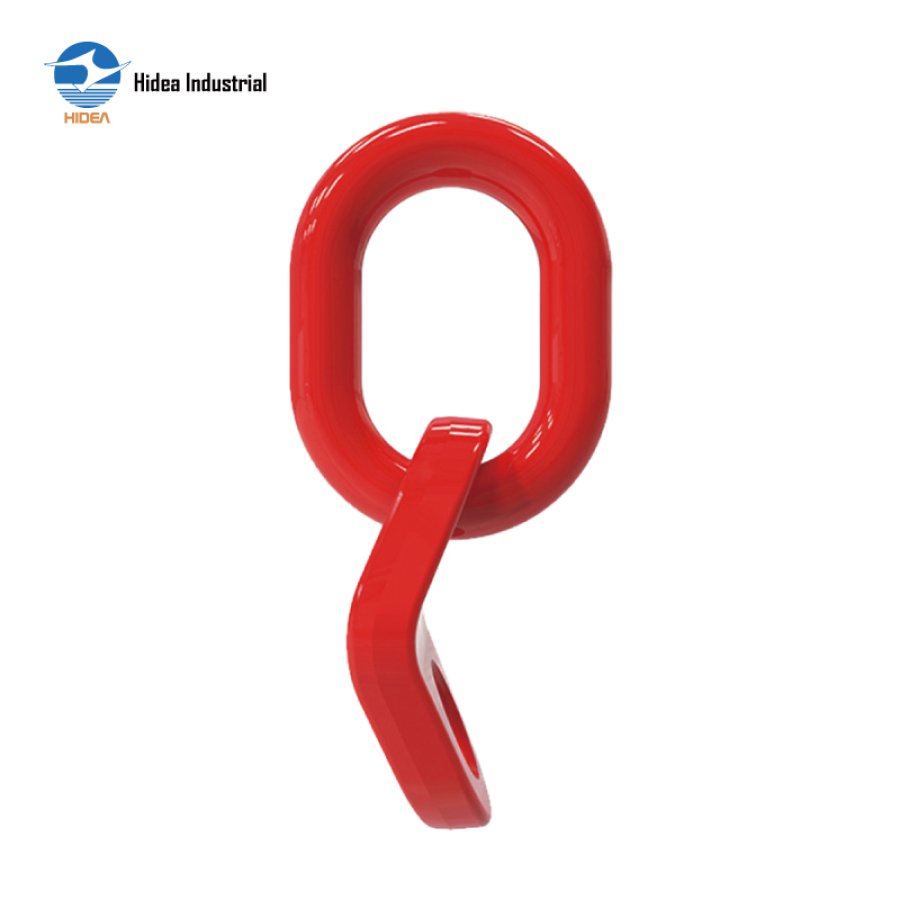

20RH942-CHAIN PEDESTAL
| TIEM CODE | WEIGHT (Kg) | WLL (T) | B.L (T) | A±3 | B±3 | E±1 | Φ±0.5 |
| 20RH942-1020 | 0.19 | 1.02 | 4.08 | 43 | 27 | 7.5 | 11 |
| 20RH942-1818 | 0.223 | 1.818 | 7.27 | 43 | 27 | 8.5 | 11 |
| 20RH942-4080 | 0.99 | 4.08 | 16.32 | 43 | 26.5 | 16 | 13(16) |
