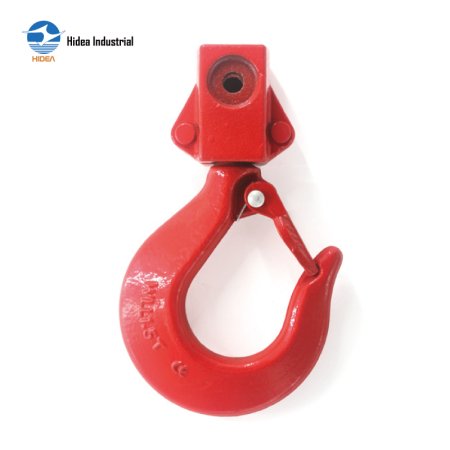

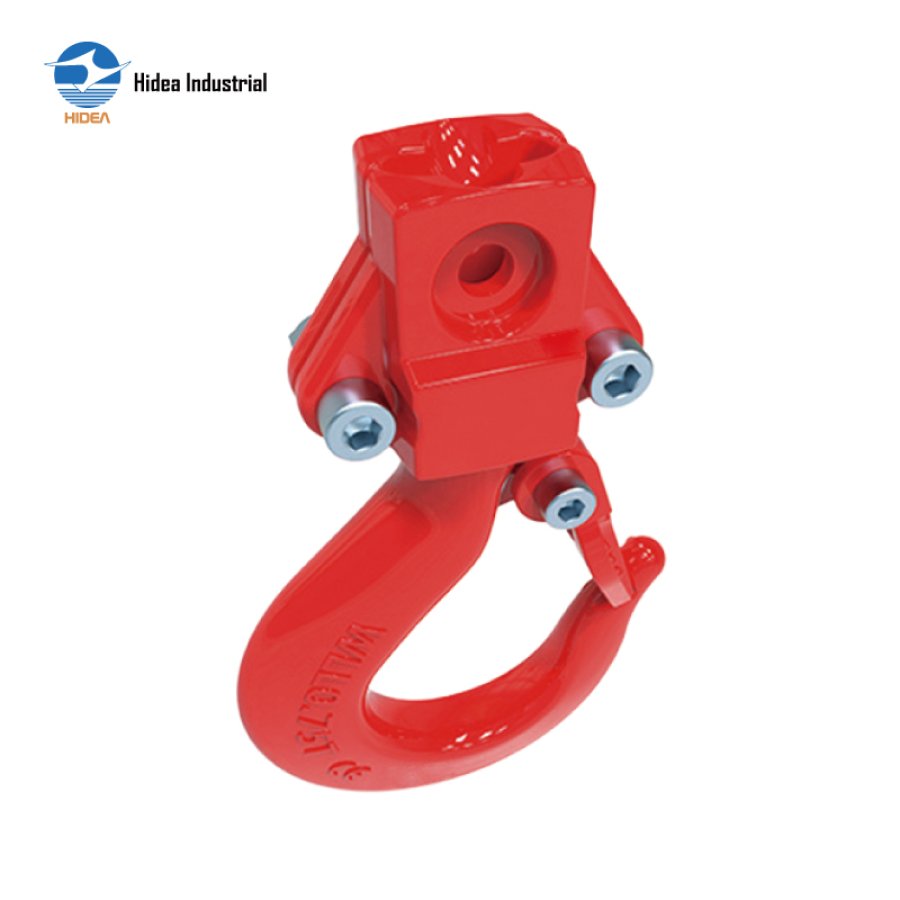

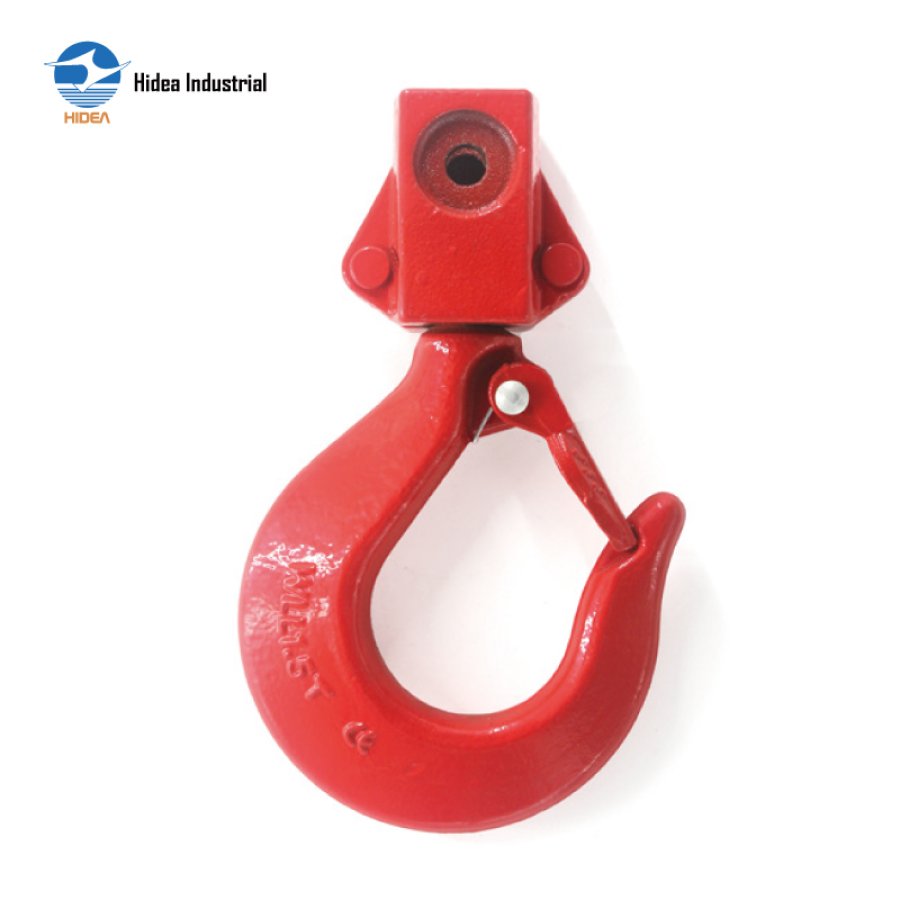

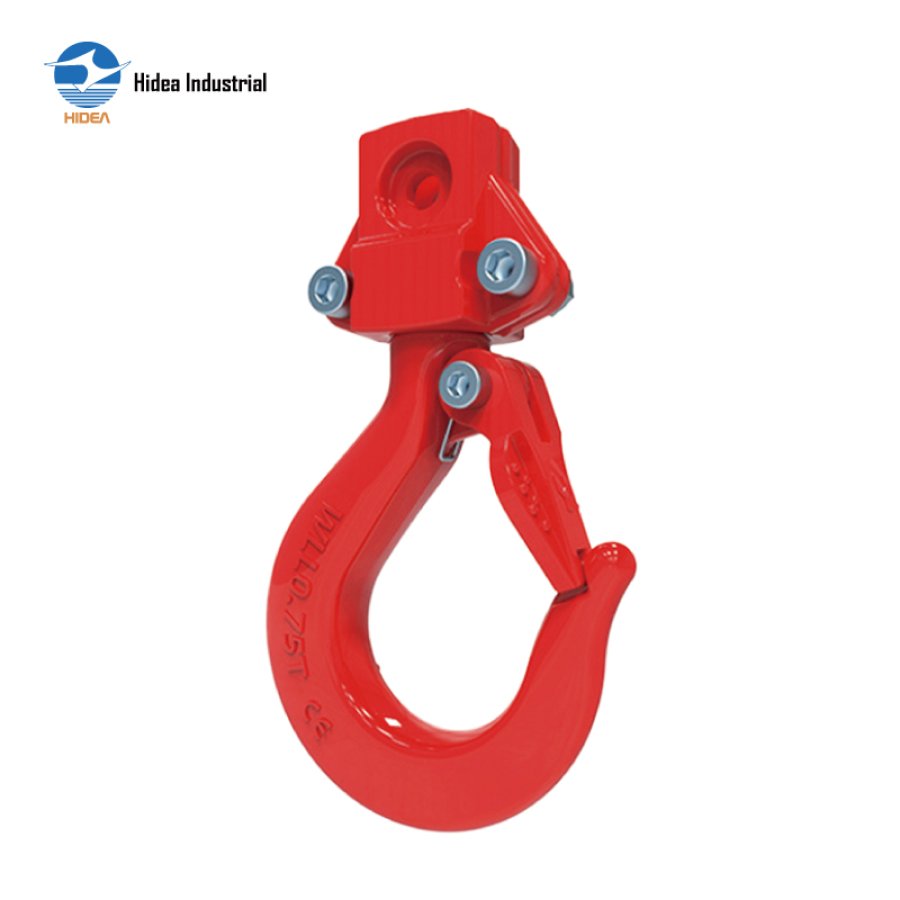

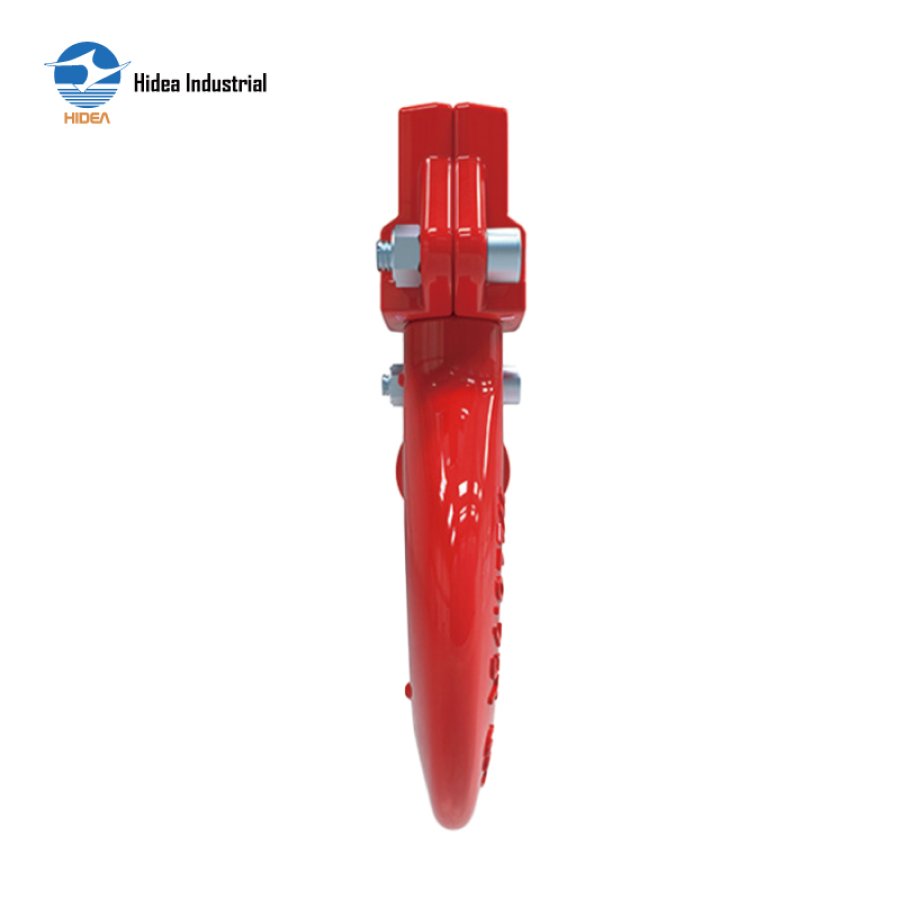

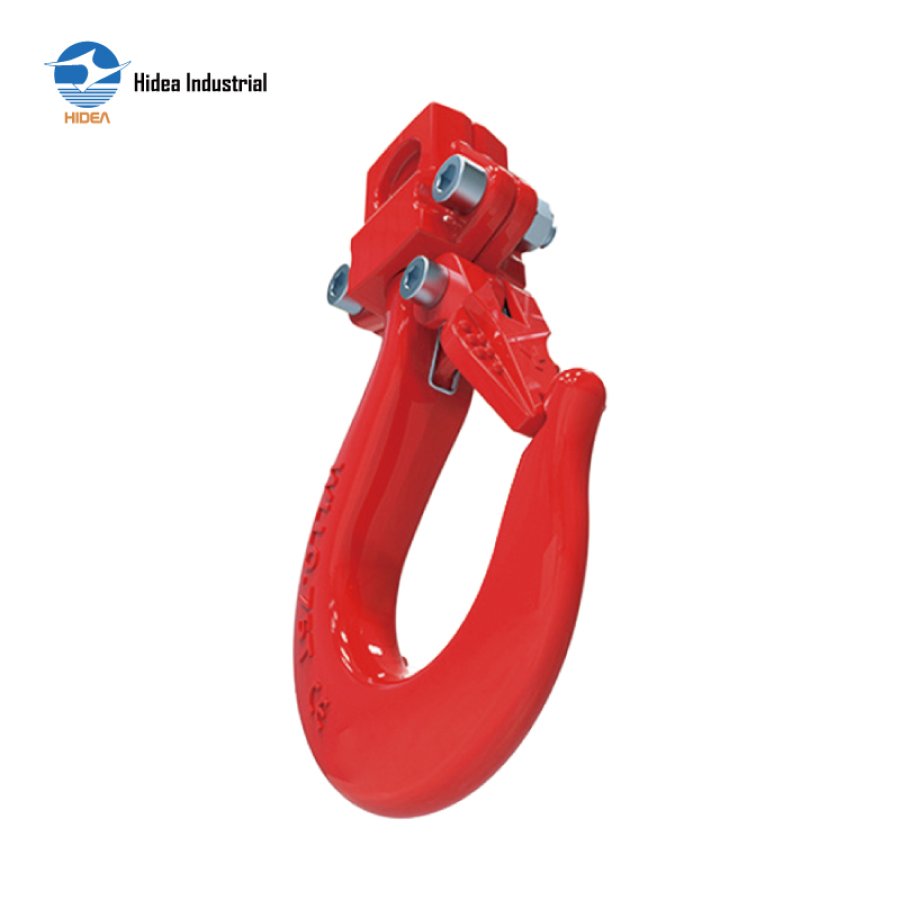

Durable and Dependable Hidea G80 Chain Hoist Replacement Latch Hook

G80 CHAIN HOIST REPLACEMENT HOOK WITH LATCH

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Can be Rotated under Non-load Conditions

Inquire Now

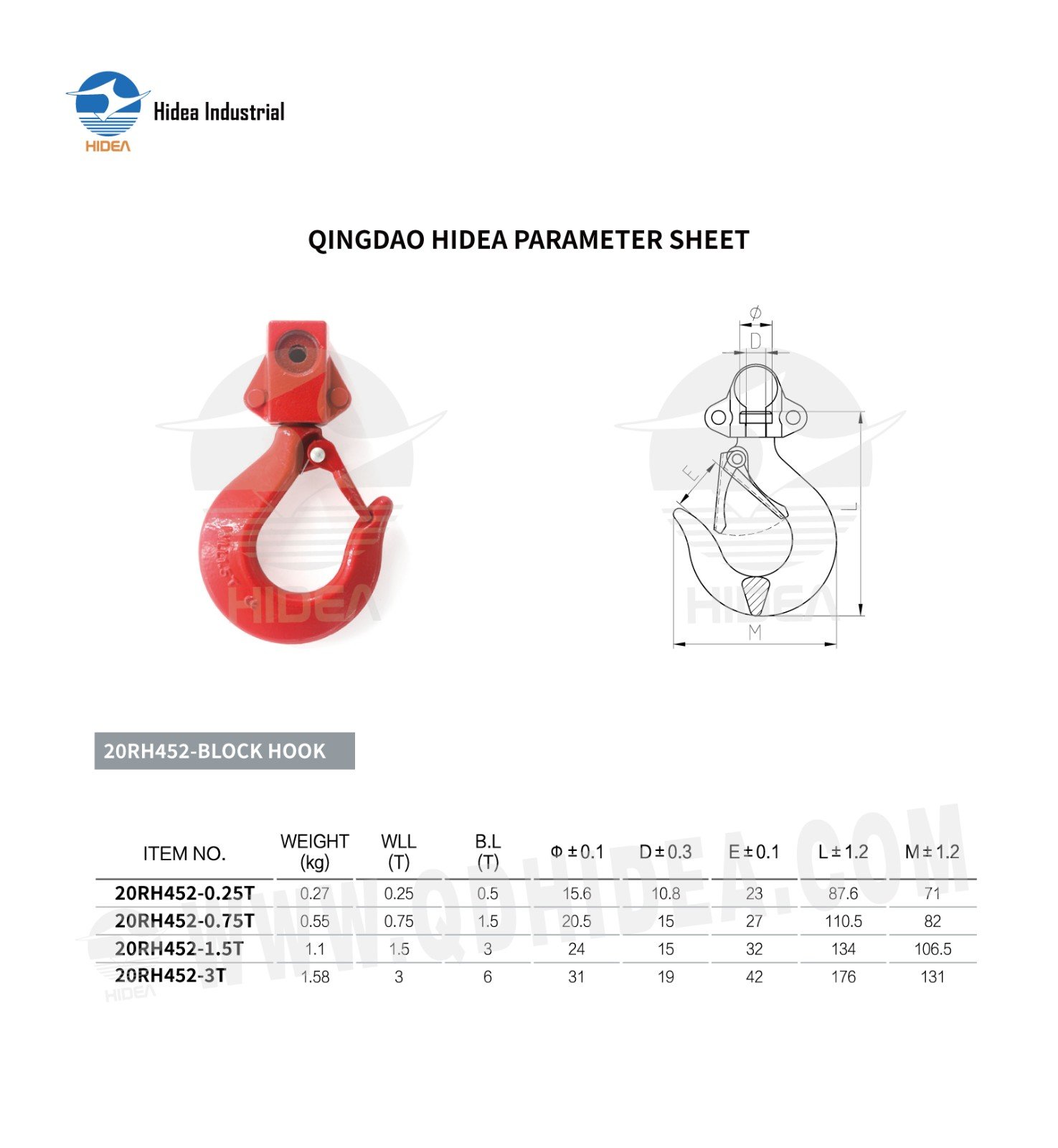

QINGDAO HIDEA PARAMETER SHEET FOR

20RH452-BLOCK HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	Ф±0.1	D±0.3	E±0.1	L±1.2	M±1.2
20RH452-0.25T	0.27	0.25	0.5	15.6	10.8	23	87.6	71
20RH452-0.75T	0.55	0.75	1.5	20.5	15	27	110.5	82
20RH452-1.5T	1.1	1.5	3	24	15	32	134	106.5
20RH452-3T	1.58	3	6	31	19	42	176	131
