Hidea G80 Swivel Self-Locking Safety Hook with Grip for Enhanced Safety and Load Stability

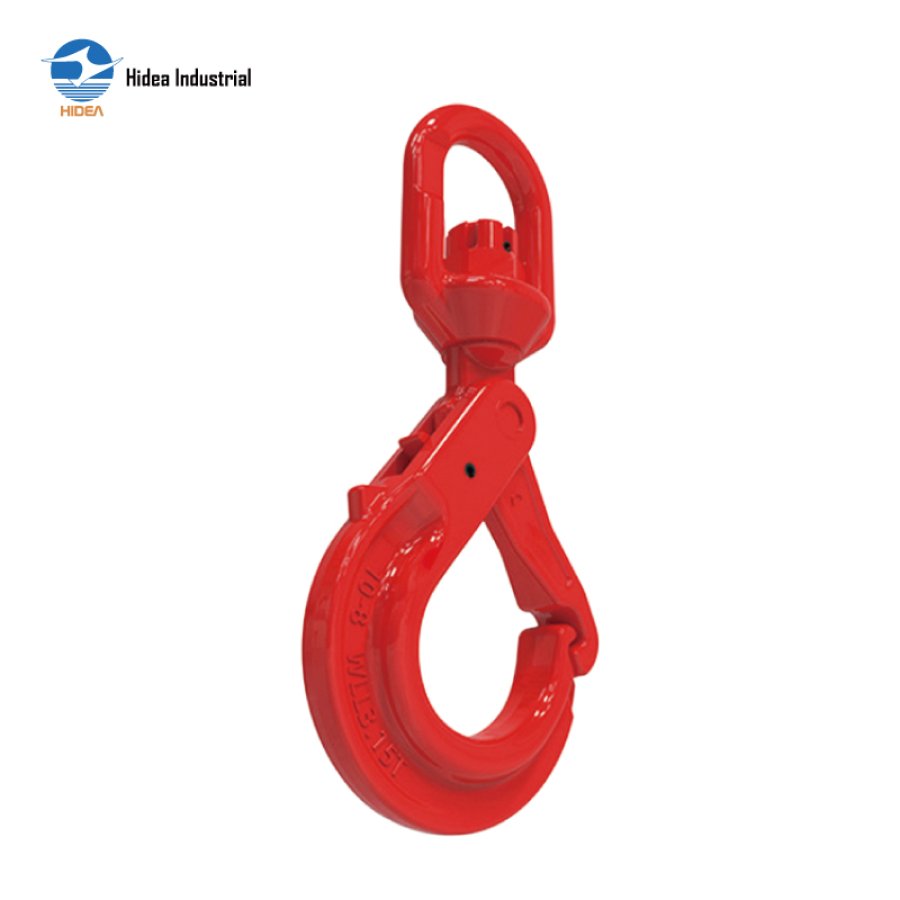

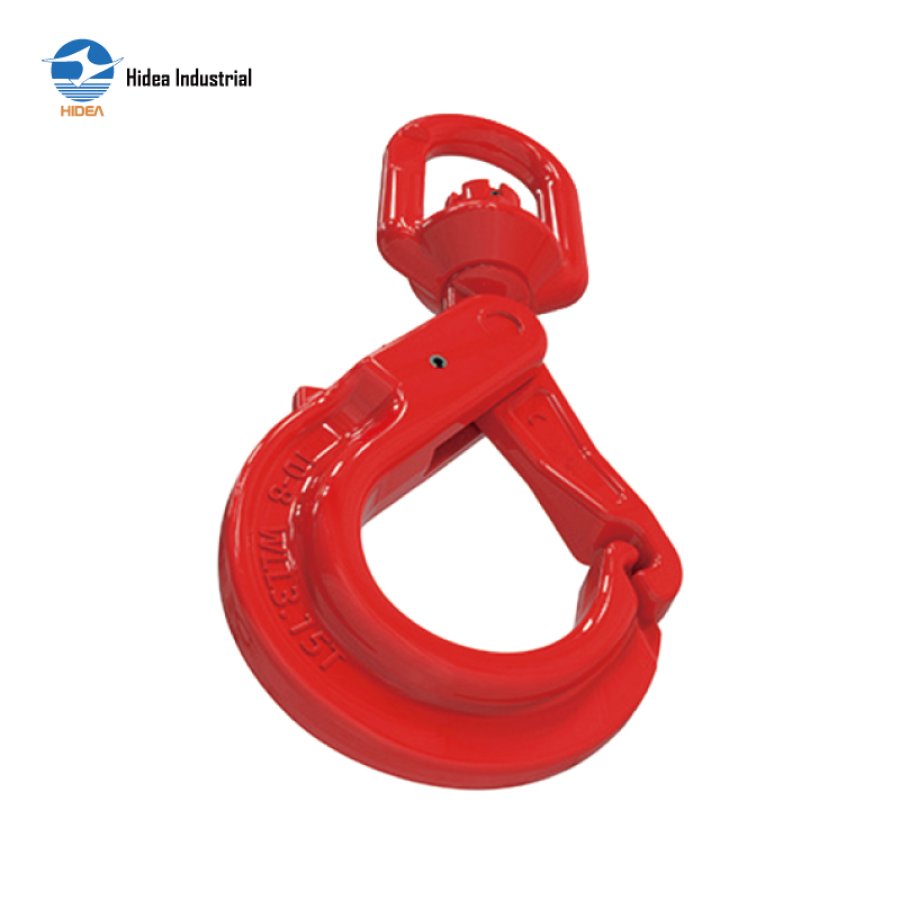

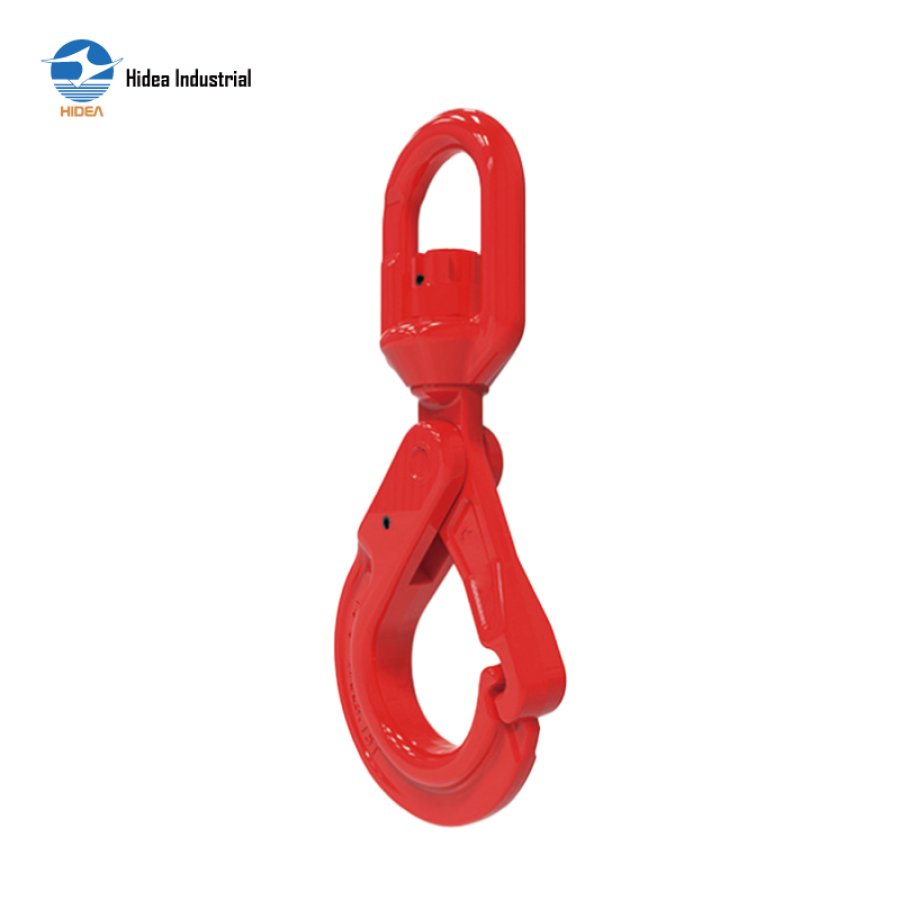

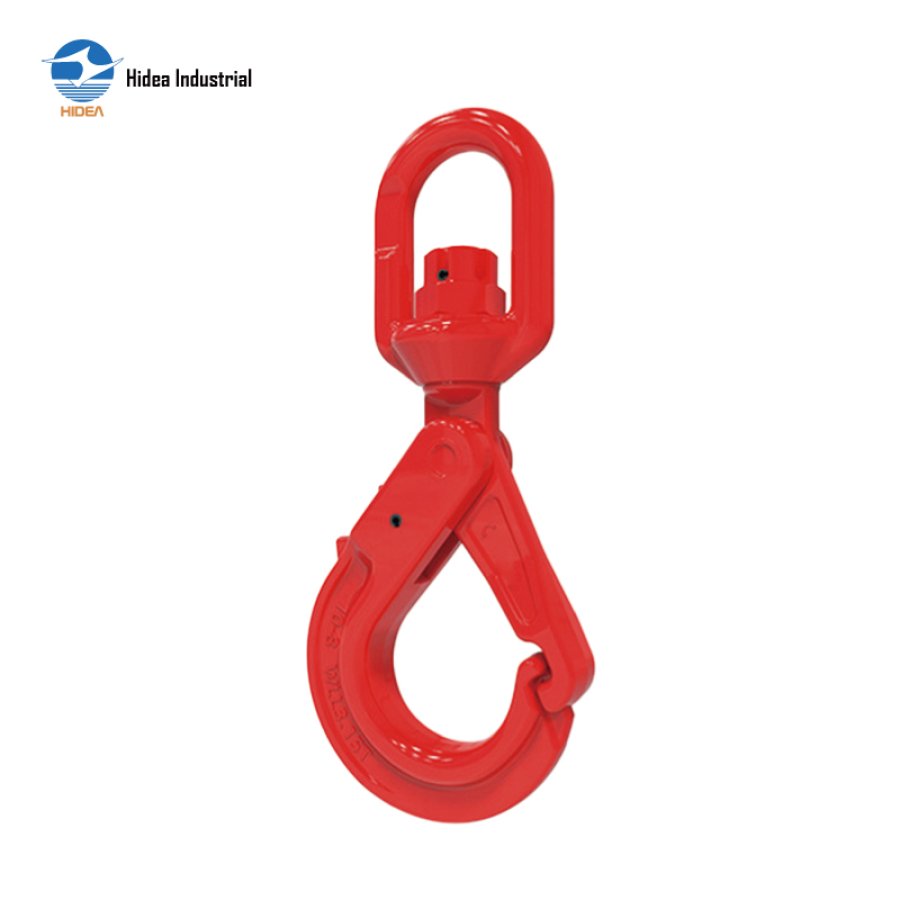

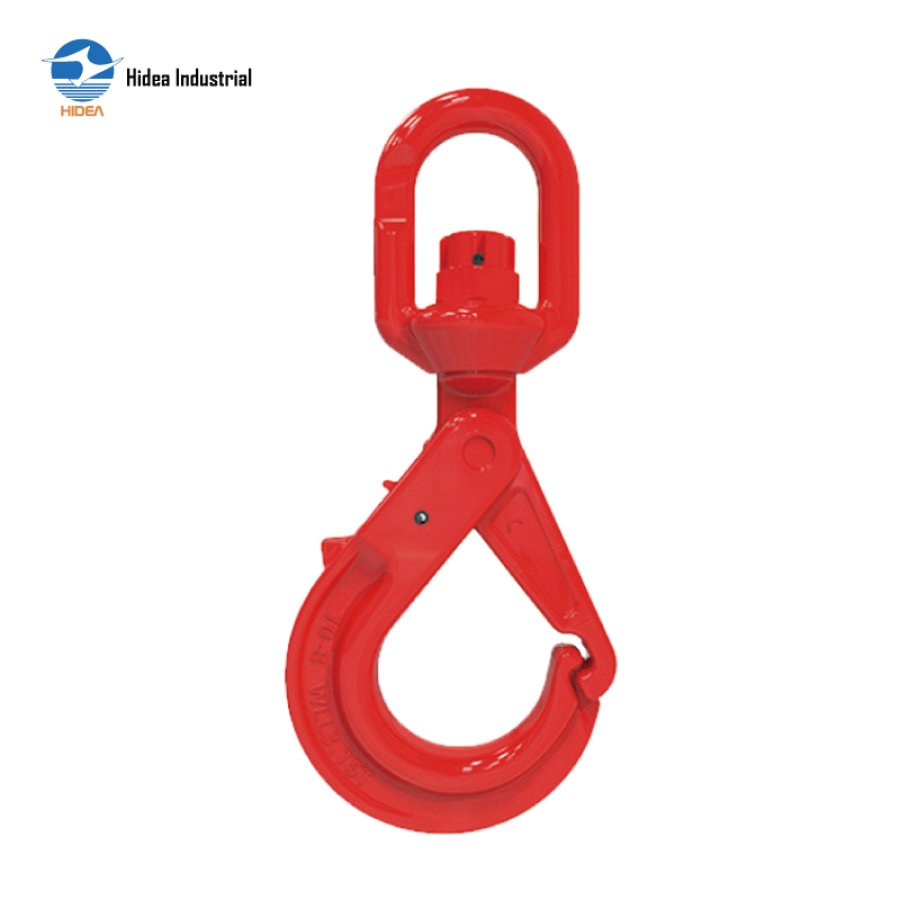

G80 SWIVEL SELF-LOCKING SAFETY HOOK WITH GRIP

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Can be rotated under Non-load Conditions

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH277-G80 SWIVEL SELF-LOCKING HOOK WITH GRIP

ITEM NO.	WEIGHT (kg)	WLL （T）	B.L (T)	A±2	B±2.5	C±1	D±0.5	E±0.5	F±1	G	H±0.5	K±2.5
20RH277-08	1.03	2	8	214	28.5	36	13	45	37	32	21	179
20RH277-10	1.8	3.15	12.6	264	39	42	15.5	55.5	47.5	46	30.5	219
20RH277-13	3.34	5.3	21.6	334	46	49	19	64	52.5	56	39	276
20RH277-16	5.83	8	32	400	69	62	23	80	70	91	45	323
