Hidea Grade 80 Slip Hook with Half Link – Flexible Hoisting

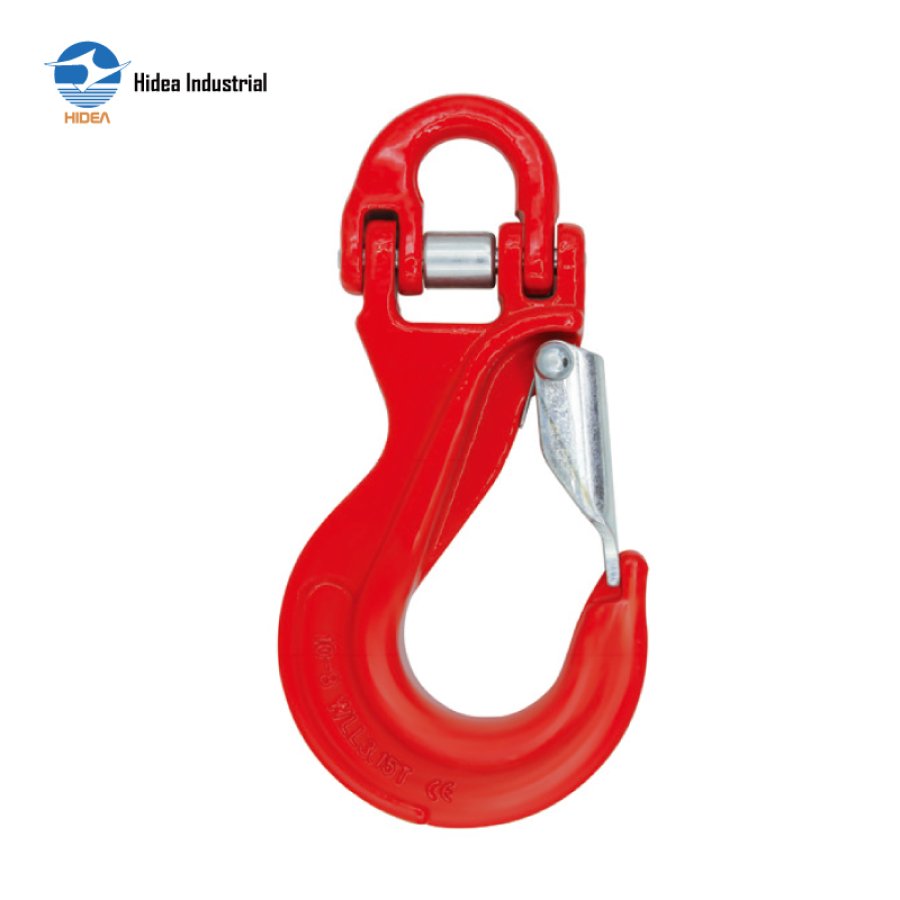

G80 SLIP HOOK WITH HALF LINK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

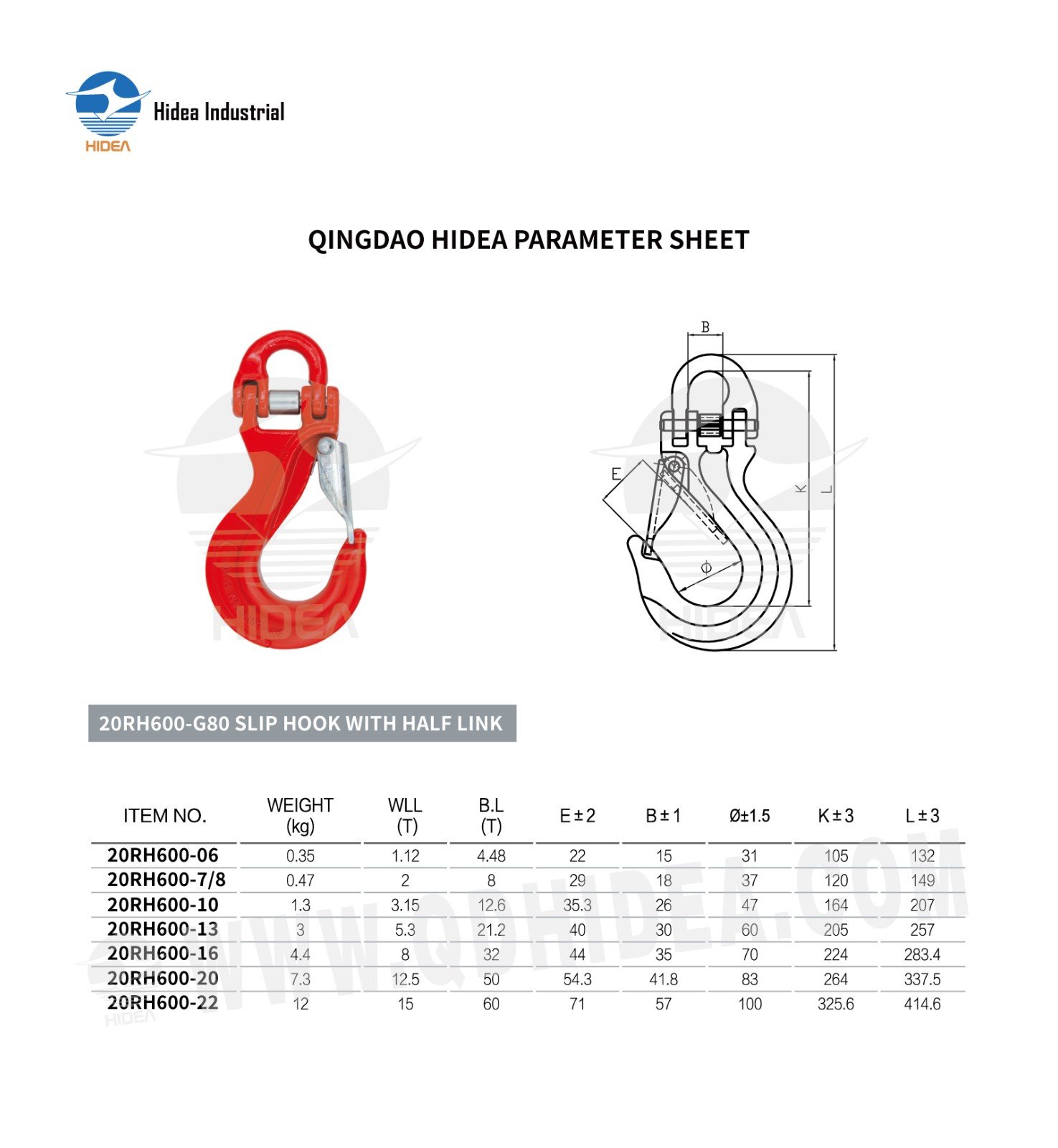

QINGDAO HIDEA PARAMETER SHEET FOR

20RH600-G80 SLIP HOOK WITH HALF LINK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	E±2	B±1	O±1.5	K±3	L±3
20RH600-06	0.35	1.12	4.48	22	15	31	105	132
20RH600-7/8	0.47	2	8	29	18	37	120	149
20RH600-10	1.3	3.15	12.6	35.3	26	47	164	207
20RH600-13	3	5.3	21.2	40	30	60	205	257
20RH600-16	4.4	8	32	44	35	70	224	283.4
20RH600-20	7.3	12.5	50	54.3	41.8	83	264	337.5
20RH600-22	12	15	60	71	57	100	325.6	414.6
