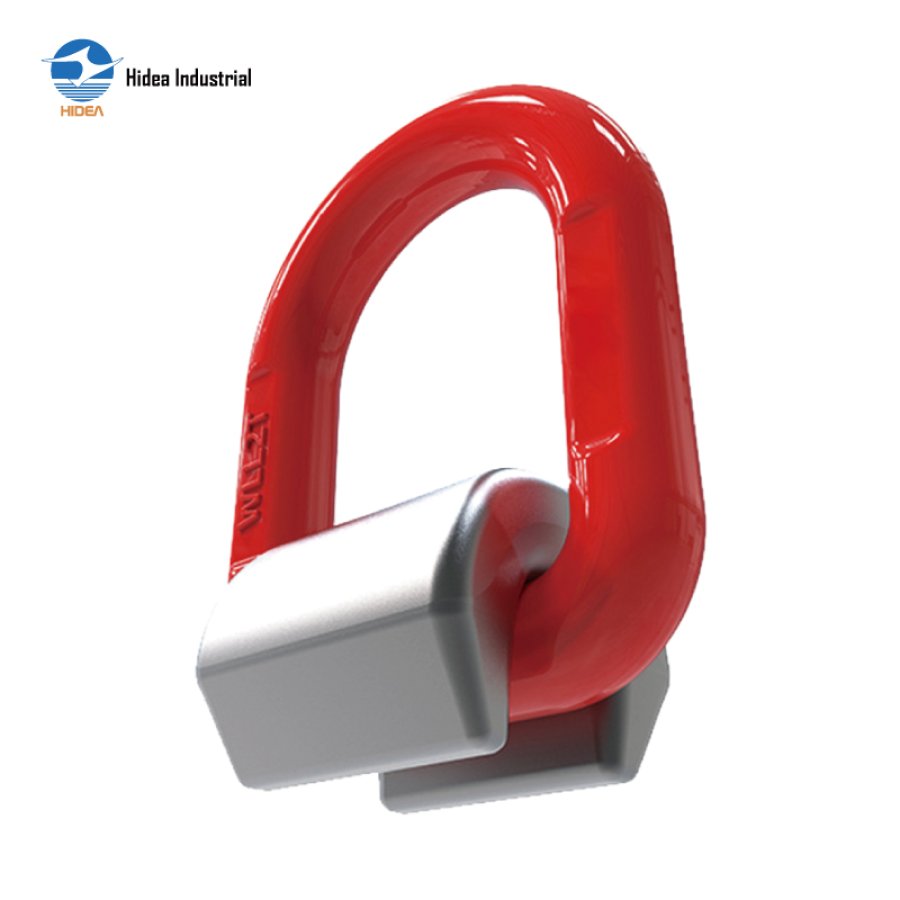

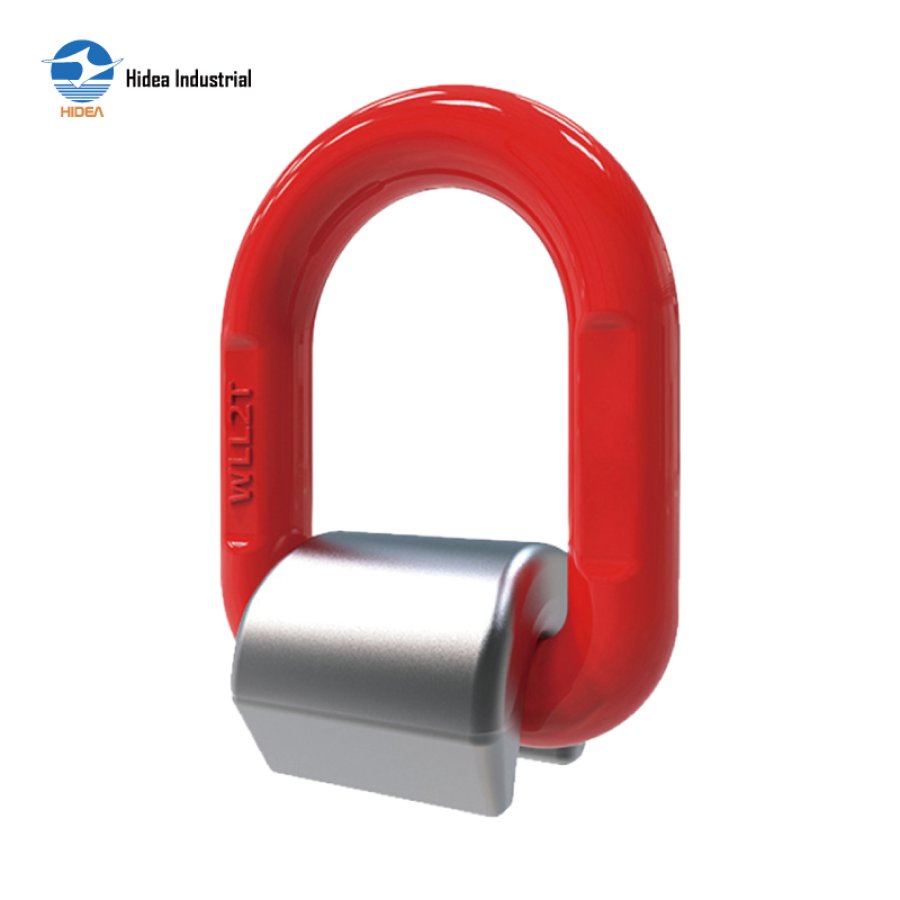

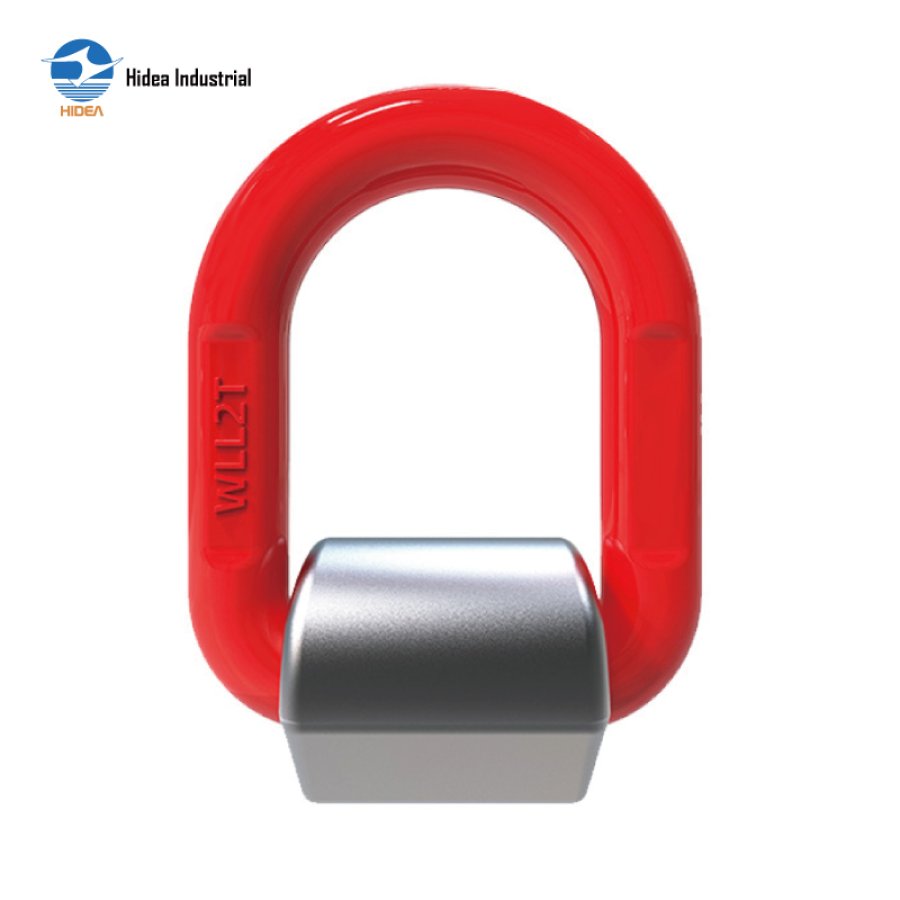

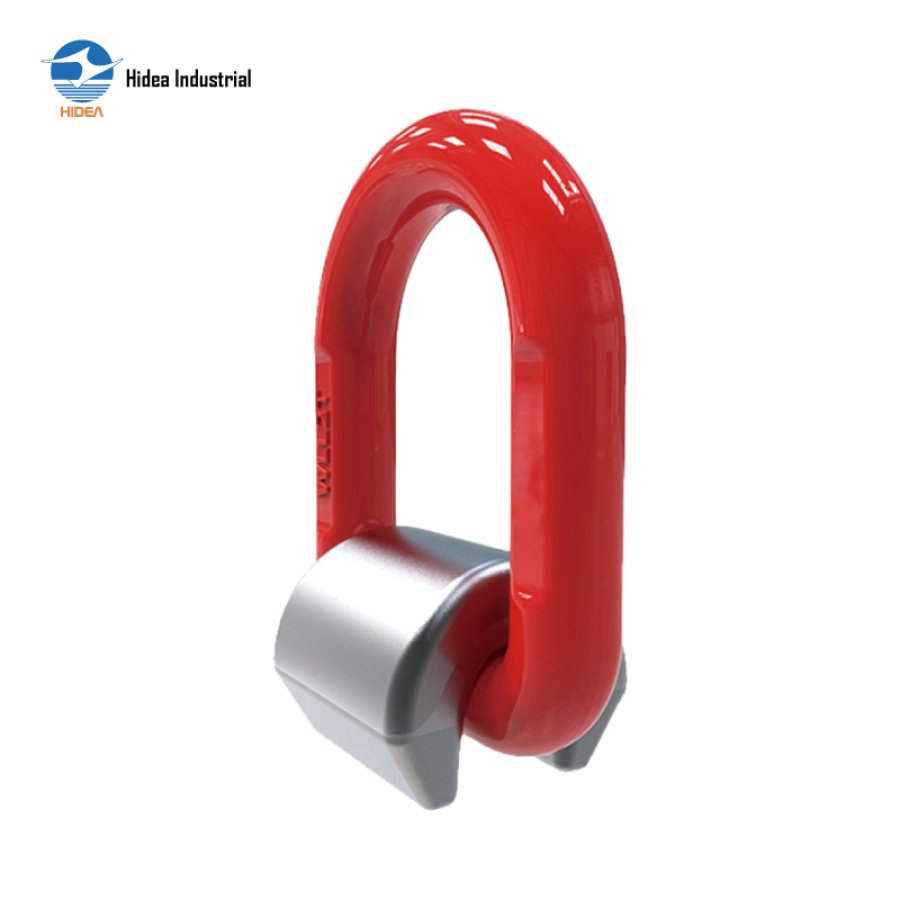

Forged and Resilient G80 Weld On Pivoting D Link with Wrap & Spring for Rigging & Hoisting

G80 WELD ON D RING WITH WRAP

Forged super alloy steel-Quenched and Tempered
100% magnaflux crack detection
Breakage test
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003
Electro-galvanizing

Inquire Now

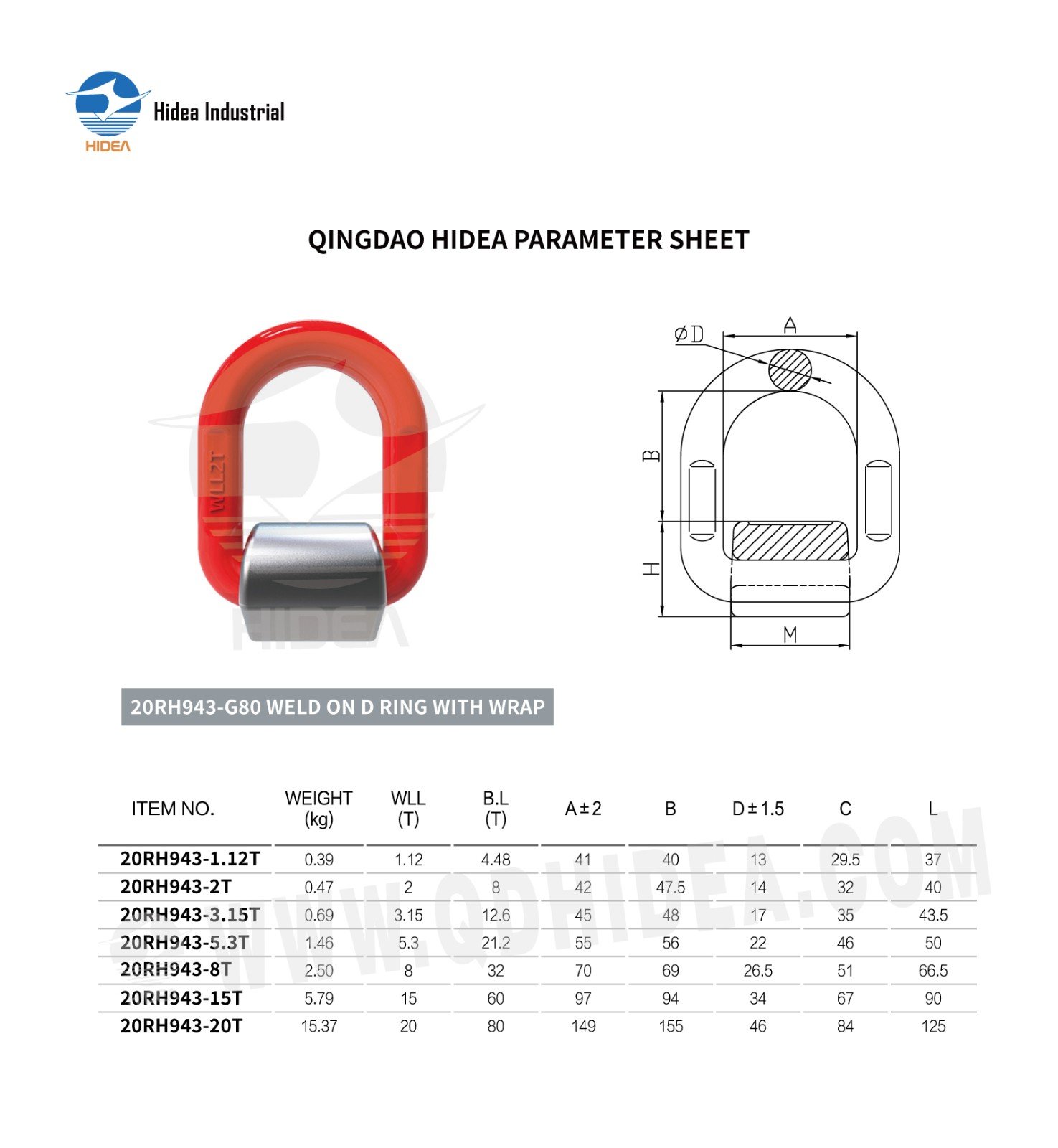

QINGDAO HIDEA PARAMETER SHEET FOR

20RH943-G80 WELD ON D RING WITH WRAP

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±2	B	D±1.5	C	L
20RH943-1.12T	0.39	1.12	4.48	41	40	13	29.5	37
20RH943-2T	0.47	2	8	42	47.5	14	32	40
20RH943-3.15T	0.69	3.15	12.6	45	48	17	35	43.5
20RH943-5.3T	1.46	5.3	21.2	55	56	22	46	50
20RH943-8T	2.50	8	32	70	69	26.5	51	66.5
20RH943-15T	5.79	15	60	97	94	34	67	90
20RH943-20T	15.37	20	80	149	155	46	84	125
