QINGDAO HIDEA PARAMETER SHEET FOR

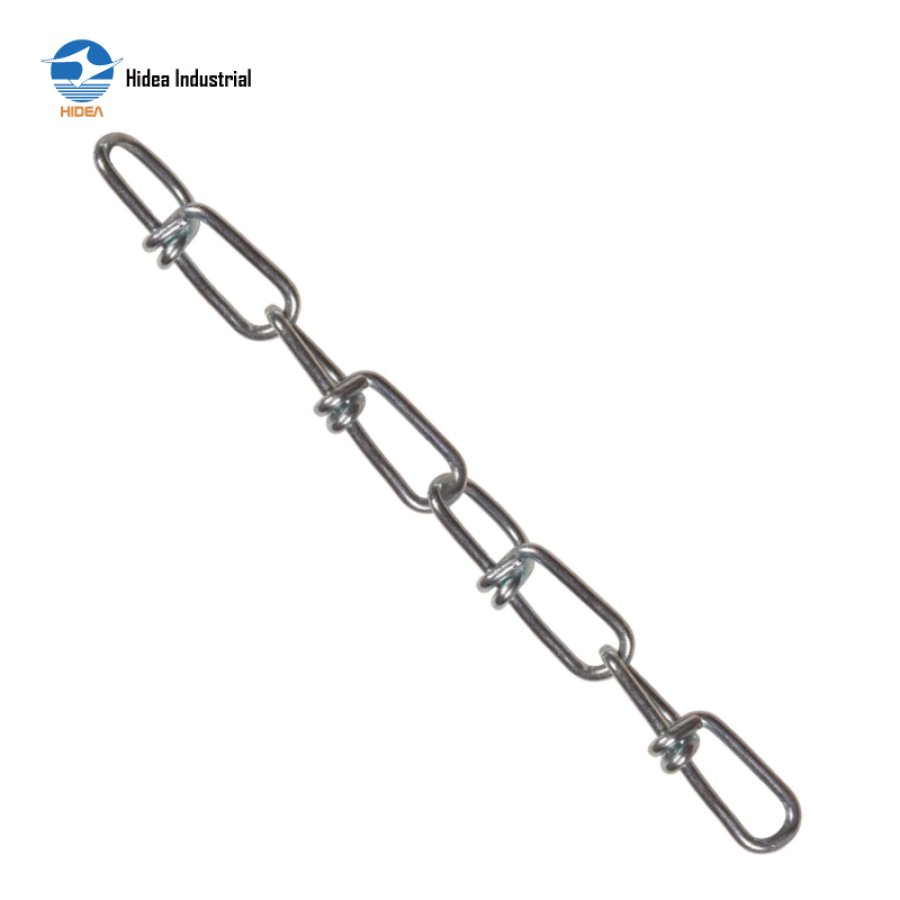

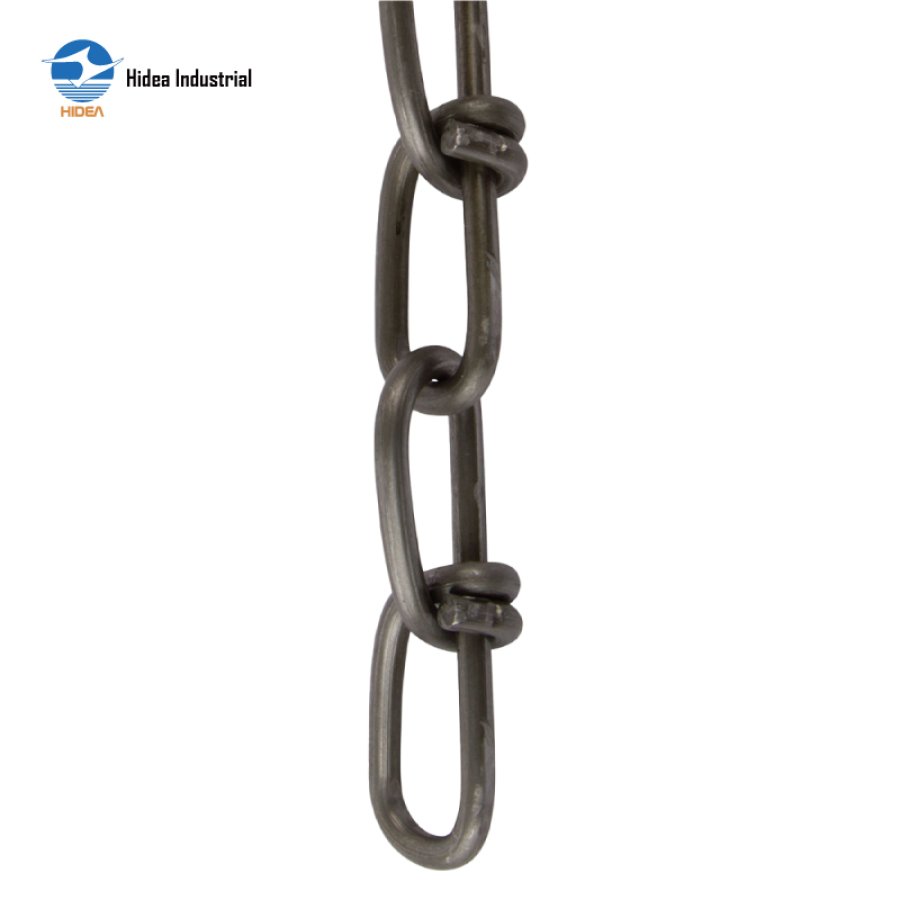

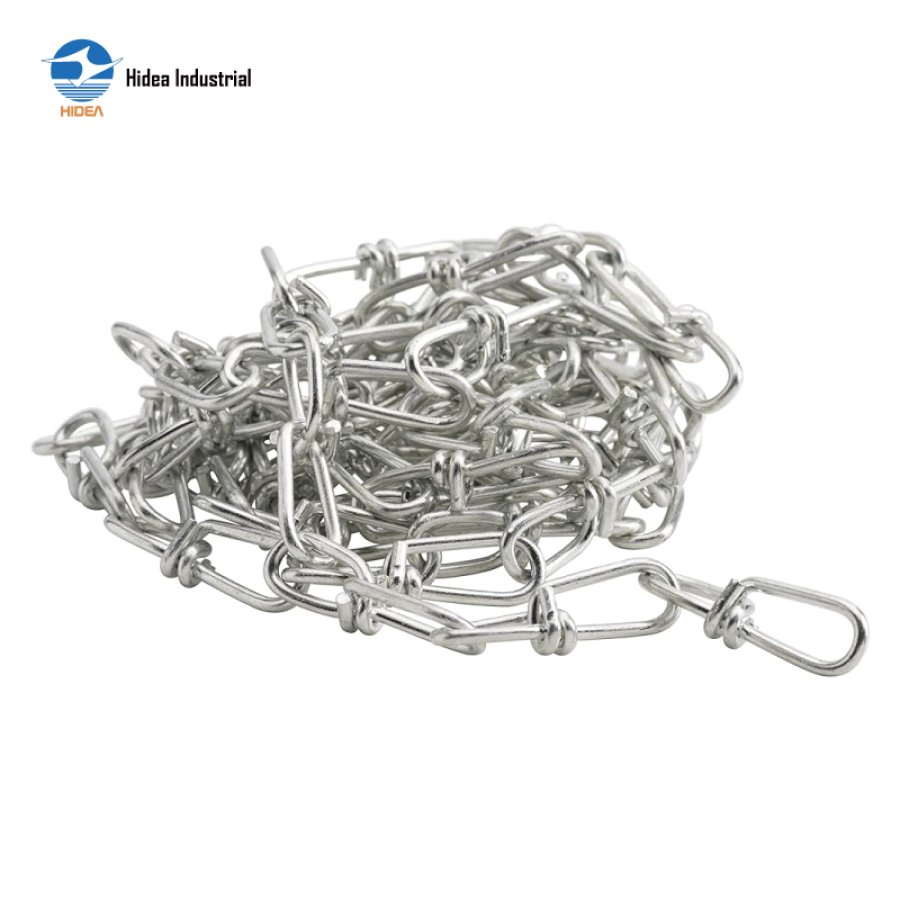

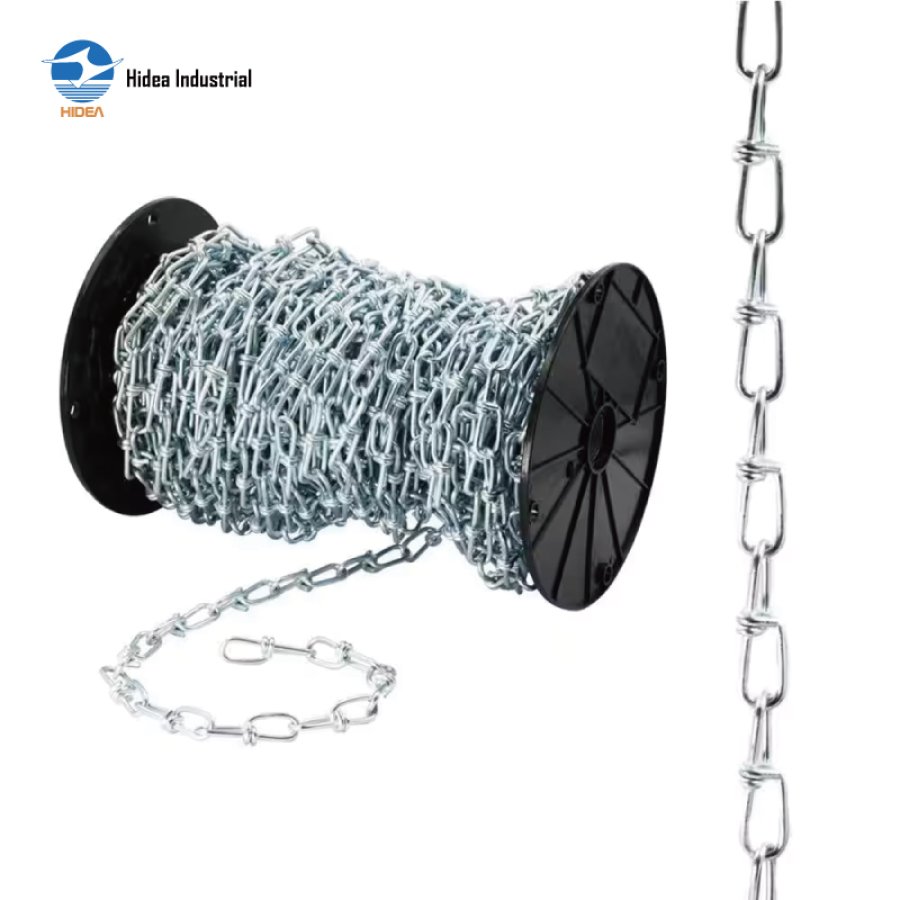

30SC146 Din5686 Knotted Double Loop Chain Weldless
| NO. | Diameter Inside Length | Outside Width | Breaking Load | Weight Per 100M | ||
| (d)mm (t)mm | (b)mm | kg | kg | |||
| 10 | 1.00 15.50 | 4.50 | 7.00 | 7.00 | ||
| 12 | 1.20 18.00 | 5.50 | 12.00 | 12.00 | ||
| 14 | 1.40 21.00 | 6.50 | 16.00 | 16.00 | ||
| 16 | 1.60 23.00 | 7.00 | 22.00 | 22.00 | ||
| 20 | 1.80 26.00 | 8.00 | 30.00 | 30.00 | ||
| 22 | 2.00 28.00 | 9.00 | 40.00 | 40.00 | ||
| 25 | 2.20 31.00 | 10.00 | 50.00 | 50.00 | ||
| 27 | 2.50 35.00 | 11.00 | 70.00 | 70.00 | ||
| 30 | 2.80 39.00 | 12.50 | 90.00 | 90.00 | ||
| 32 | 3.10 41.00 | 14.00 | 120.00 | 120.00 | ||
| 35 | 3.40 44.00 | 15.00 | 140.00 | 140.00 | ||
| 40 | 3.80 46.00 | 17.00 | 160.00 | 160.00 | ||
| 45 | 4.20 50.00 | 19.00 | 170.00 | 170.00 | ||
| 50 | 4.60 55.00 | 20.50 | 180.00 | 180.00 | ||
| 55 | 5.00 60.00 | 22.50 | 190.00 | 190.00 | ||
