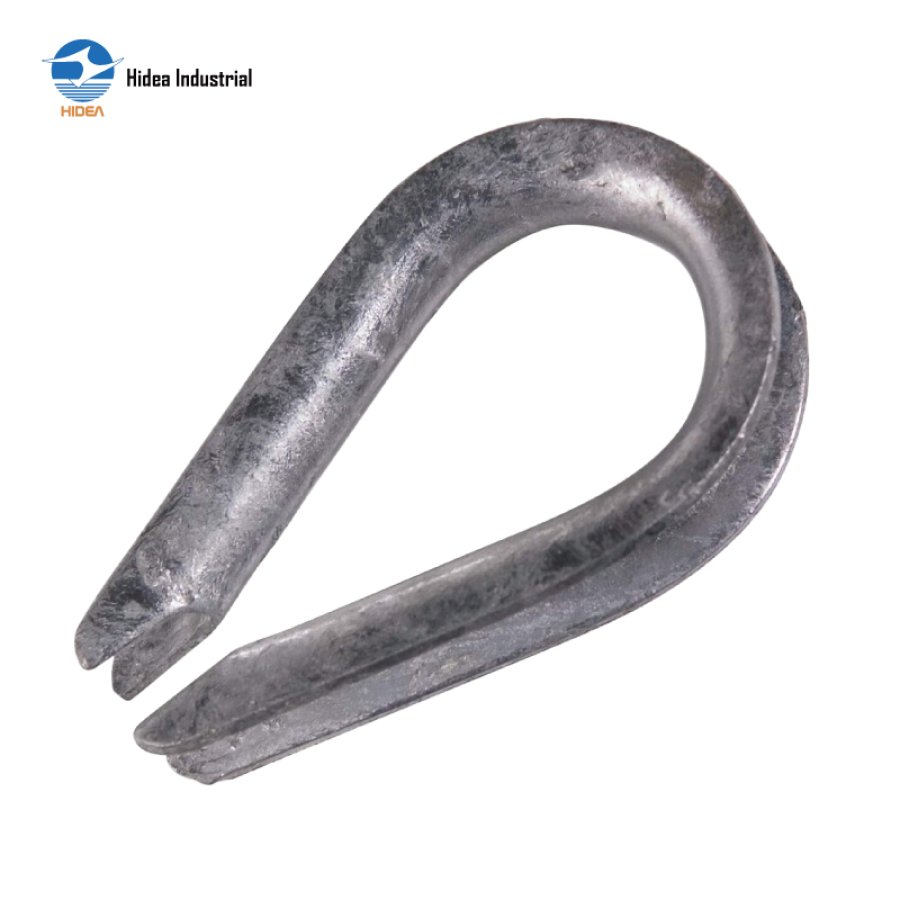

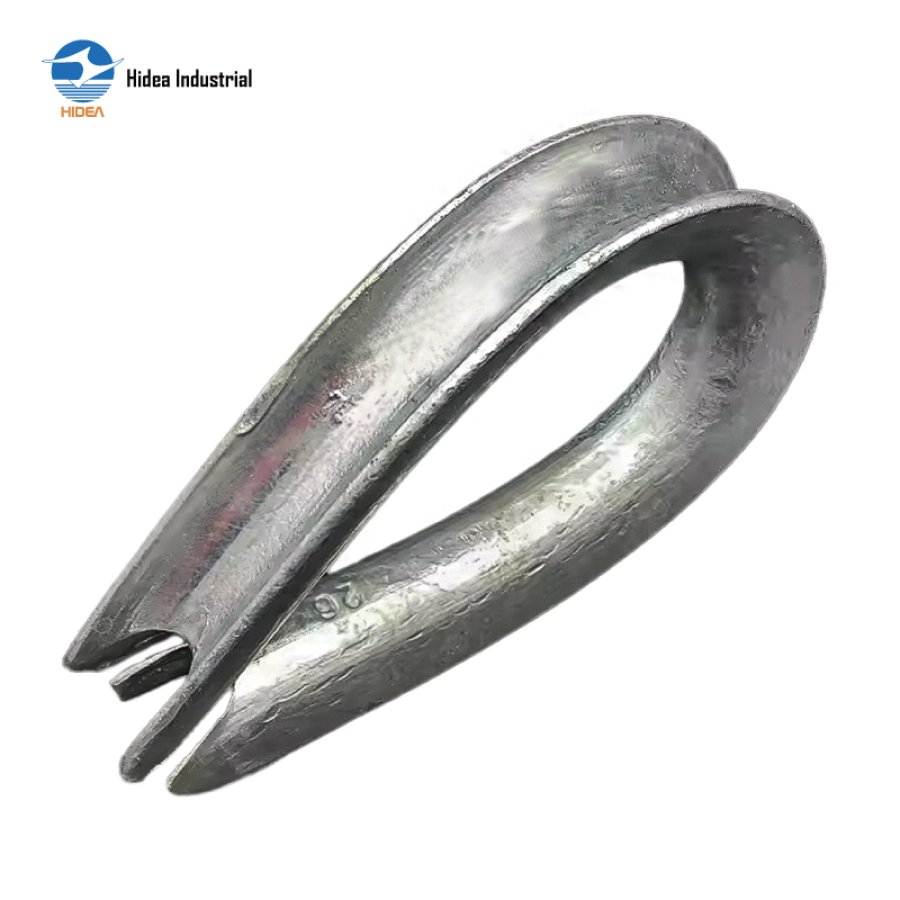

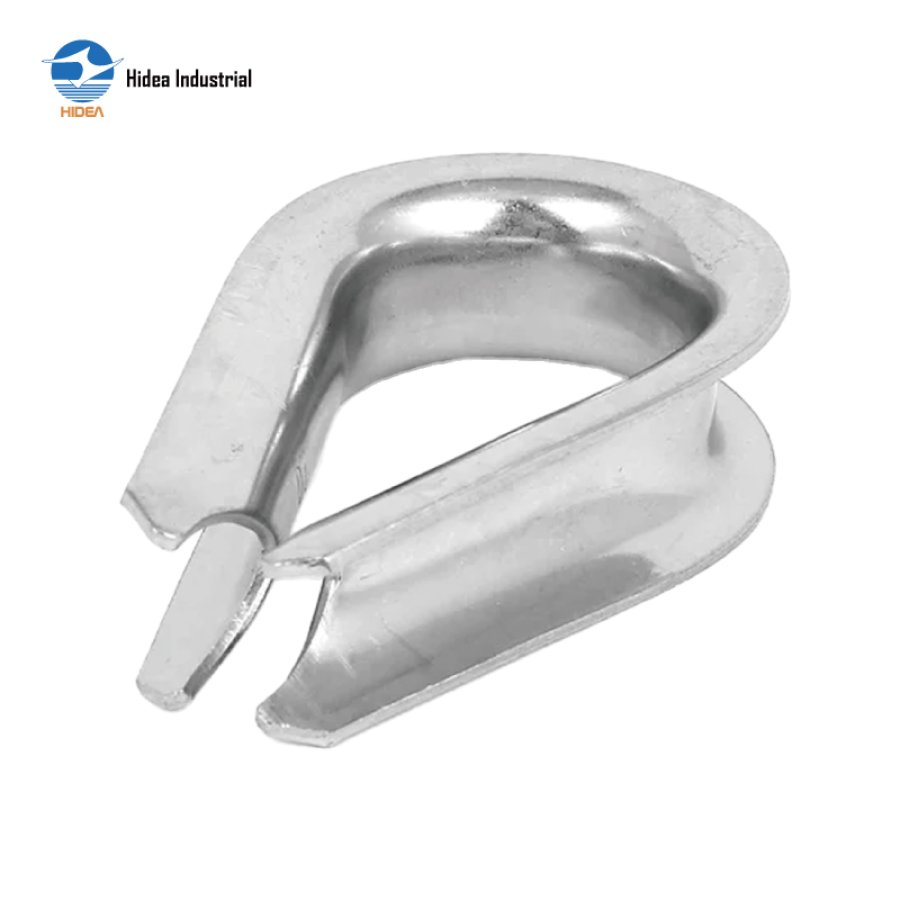

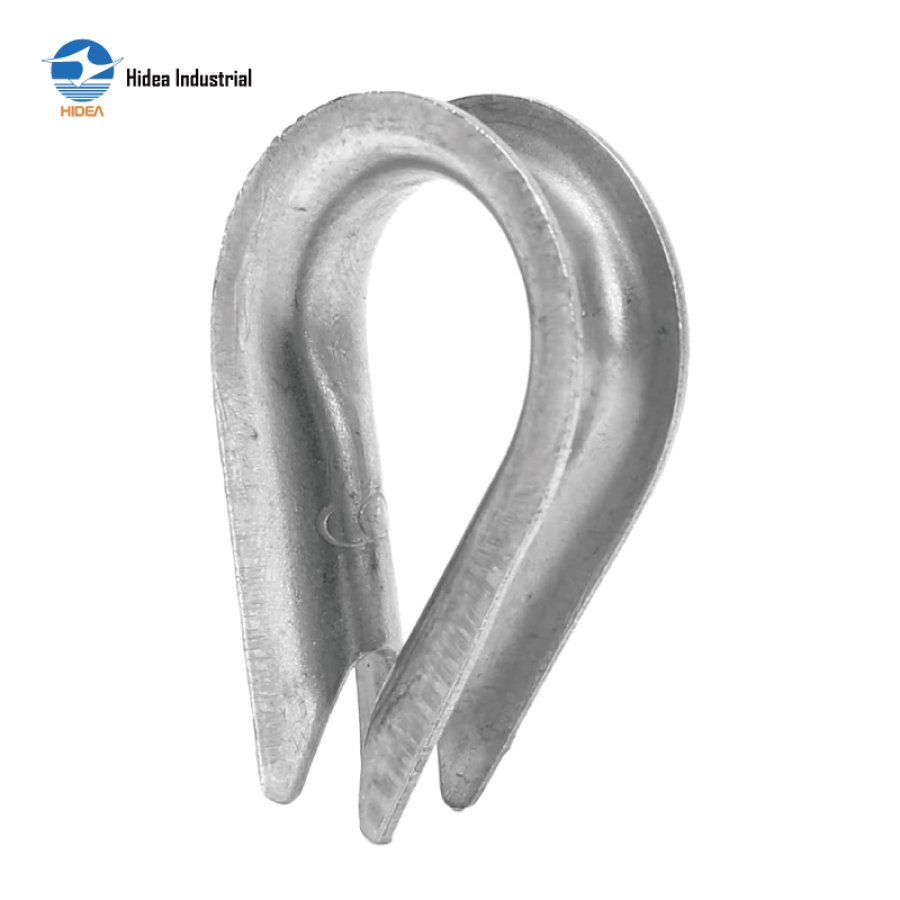

HIDEA Din3090 Thimble: Durable & Reliable Thimble for Steel Wire Rope

DIN3090/EN13411-1 WIRE ROPE THIMBLE

Material: Mild Steel
Stamped & bent to shape, machined & polished
Surface: Hot Dip Galv., Electro Galv. / Zinc Plated OR as requested
As per DIN 3090/EN 13411-1

Inquire Now

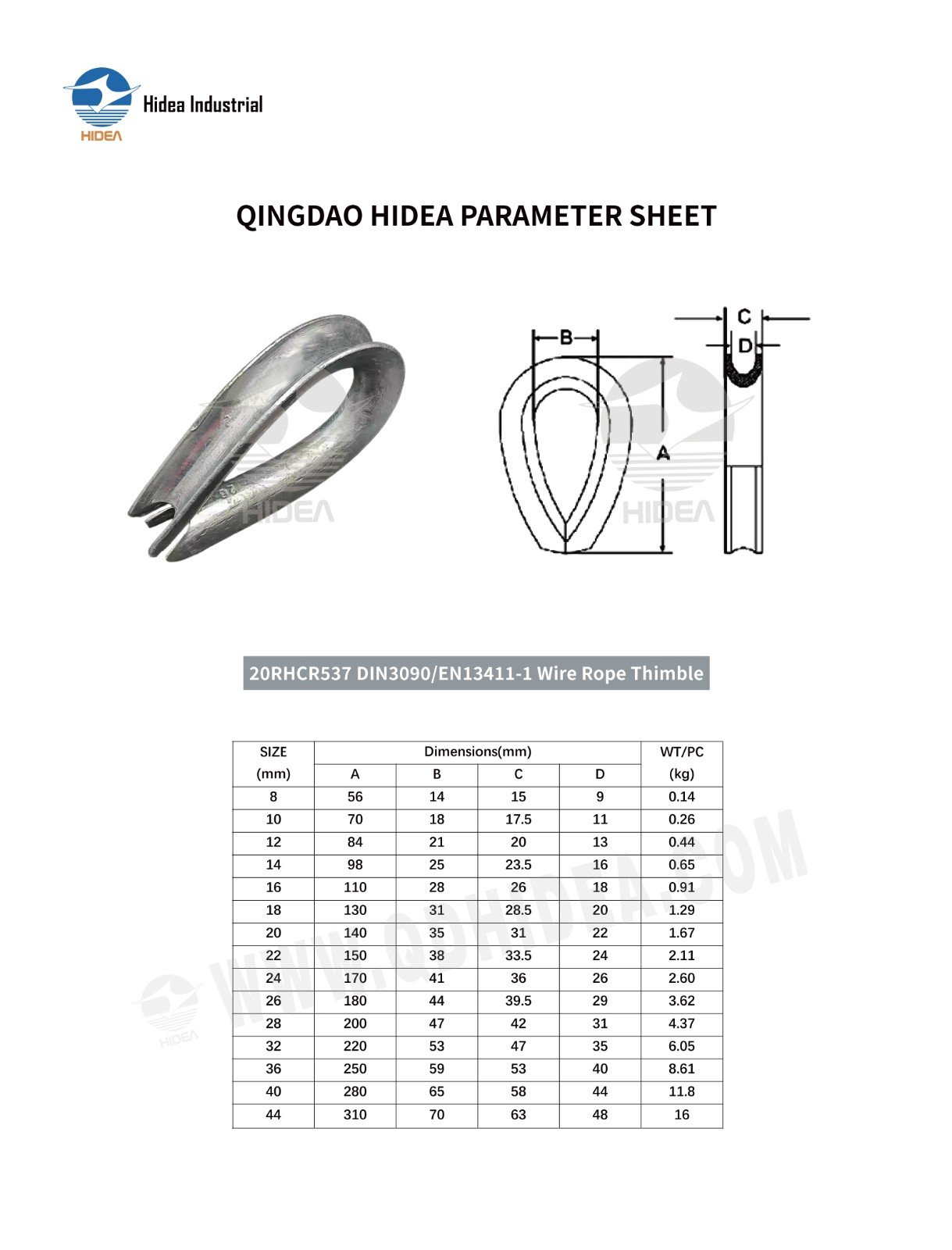

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR537 DIN3090/EN13411-1 Wire Rope Thimble

SIZE (mm)	Dimensions(mm)				WT/PC (kg)
SIZE (mm)	A	B	C	D	WT/PC (kg)
8	56	14	15	9	0.14
10	70	18	17.5	11	0.26
12	84	21	20	13	0.44
14	98	25	23.5	16	0.65
16	110	28	26	18	0.91
18	130	31	28.5	20	1.29
20	140	35	31	22	1.67
22	150	38	33.5	24	2.11
24	170	41	36	26	2.60
26	180	44	39.5	29	3.62
28	200	47	42	31	4.37
32	220	53	47	35	6.05
36	250	59	53	40	8.61
40	280	65	58	44	11.8
44	310	70	63	48	16
