Strong & Durable Hidea Grade 80 Eye Hoist Hook with Latch

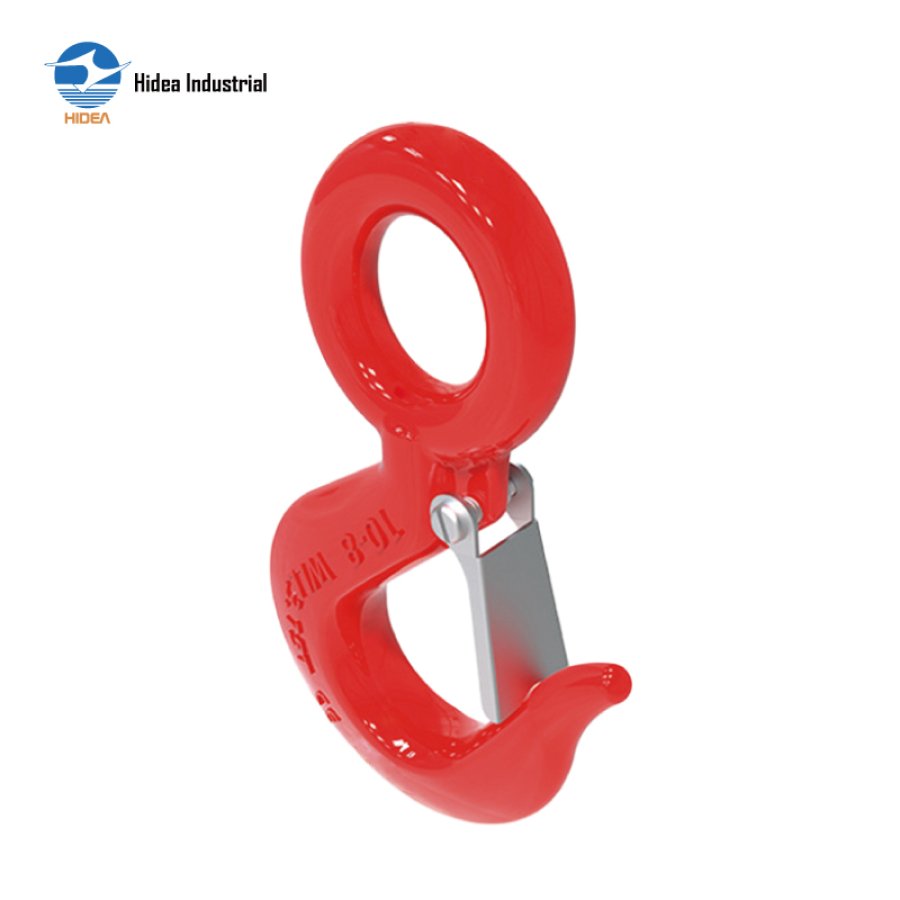

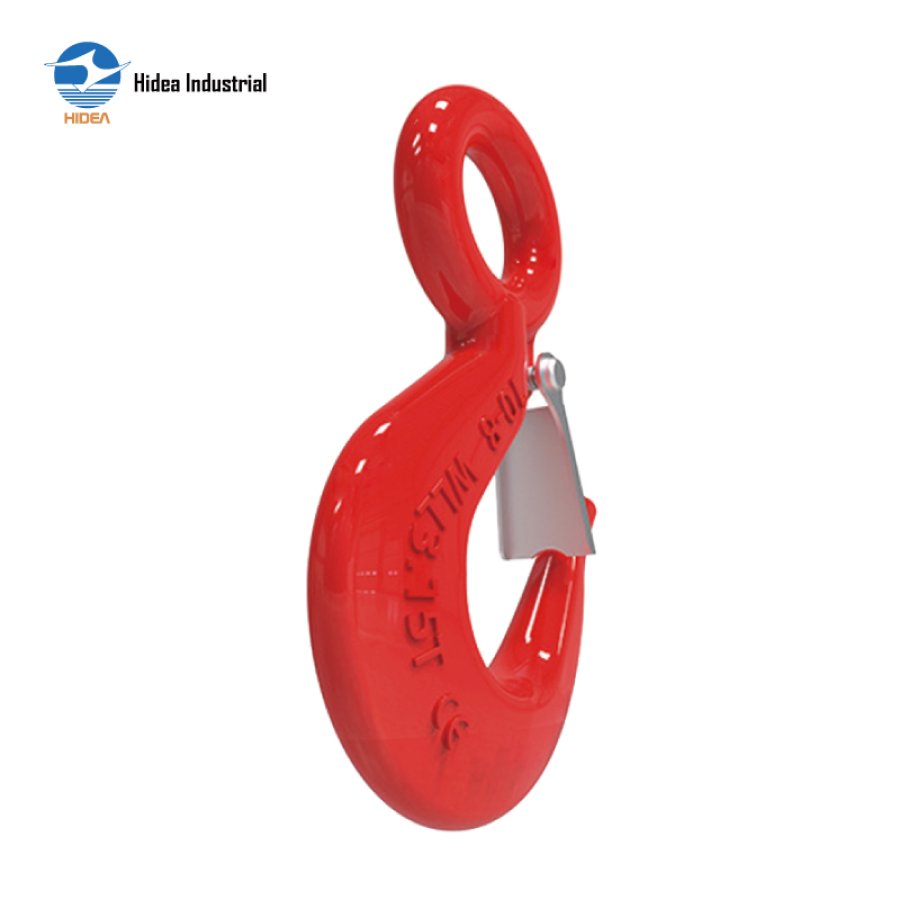

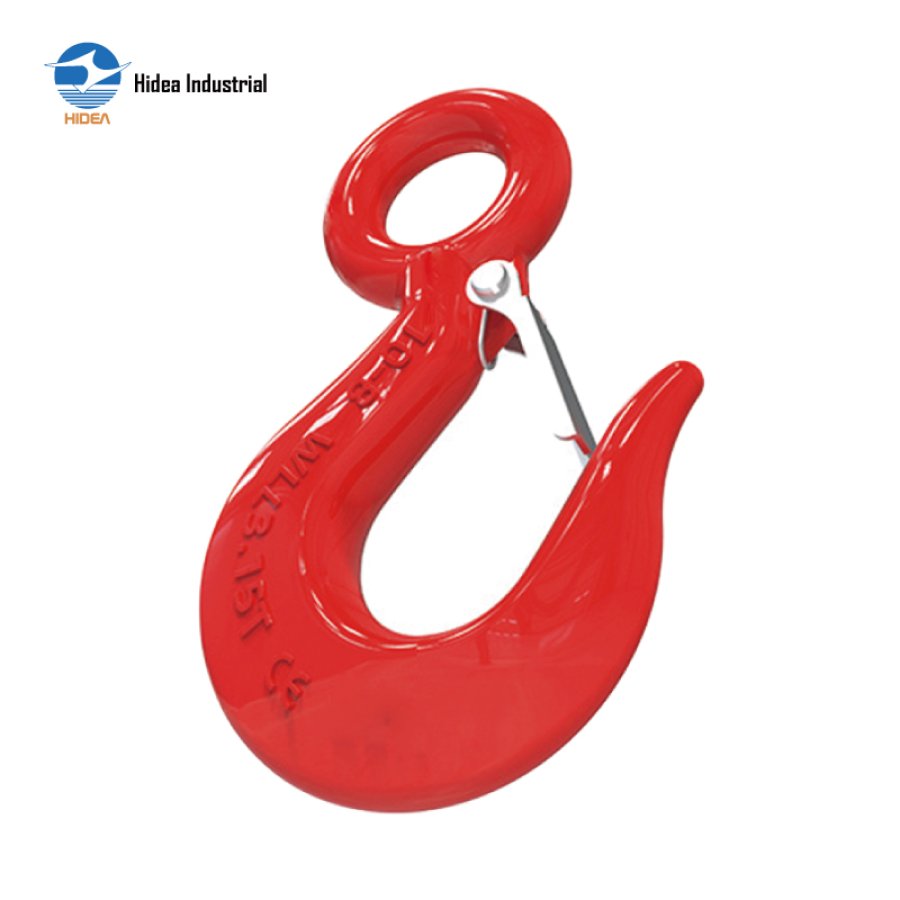

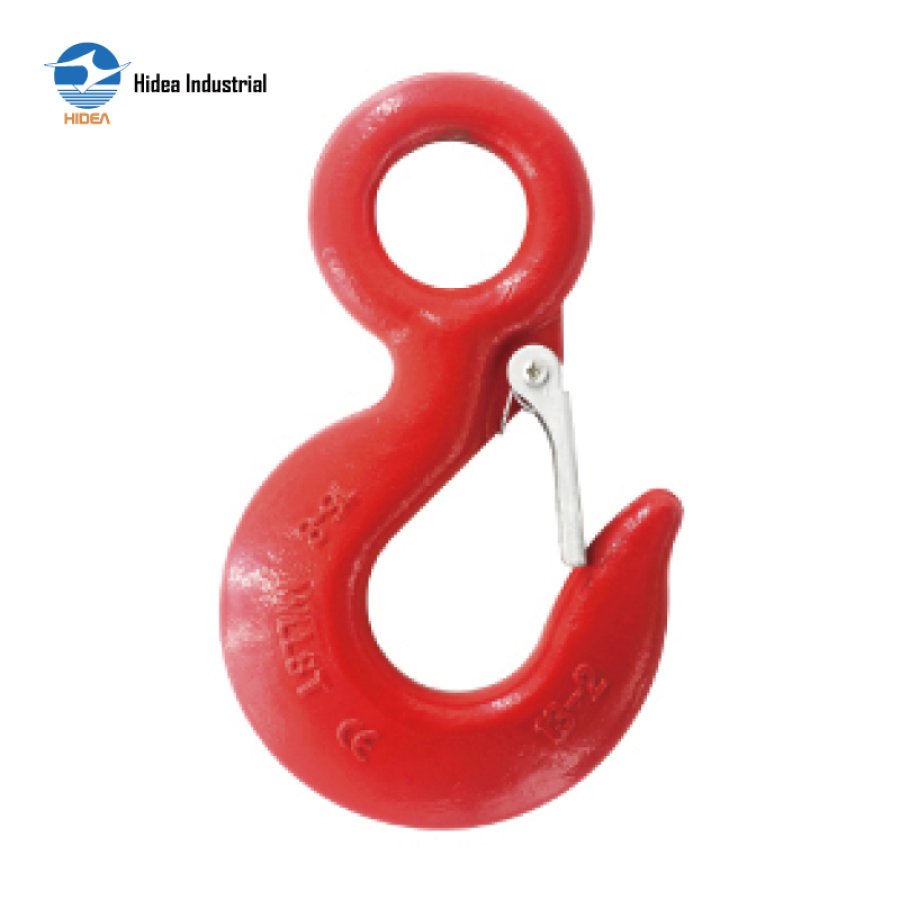

G80 EYE HOIST HOOK WITH LATCH

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
With latch
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

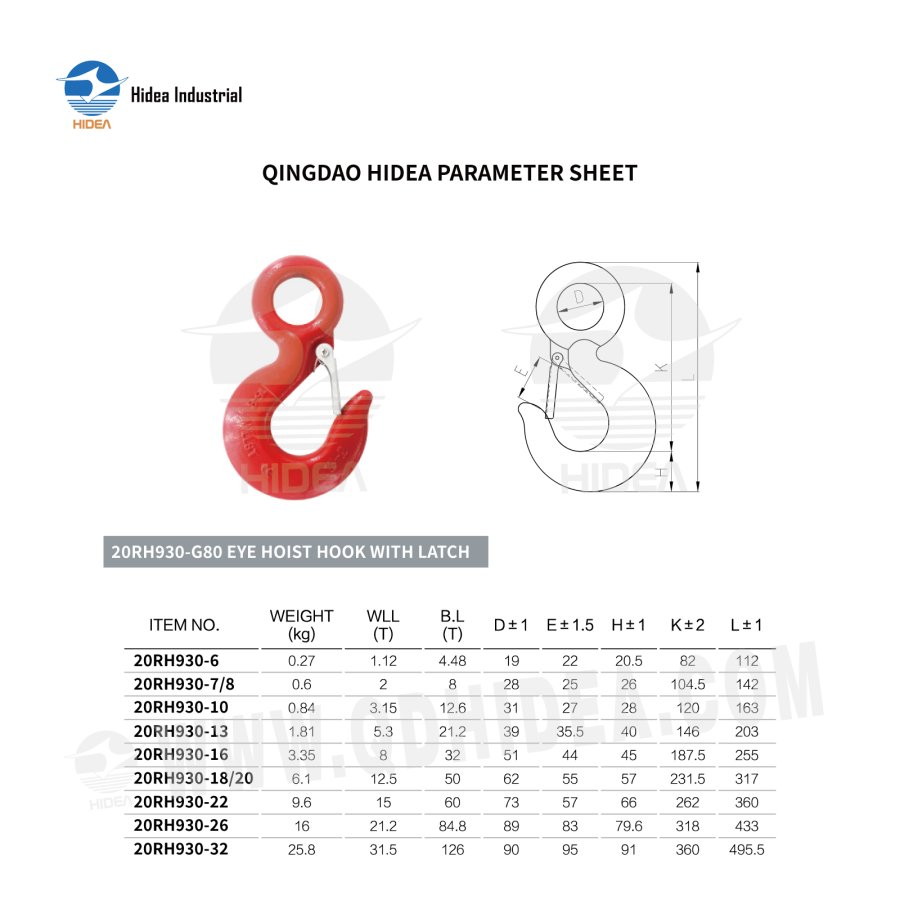

QINGDAO HIDEA PARAMETER SHEET FOR

20RH930-G80 EYE HOIST HOOK WITH LATCH

ITEM NO.

WEIGHT
(kg)

WLL
(T)

B.L
(T)

D±1

E±1.5

H±1

K±2

L±1

20RH930-6

0.27

1.12

4.48

19

22

20.5

82

112

20RH930-7/8

0.6

2

8

28

25

26

104.5

142

20RH930-10

0.84

3.15

12.6

31

27

28

120

163

20RH930-13

1.81

5.3

21.2

39

35.5

40

146

203

20RH930-16

3.35

8

32

51

44

45

187.5

255

20RH930-18/20

6.1

12.5

50

62

55

57

231.5

317

20RH930-22

9.6

15

60

73

57

66

262

360

20RH930-26

16

21.2

84.8

89

83

79.6

318

433

20RH930-32

25.8

31.5

126

90

95

91

360

495.5
