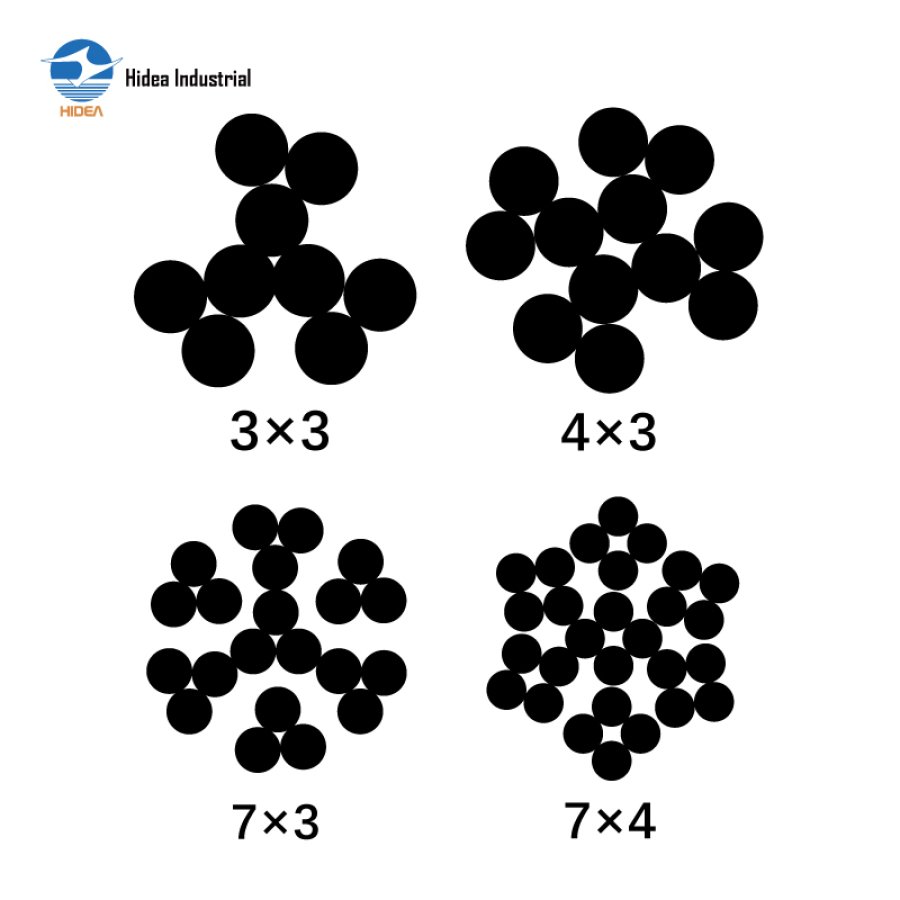

Toothed Conveyor Belt Cord Cable / Timing Conveyor Belt Cord Cable 3x3 / 4x3 / 4x19 / 7x3 / 7x4
High Carbon Steel,High Tensile Strength, Good Flexibility and Low Elongation

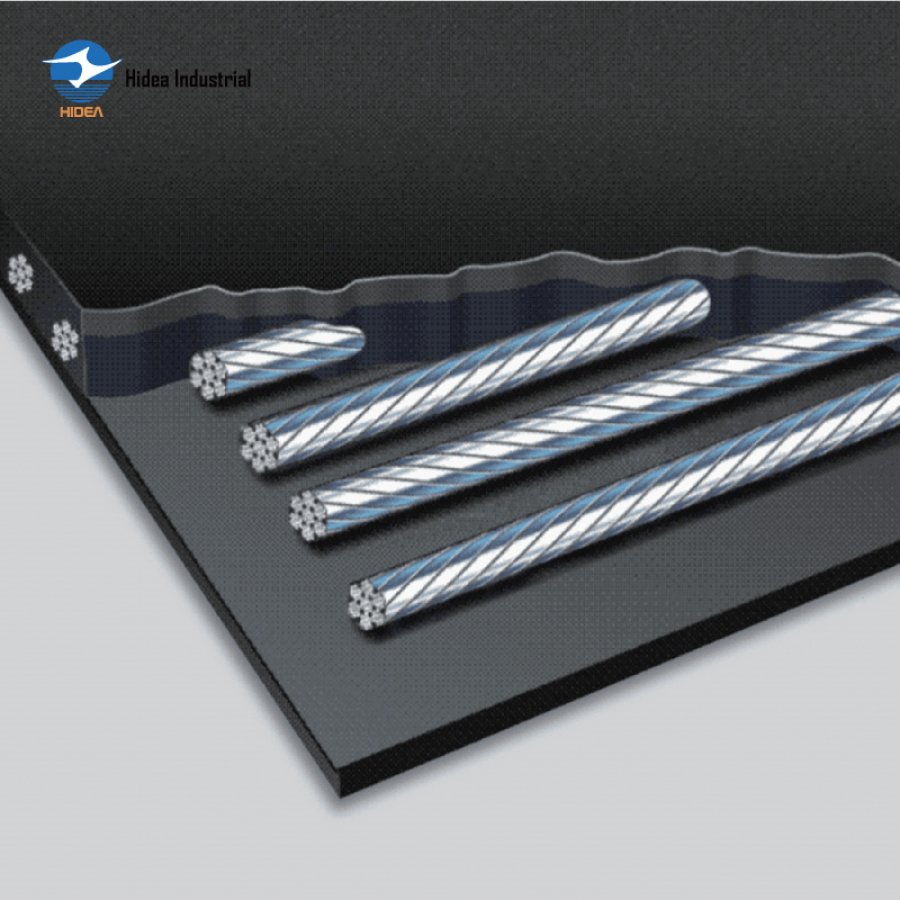

As Conveyor Belt Reinforcement Structure, Lowering Belt Elongation and to Ehance the Belt Tensile Strength, Flexibility and Resistance to Bending & Impact, and Extending Belt Life
QINGDAO HIDEA PARAMETER SHEET FOR
TOOTHED/TIMING CONVEYOR BELT CORD CABLE
High Tensile,Good Flexibility and Low Elogation
| Tensile Strength Grade(GB/T12753-2002) 3×3 | |||||||||||||||
Wire Diameter mm | Tensile Strength(MPa) | Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | |||||||||||
| I | Ⅱ | Ⅲ | IV | ||||||||||||
| kN | kg | ||||||||||||||
| 0.20~0.40 | 2160 | 2260 | 2360 | 2460 | |||||||||||
| 0.30 0.48 0.58 | 0.115 0.265 0.385 | 11.70 27.00 39.30 | 0.033 0.076 0.121 | ||||||||||||
| >0.40~0.60 | 2060 | 2160 | 2260 | 2360 | |||||||||||
| >0.60~0.90 | 1960 | 2062 | 2160 | 2260 | |||||||||||
| 4×3 | 4×19 | ||||||||||||||
| Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | ||||||||||
| kN | kg | kN | kg | ||||||||||||
| 0.40 | 0.18 | 18.40 | 0.056 | 2.27 | 4.17 | 425.50 | 1.691 | ||||||||
| 0.45 | 0.22 | 22.40 | 0.071 | 2.39 | 4.62 | 471.40 | 1.875 | ||||||||
| 0.55 | 0.32 | 32.70 | 0.106 | 2.51 | 5.10 | 520.10 | 2.068 | ||||||||
| 0.60 | 0.38 | 38.80 | 0.126 | 2.63 | 5.60 | 571.40 | 2.270 | ||||||||
| 0.68 | 0.50 | 51.00 | 0.162 | 2.75 | 6.12 | 624.50 | 2.482 | ||||||||
| 0.77 | 0.65 | 66.30 | 0.208 | 2.87 | 6.67 | 680.60 | 2.703 | ||||||||
| 7×3 | 7×4 | ||||||||||||||
| Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | Diameter mm | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | ||||||||||
| kN | kg | kN | kg | ||||||||||||
| 0.54 | 0.31 | 31.60 | 0.104 | 0.64 | 0.42 | 42.90 | 0.135 | ||||||||
| 0.60 | 0.39 | 39.80 | 0.129 | 0.72 | 0.52 | 53.10 | 0.170 | ||||||||
| 0.72 | 0.56 | 57.10 | 0.186 | 0.86 | 0.80 | 81.60 | 0.243 | ||||||||
| 0.78 | 0.66 | 67.30 | 0.218 | 0.93 | 0.94 | 95.90 | 0.284 | ||||||||
| 0.90 | 0.88 | 89.80 | 0.290 | 1.08 | 1.26 | 128.60 | 0.383 | ||||||||
| 1.02 | 1.13 | 115.30 | 0.372 | 1.22 | 1.61 | 164.30 | 0.489 | ||||||||
