Hidea Galvanized Large Dee Shackle: Engineered for Heavy-Duty Use

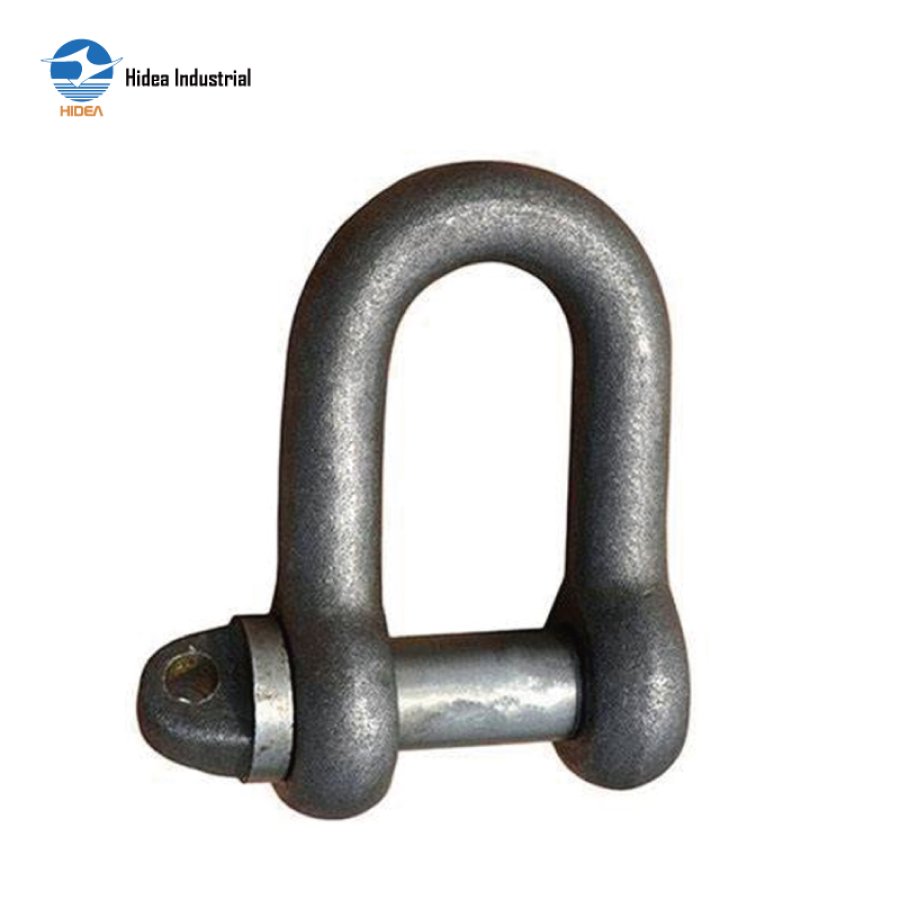

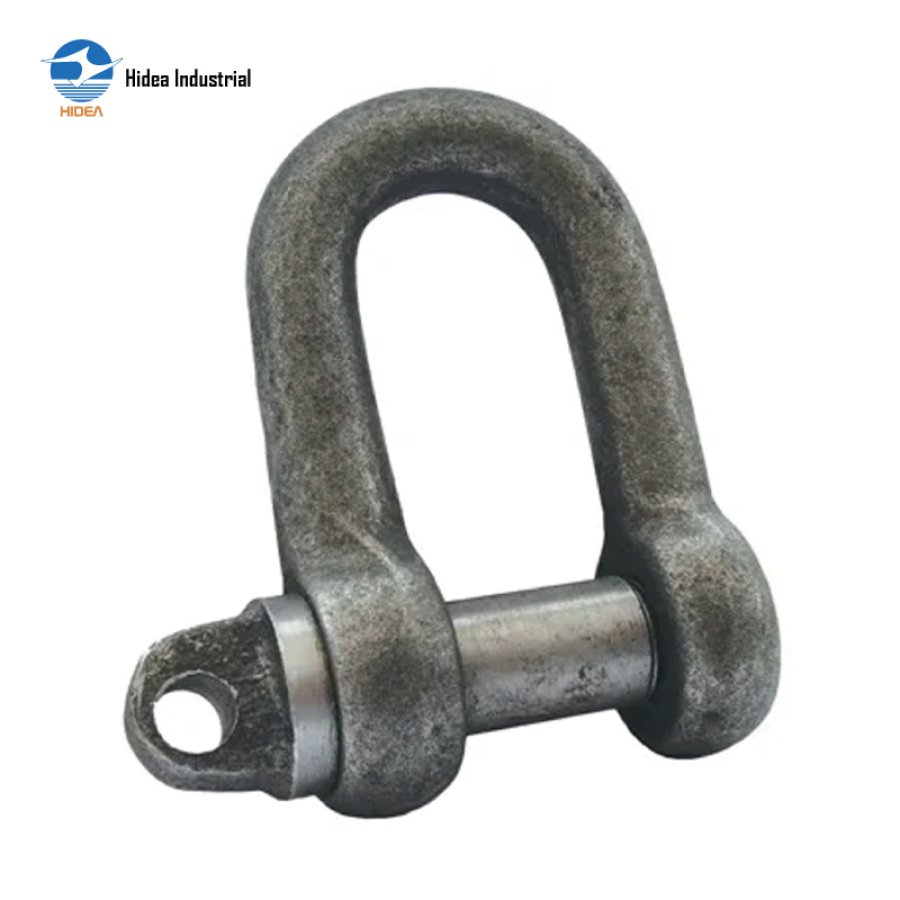

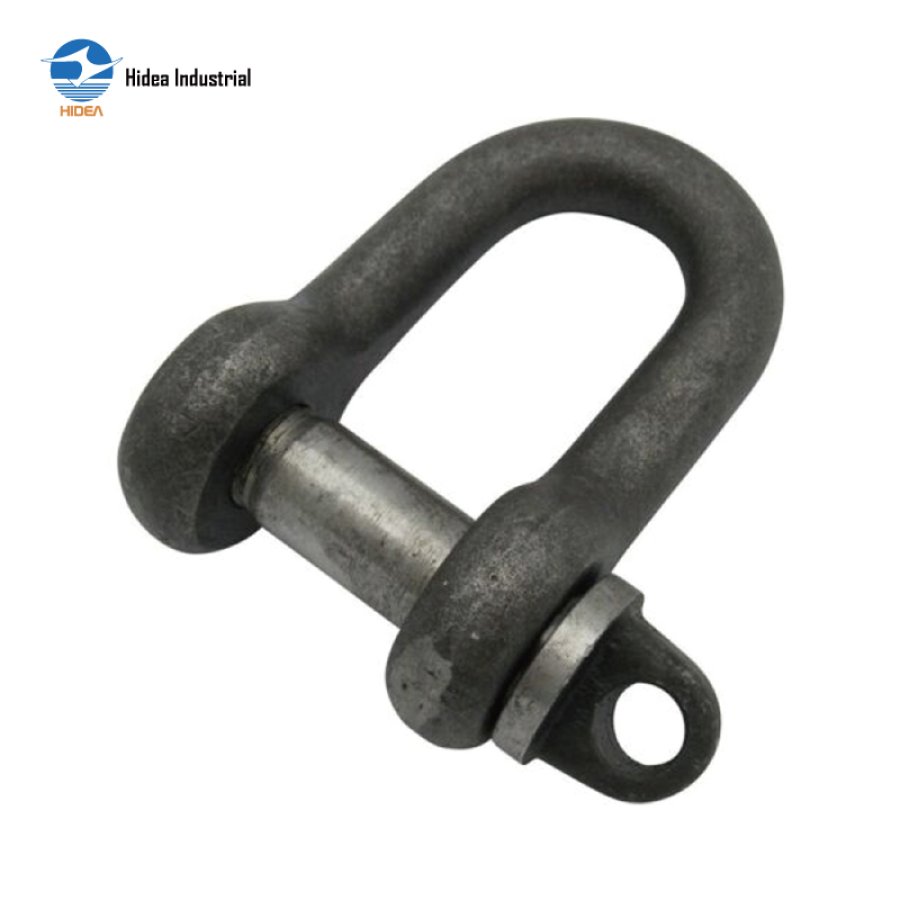

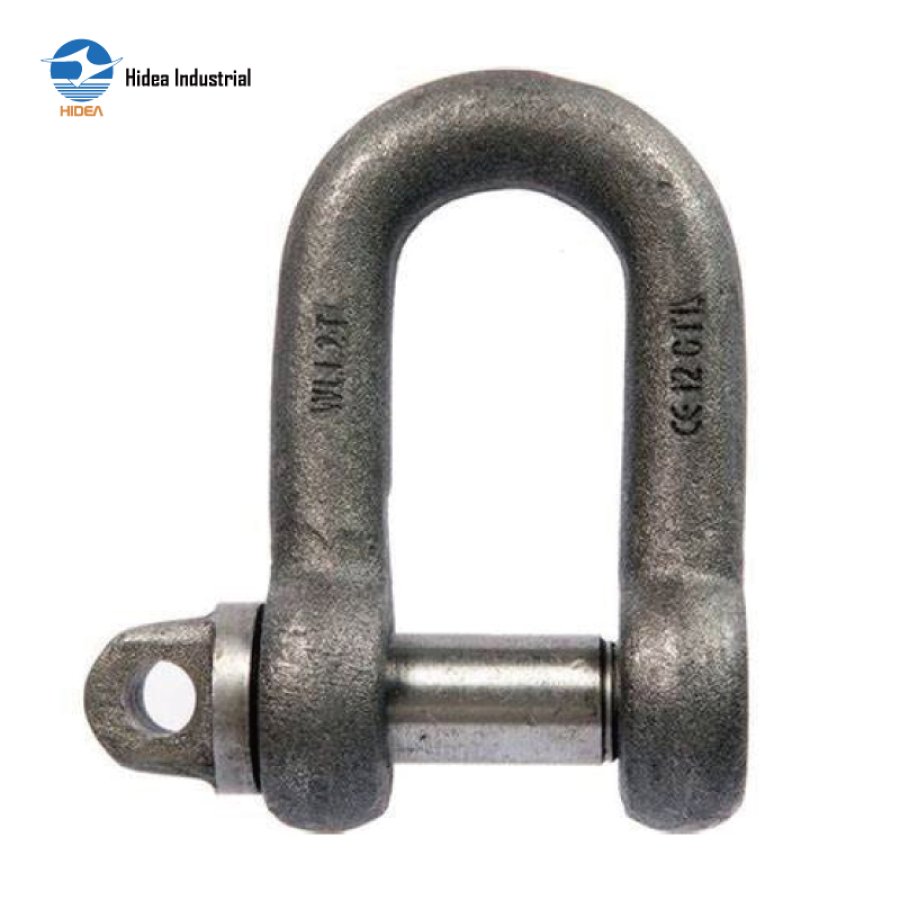

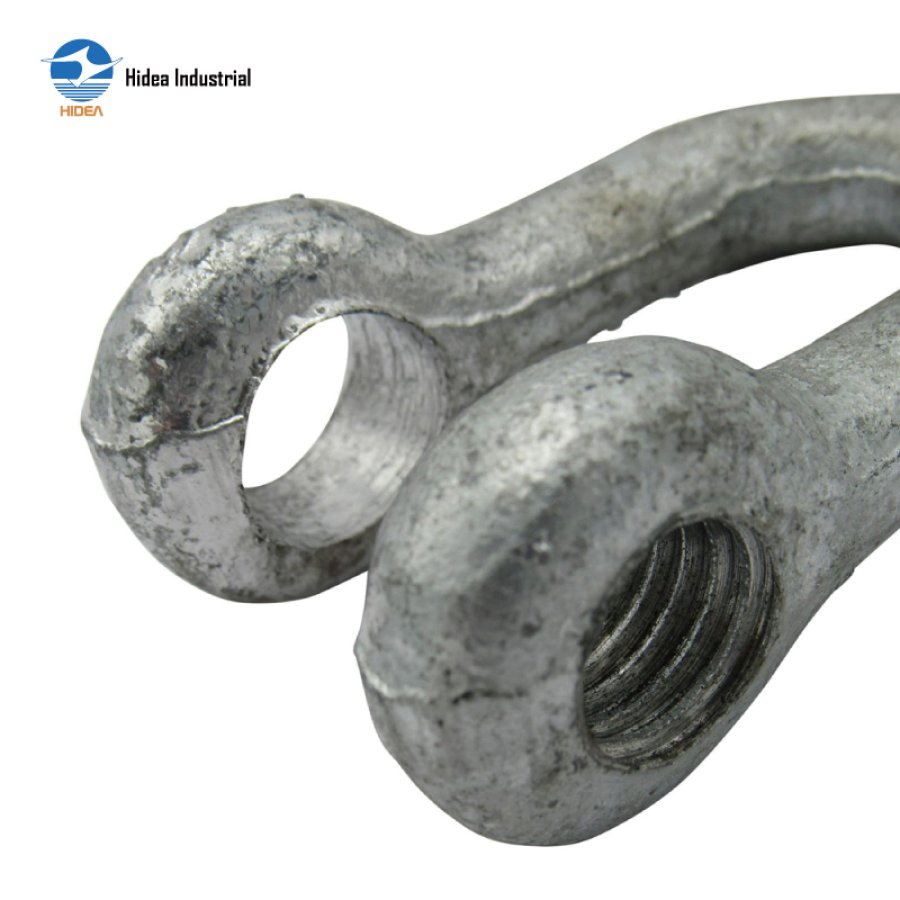

LARGE DEE BS3032 SHACKLE

Material: body AND pin high tensile steel
Forged, quenched & tempered
Safety factor 6:1 & certificates available
Standard BS3032:1958
Surface Self-colored or at request

Inquire Now

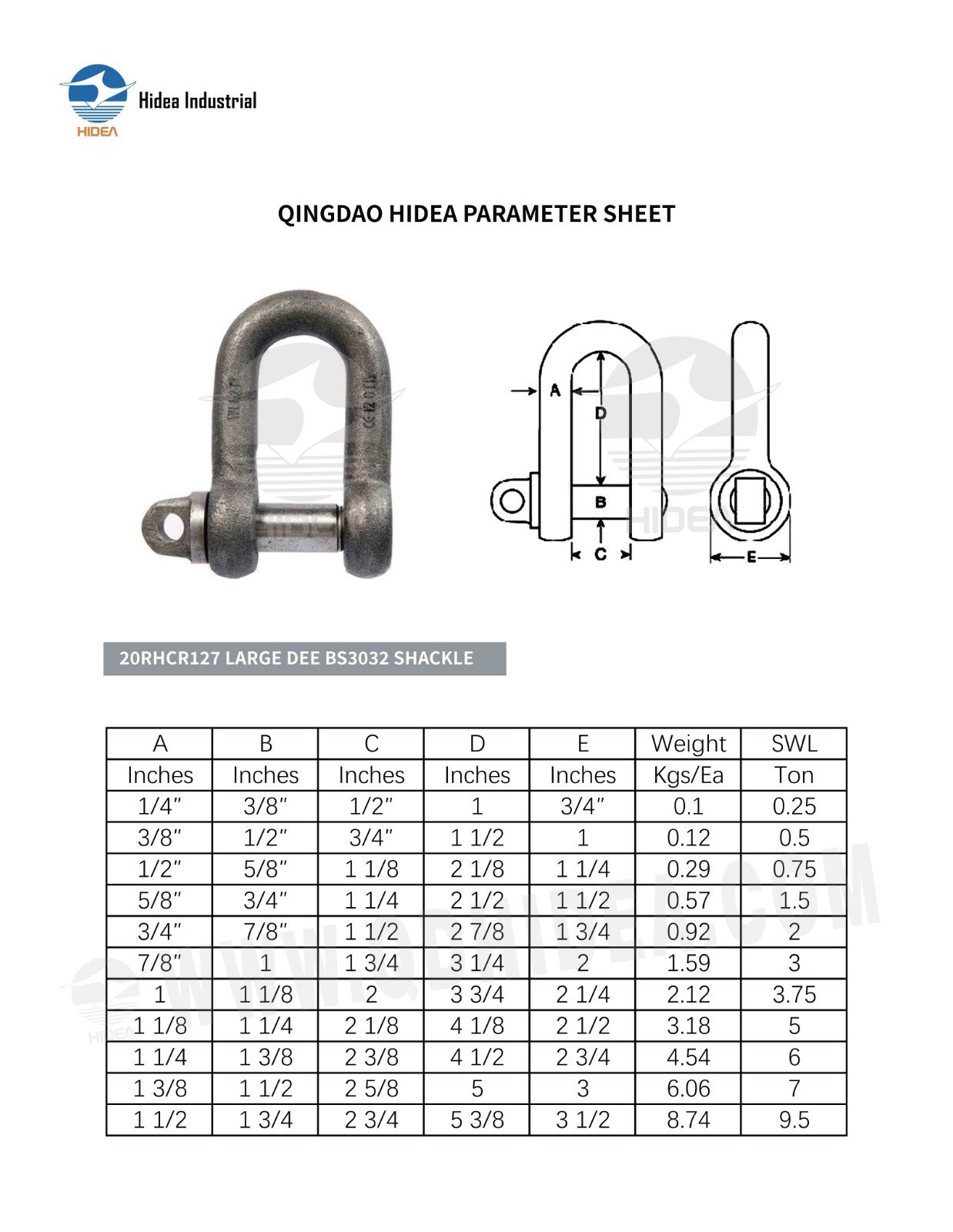

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR127 LARGE DEE BS3032 SHACKLE

A	B	C	D	E	Weight	SWL
Inches	Inches	Inches	Inches	Inches	Kgs/Ea	Ton
1/4"	3/8"	1/2"	1	3/4"	0.1	0.25
3/8"	1/2"	3/4"	11/2	1	0.12	0.5
1/2"	5/8"	11/8	21/8	11/4	0.29	0.75
5/8"	3/4"	11/4	21/2	11/2	0.57	1.5
3/4"	7/8"	11/2	27/8	13/4	0.92	2
7/8"	1	13/4	31/4	2	1.59	3
1	11/8	2	33/4	21/4	2.12	3.75
11/8	11/4	21/8	41/8	21/2	3.18	5
11/4	13/8	23/8	41/2	23/4	4.54	6
13/8	11/2	25/8	5	3	6.06	7
11/2	13/4	23/4	53/8	31/2	8.74	9.5
