Reliable and Robust Hidea G80 Eye Screw Lifting Points for Challenging Loads

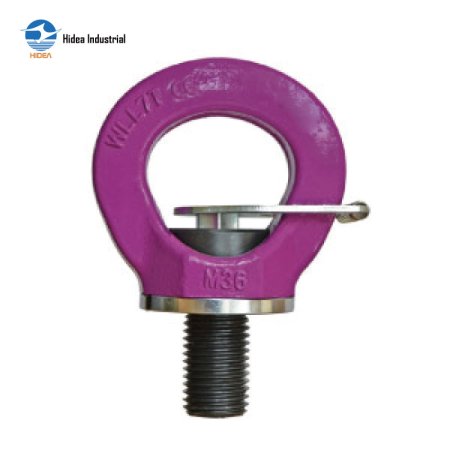

G80 EYE SCREW LIFTING POINT NEW TYPE

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Blue Lilac RAL4005 and optional

Inquire Now

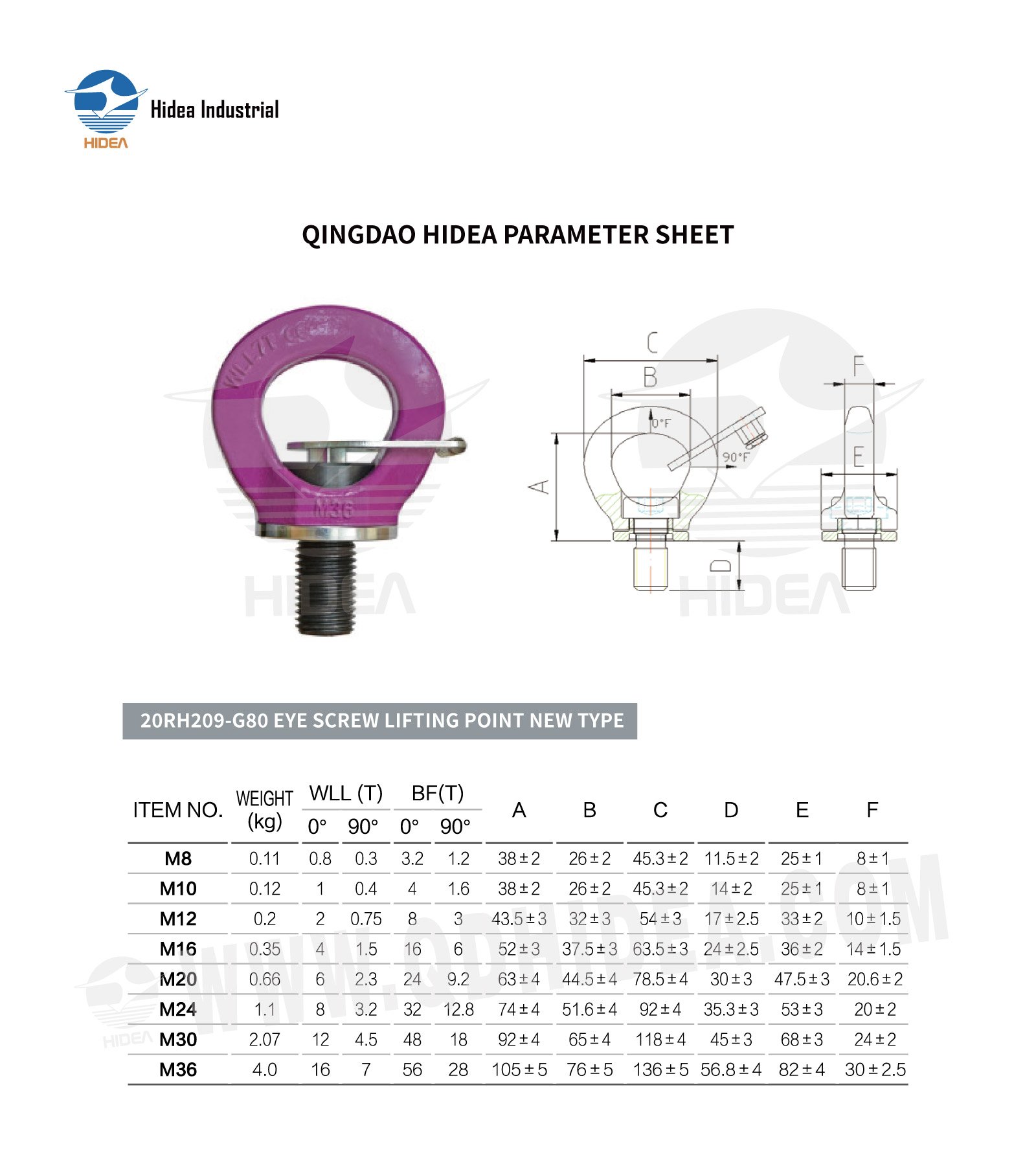

QINGDAO HIDEA PARAMETER SHEET FOR

20RH209-G80 EYE SCREW LIFTING POINT NEW TYPE

ITEM NO.	WEIGHT (kg)	WLL(T) 0° 90°		BF(T) 0° 90°		A	B	C	D	E	F
M8	0.11	0.8	0.3	3.2	1.2	38±2	26±2	45.3±2	11.5±2	25±1	8±1
M10	0.12	1	0.4	4	1.6	38±2	26±2	45.3±2	14±2	25±1	8±1
M12	0.2	2	0.75	8	3	43.5±3	32±3	54±3	17±2.5	33±2	10±1.5
M16	0.35	4	1.5	16	6	52±3	37.5±3	63.5±3	24±2.5	36±2	14±1.5
M20	0.66	6	2.3	24	9.2	63±4	44.5±4	78.5±4	30±3	47.5±3	20.6±2
M24	1.1	8	3.2	32	12.8	74±4	51.6±4	92±4	35.3±3	53±3	20±2
M30	2.07	12	4.5	48	18	92±4	65±4	118±4	45±3	68±3	24±2
M36	4.0	16	7	56	28	105±5	76±5	136±5	56.8±4	82±4	30±2.5
