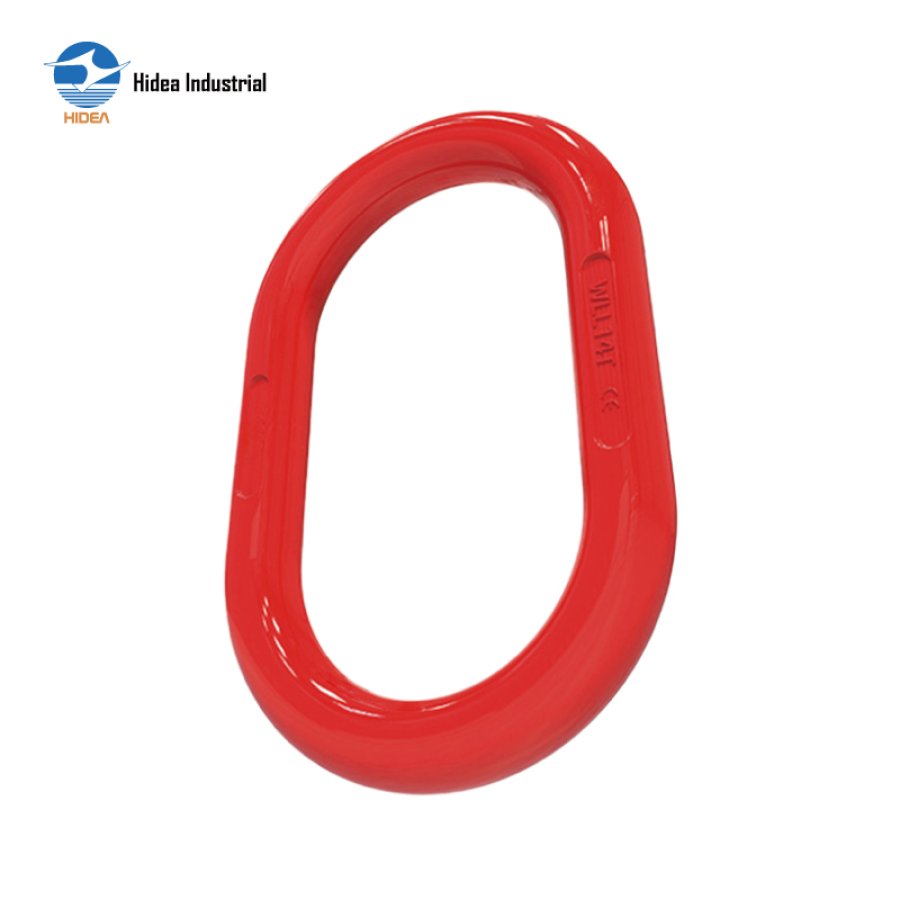

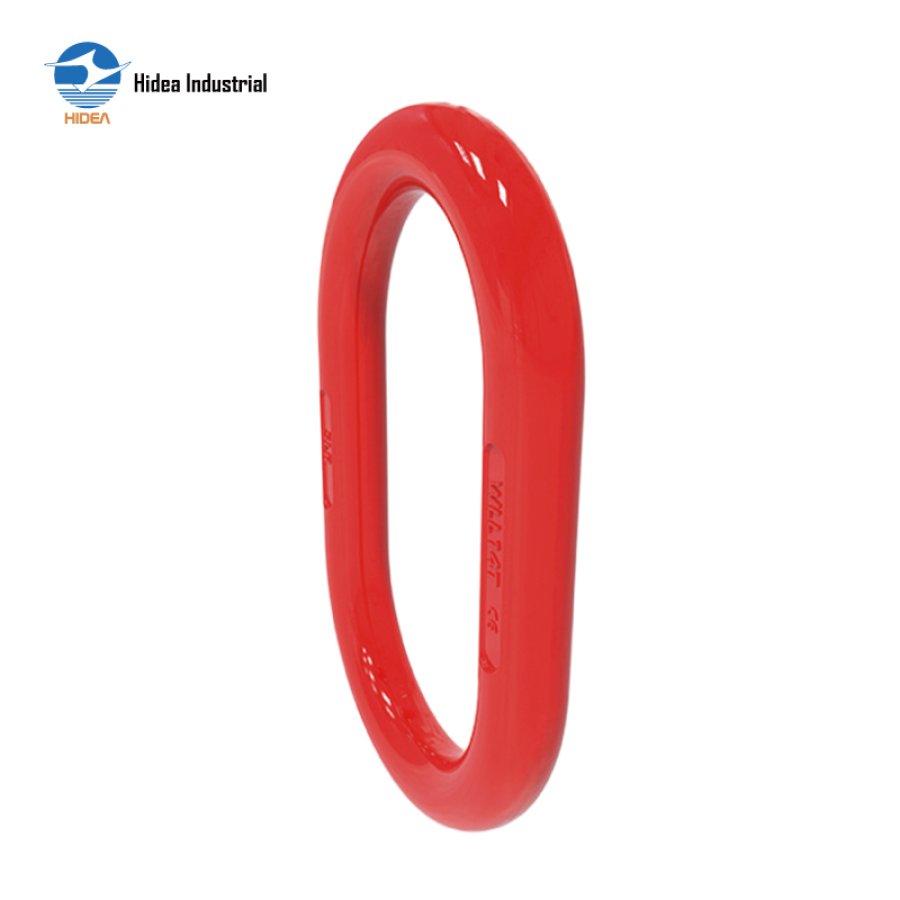

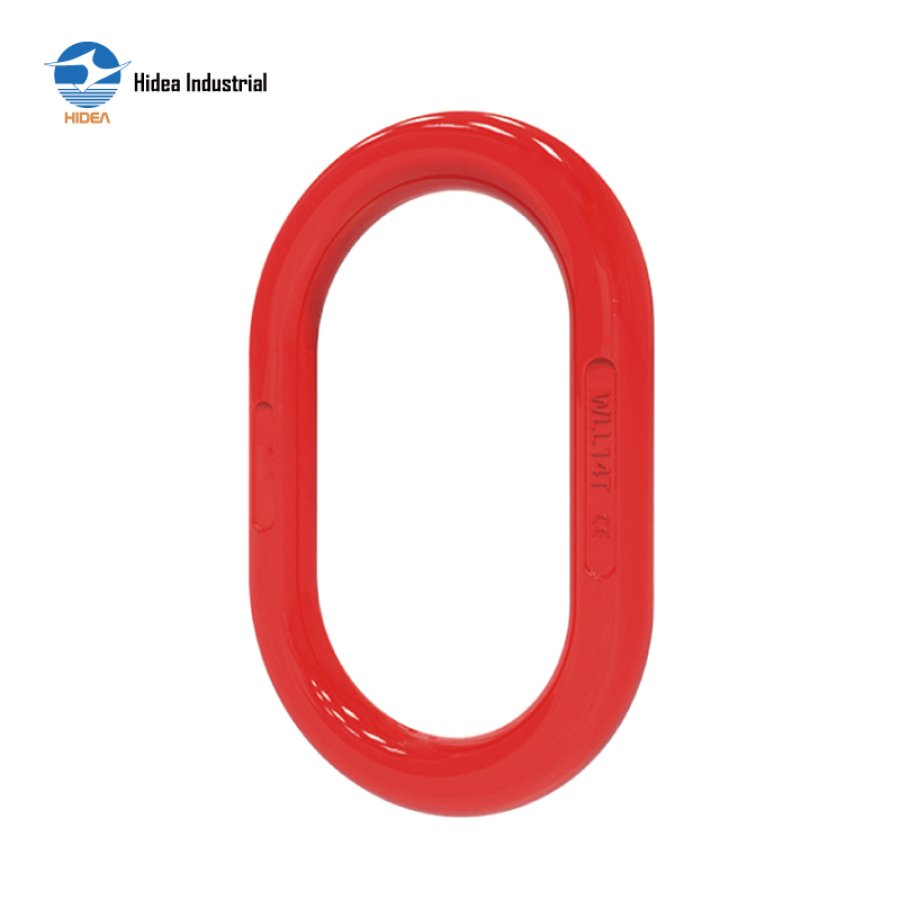

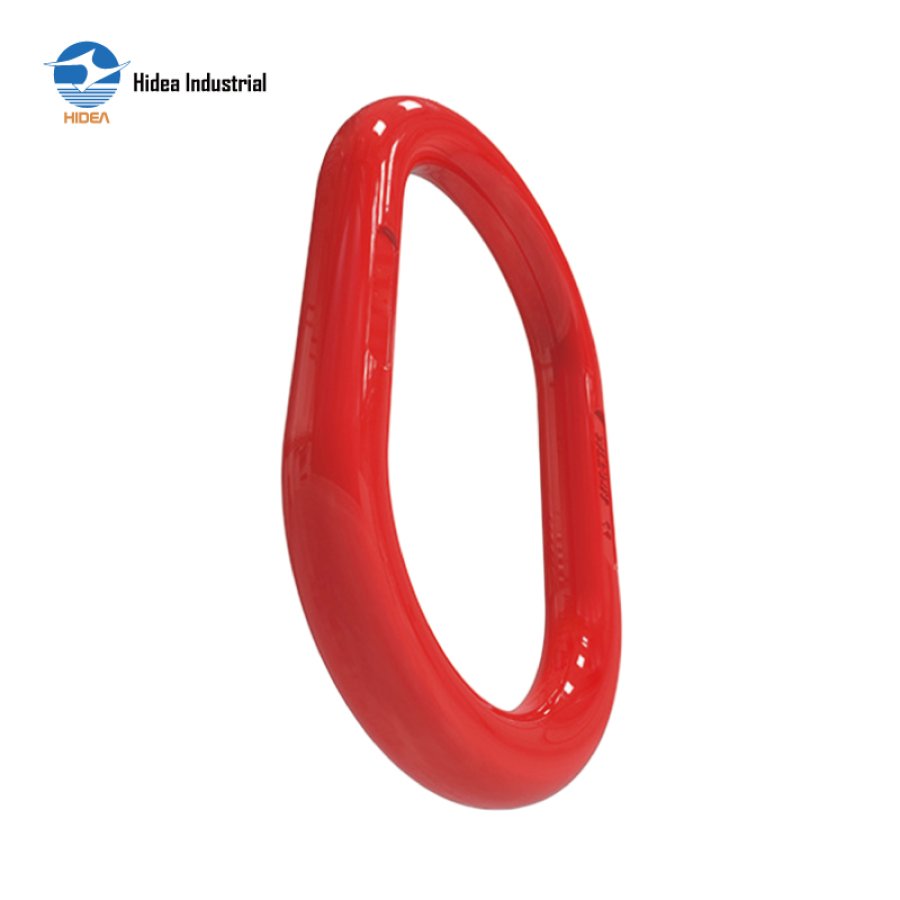

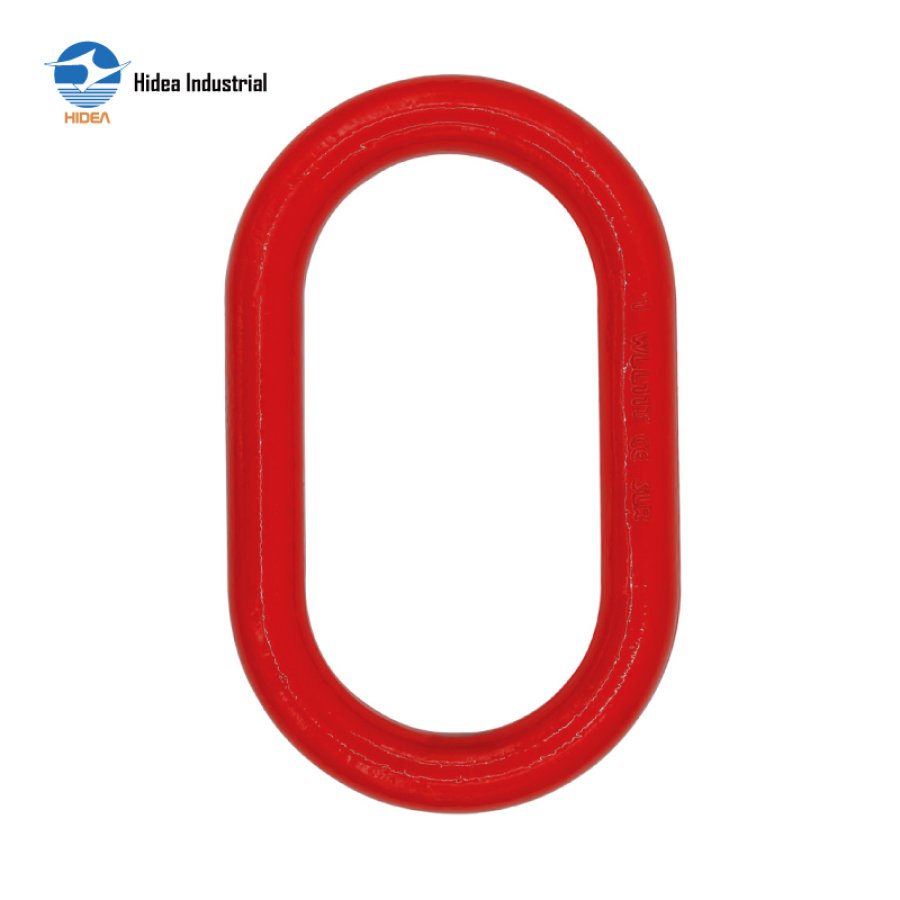

High-Strength Hidea G80 Master Link for Secure Rigging

G80 SUPER MASTER LINK/Material 20CrMnTi

Made of super alloy steel-Quenched and Tempered
Individually proof test at MPF
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

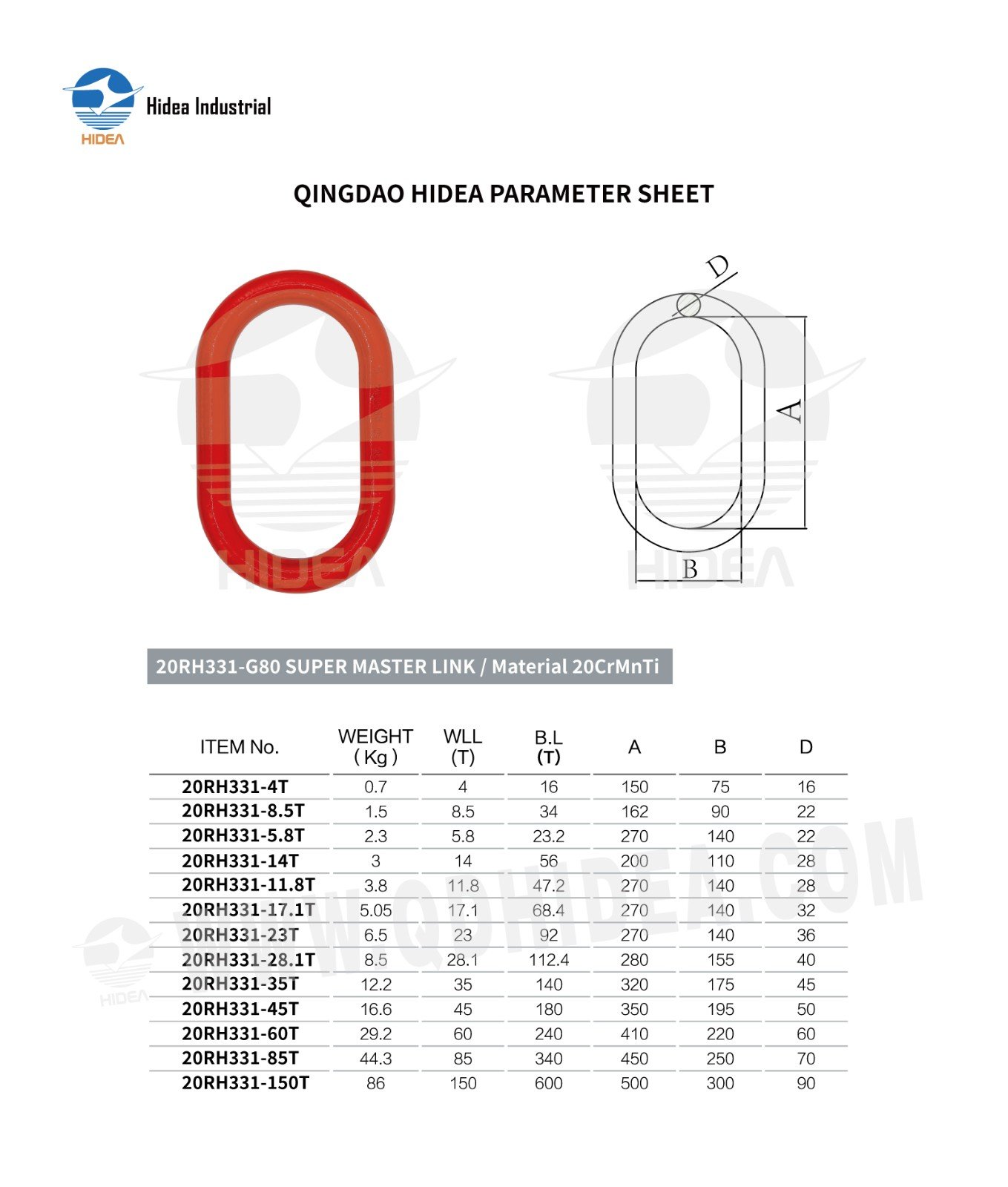

QINGDAO HIDEA PARAMETER SHEET FOR

20RH331-G80 SUPER MASTER LINK/Material 20CrMnTi

ITEM No.	WEIGHT (Kg)	WLL (T)	B.L (T)	A	B	D
20RH331-4T	0.7	4	16	150	75	16
20RH331-8.5T	1.5	8.5	34	162	90	22
20RH331-5.8T	2.3	5.8	23.2	270	140	22
20RH331-14T	3	14	56	200	110	28
20RH331-11.8T	3.8	11.8	47.2	270	140	28
20RH331-17.1T	5.05	17.1	68.4	270	140	32
20RH331-23T	6.5	23	92	270	140	36
20RH331-28.1T	8.5	28.1	112.4	280	155	40
20RH331-35T	12.2	35	140	320	175	45
20RH331-45T	16.6	45	180	350	195	50
20RH331-60T	29.2	60	240	410	220	60
20RH331-85T	44.3	85	340	450	250	70
20RH331-150T	86	150	600	500	300	90
