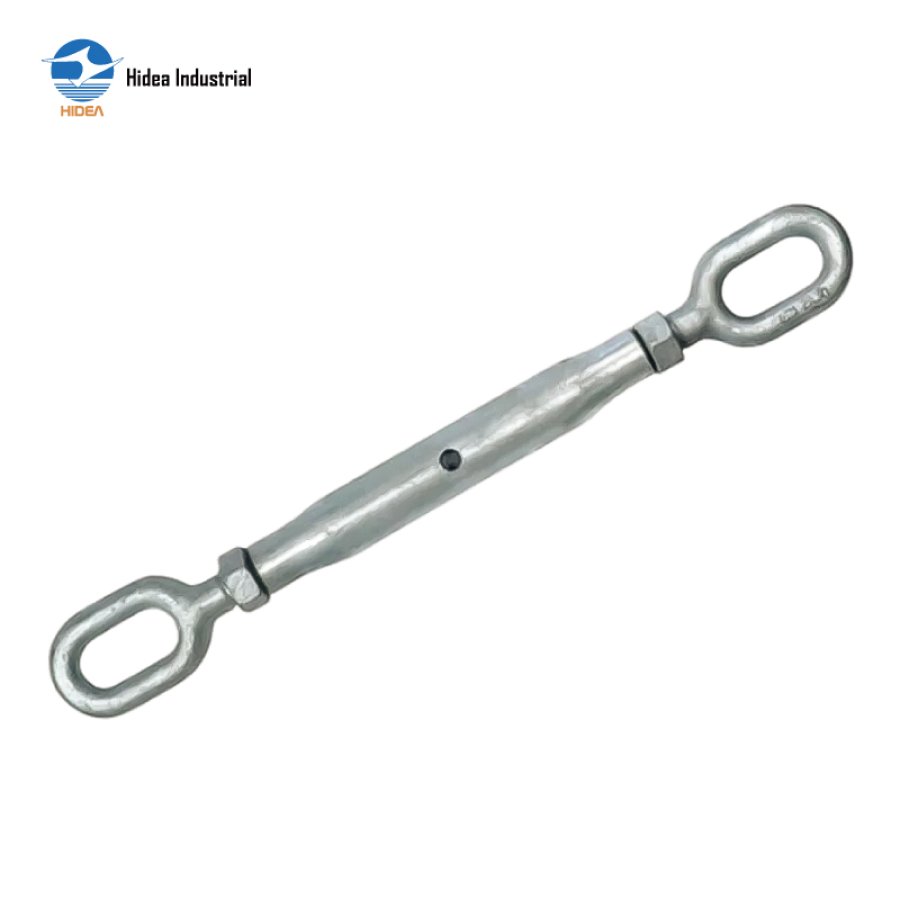

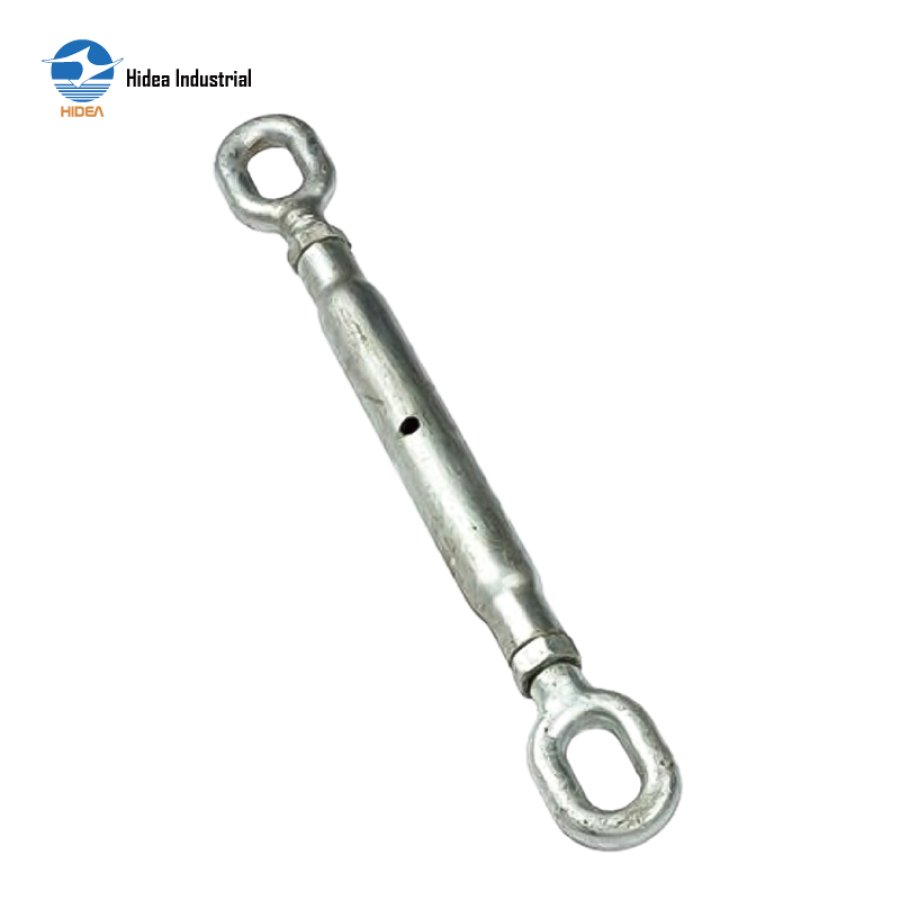

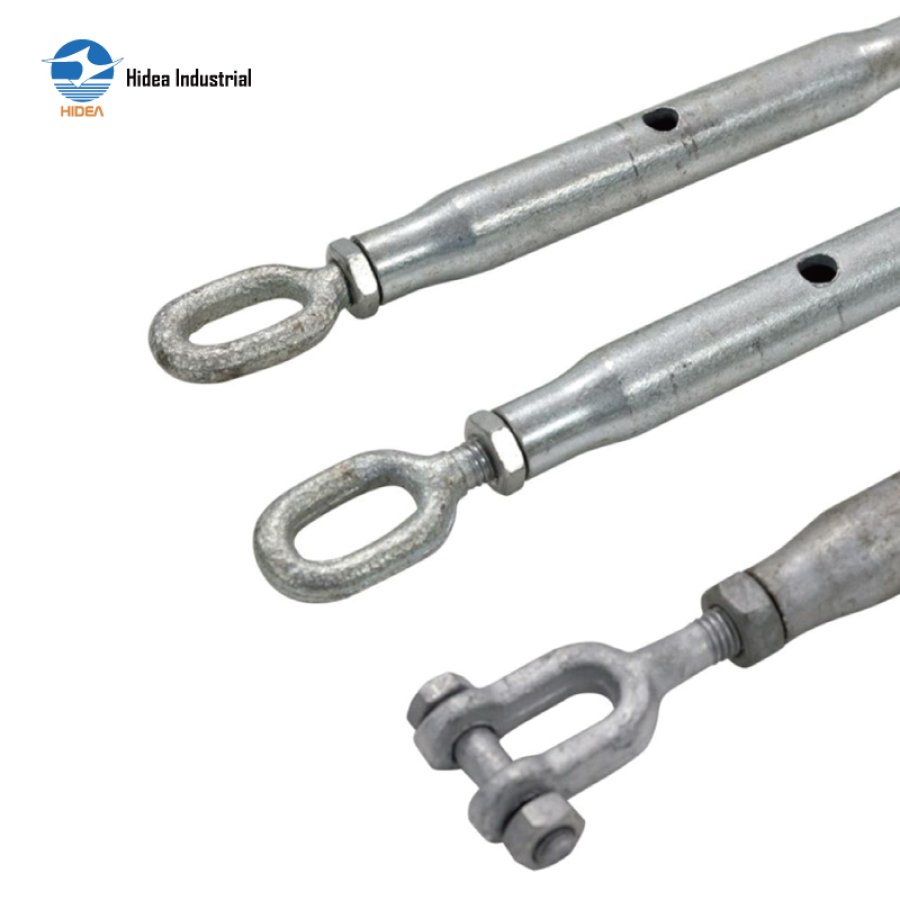

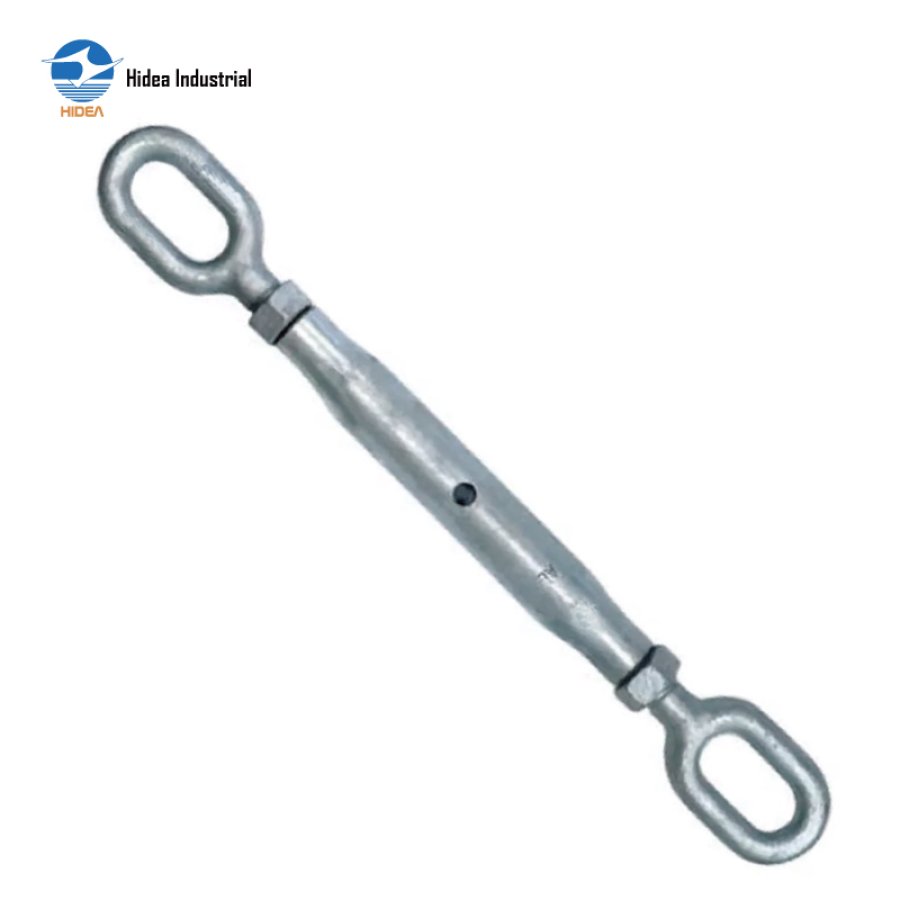

Durable Hidea European Type Eye & Eye Rigging Screw for Structural and Marine Rigging

EUROPEAN TYPE CLOSED BODY TUBULAR TURNBUCKLES EYE & EYE

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
European Type tublar rigging screws closed body turnbuckles pipe turnbuckles eye & eye SF=5:1

Inquire Now

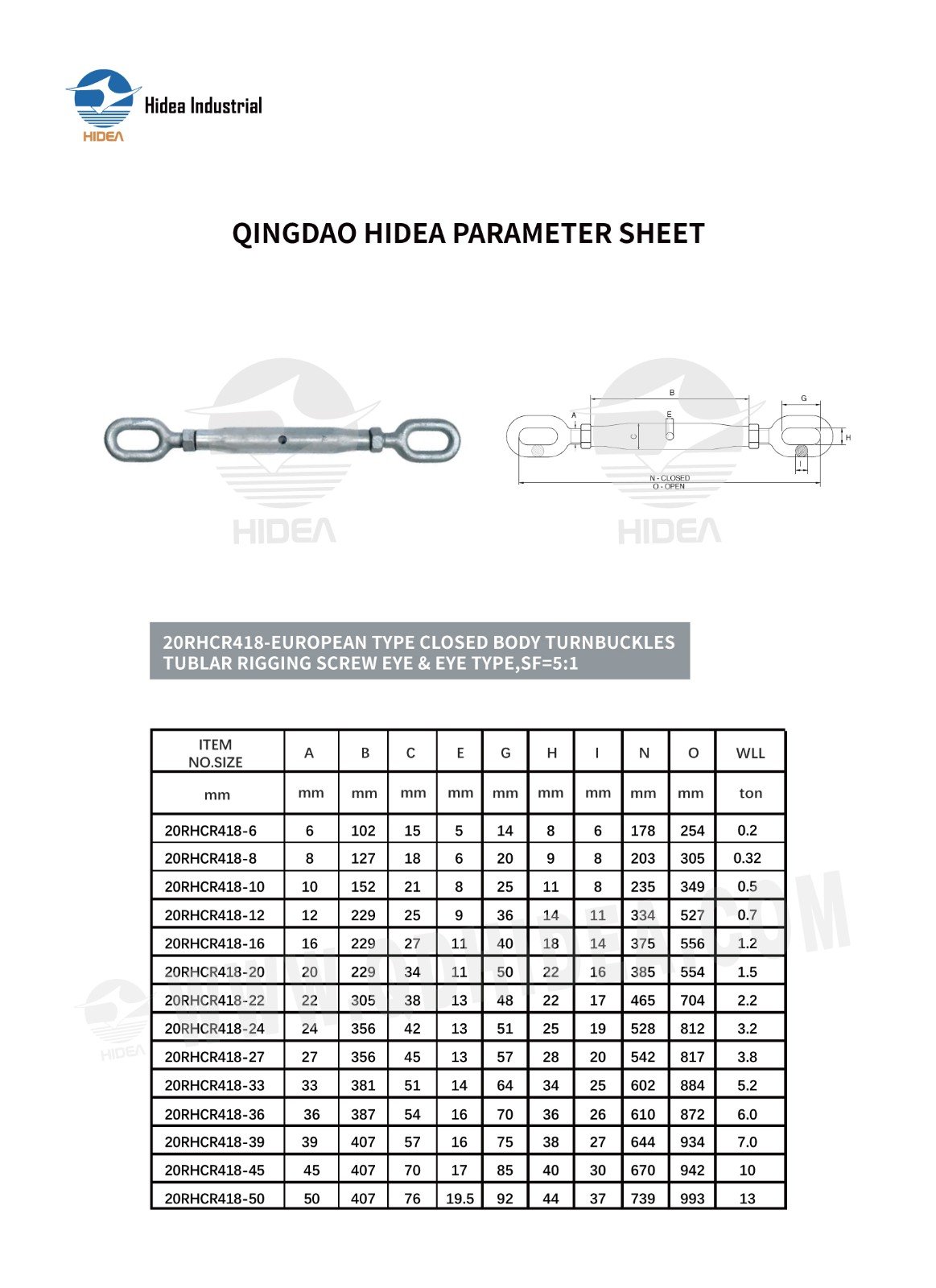

QINGDAO HIDEA PARAMETER SHEET FOR

0RHCR418-EUROPEAN TYPE CLOSED BODY TURNBUCKLES

TUBLAR RIGGING SCREW EYE&EYE TYPE,SF=5:1

ITEM NO.SIZE	A	B	C	E	G	H	I	N	O	WLL
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	ton
20RHCR418-6	6	102	15	5	14	8	6	178	254	0.2
20RHCR418-8	8	127	18	6	20	9	8	203	305	0.32
20RHCR418-10	10	152	21	8	25	11	8	235	349	0.5
20RHCR418-12	12	229	25	9	36	14	11	334	527	0.7
20RHCR418-16	16	229	27	11	40	18	14	375	556	1.2
20RHCR418-20	20	229	34	11	50	22	16	385	554	1.5
20RHCR418-22	22	305	38	13	48	22	17	465	704	2.2
20RHCR418-24	24	356	42	13	51	25	19	528	812	3.2
20RHCR418-27	27	356	45	13	57	28	20	542	817	3.8
20RHCR418-33	33	381	51	14	64	34	25	602	884	5.2
20RHCR418-36	36	387	54	16	70	36	26	610	872	6.0
20RHCR418-39	39	407	57	16	75	38	27	644	934	7.0
20RHCR418-45	45	407	70	17	85	40	30	670	942	10
20RHCR418-50	50	407	76	19.5	92	44	37	739	993	13
