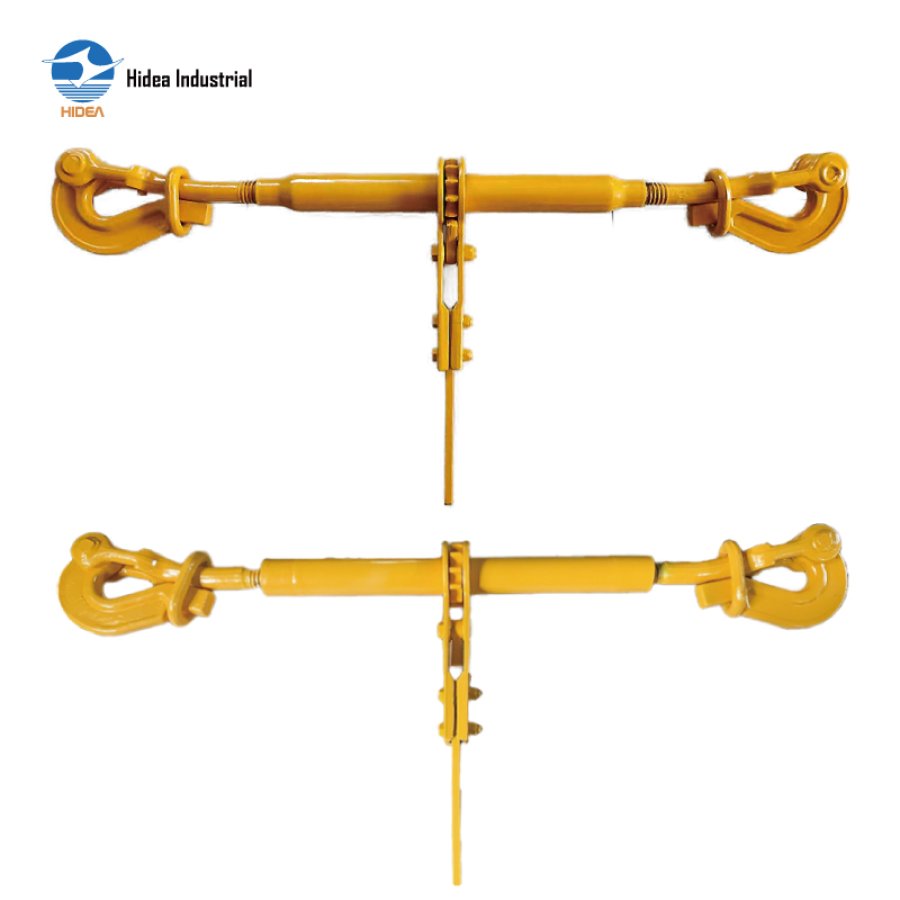

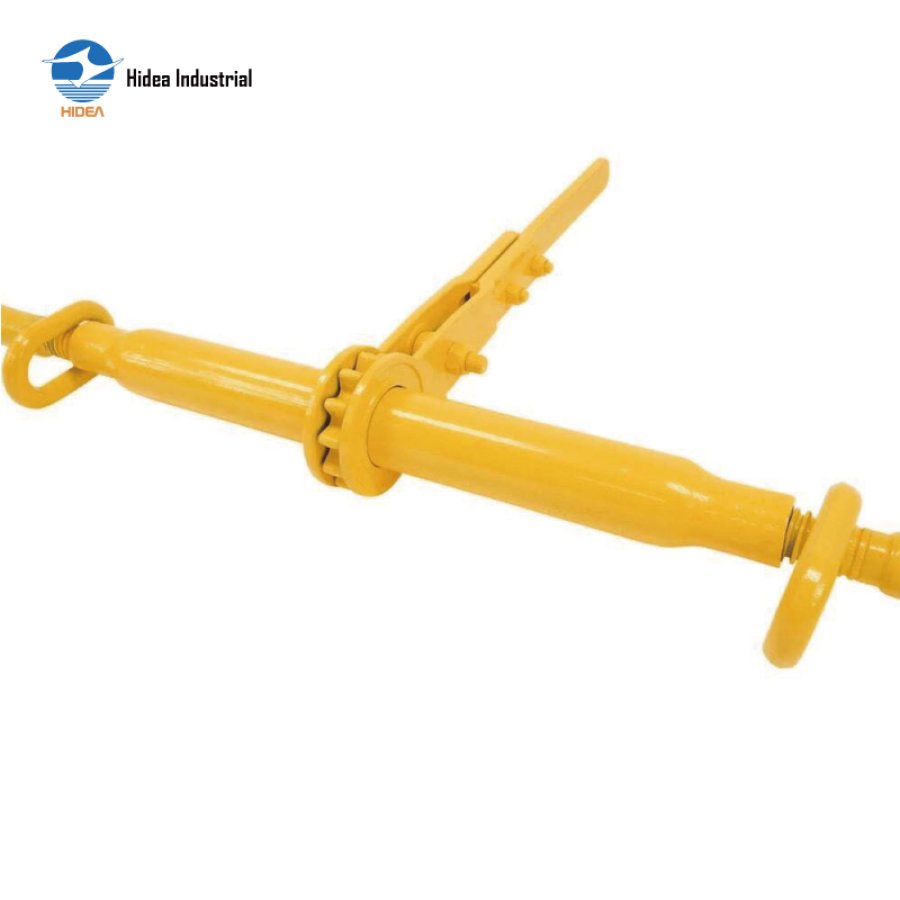

Hidea Steamboat River Ratchet Binder with Pelican Hooks for Efficient Load Management

STEAMBOAT RIVER RATCHET BINDER WITH PELICAN HOOKS

High tensile steel

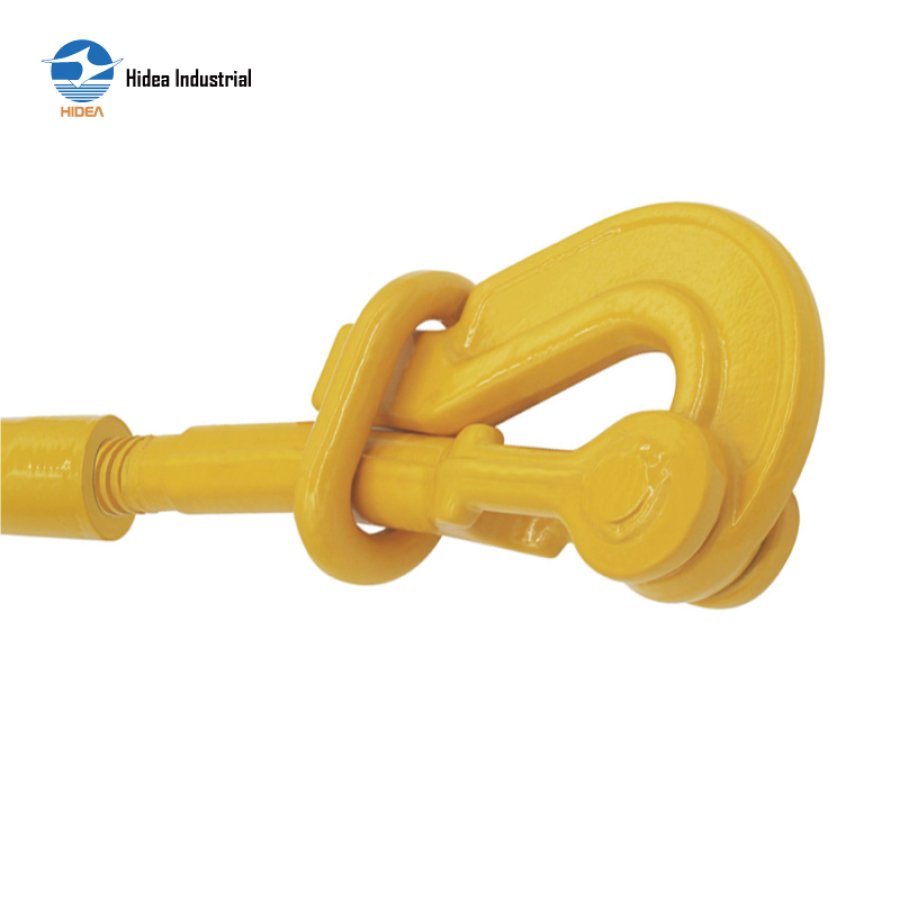

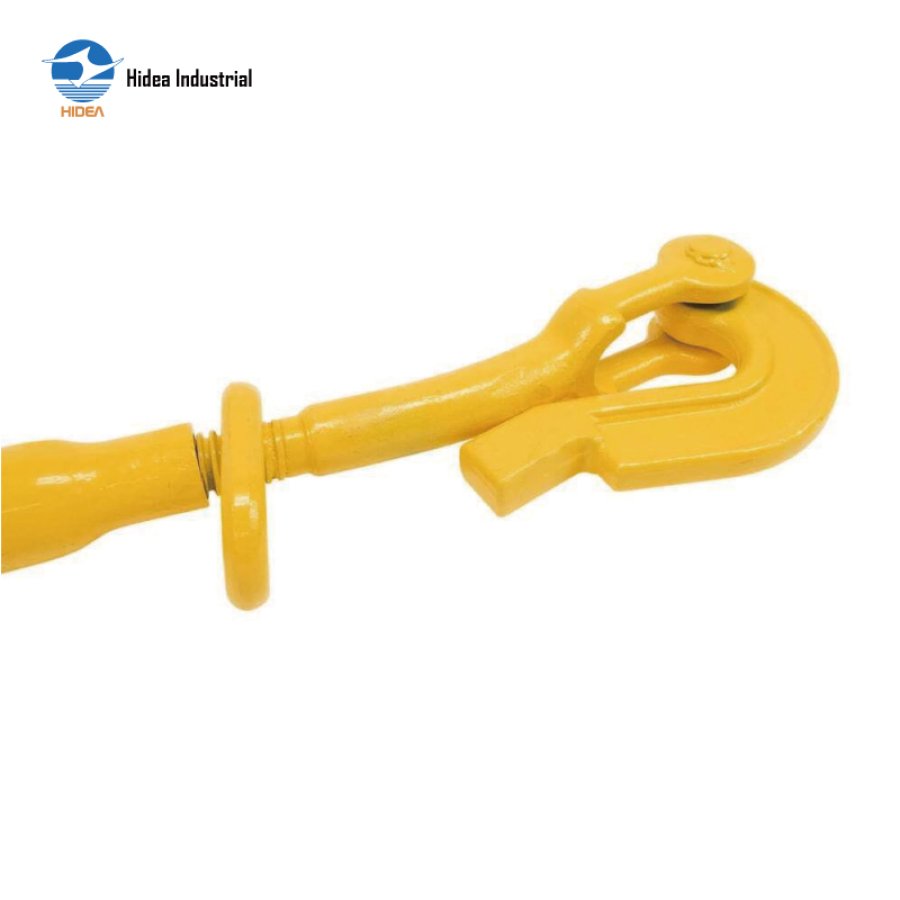

Drop forged pelican hook,quenched & tempered
Proof tested individually & certificate available
Surface: Highly visible yellow powder coated
River steamboat Load Binder

Inquire Now

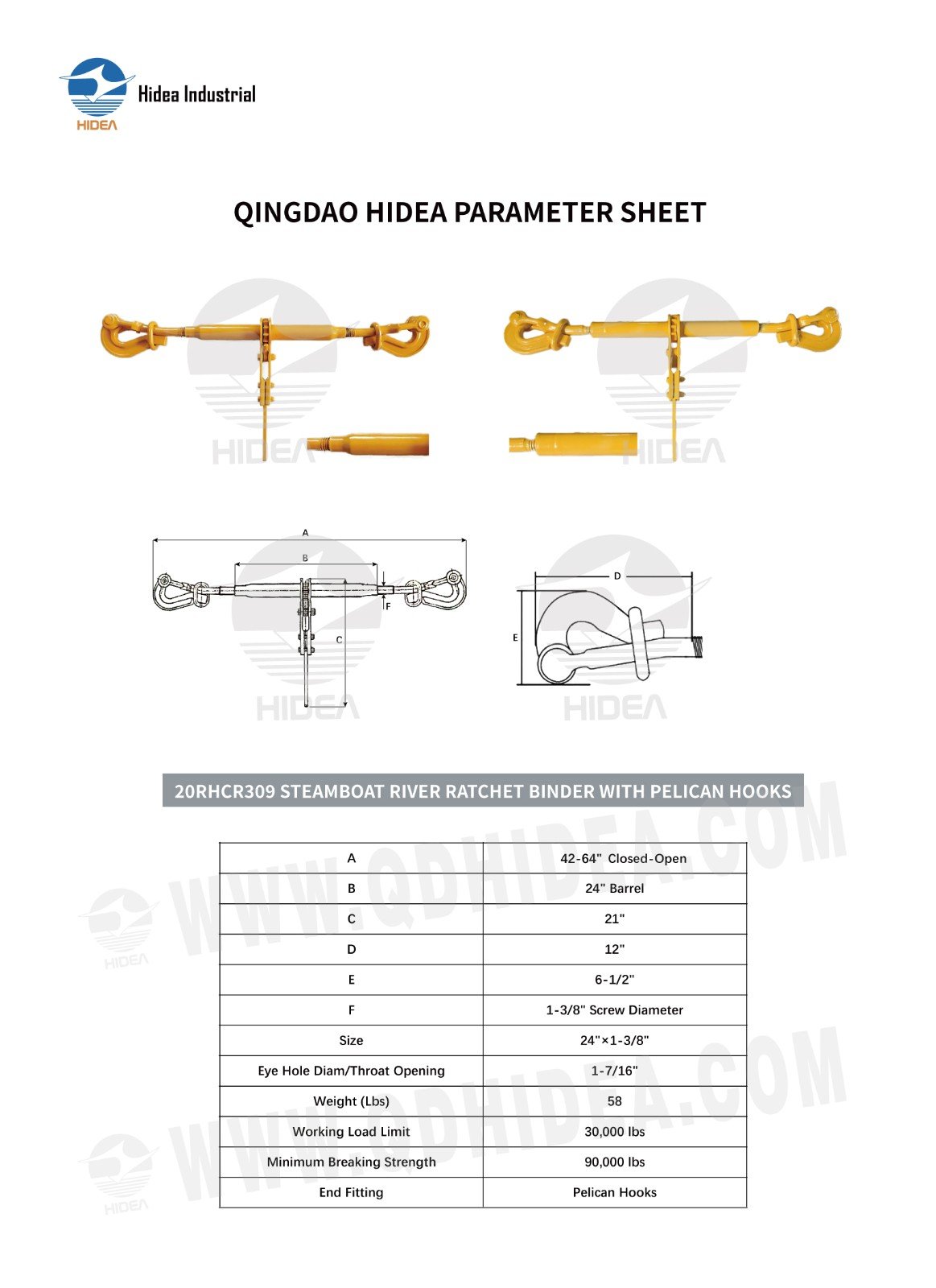

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR309 STEAMBOAT RIVER RATCHET BINDER WITH PELICAN HOOKS

A	42-64"Closed-Open
B	24"Barrel
C	21"
D	12"
E	6-1/2"
F	1-3/8"Screw Diameter
Size	24"×1-3/8"
Eye Hole Diam/Throat Opening	1-7/16"
Weight (Lbs)	58
Working Load Limit	30,000 lbs
Minimum Breaking Strength	90,000 lbs
End Fitting	Pelican Hooks
