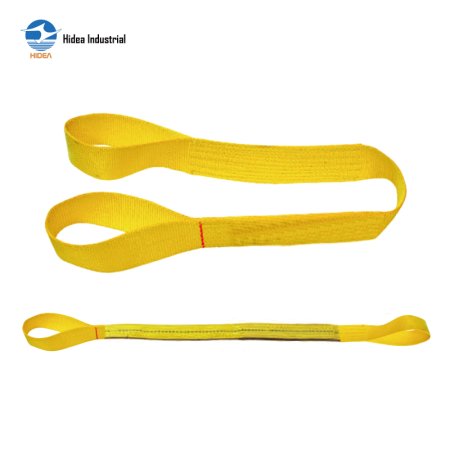

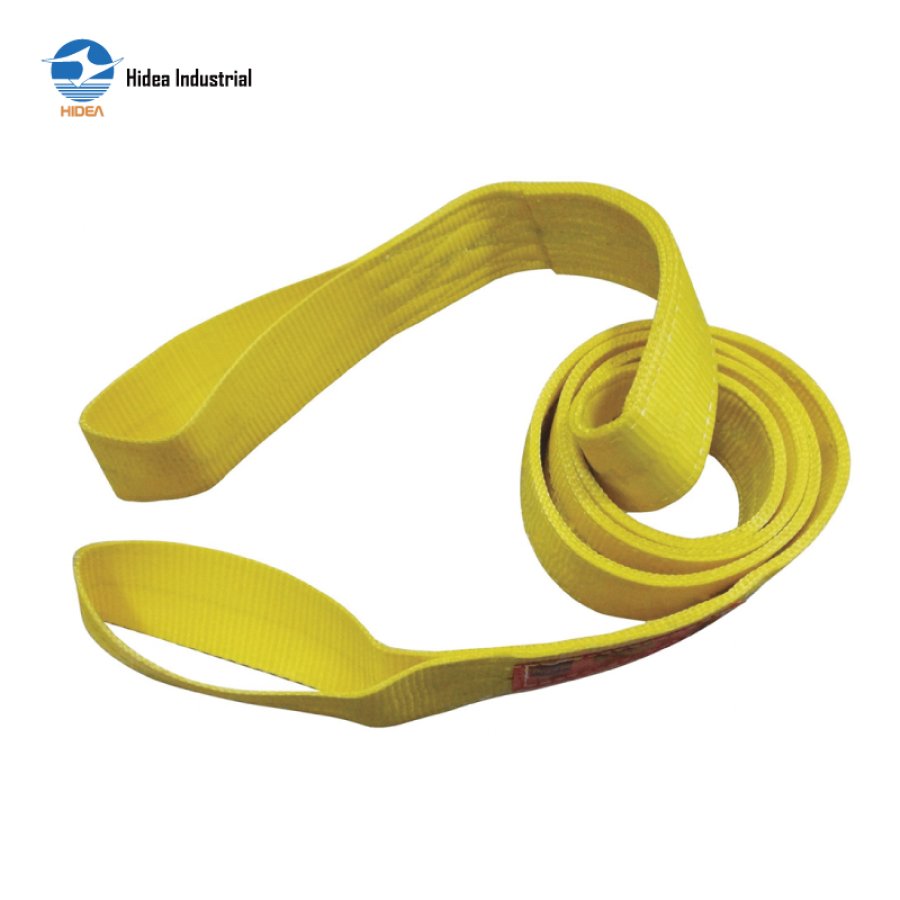

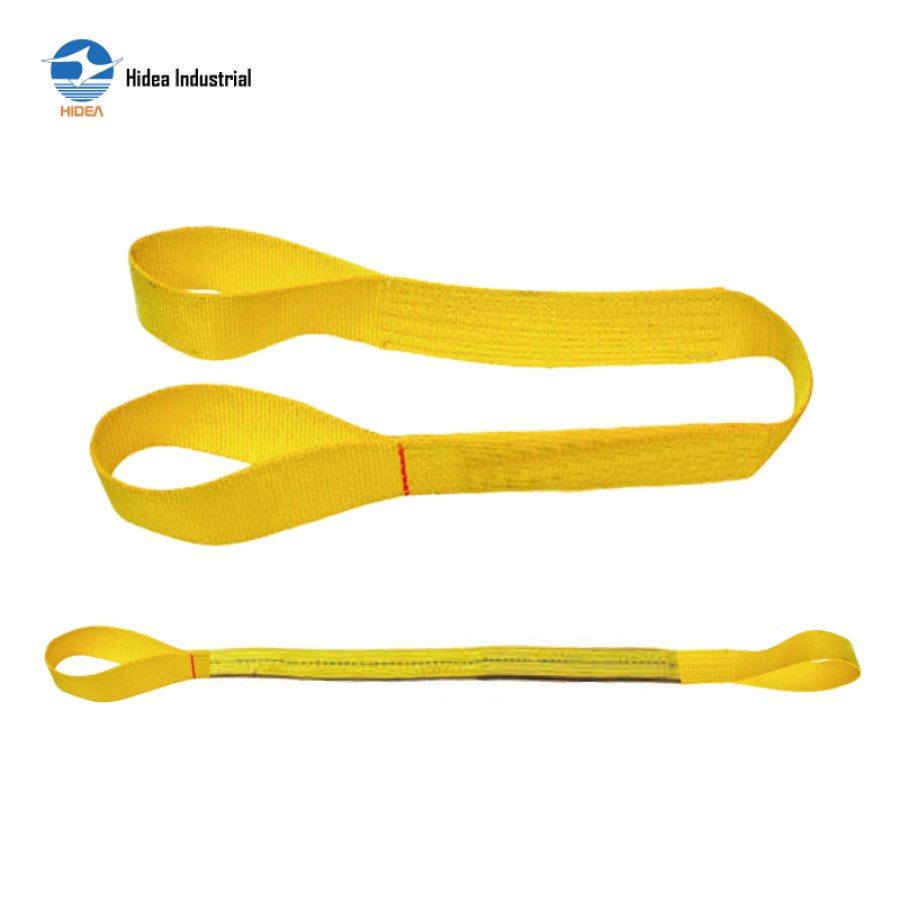

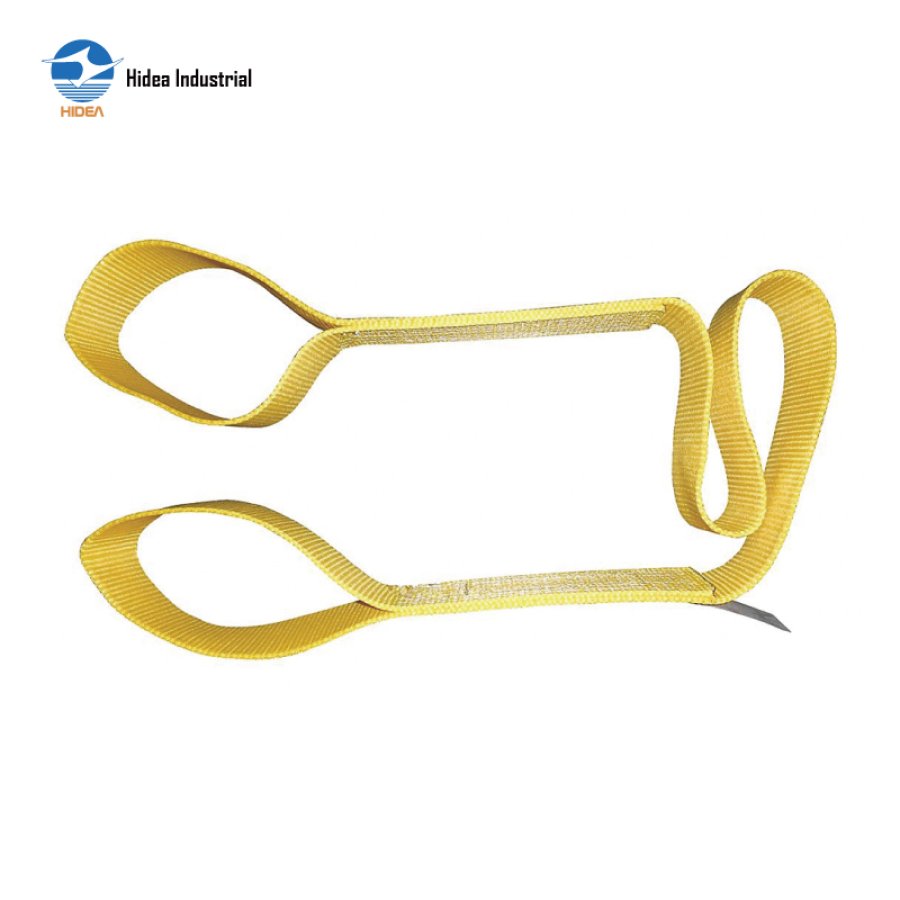

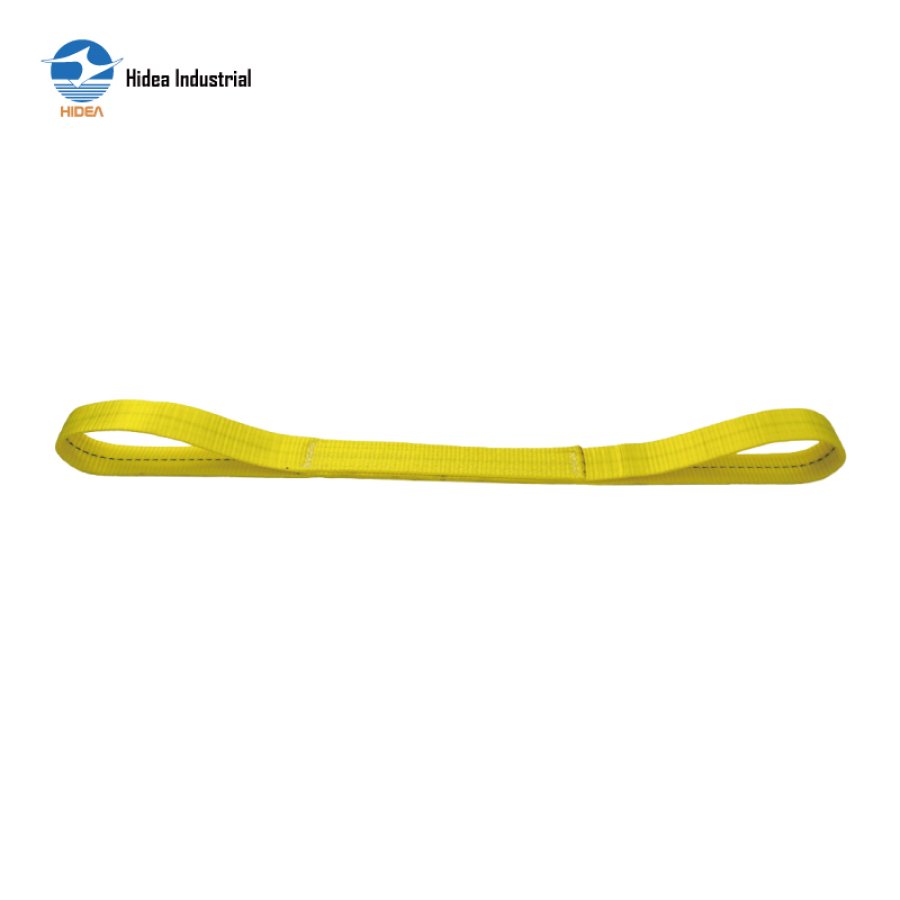

Eye and Eye slings can be used in choker, vertical and basket hitches
Also there is Type 4 Eye Slings with 1/2 Twisted (Reversed) or folded, OR 1/3 folded tapered eyes usually furnished, unless Flat (Type 3) eyes are specified

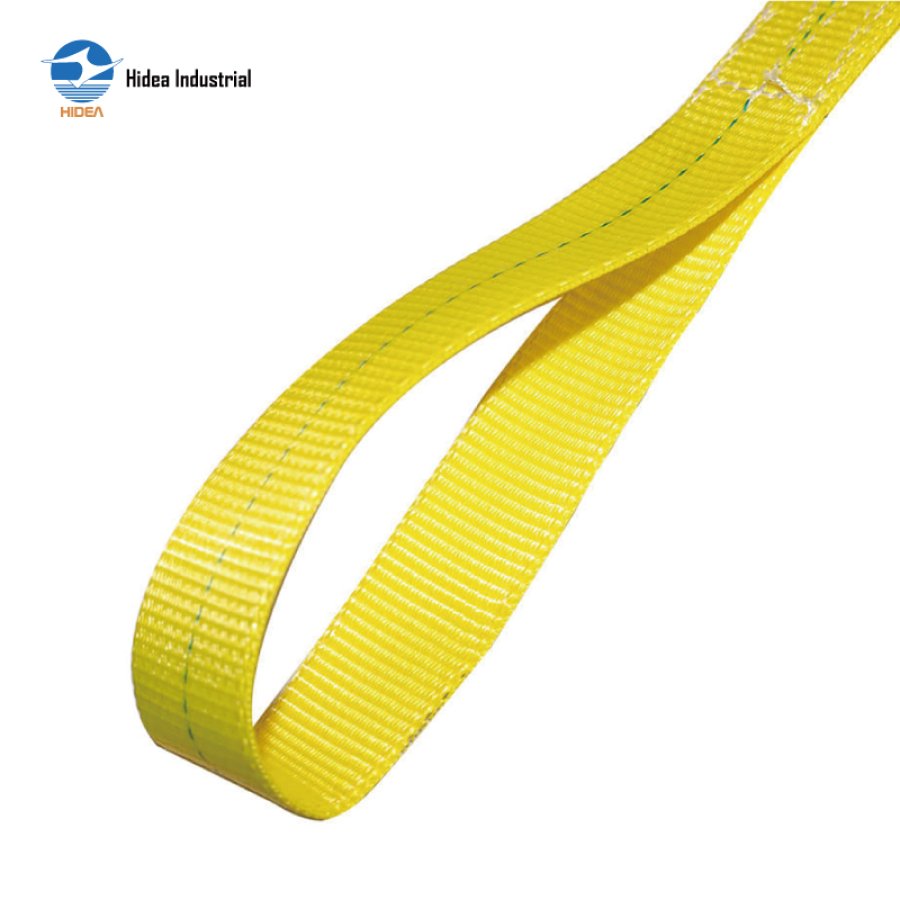

Sling eyes are made tapered (Type 4) by twisting or folding instead of flat eyes （Type 3) normally for slings that are more than 2 inches wide, or as requested.
As normal practices, sling eyes will be sleeve wrapped and protected at the force bearing point unless otherwise specified

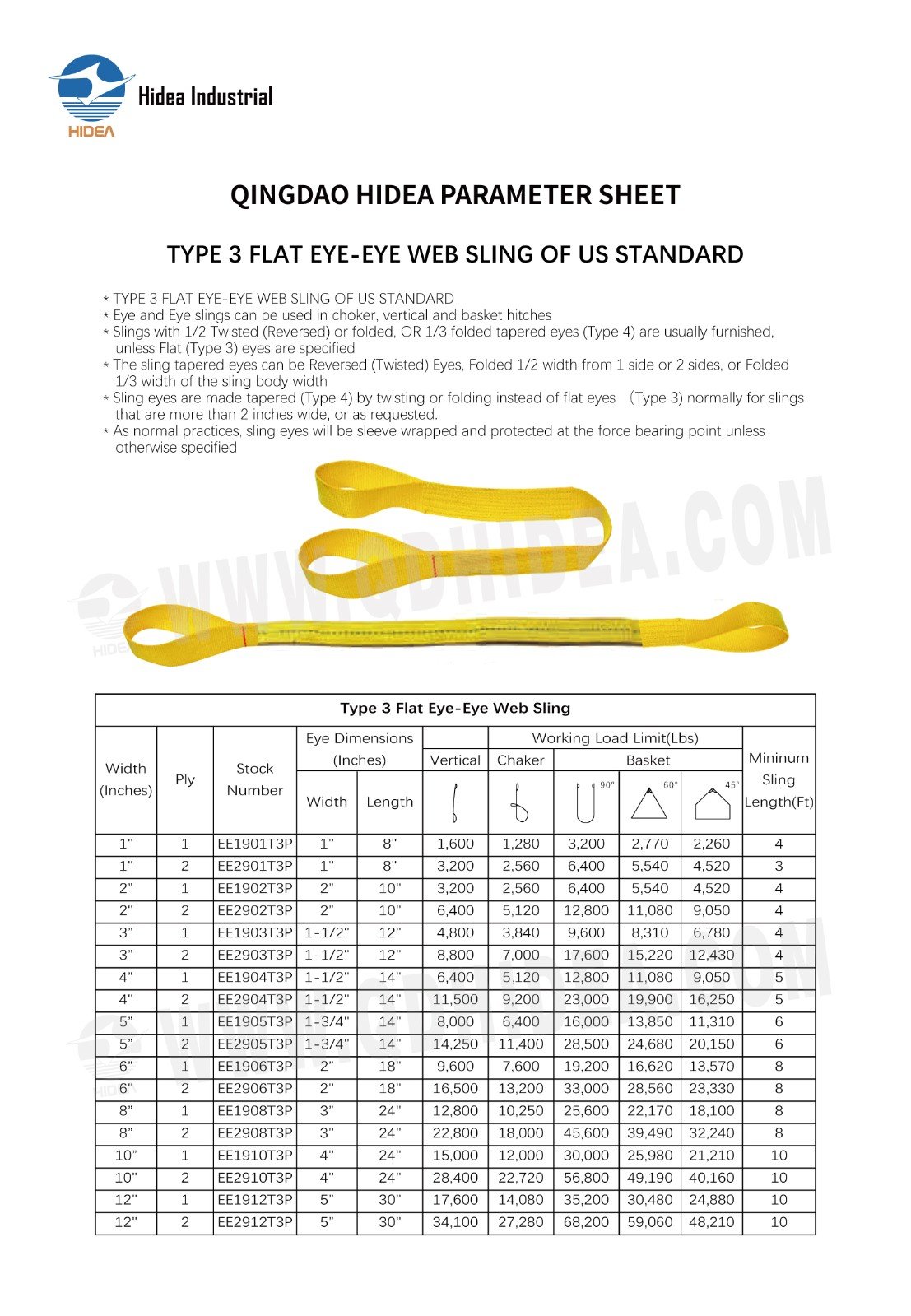

QINGDAO HIDEA PARAMETER SHEET FOR
TYPE 3 FLAT EYE-EYE WEB SLING OF US STANDARD
| Width (Inches) | Ply | Stock Number | Eye Dimensions (Inches) | Working Load Limit(Lbs) | Mininum Sling Length(Ft) | |||||
| Vertical | Chaker | Basket | ||||||||
| Width | Length | 90° | 60° | 45° | ||||||
| 1" | 1 | EE1901T3P | 1" | 8" | 1,600 | 1,280 | 3,200 | 2,770 | 2,260 | 4 |
| 1" | 2 | EE2901T3P | 1" | 8" | 3,200 | 2,560 | 6,400 | 5,540 | 4,520 | 3 |
| 2” | 1 | EE1902T3P | 2" | 10" | 3,200 | 2,560 | 6,400 | 5,540 | 4,520 | 4 |
| 2" | 2 | EE2902T3P | 2" | 10" | 6,400 | 5,120 | 12,800 | 11,080 | 9,050 | 4 |
| 3” | 1 | EE1903T3P | 1-1/2" | 12" | 4,800 | 3,840 | 9,600 | 8,310 | 6,780 | 4 |
| 3” | 2 | EE2903T3P | 1-1/2" | 12" | 8,800 | 7,000 | 17,600 | 15,220 | 12,430 | 4 |
| 4” | 1 | EE1904T3P | 1-1/2" | 14" | 6,400 | 5,120 | 12,800 | 11,080 | 9,050 | 5 |
| 4" | 2 | EE2904T3P | 1-1/2" | 14" | 11,500 | 9,200 | 23,000 | 19,900 | 16,250 | 5 |
| 5” | 1 | EE1905T3P | 1-3/4" | 14" | 8,000 | 6,400 | 16,000 | 13,850 | 11,310 | 6 |
| 5” | 2 | EE2905T3P | 1-3/4" | 14" | 14,250 | 11,400 | 28,500 | 24,680 | 20,150 | 6 |
| 6" | 1 | EE1906T3P | 2" | 18" | 9,600 | 7,600 | 19,200 | 16,620 | 13,570 | 8 |
| 6" | 2 | EE2906T3P | 2" | 18" | 16,500 | 13,200 | 33,000 | 28,560 | 23,330 | 8 |
| 8" | 1 | EE1908T3P | 3” | 24" | 12,800 | 10.250 | 25,600 | 22.170 | 18,100 | 8 |
| 8" | 2 | EE2908T3P | 3" | 24" | 22,800 | 18,000 | 45,600 | 39,490 | 32,240 | 8 |
| 10” | 1 | EE1910T3P | 4" | 24" | 15,000 | 12,000 | 30,000 | 25,980 | 21,210 | 10 |
| 10" | 2 | EE2910T3P | 4" | 24" | 28,400 | 22,720 | 56,800 | 49,190 | 40,160 | 10 |
| 12" | 1 | EE1912T3P | 5” | 30" | 17,600 | 14,080 | 35,200 | 30,480 | 24,880 | 10 |
| 12" | 2 | EE2912T3P | 5” | 30" | 34,100 | 27,280 | 68,200 | 59,060 | 48,210 | 10 |
