Hidea G80 Forged Triangle Ring with Base: The Ultimate Lifting Solution for Heavy Loads

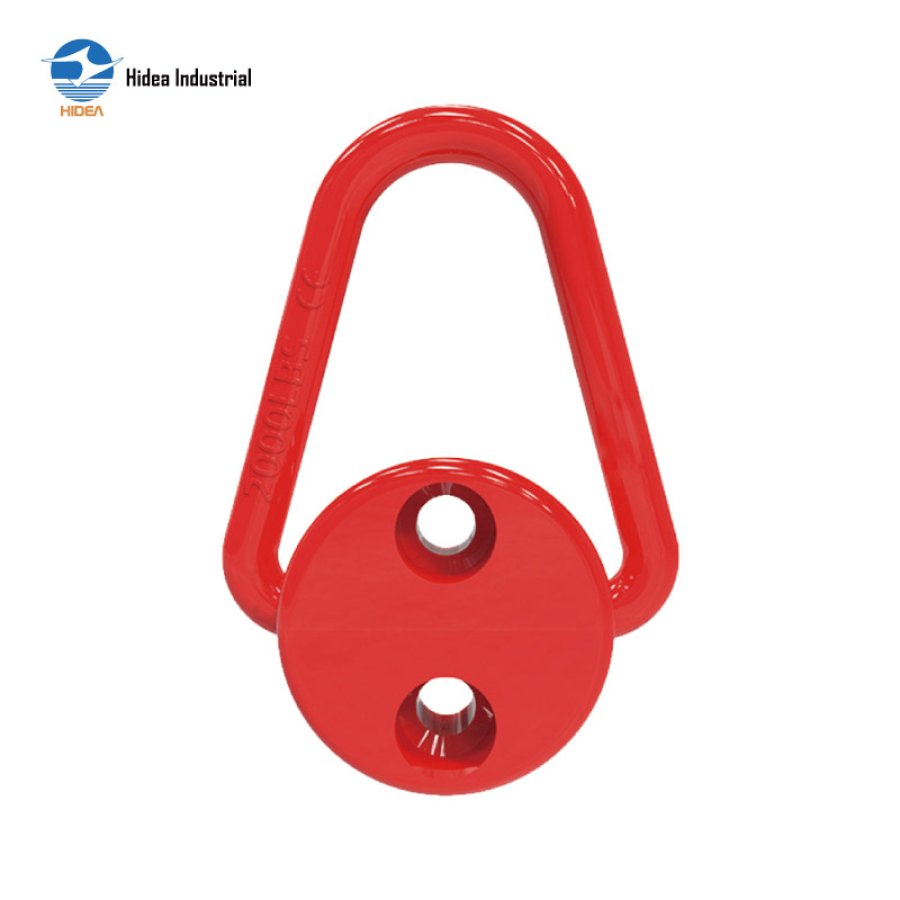

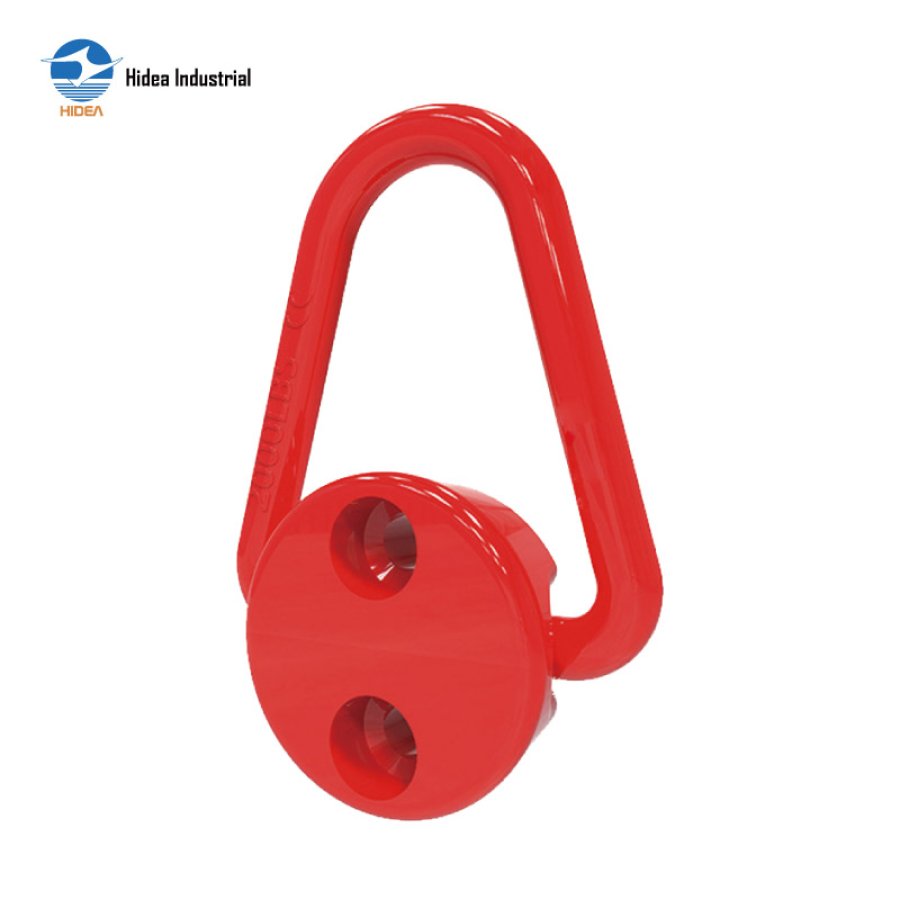

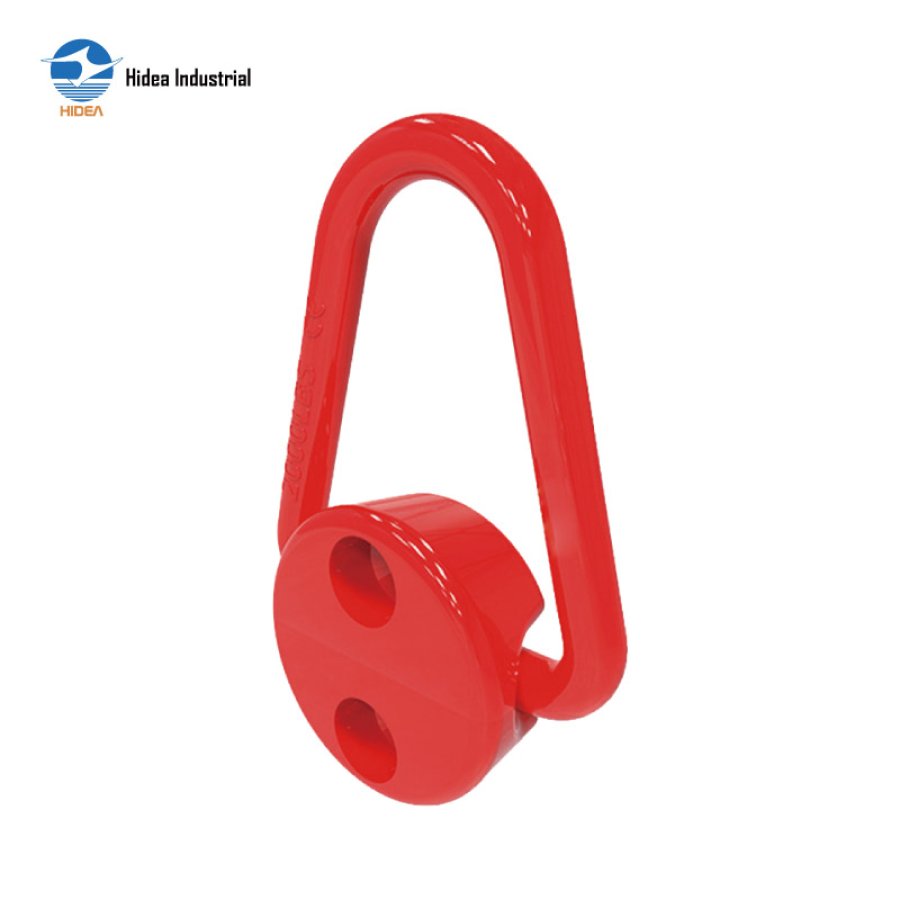

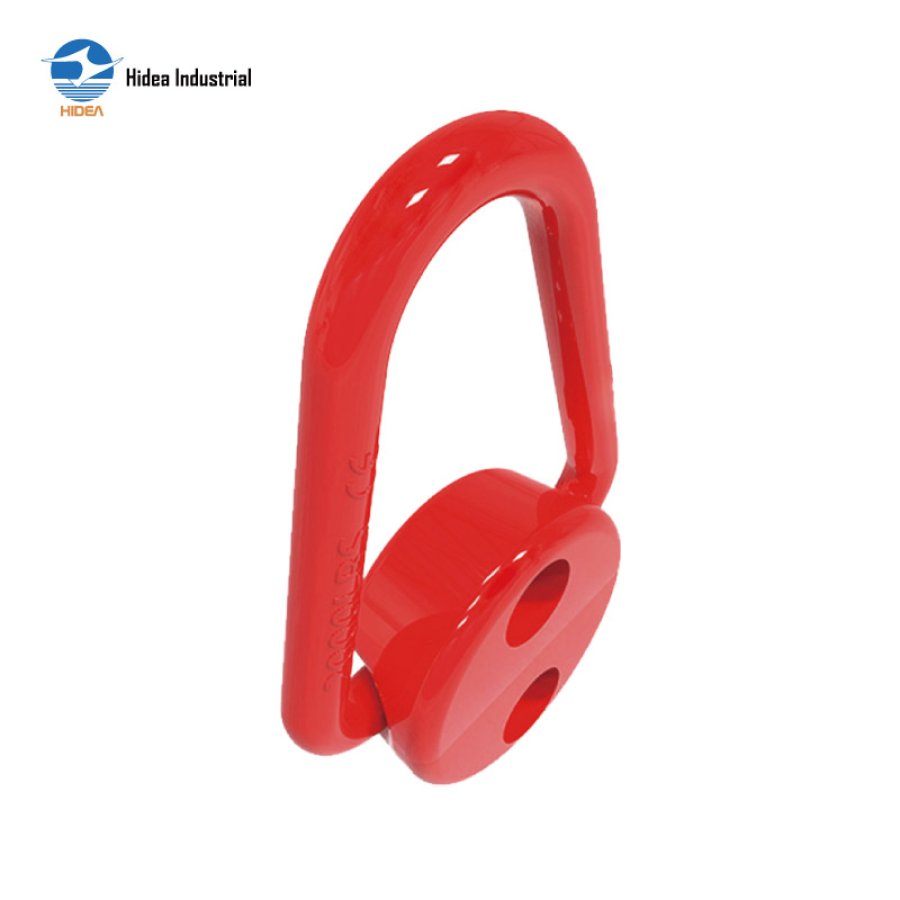

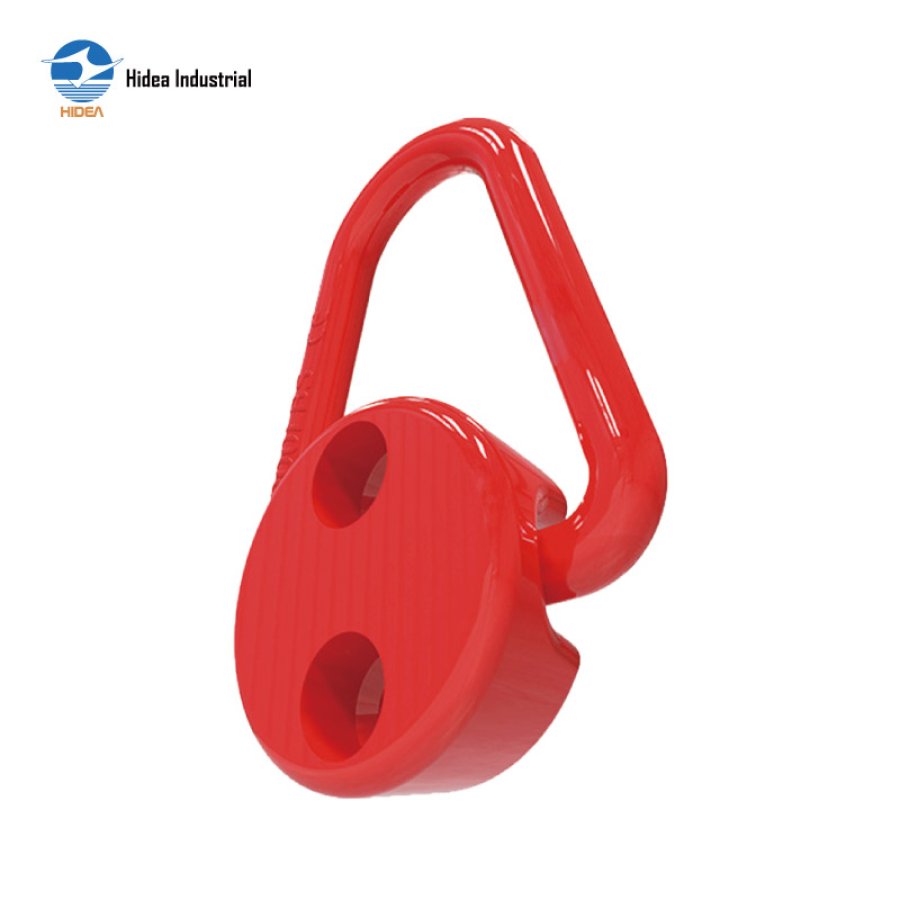

G80 FORGED TRIANGLE RING WITH BASE

Super alloy steel-Quenched and Tempered
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

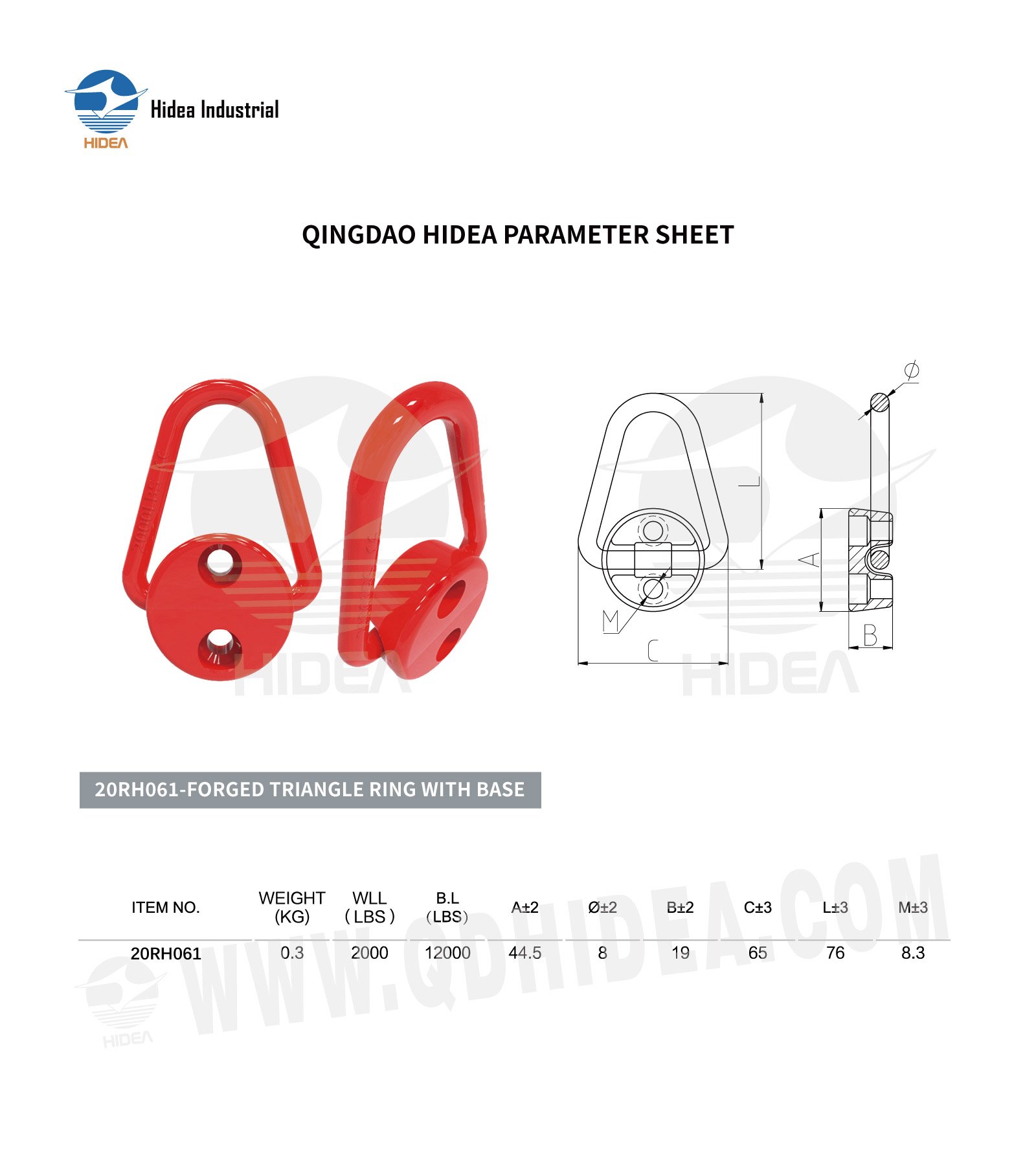

QINGDAO HIDEA PARAMETER SHEET FOR

20RH061-FORGED TRIANGLE RING WITH BASE

ITEM NO.	WEIGHT (KG)	WLL (LBS)	B.L (LBS)	A±2	Ø±2	B±2	C±3	L±3	M±3

20RH061	0.3	2000	12000	44.5	8	19	65	76	8.3
