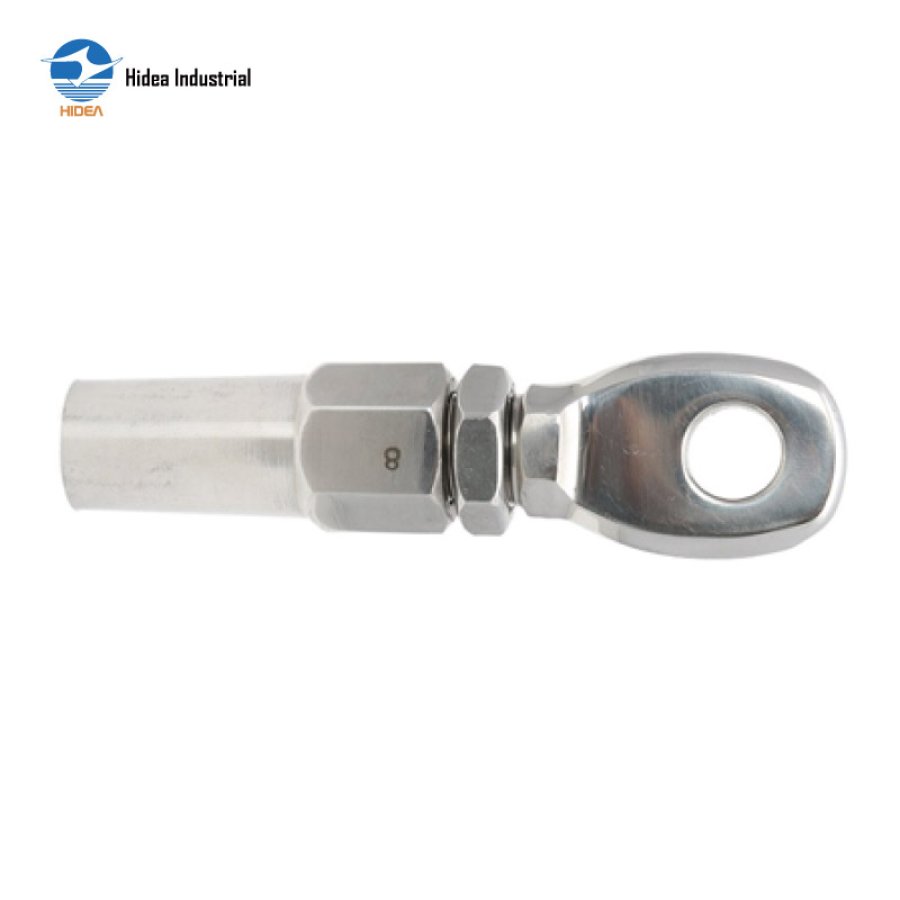

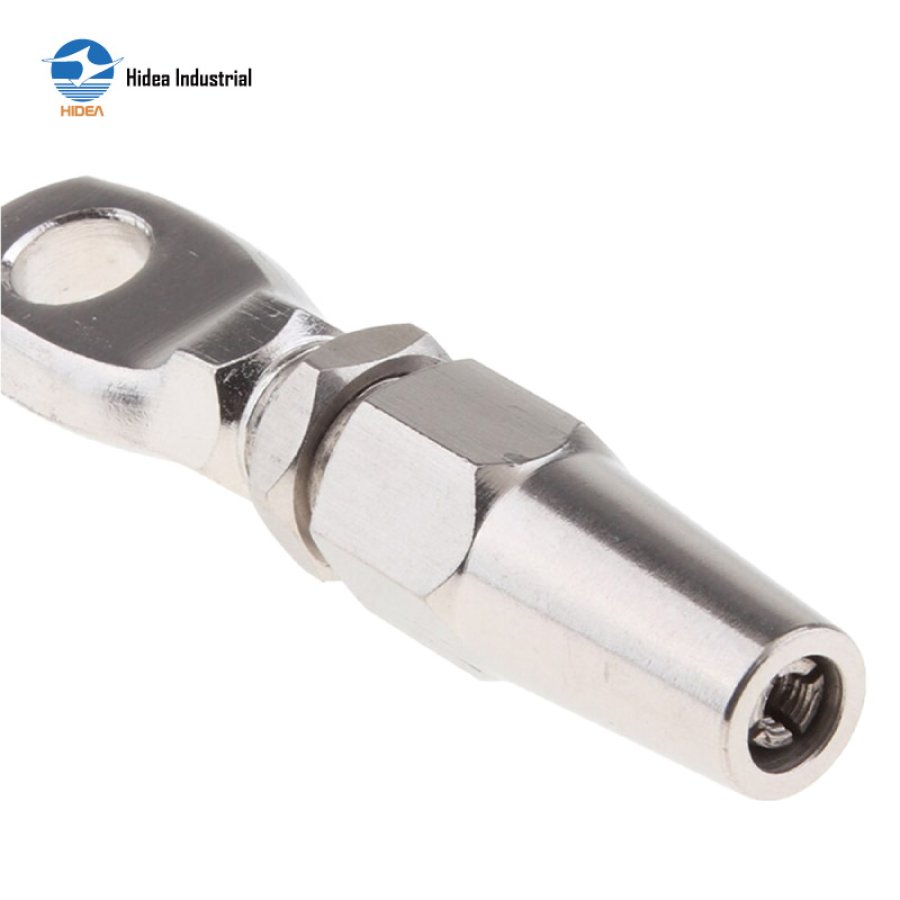

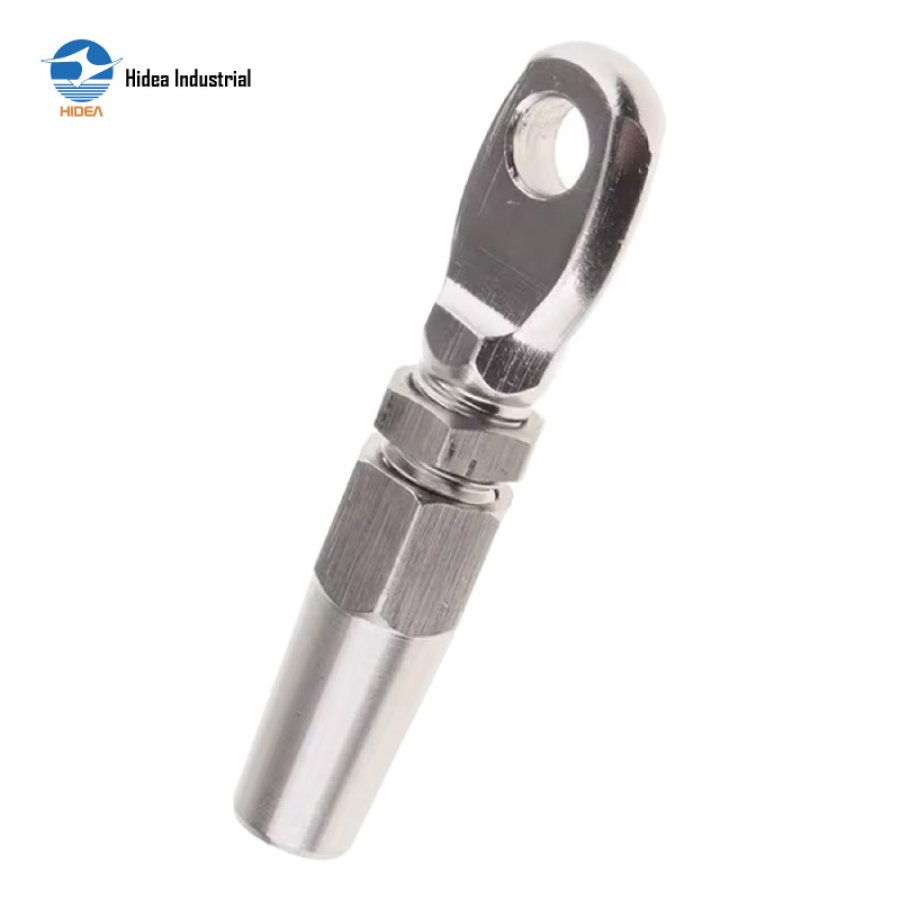

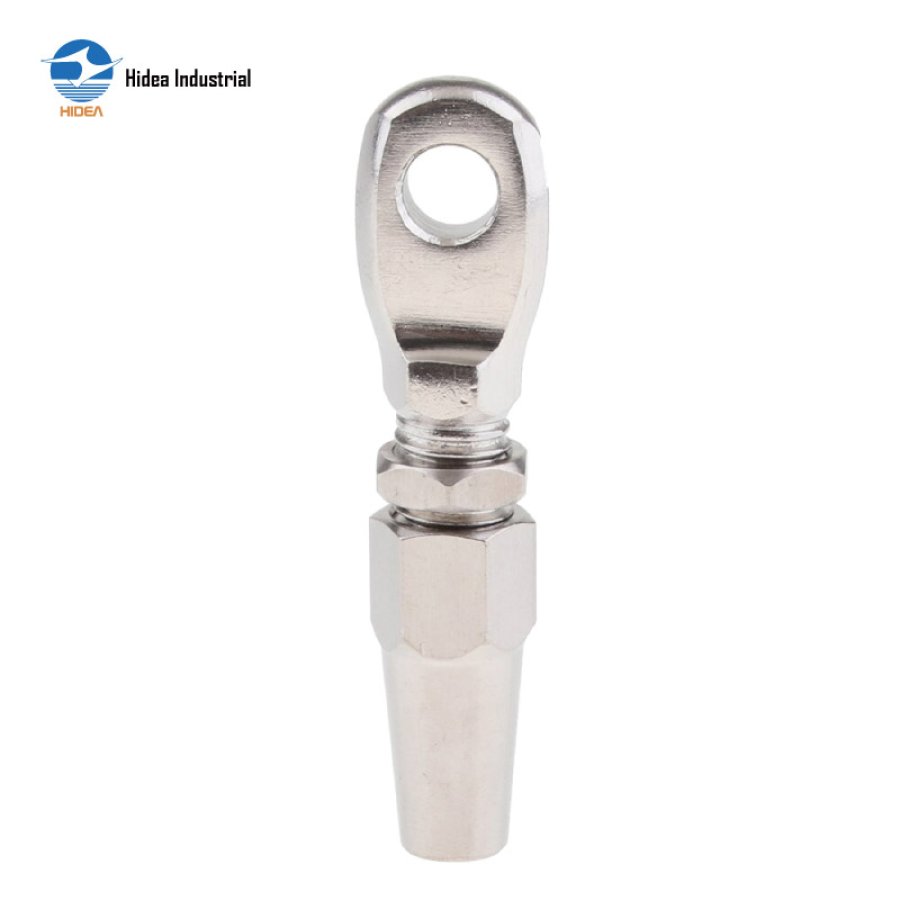

HIDEA Stainless Steel Swageless Eye Terminal – Easy to Use & Durable Cable End Fittings

SWAGELESS EYE TERMINALS

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

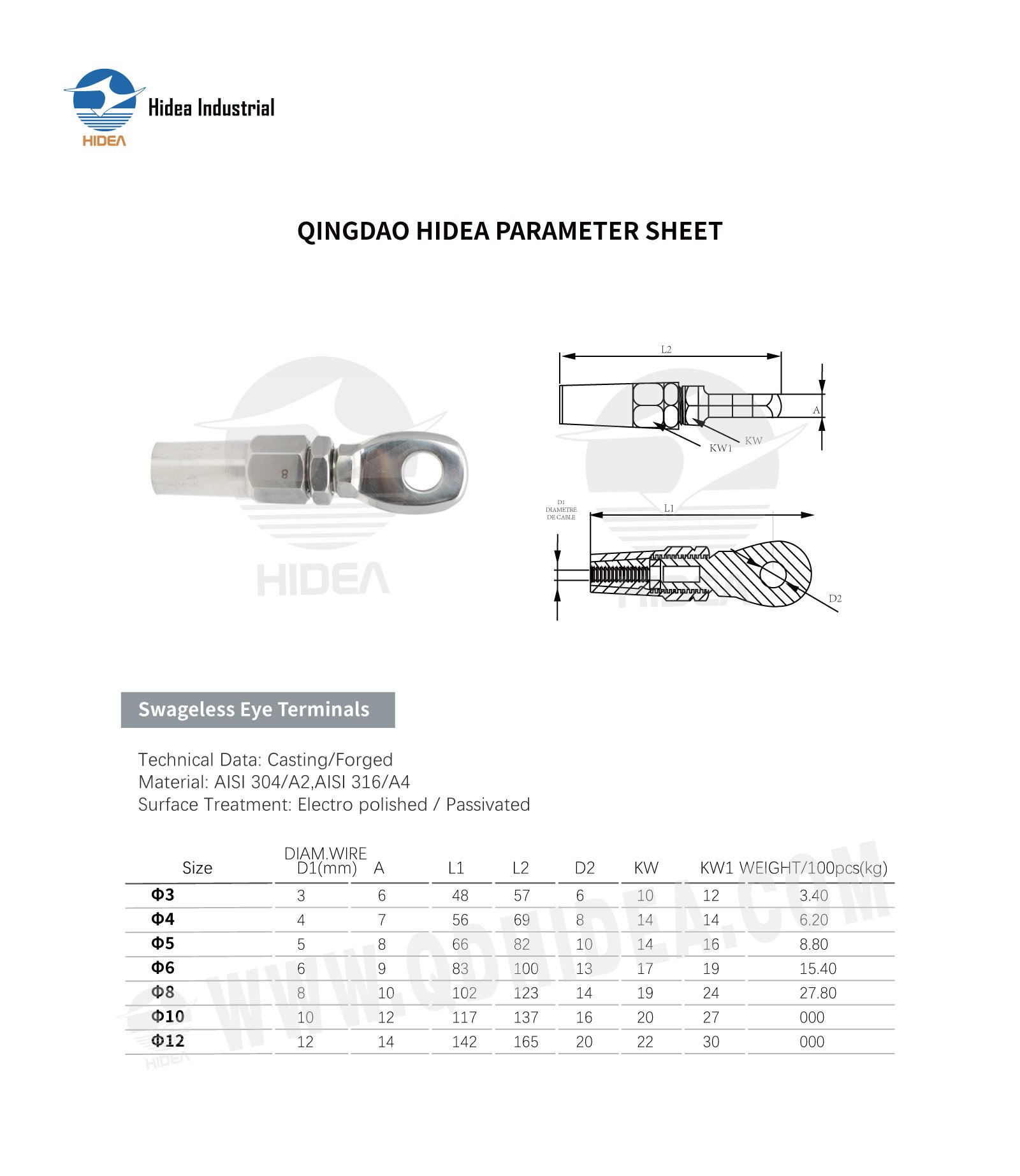

QINGDAO HIDEA PARAMETER SHEET FOR

Swageless Eye Terminals

Size	DIAM.WIRE D1(mm) A		L1	L2	D2	KW	KW1	WEIGHT/100pcs(kg)
Ф3	3	6	48	57	6	10	12	3.40
Ф4	4	7	56	69	8	14	14	6.20
Ф5	5	8	66	82	10	14	16	8.80
Ф6	6	9	83	100	13	17	19	15.40
Ф8	8	10	102	123	14	19	24	27.80
Ф10	10	12	117	137	16	20	27	000
Ф12	12	14	142	165	20	22	30	000
