HIDEA Bended Cast-In Lifting Loops: Built for Heavy-Duty Precast Concrete Lifting

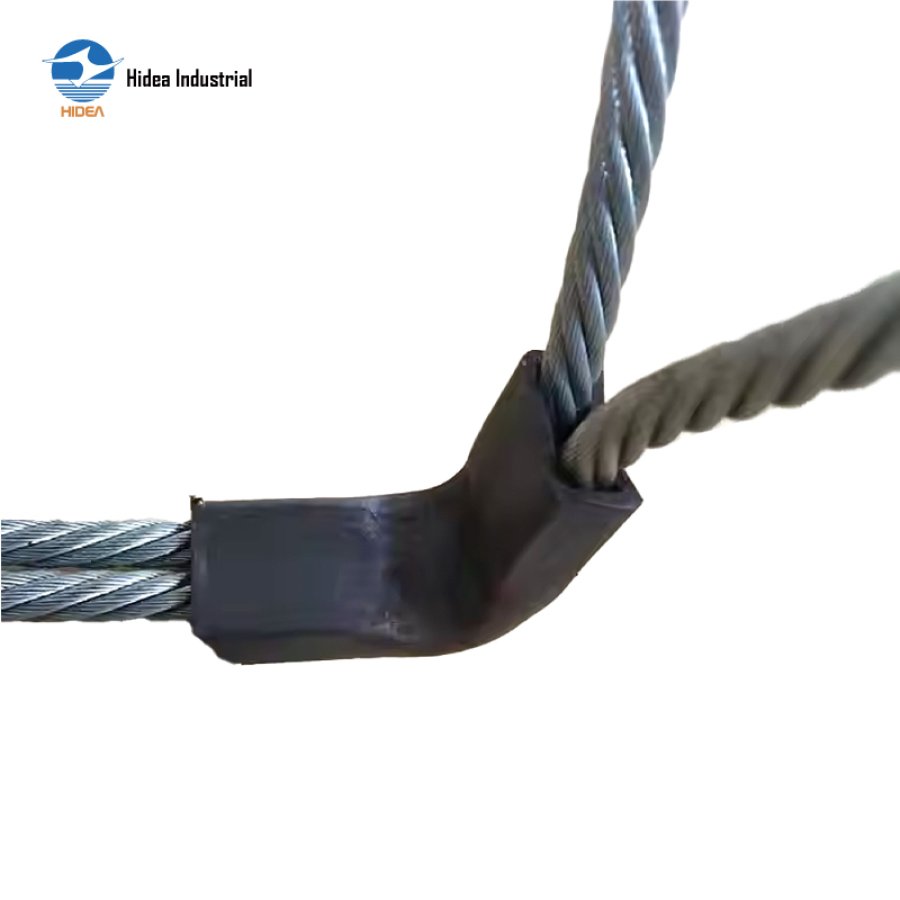

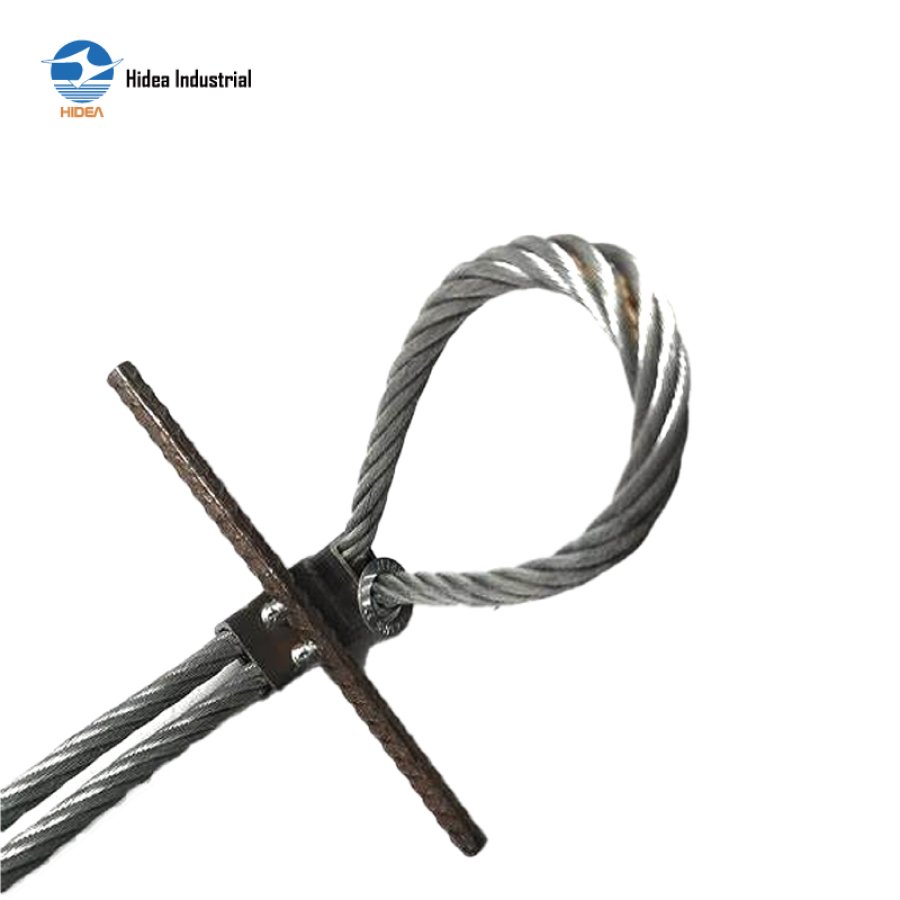

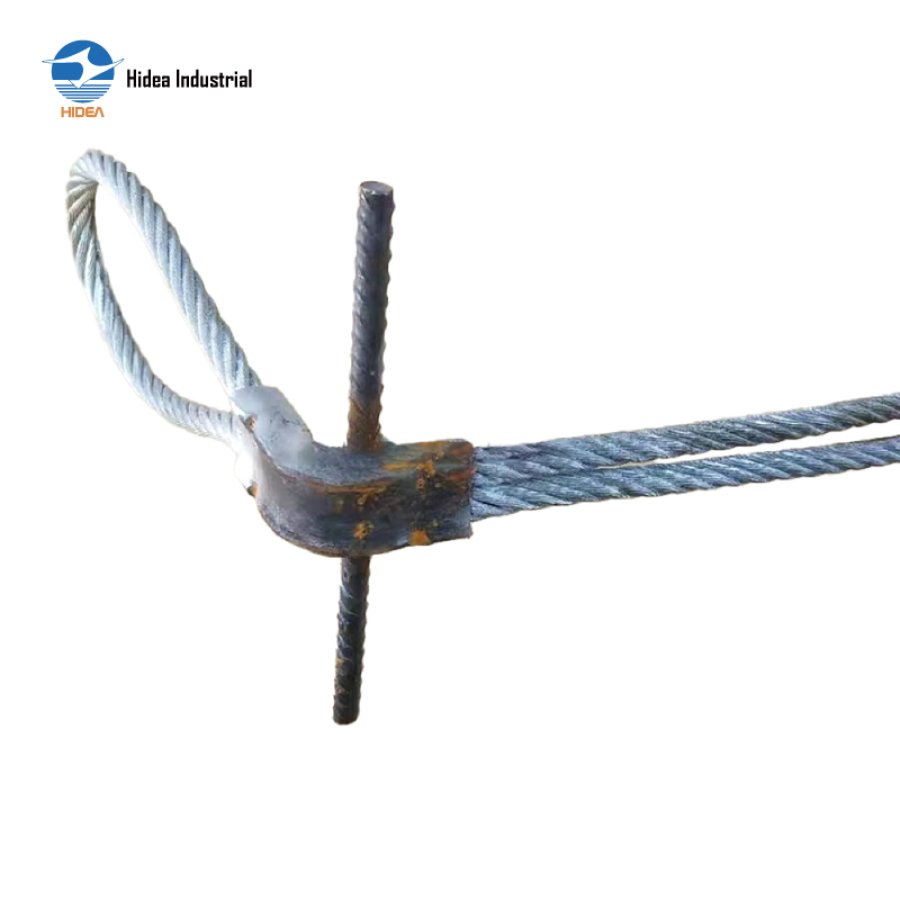

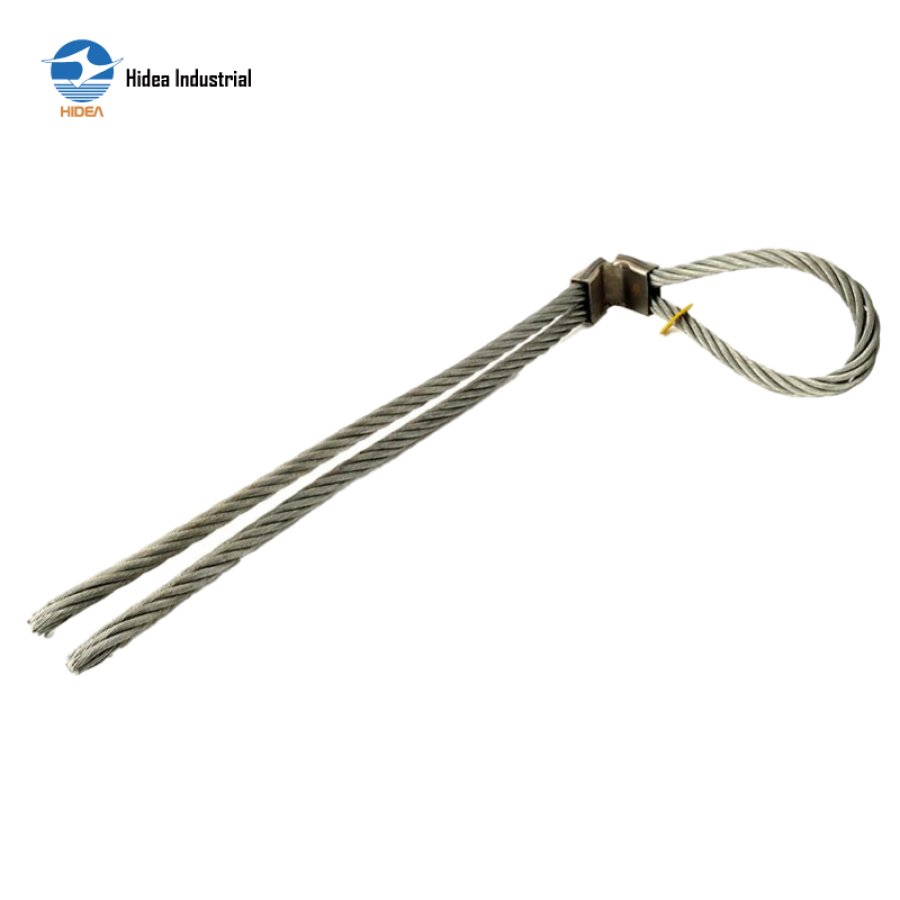

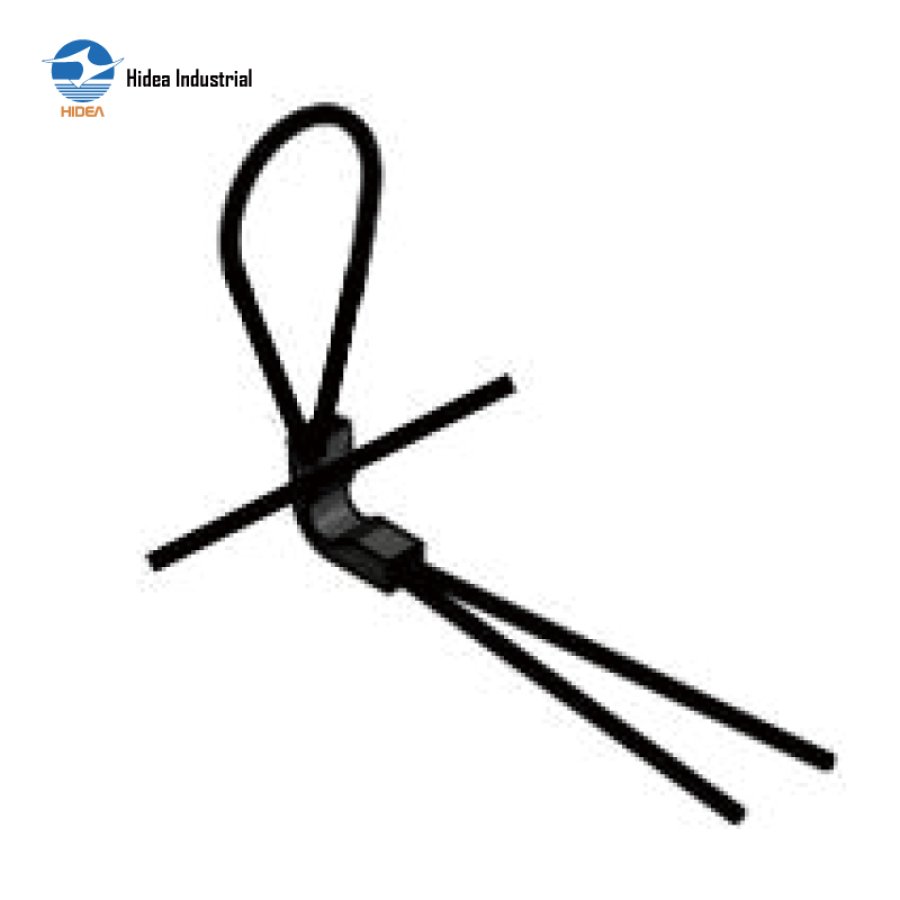

PRECAST CONCRETE BENT (ANGLED) CAST-IN LOOP

Prestressed / precast concrete elements lifting device Bent (Angled) Cast-in Loop
Bent (Angled) Cast-in Loops are suitable for installation in thin concrete elements such as ceilings, floor slabs, angle brackets and light wells.
It is designed for load introduction into the structure, and the angled loop is additionally reinforced as required.
The eyelet for receiving the crane hook can either protrude from the plate, or be recessed in a recess area.

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

PRESTRESSED/PRECAST CONCRETE ELEMENTS LIFTING DEVICE

Load
(t)

D
(mm)

E
(mm)

L
(mm)

M
(mm)

H
(mm)

h
(mm)

I
(mm)

r
(mm)

F
(mm)

Rectangle
steel tube

0.8

200

90±10

160±20

485±20

205±20

281±20

R10

90±10

20*15*2*90

1.6

200

90±10

160±20

530±20

205±20

10*

330±20

R10

90±10

25*15*2*90

2.4

200

120±10

230±20

100

610±20

280±20

12*

330±20

R12.5

120±10

25*15*2*100

4.0

200

40±10

30±20

100

660±20

280±20

13*

380±20

R12.5

140±10

30*20*2*100
