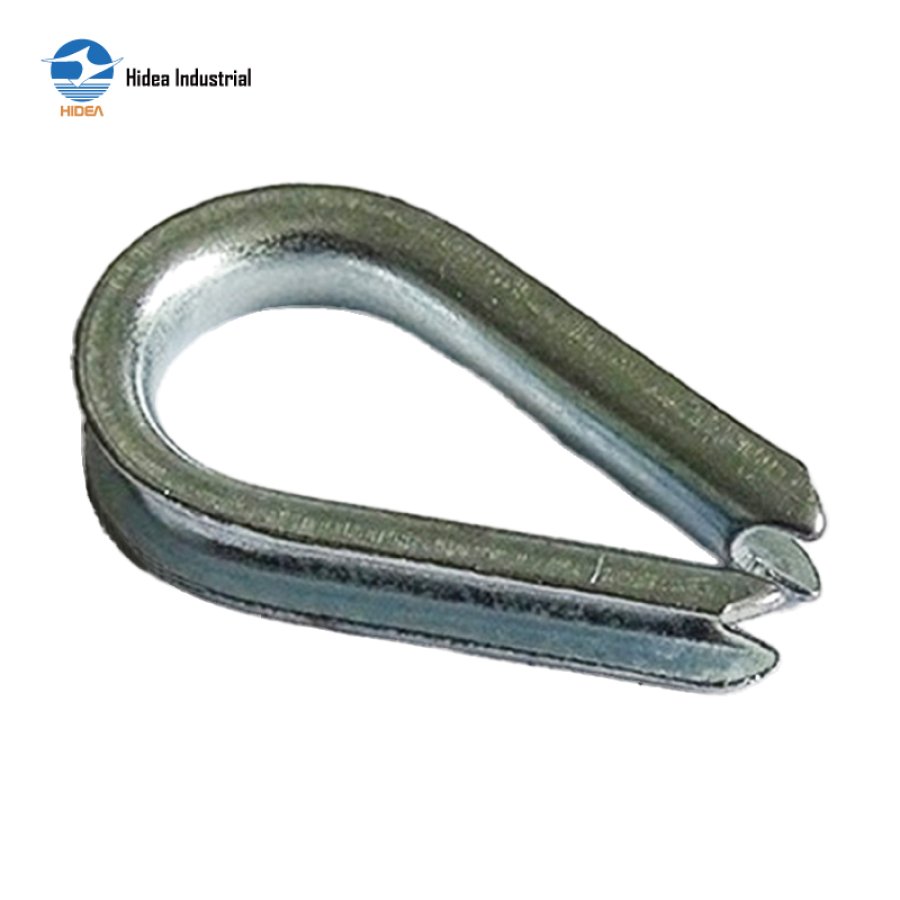

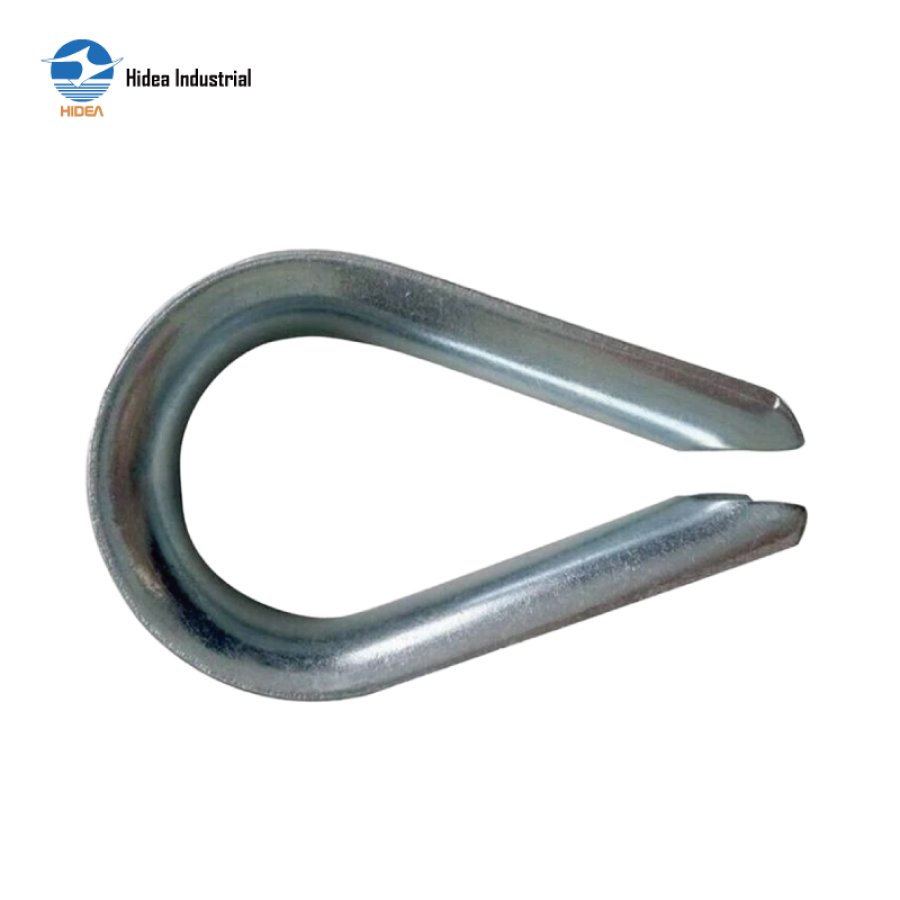

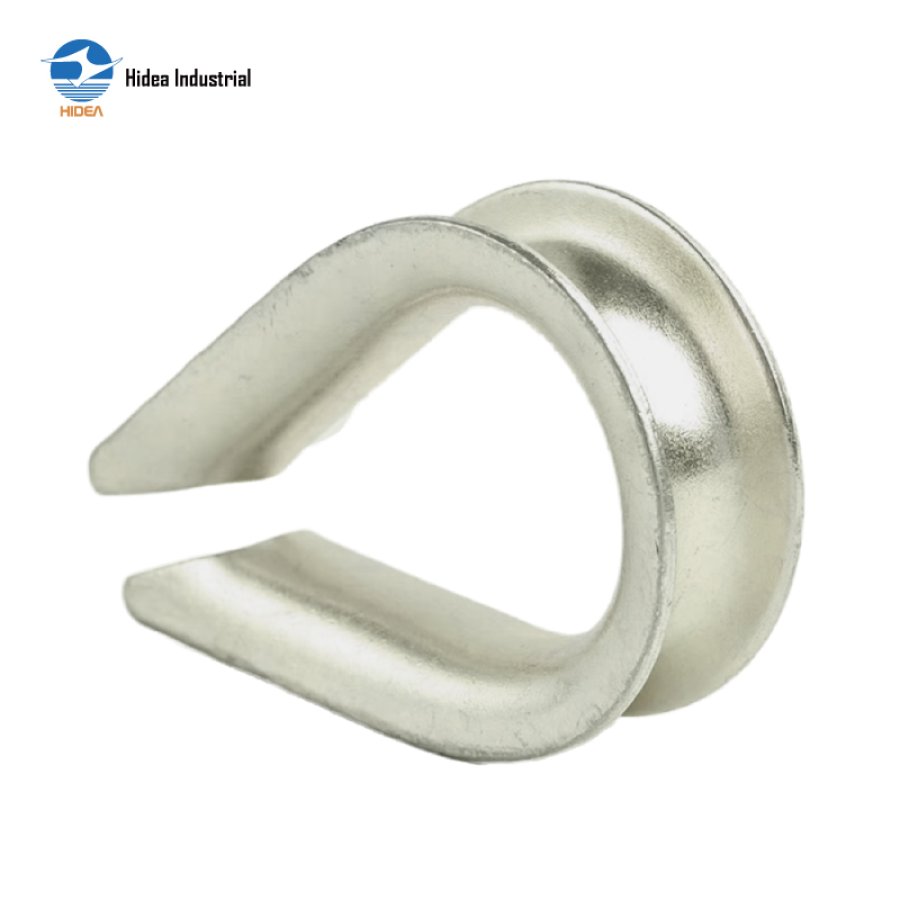

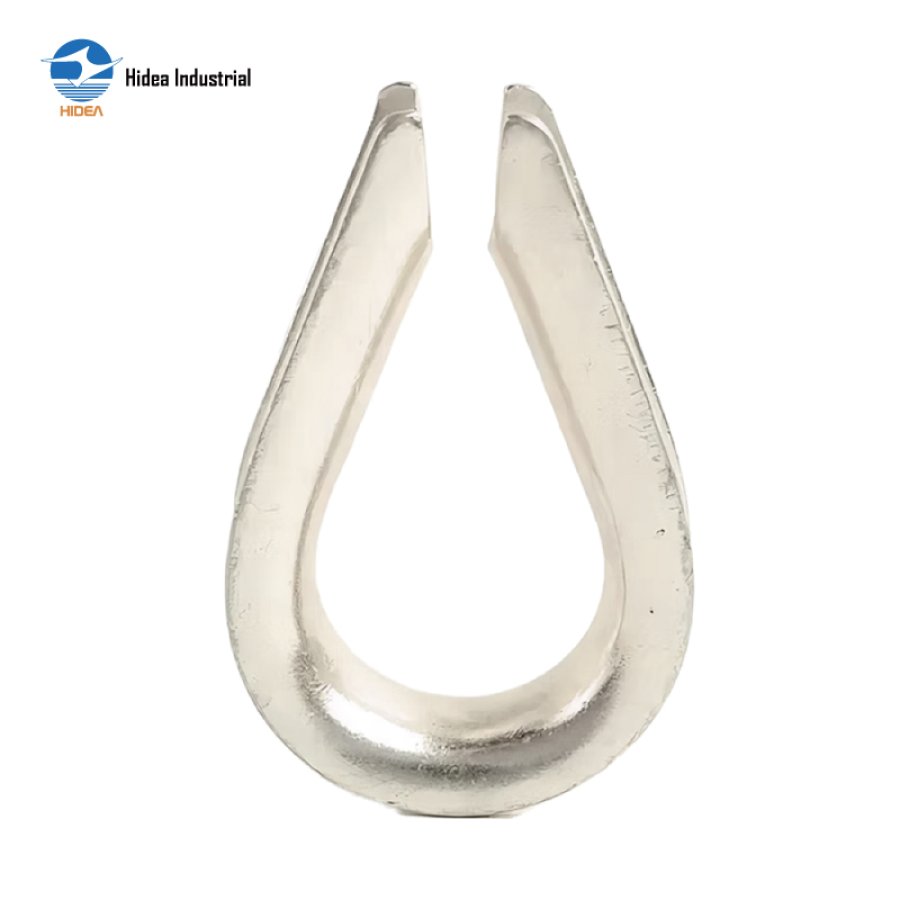

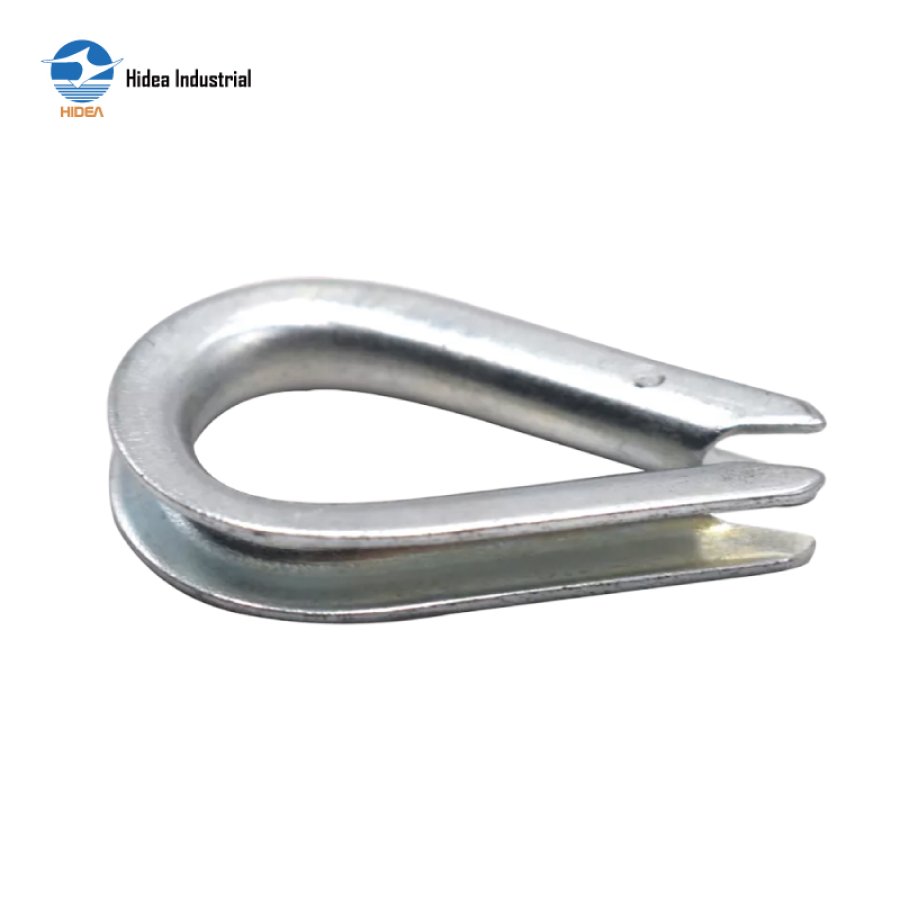

HIDEA Light Duty G-411 Wire Rope Thimble – Durable & Reliable Light Duty Commercial Thimble

G411 US TYPE LIGHT DUTY THIMBLE

Material Mild Steel Plate
Stamped & Bent to shape, Machined & polished
Surface Electro Galv. / zinc plated OR as requested
Meets the performance requirements of Federal Specification FF-T-276b Type II
Light duty G411 wire rope thimbles US type

Inquire Now

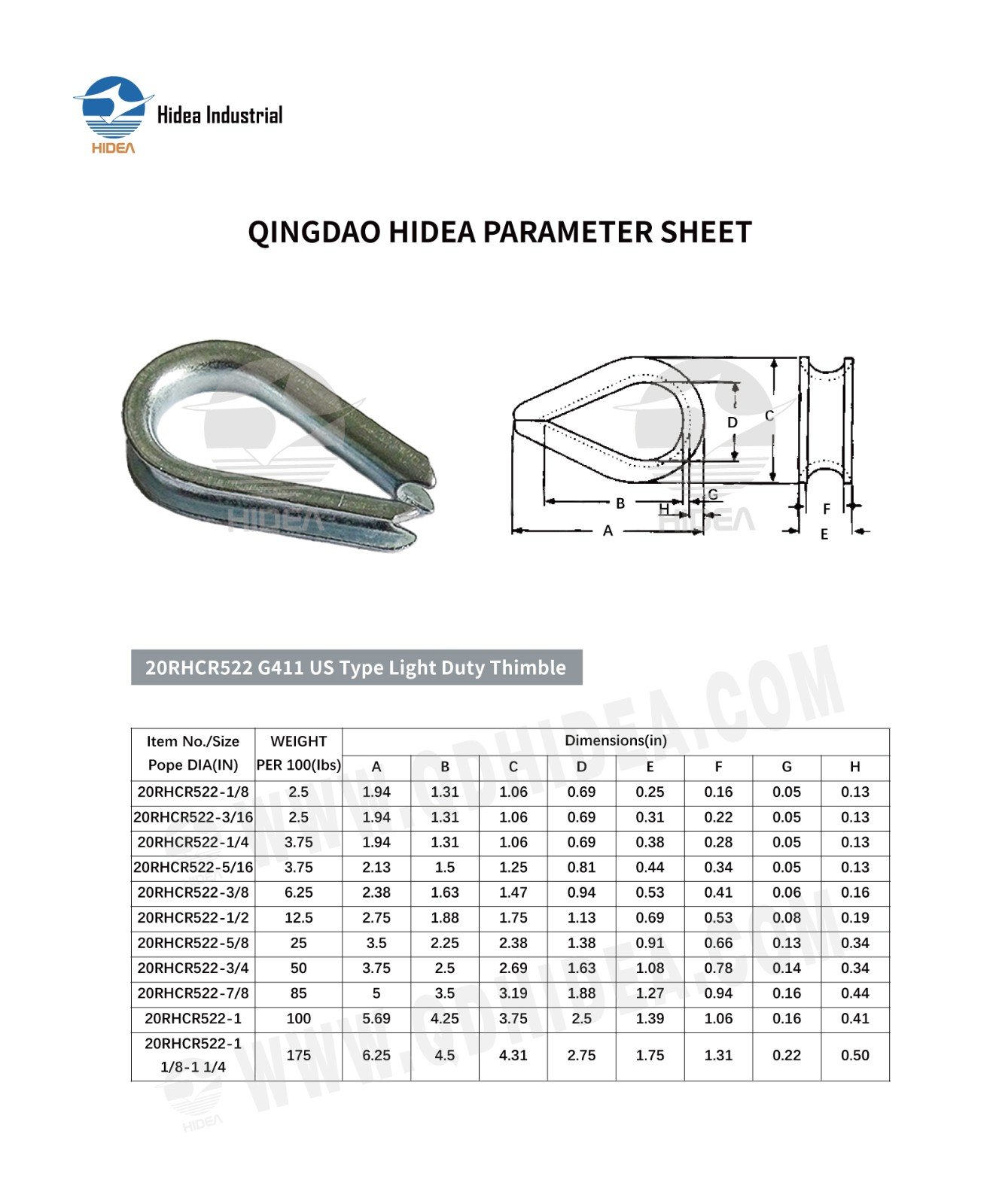

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR522 G411 US Type Light Duty Thimble

ltem No./Size Pope DIA(IN)	WEIGHT PER 100(Ibs)	Dimensions(in)
ltem No./Size Pope DIA(IN)	WEIGHT PER 100(Ibs)	A	B	C	D	E	F	G	H
20RHCR522-1/8	2.5	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13
20RHCR522-3/16	2.5	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13
20RHCR522-1/4	3.75	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13
20RHCR522-5/16	3.75	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13
20RHCR522-3/8	6.25	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16
20RHCR522-1/2	12.5	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19
20RHCR522-5/8	25	3.5	2.25	2.38	1.38	0.91	0.66	0.13	0.34
20RHCR522-3/4	50	3.75	2.5	2.69	1.63	1.08	0.78	0.14	0.34
20RHCR522-7/8	85	5	3.5	3.19	1.88	1.27	0.94	0.16	0.44
20RHCR522-1	100	5.69	4.25	3.75	2.5	1.39	1.06	0.16	0.41
20RHCR522-1 1/8-11/4	175	6.25	4.5	4.31	2.75	1.75	1.31	0.22	0.50
