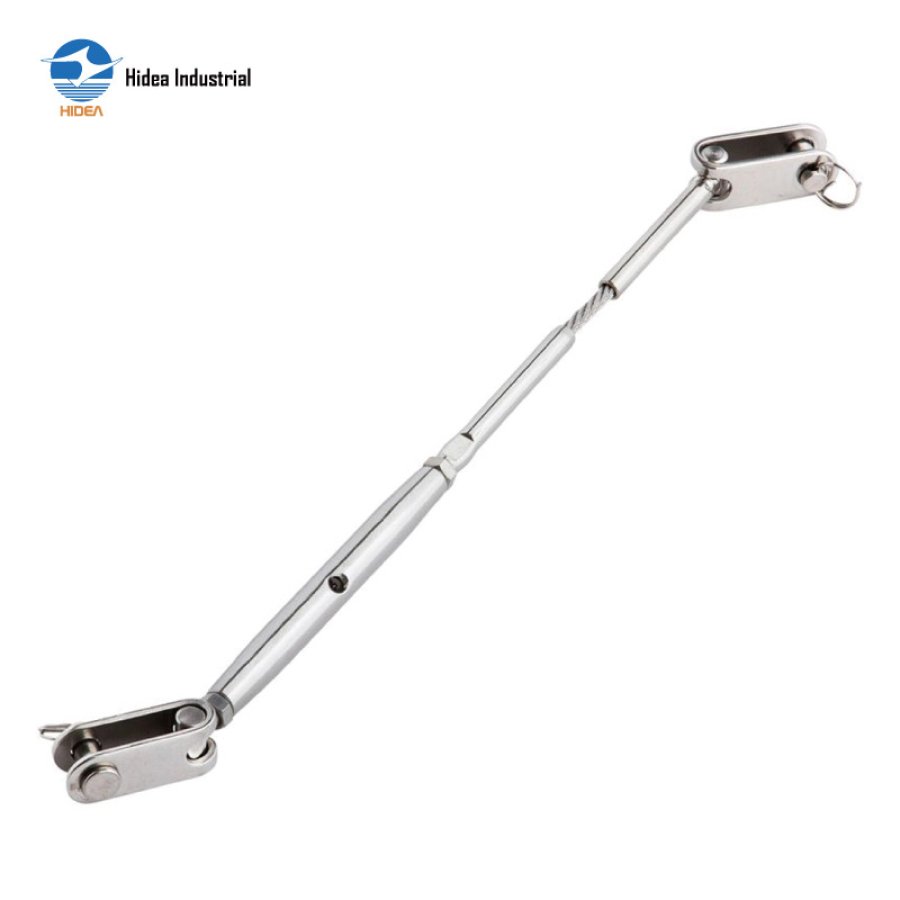

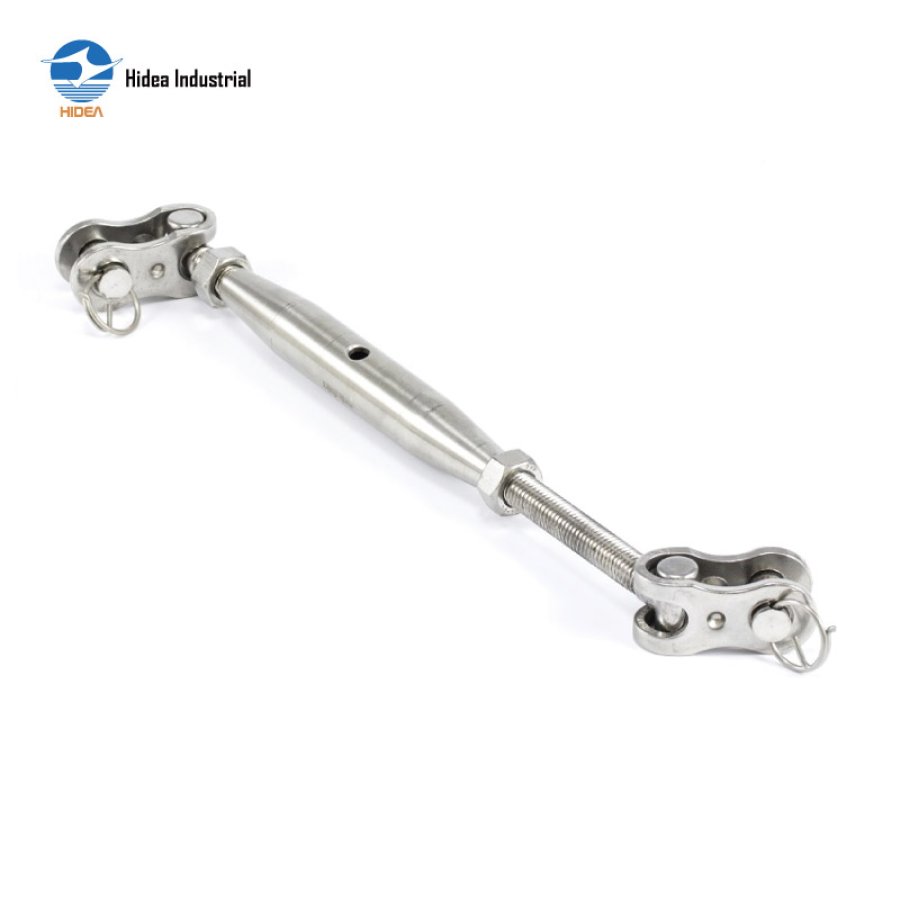

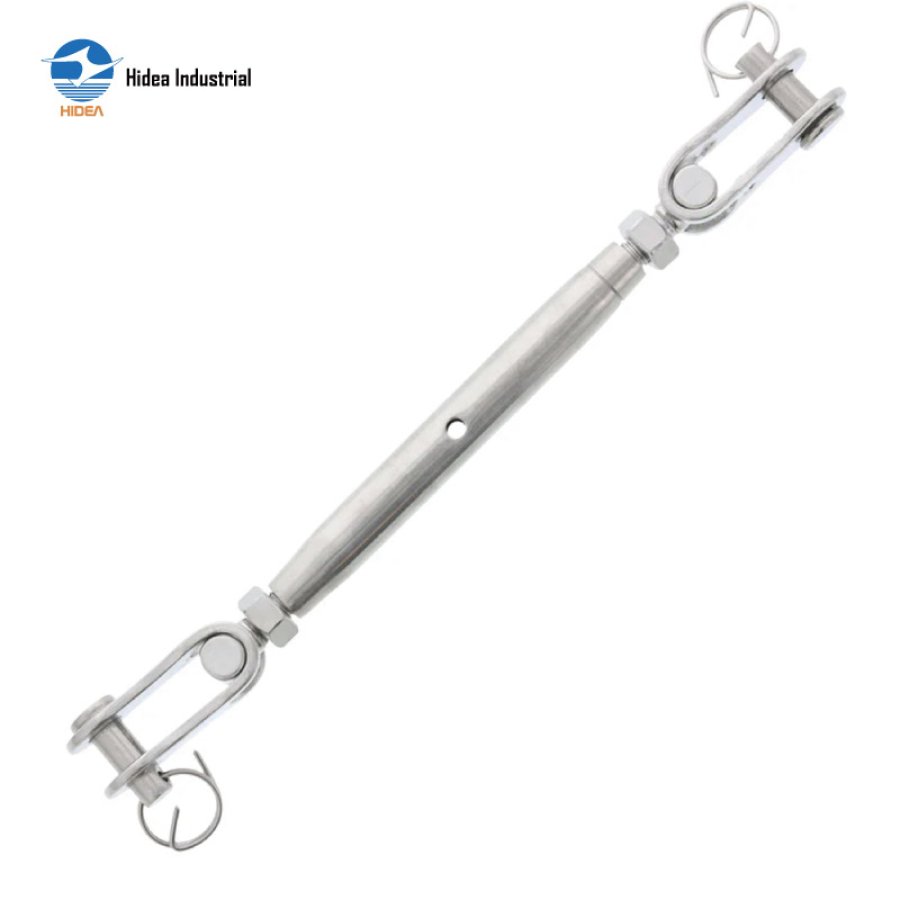

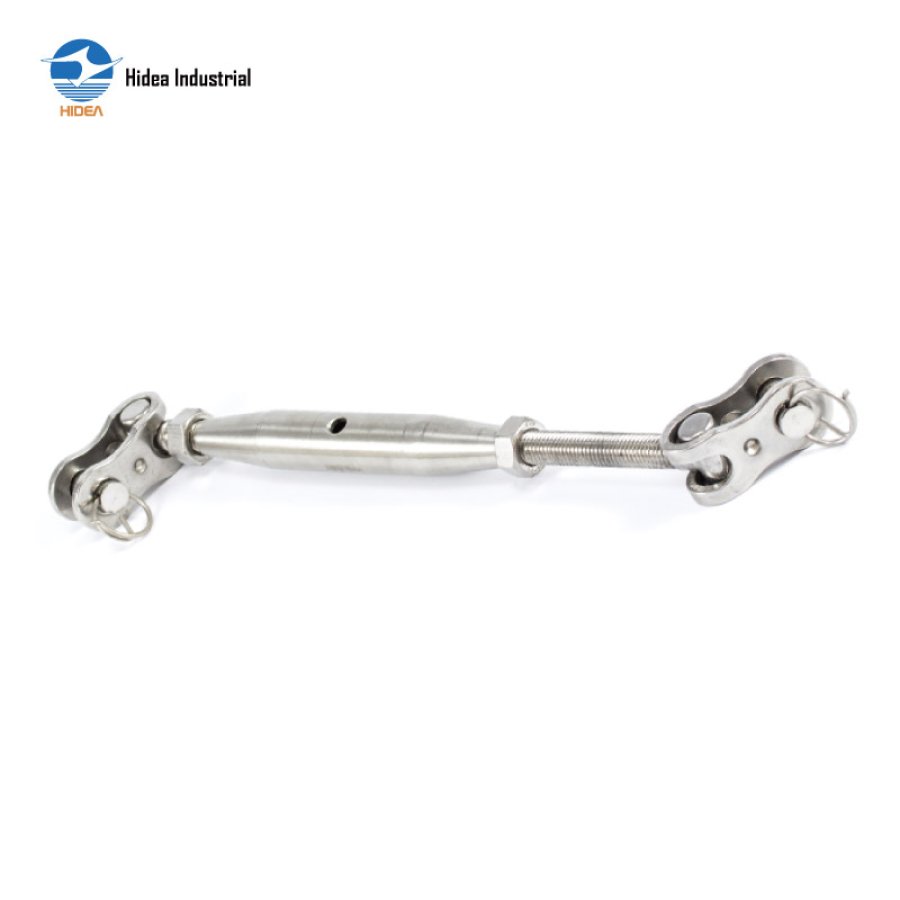

HIDEA Stainless Steel Jaw to Jaw Turnbuckle – Closed Body Design for Tension and Length Adjustments

SWING CLOSED BODY TURNBUCKLE (JAW & JAW)

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

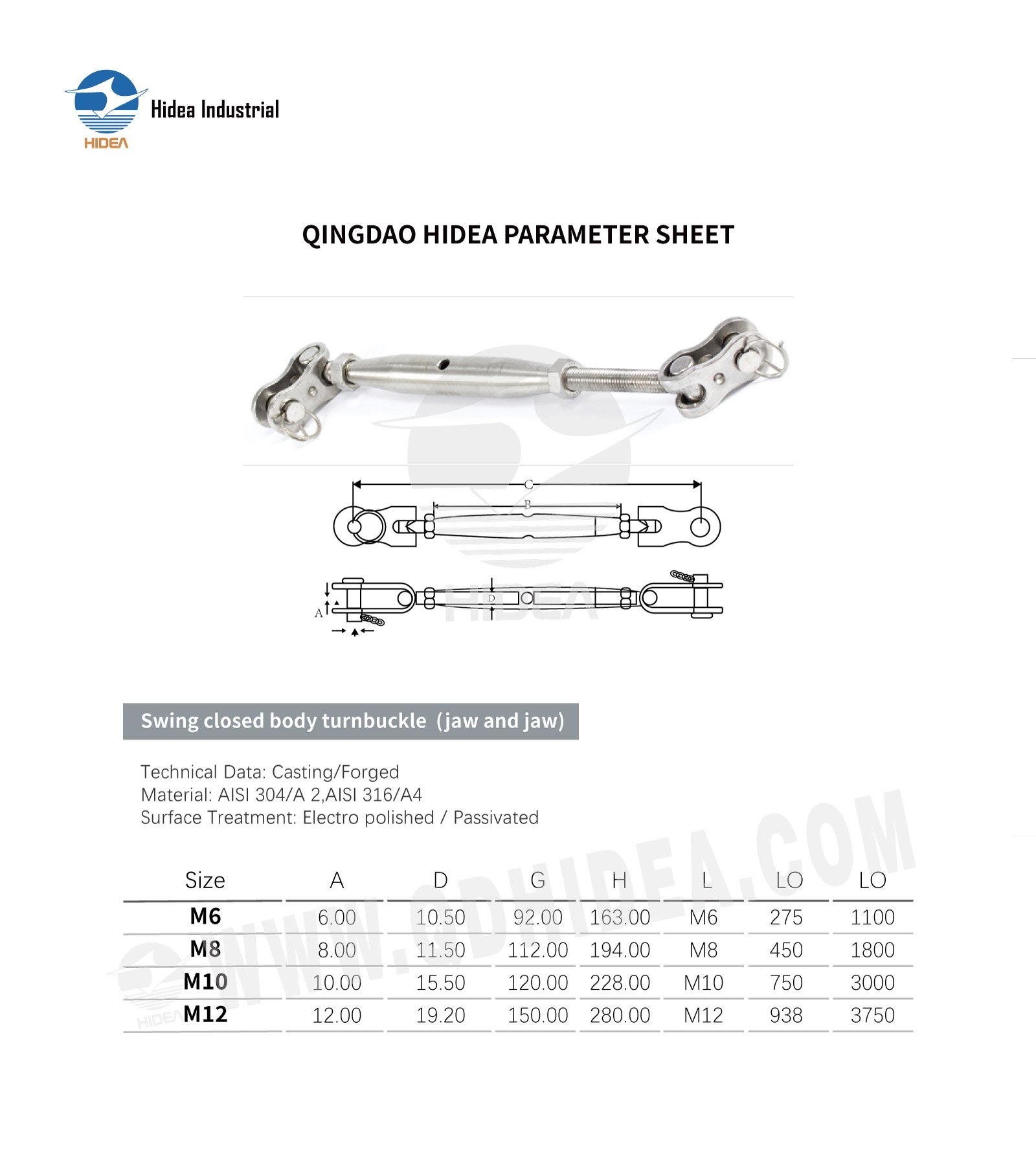

QINGDAO HIDEA PARAMETER SHEET FOR

Swing closed body turnbuckle (jaw and jaw)

Size	A	D	G	H	L	LO	LO
M6	6.00	10.50	92.00	163.00	M6	275	1100
M8	8.00	11.50	112.00	194.00	M8	450	1800
M10	10.00	15.50	120.00	228.00	M10	750	3000
M12	12.00	19.20	150.00	280.00	M12	938	3750
