HIDEA Italian Type Thimbles - Reliable and Long-Lasting Wire Rope Fittings

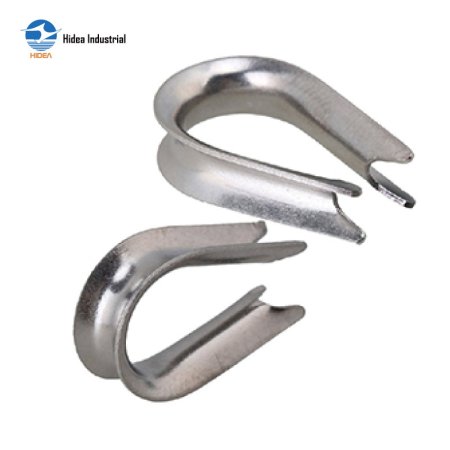

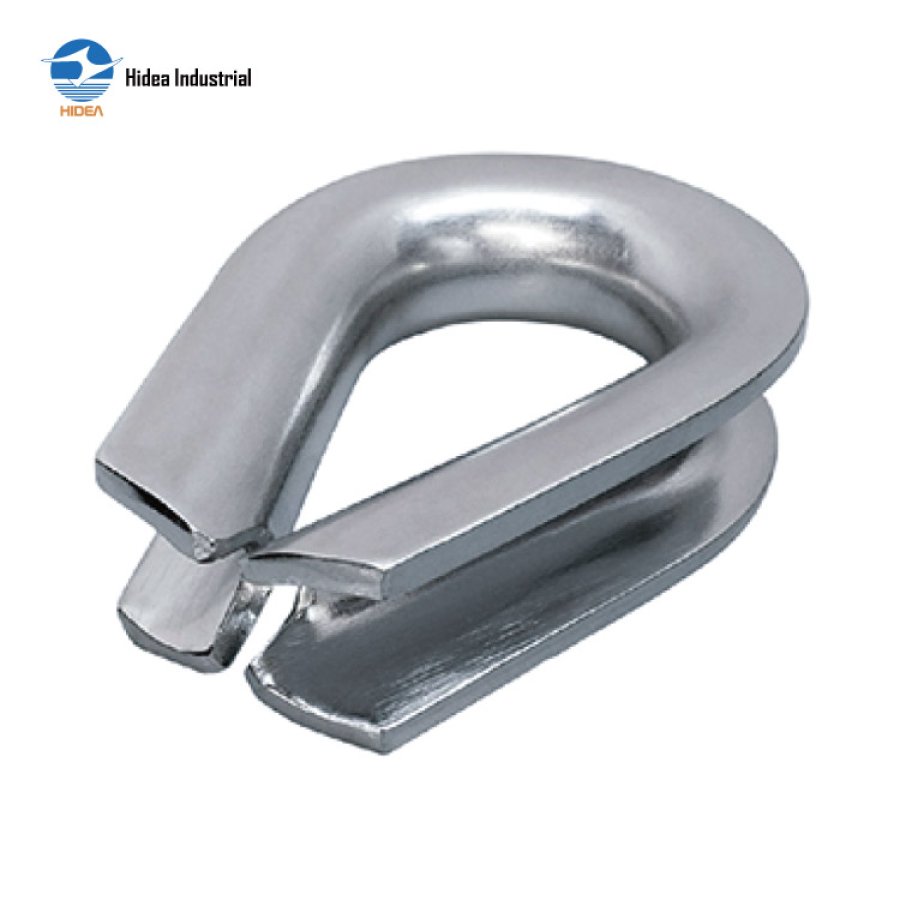

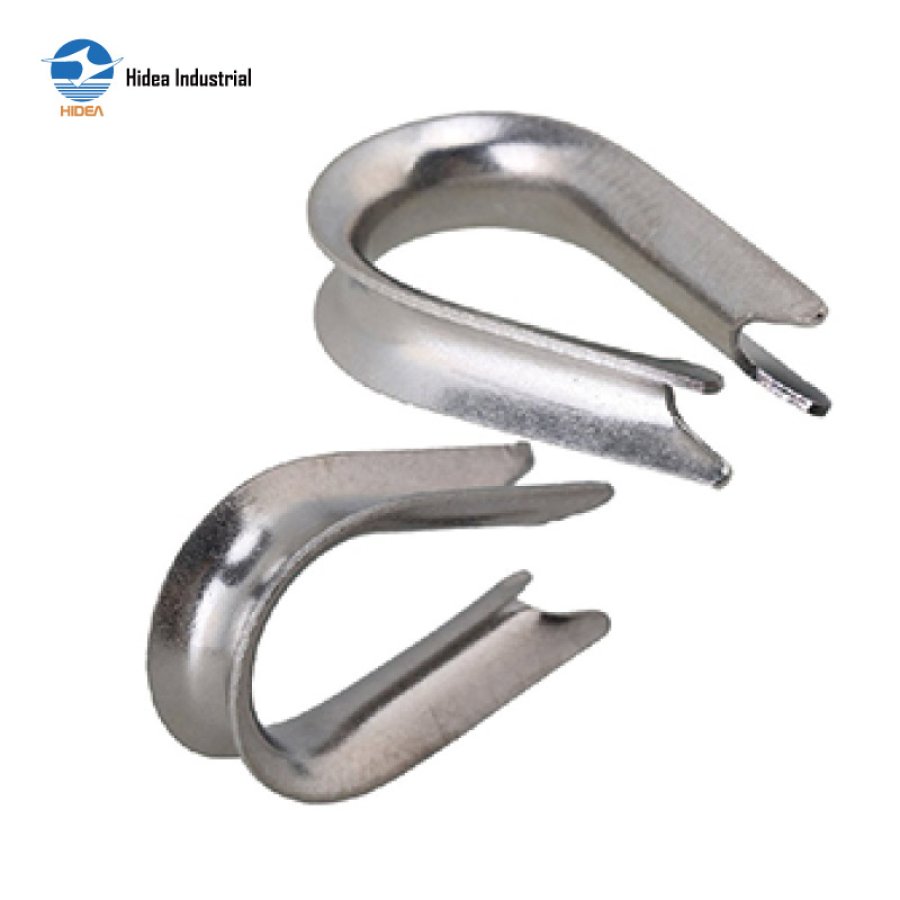

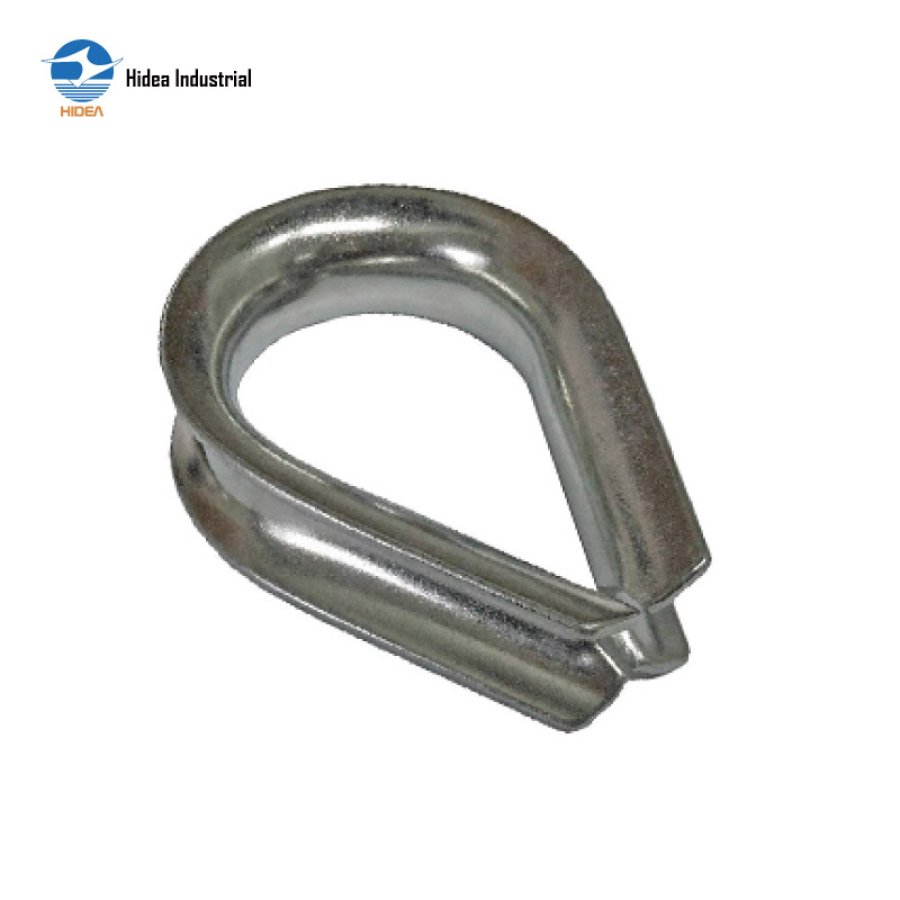

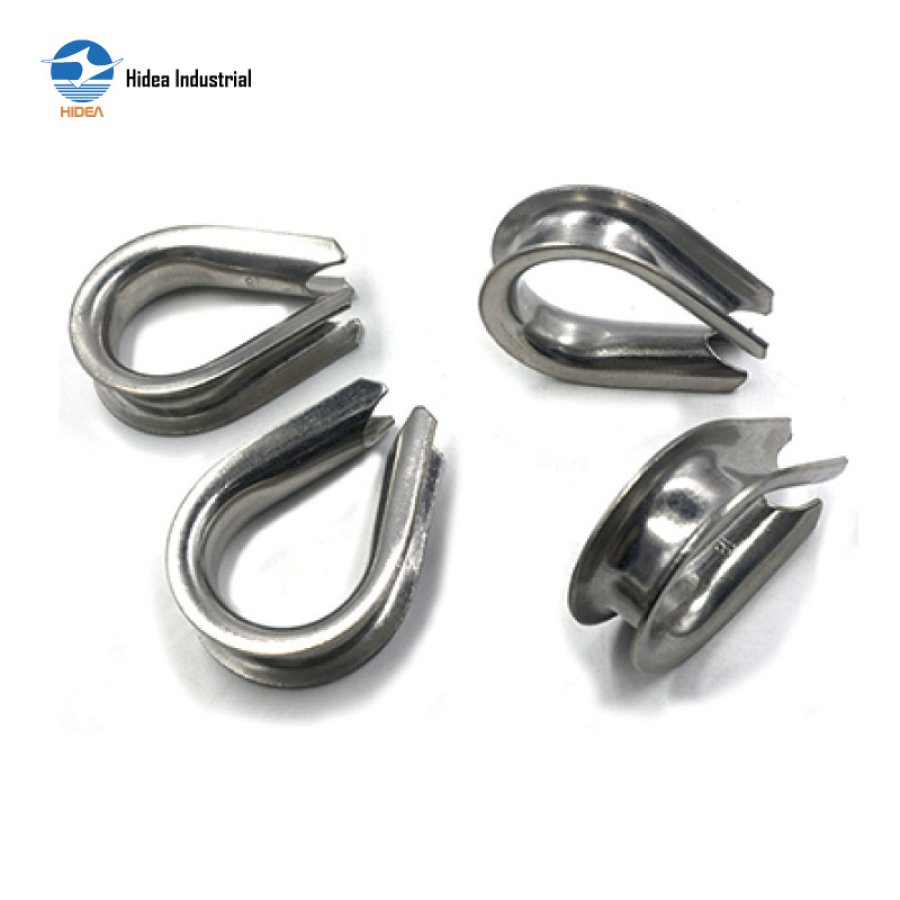

ITALY TYPE THIMBLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

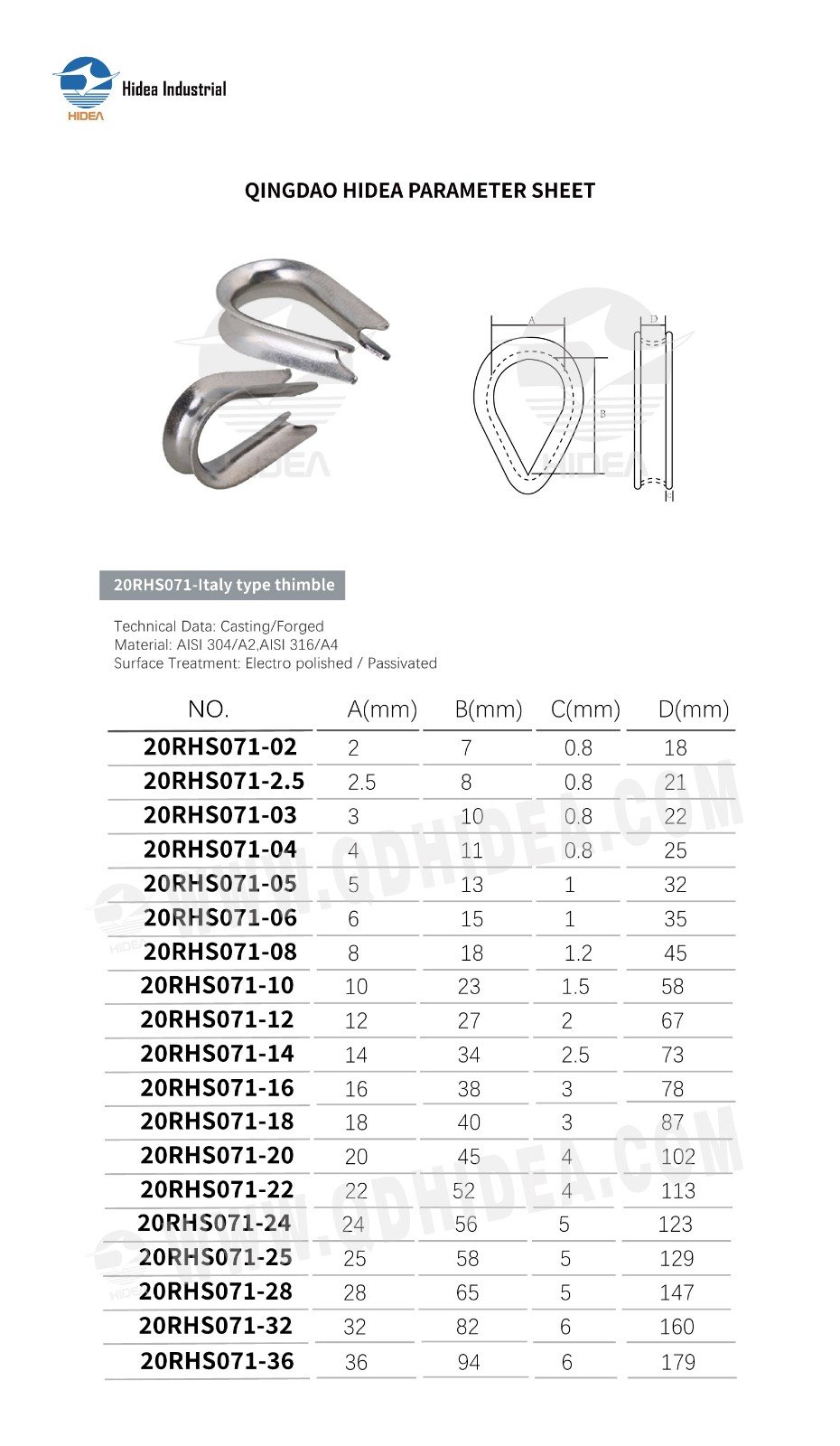

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS071-Italy type thimble

NO.	A(mm)	B(mm)	C(mm)	D(mm)
20RHS071-02	2	7	0.8	18
20RHS071-2.5	2.5	8	0.8	21
20RHS071-03	3	10	0.8	22
20RHS071-04	4	11	0.8	25
20RHS071-05	5	13	1	32
20RHS071-06	6	15	1	35
20RHS071-08	8	18	1.2	45
20RHS071-10	10	23	1.5	58
20RHS071-12	12	27	2	67
20RHS071-14	14	34	2.5	73
20RHS071-16	16	38	3	78
20RHS071-18	18	40	3	87
20RHS071-20	20	45	4	102
20RHS071-22	22	52	4	113
20RHS071-24	24	56	5	123
20RHS071-25	25	58	5	129
20RHS071-28	28	65	5	147
20RHS071-32	32	82	6	160
20RHS071-36	36	94	6	179
