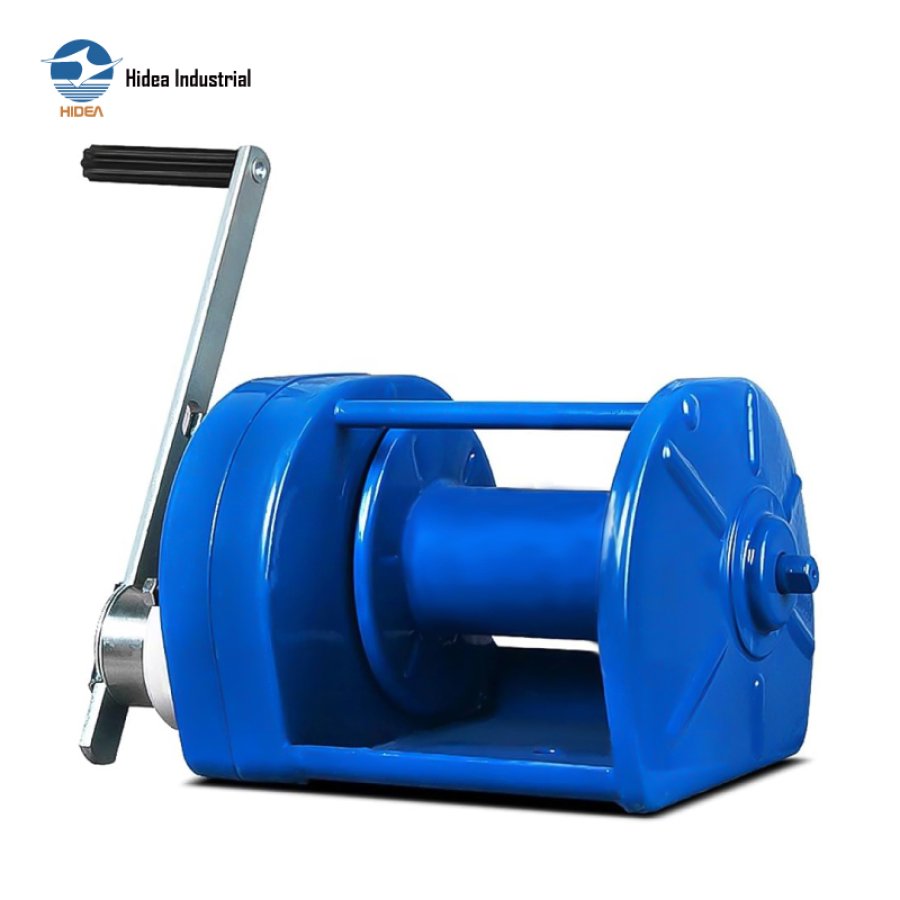

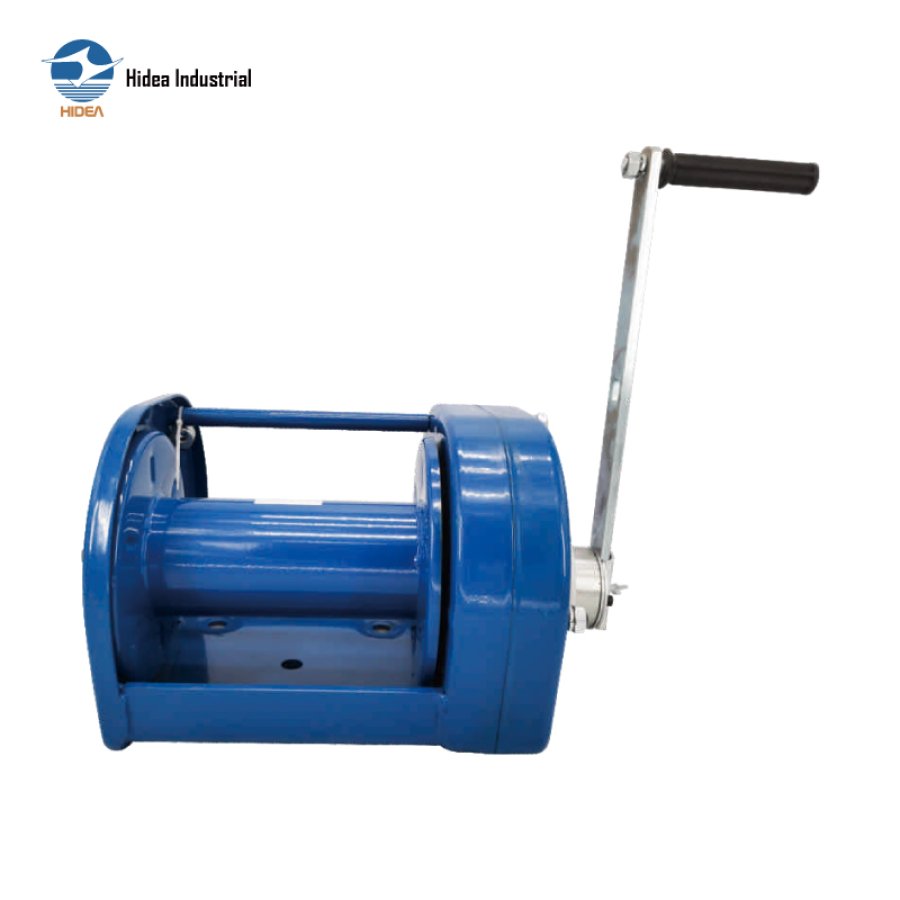

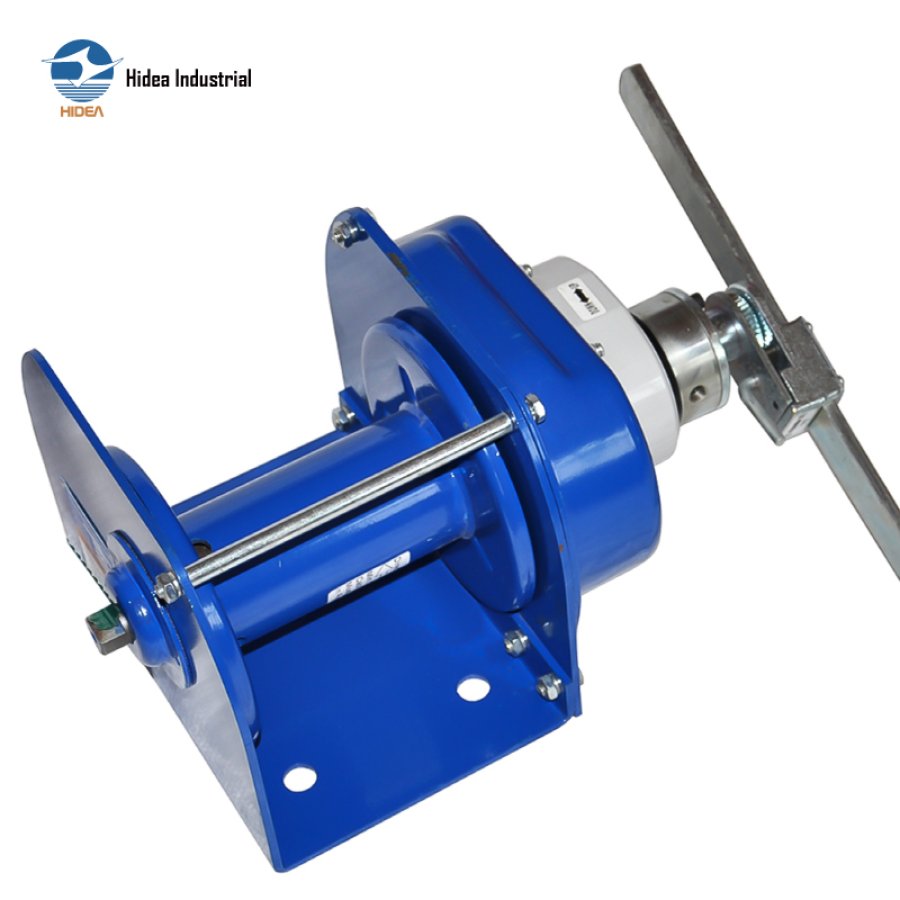

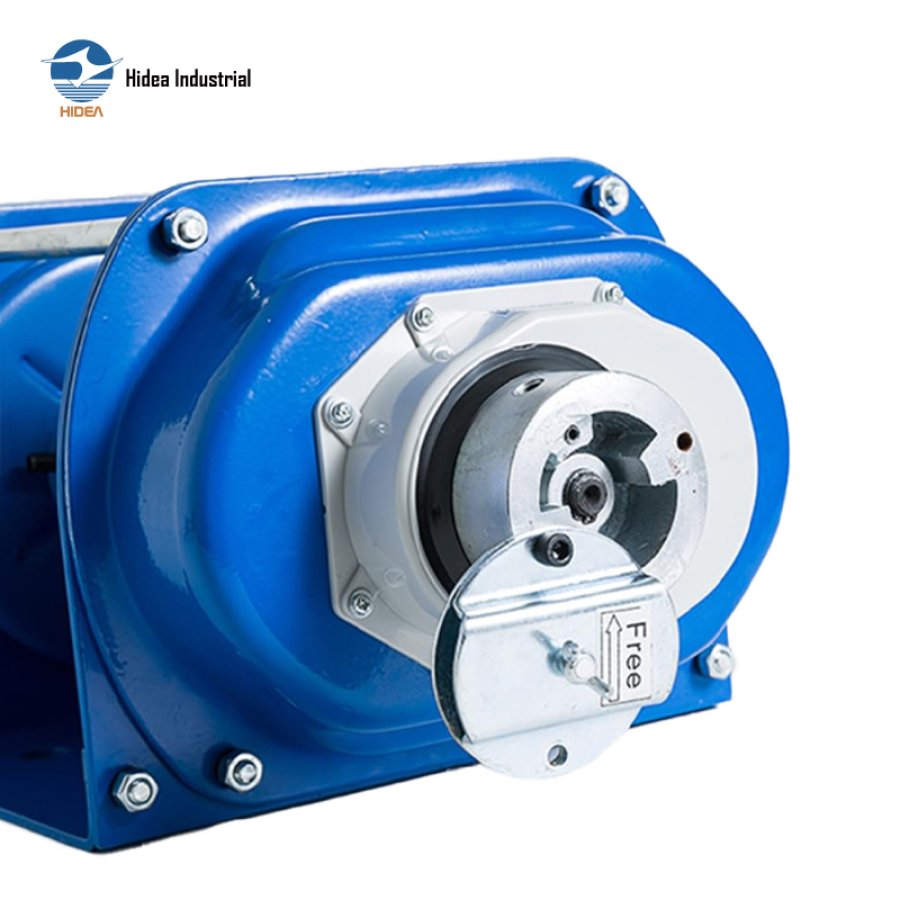

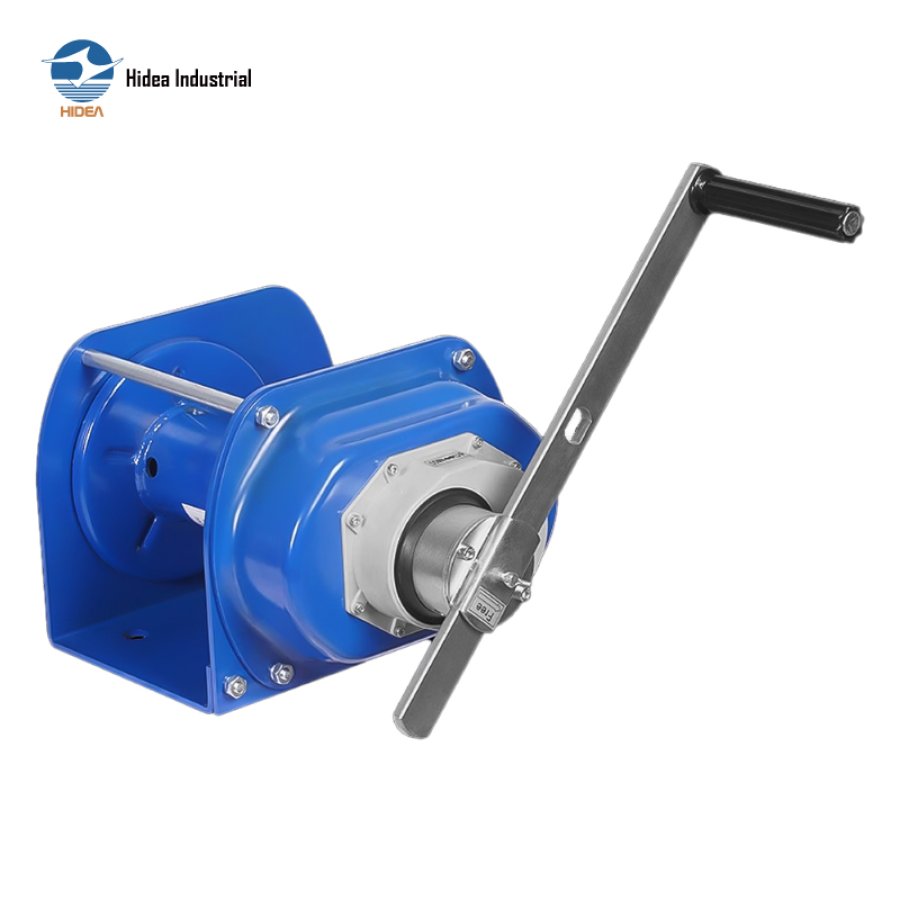

The heavy duty hand winch with a built in brake system, is typically made of thick steel material for more durable and powerful lifting or pulling, ideal for heavy duty applications such as crane and other overhead equipment, and widely used in construction, manufacturing, transportation and marine activities, typically for boat trailing
The heavy duty hand winch equipped with extra-long wire ropes up to 40 meters, gear ratio 4.33:1 to 29.16:1, rated capacity from 0.5T to 3T, providing a reliable and efficient lifting or pulling solution for various industries
The heavy duty hand winch ensures a sturdy and long-lasting performance, the plastic spray coated surface provides a durable & elegant finish, various colors available
The heavy duty hand winch meeting standards of and in conformity with ASME B30.16, OSHA regulations & EN 13157
QINGDAO HIDEA PARAMETER SHEET FOR
HEAVY DUTY HAND WINCH
| Part No. | Capacity(kg) | Test Load(KN) | Cable | Gear Ratio | Max L.of Link-Pole Action(mm) | Min.Force of Hand Turn(N) | N.W. (kg | |||
| 60MT-VW500 | 0.5 Ton | 6.125 | Φ6.3mm×40m | 4.33:1 | 350 | 120 | 14.4 | |||
| 60MTVW1000 | 1 Ton | 12.25 | φ8mm×40m | 12.19:1 | 350 | 120 | 19.7 | |||
| 60MT-VW2000 | 2 Ton | 24.5 | φ9mm×40m | 22.68:1 | 350 | 130 | 25.1 | |||
| 60MT-VW3000 | 3 Ton | 36.75 | 中12.5mm×40m | 29.16:1 | 350 | 180 | 44.3 | |||
