HIDEA Stainless Steel Square Ring Plate – Perfect for Indoor and Outdoor Use with Smooth, Polished Surface

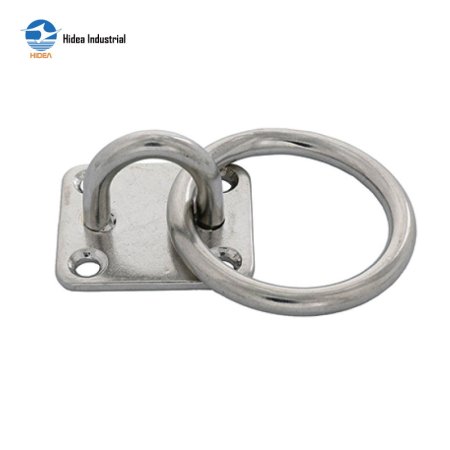

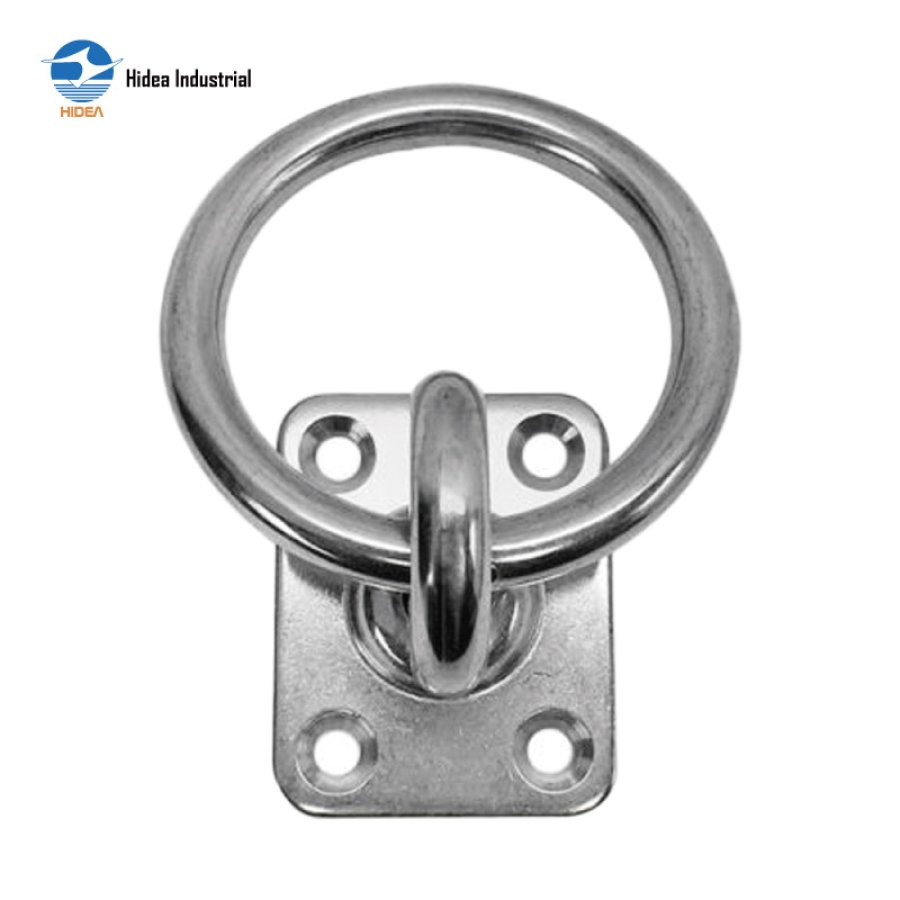

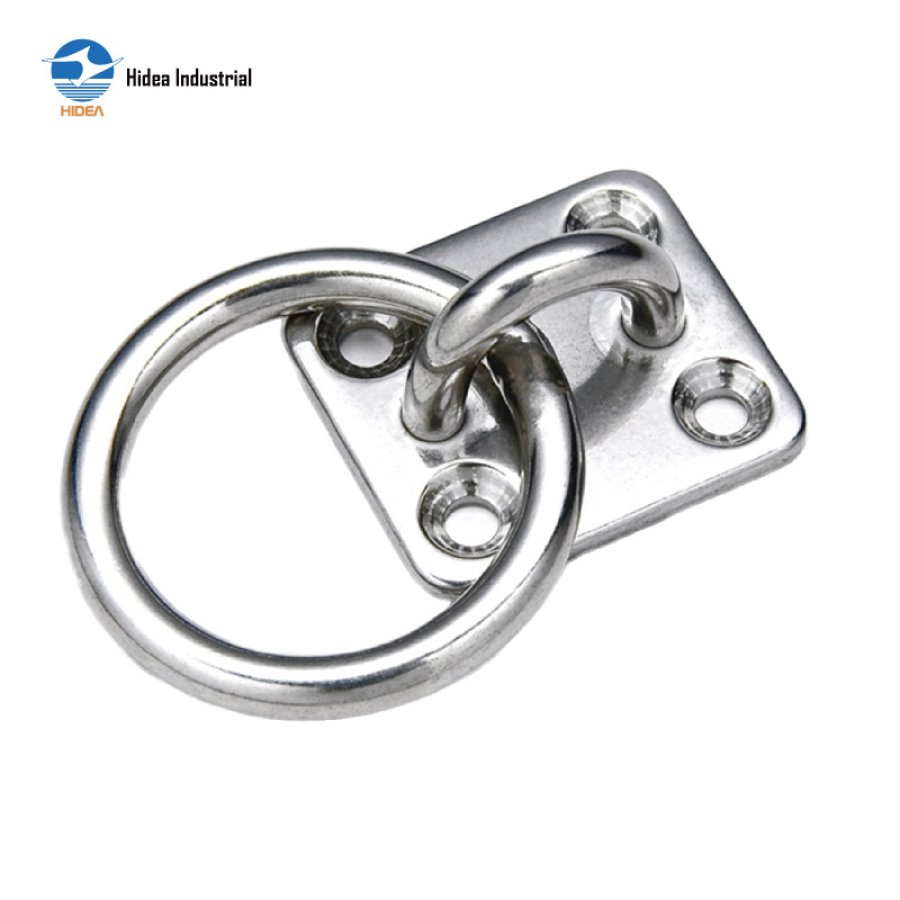

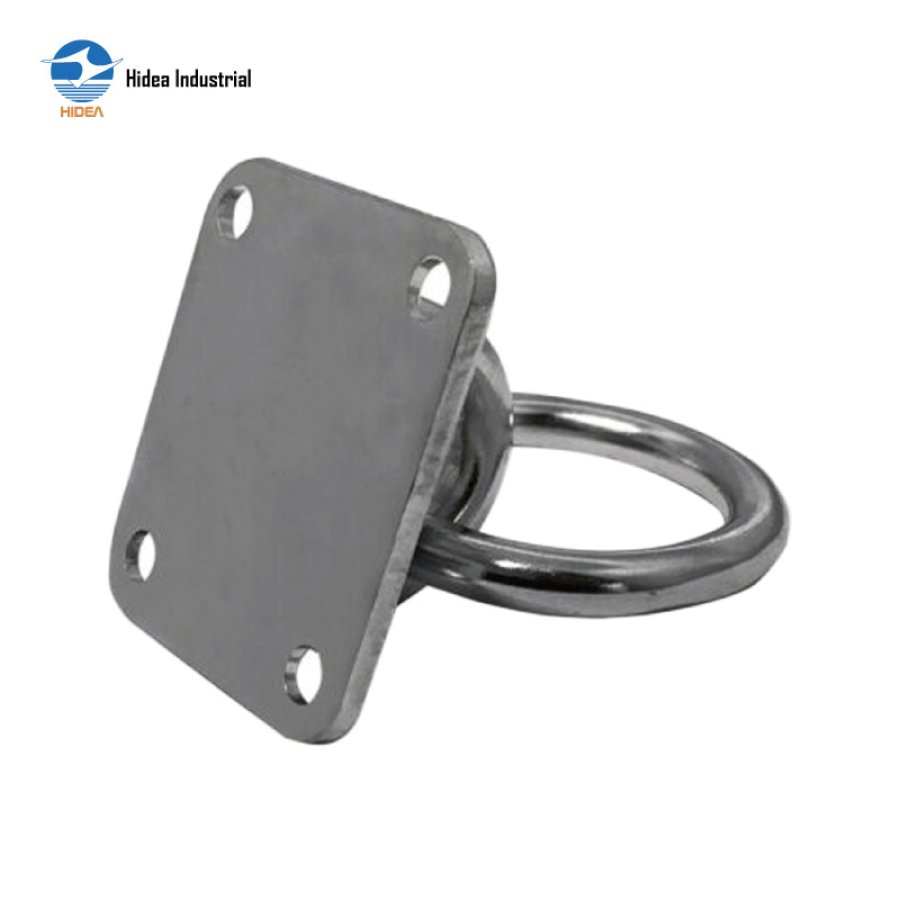

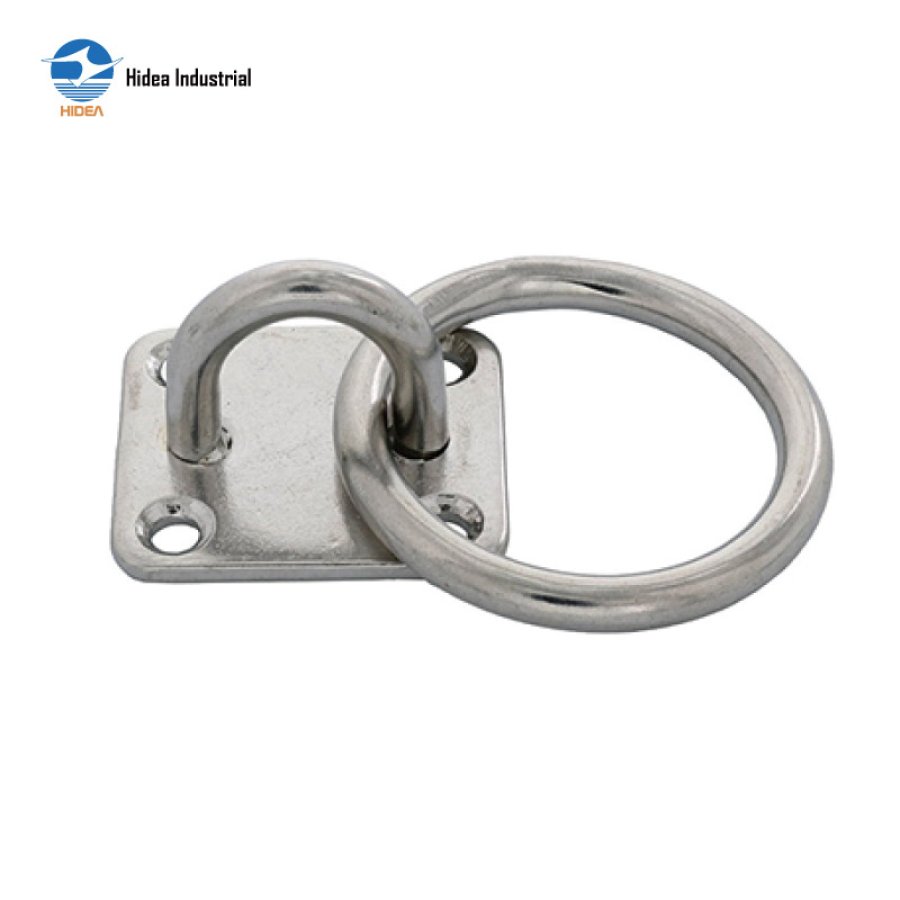

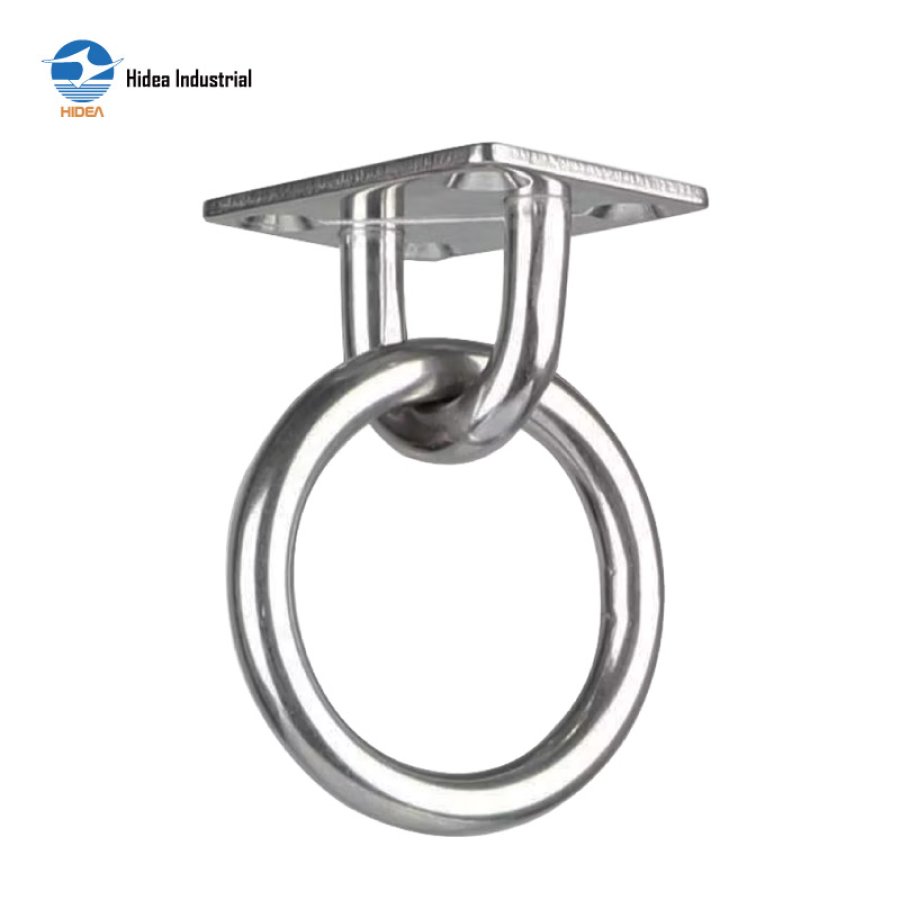

SQUARE EYE PLATE WITH RING

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

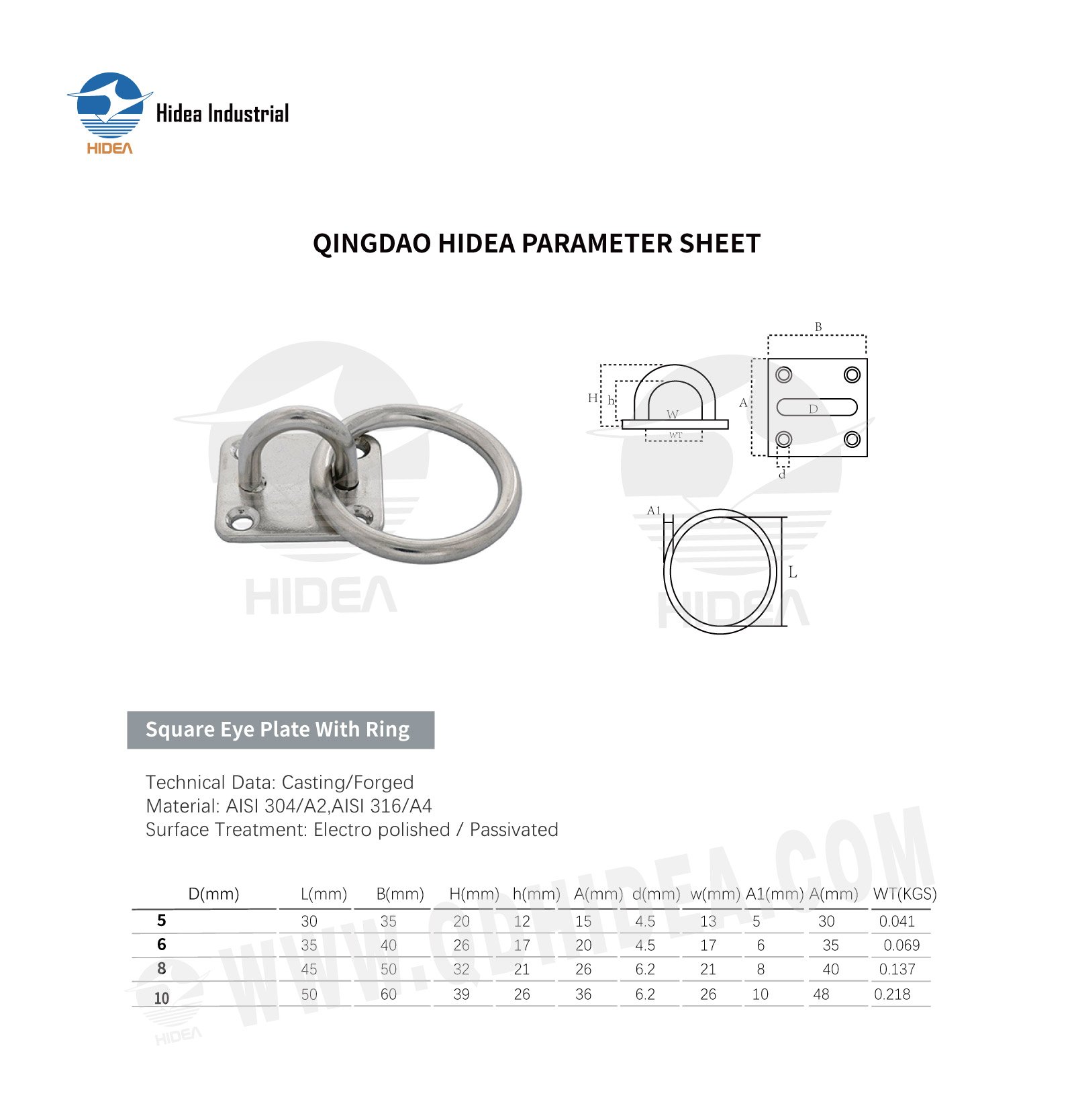

QINGDAO HIDEA PARAMETER SHEET FOR

Square Eye Plate With Ring

D(mm)	L(mm)	B(mm)	H(mm)	h(mm)	A(mm)	d(mm)	w(mm)	A1(mm)	A(mm)	WT(KGS)
5	30	35	20	12	15	4.5	13	5	30	0.041
6	35	40	26	17	20	4.5	17	6	35	0.069
8	45	50	32	21	26	6.2	21	8	40	0.137
10	50	60	39	26	36	6.2	26	10	48	0.218
