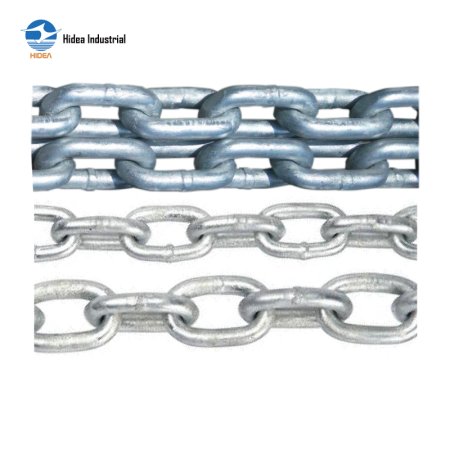

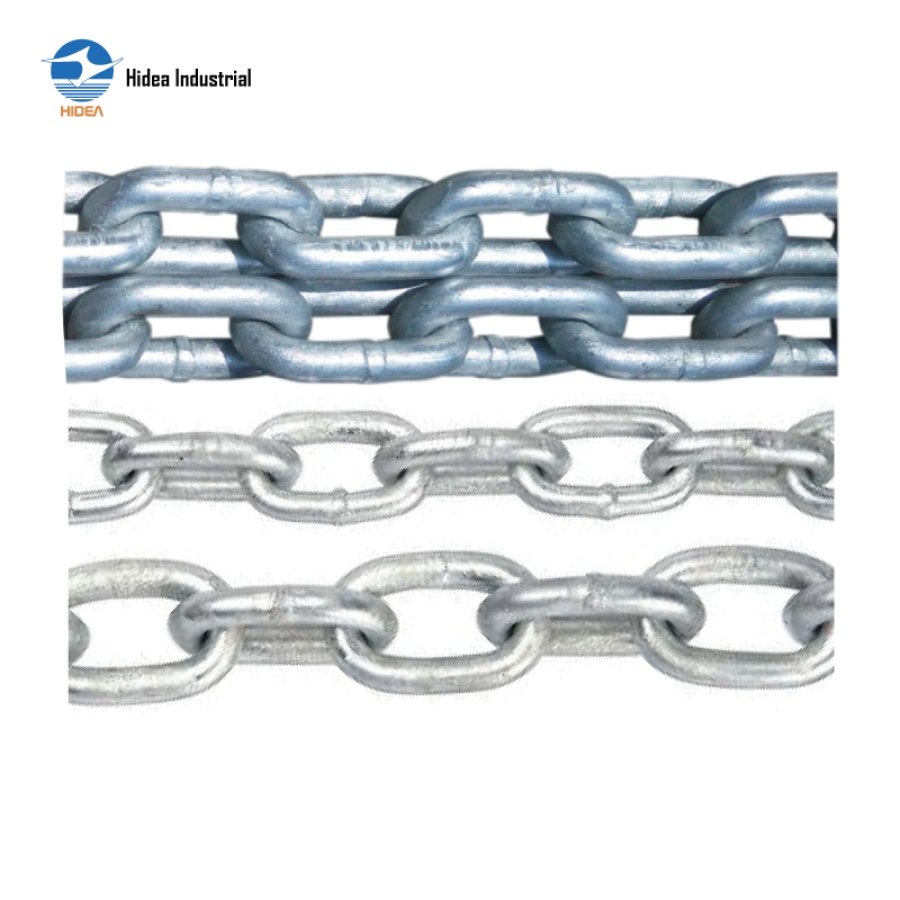

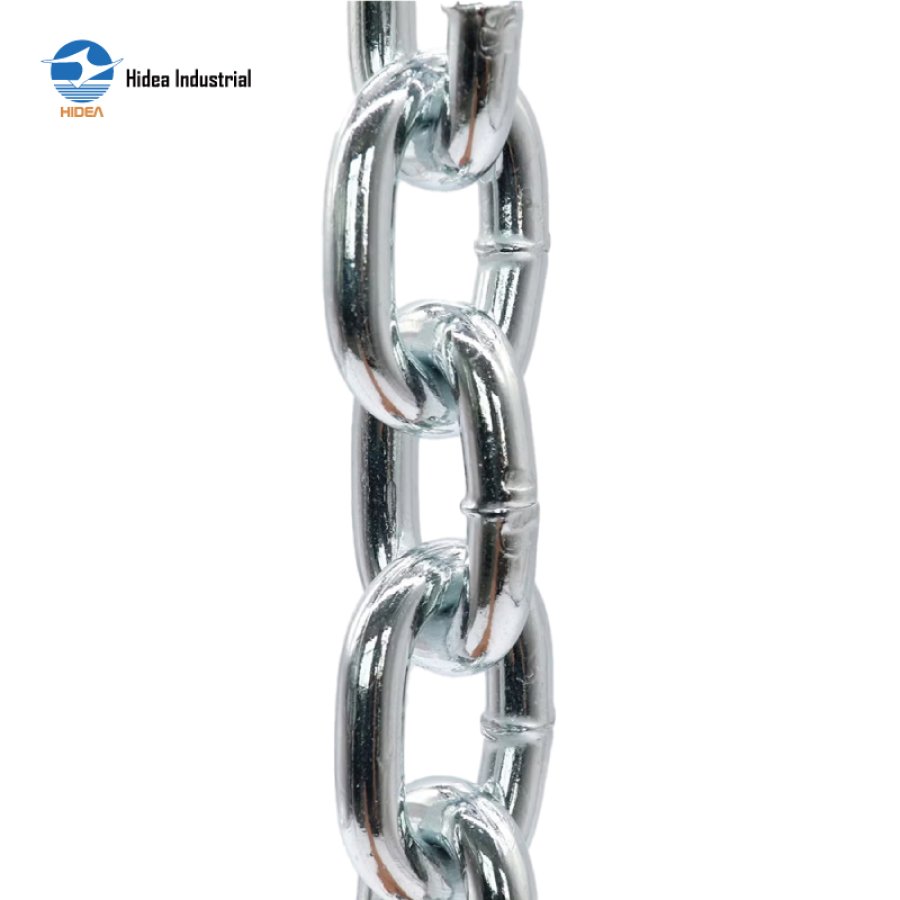

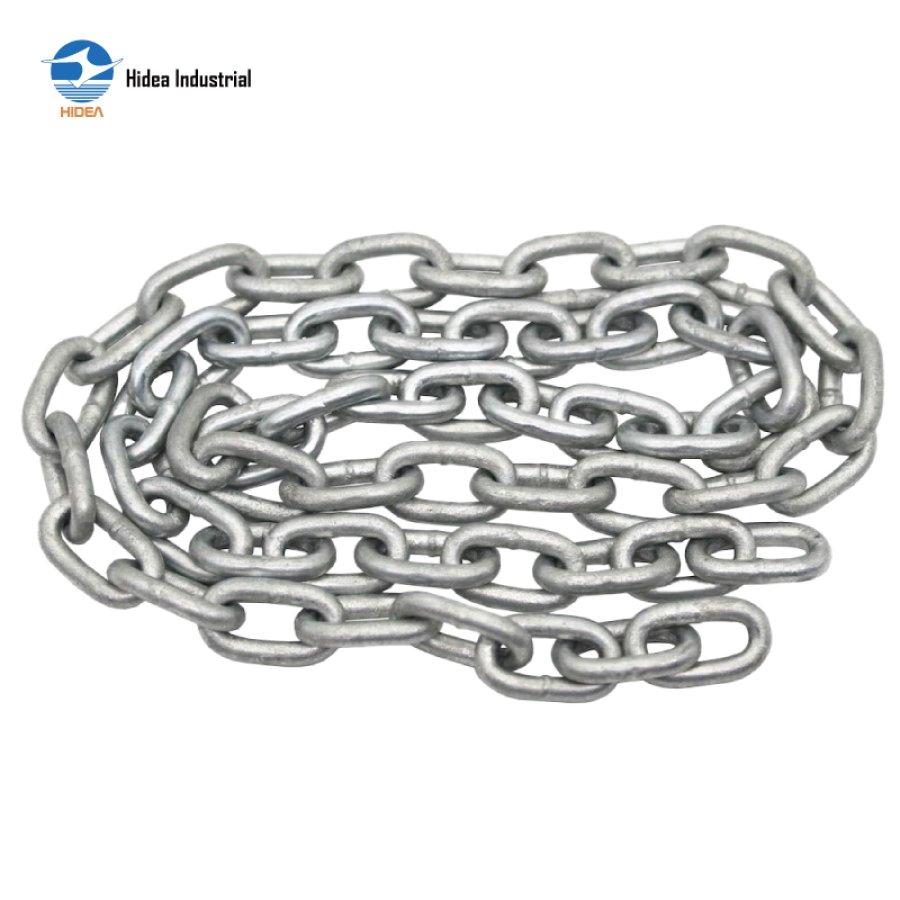

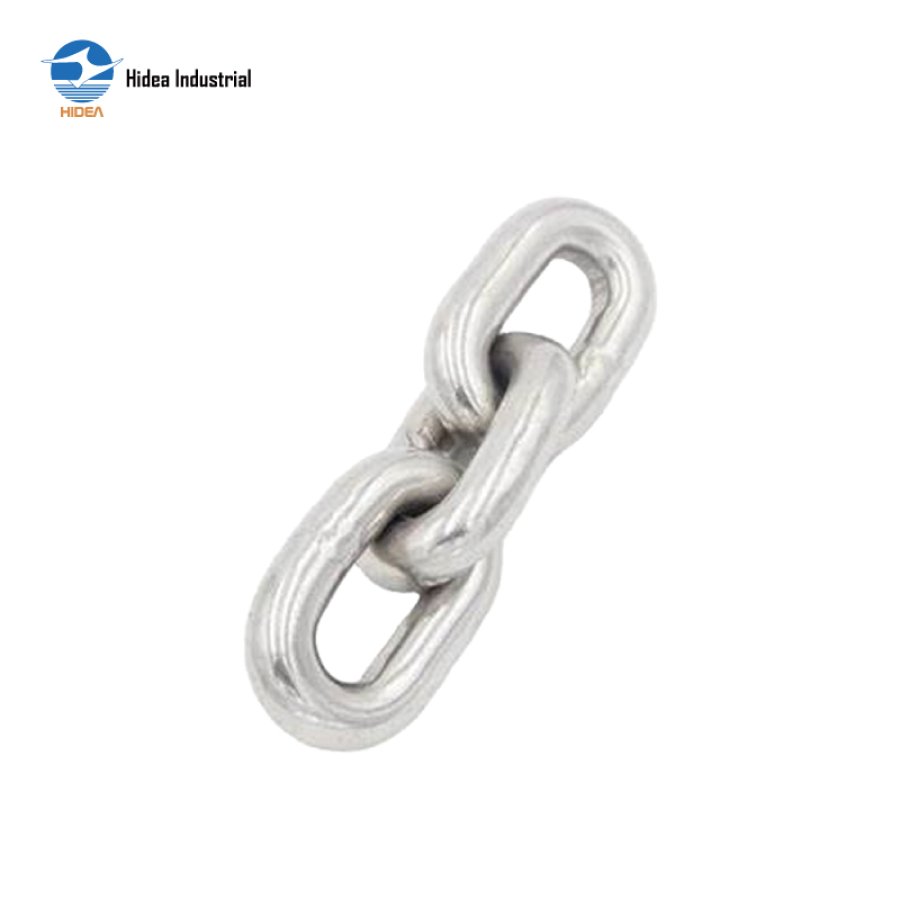

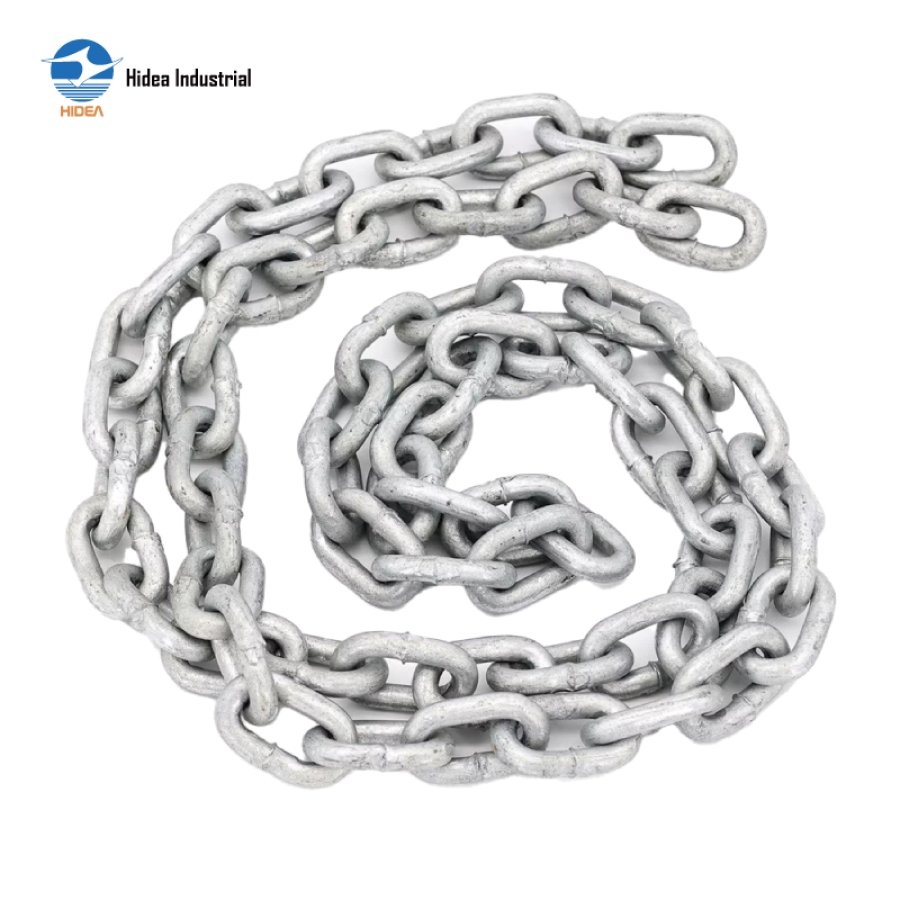

JIS 2106-2013 Marine Link Chain

JIS 2106-2013 SHORT/LONG LINK CHAIN

Material: Carbon Steel Mild Steel
Surface Treatment: Hot Dip OR Electro galvanized, Blackened or as requested
JIS 2106-2013 Short Link Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC135 JIS 2016-2013 Short Link Chain

Size	Inside Length	Inside Width	Outside Width	Weight	Proof Test	Breaking Load
mm	mm	mm	mm	kg	kg	kg
6	18	9	21	0.78	847	1694
8	24	12	28	1.38	1507	3014
9	27	14	32	1.75	1907	3814
11	33	17	39	2.61	2849	5698
13	39	20	46	3.64	7959	15918
16	48	24	56	5.51	6028	12056
19	57	29	67	7.77	8501	17002
22	66	33	77	10.41	11398	22796
25	75	38	88	13.44	14718	29436
28	84	42	98	16.86	18463	36926
30	90	45	105	19.35	21195	42390
32	96	48	112	22.02	24115	48230
34	102	51	119	24.86	27223	54446
36	108	54	126	27.87	30520	61040
38	114	57	133	31.05	34000	68000
40	120	60	140	34.4	37680	75360
42	126	63	147	37.93	41542	83084
44	132	66	154	41.63	45592	91184
46	138	69	161	45.5	49831	99662
48	144	72	168	49.54	54259	108518
50	150	75	175	53.57	58875	117750
30SC136 JIS 2016-2013 Long Link Chain
Size	Inside Length	Inside Width	Outside Width	Weight	Proof Test	Breaking Load
mm	mm	mm	mm	kg	kg	kg
6	24	9	21	0.71	847	1694
8	32	12	28	1.25	1507	3014
9	36	14	32	1.58	1907	3814
11	44	17	39	2.36	2849	5698
13	52	20	46	3.3	7959	15918
16	64	24	56	5	6028	12056
19	76	29	67	7.04	8501	17002
22	88	33	77	9.44	11398	22796
25	100	38	88	12.19	14718	29436
28	112	42	98	15.29	18463	36926
30	120	45	105	17.55	21195	42390
32	128	48	112	19.97	24115	48230
34	136	51	119	22.55	27223	54446
36	144	54	126	25.28	30520	61040
38	152	57	133	28.16	34000	68000
40	160	60	140	31.2	37680	75360
42	168	63	147	34.4	41542	83084
44	176	66	154	37.76	45592	91184
46	184	69	161	41.27	49831	99662
48	192	72	168	44.93	54259	108518
50	200	75	175	48.75	58875	117750
