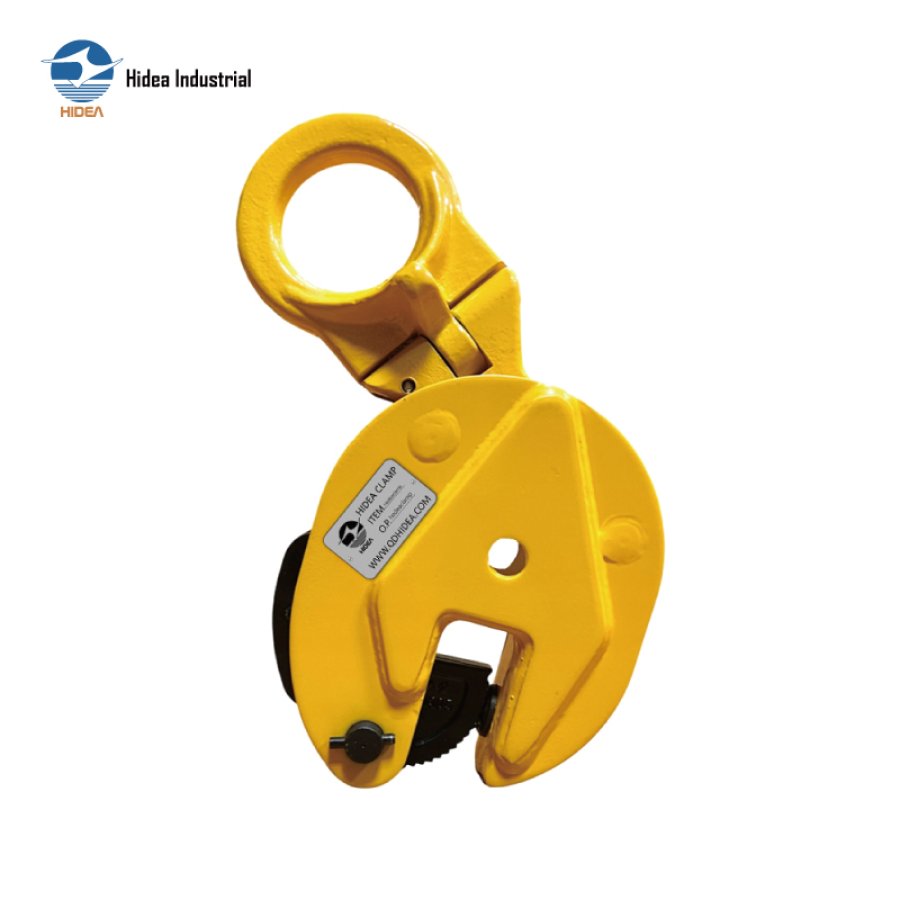

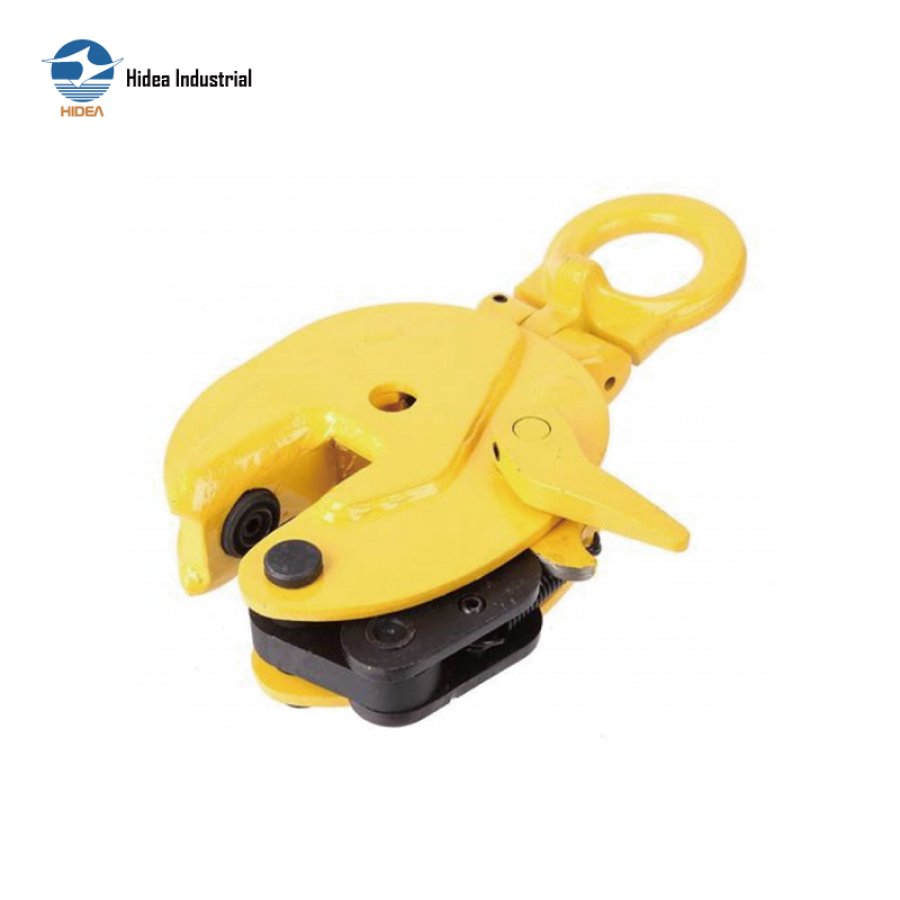

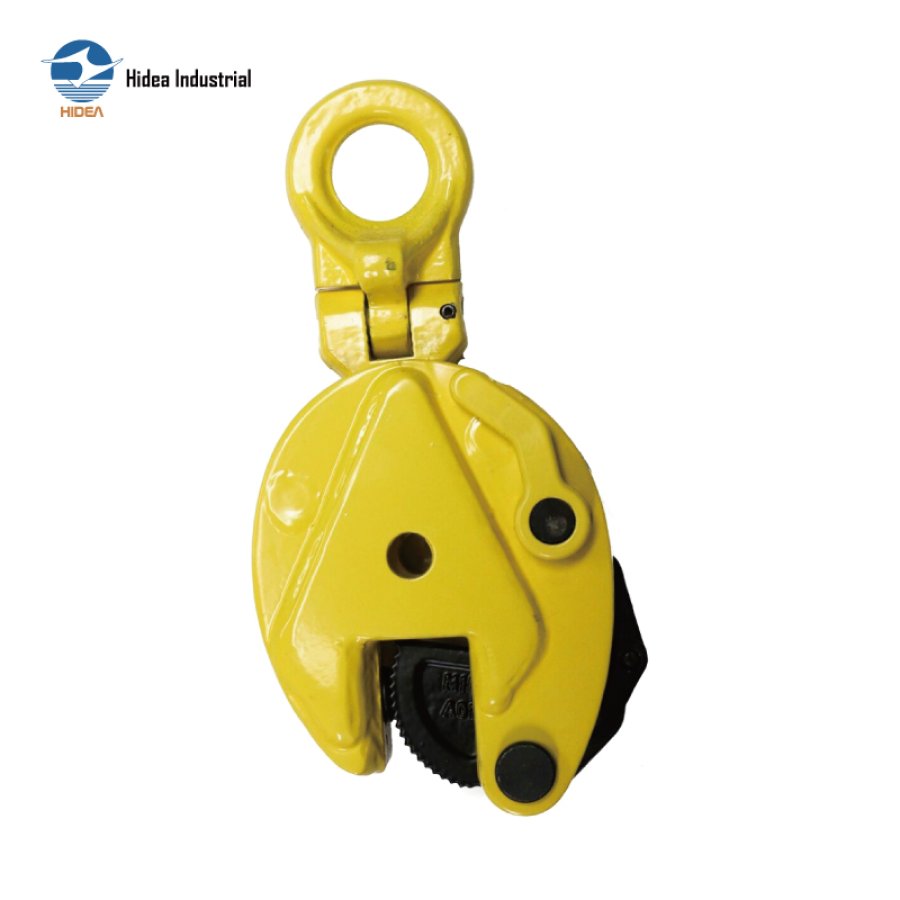

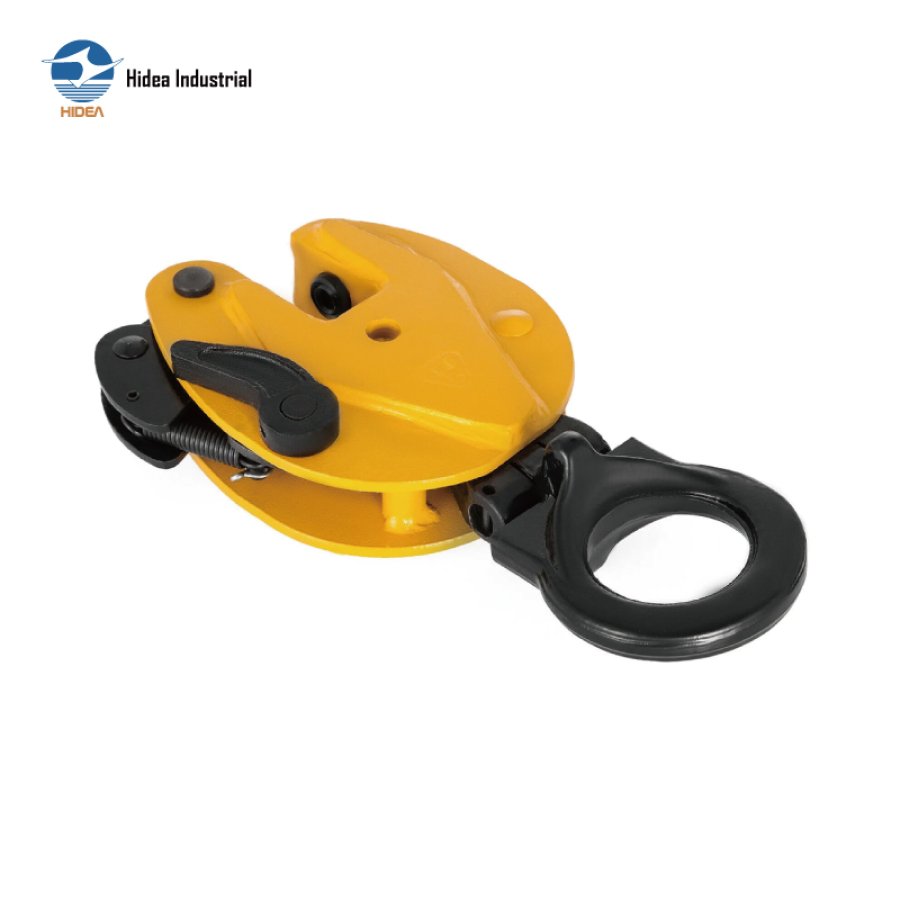

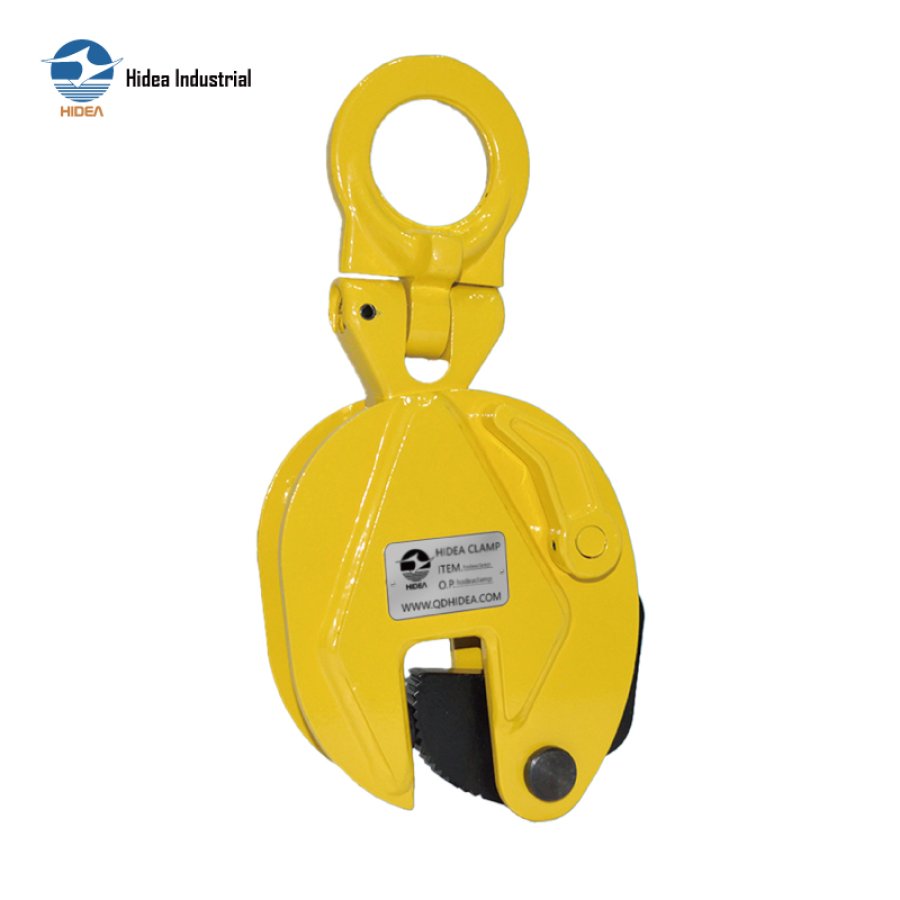

The CD type vertical plate lifting clamps are designed for lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong)
The CD Type vertical lifting clamps are manufactured from high quality low carbon alloy steel and with an articulated lifting shackle (CD type), for heavy duty lifting with working load from 0.8T up to 30T
The CD Type vertical clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load released; the clamp is locked in closed as well as in open position
The CD Type vertical clamps meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

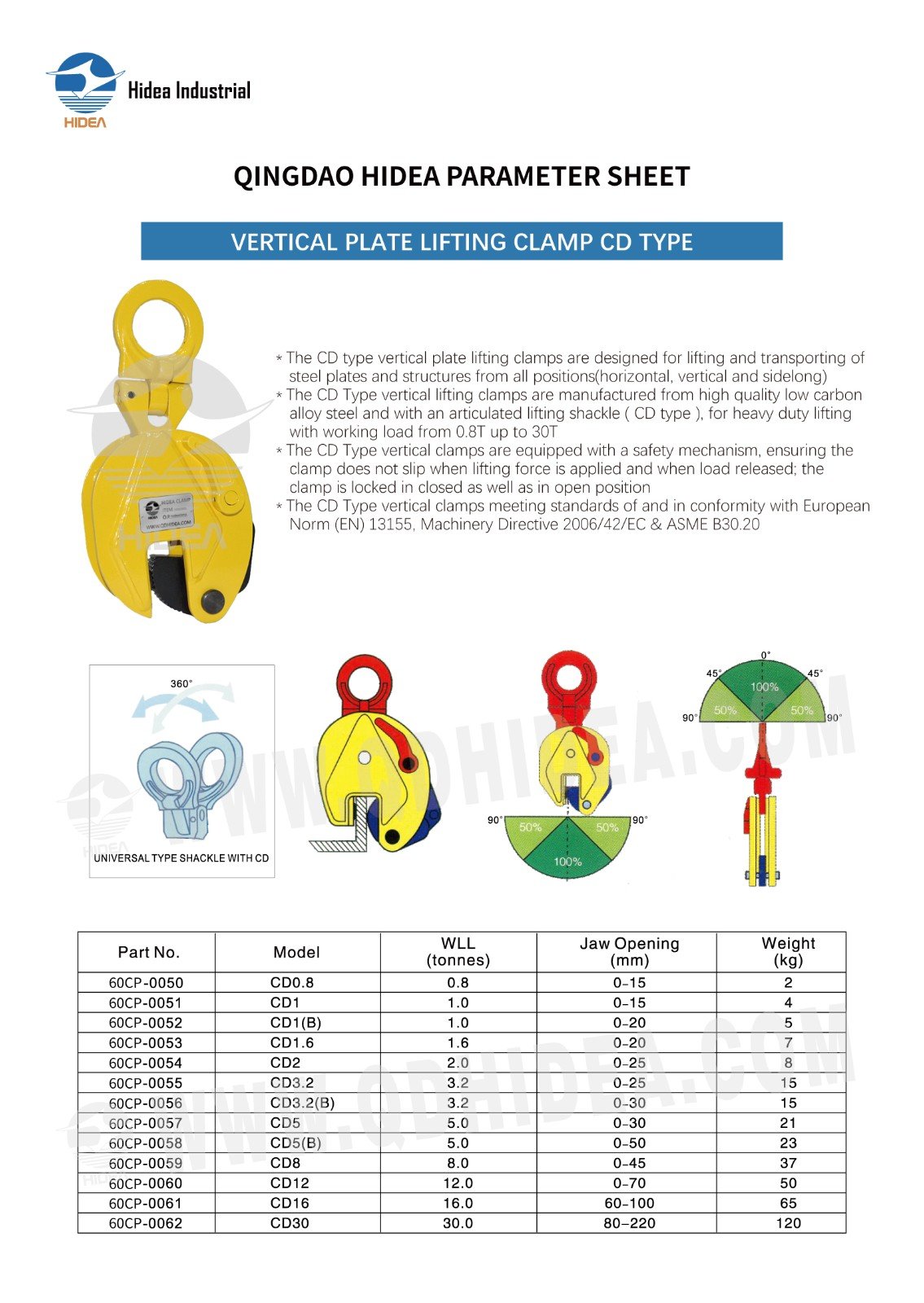

QINGDAO HIDEA PARAMETER SHEET FOR
VERTICAL PLATE LIFTING CLAMP CD TYPE
| Part No. | Model | WLL (tonnes) | Jaw Opening (mm) | Weight (kg) | ||||||
| 60CP-0050 | CD0.8 | 0.8 | 0-15 | 2 | ||||||
| 60CP-0051 | CD1 | 1.0 | 0-15 | 4 | ||||||
| 60CP-0052 | CD1(B) | 1.0 | 0-20 | 5 | ||||||
| 60CP-0053 | CD1.6 | 1.6 | 0-20 | 7 | ||||||
| 60CP-0054 | CD2 | 2.0 | 0-25 | 8 | ||||||
| 60CP-0055 | CD3.2 | 3.2 | 0-25 | 15 | ||||||
| 60CP-0056 | CD3.2(B) | 3.2 | 0-30 | 15 | ||||||
| 60CP-0057 | CD5 | 5.0 | 0-30 | 21 | ||||||
| 60CP-0058 | CD5(B) | 5.0 | 0-50 | 23 | ||||||
| 60CP-0059 | CD8 | 8.0 | 0-45 | 37 | ||||||
| 60CP-0060 | CD12 | 12.0 | 0-70 | 50 | ||||||
| 60CP-0061 | CD16 | 16.0 | 60-100 | 65 | ||||||
| 60CP-0062 | CD30 | 30.0 | 80-220 | 120 | ||||||
