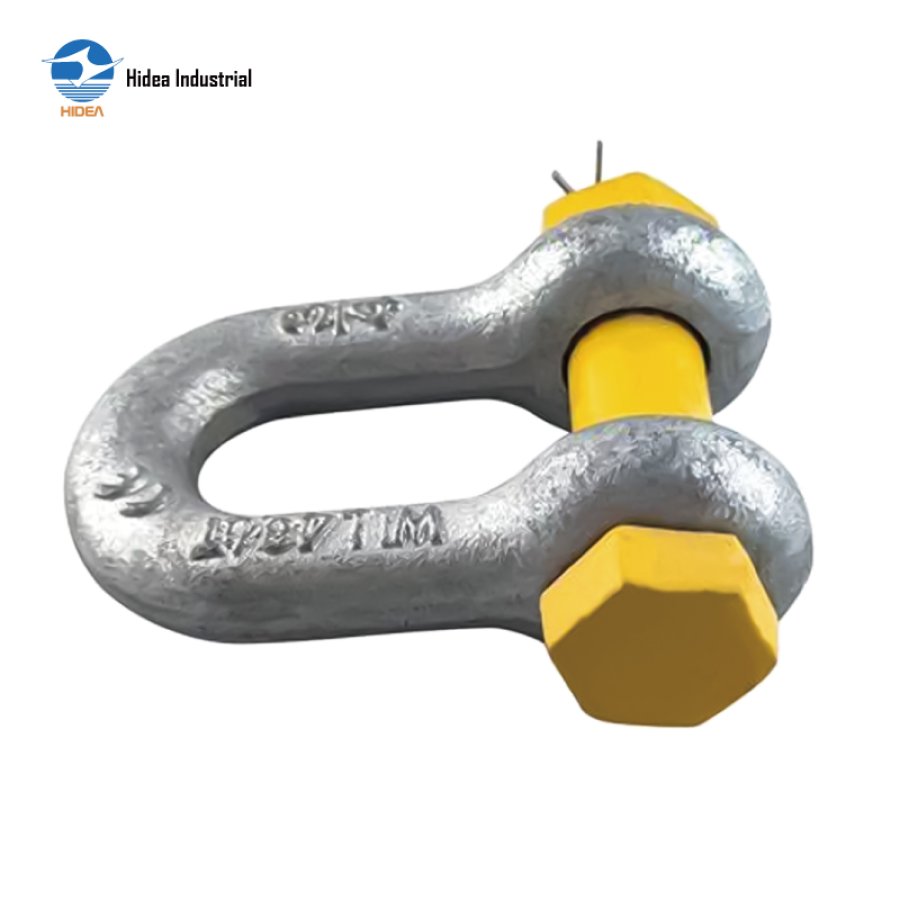

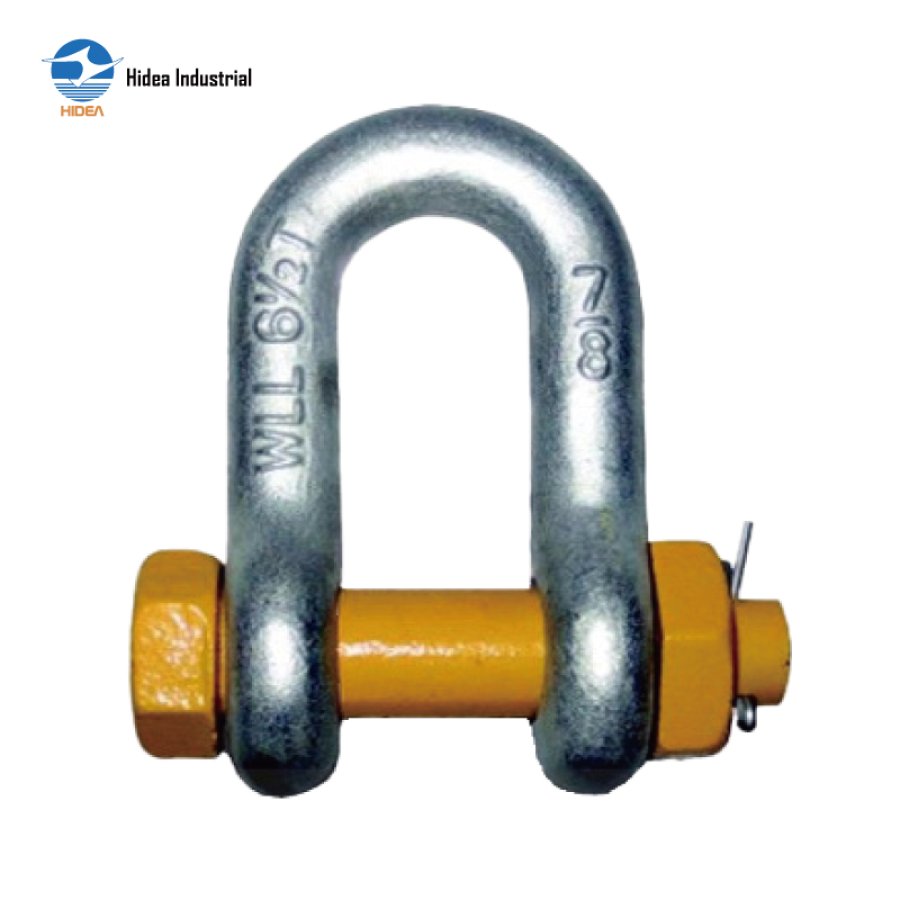

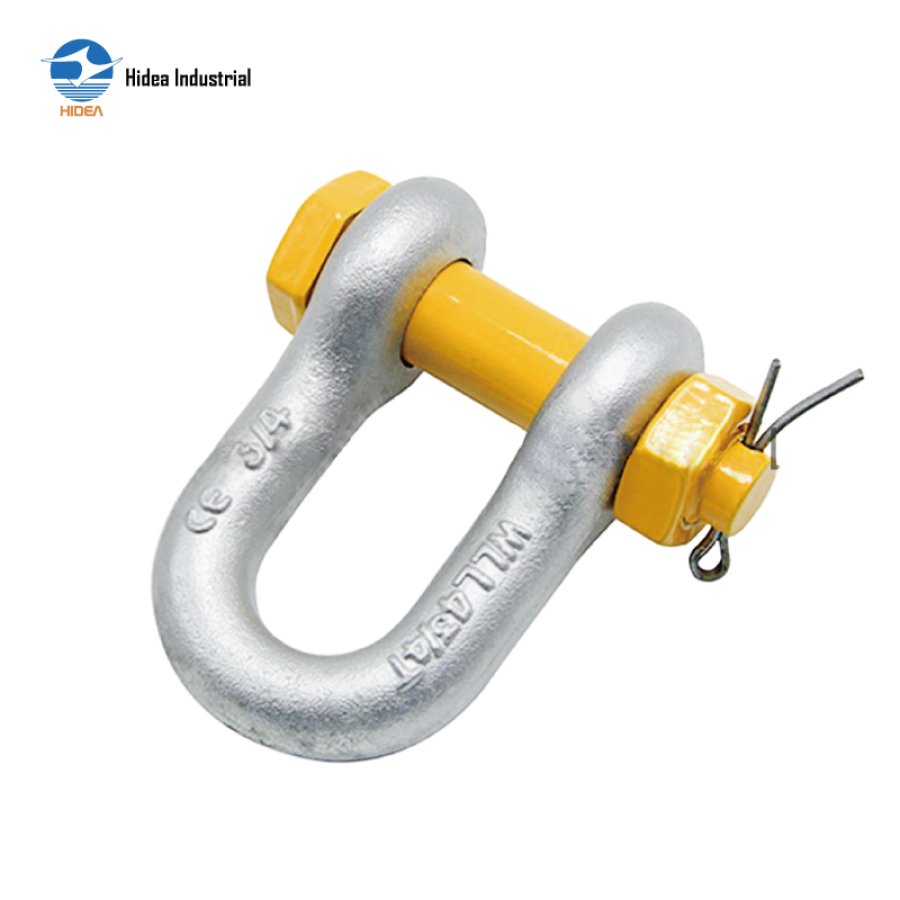

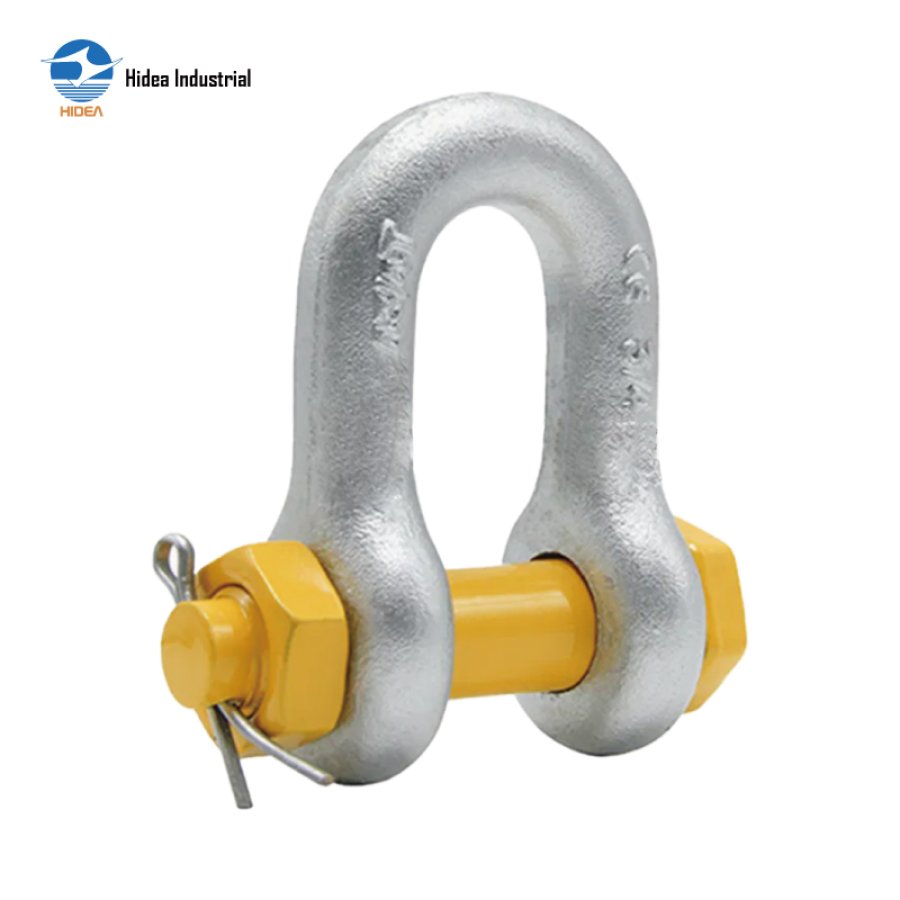

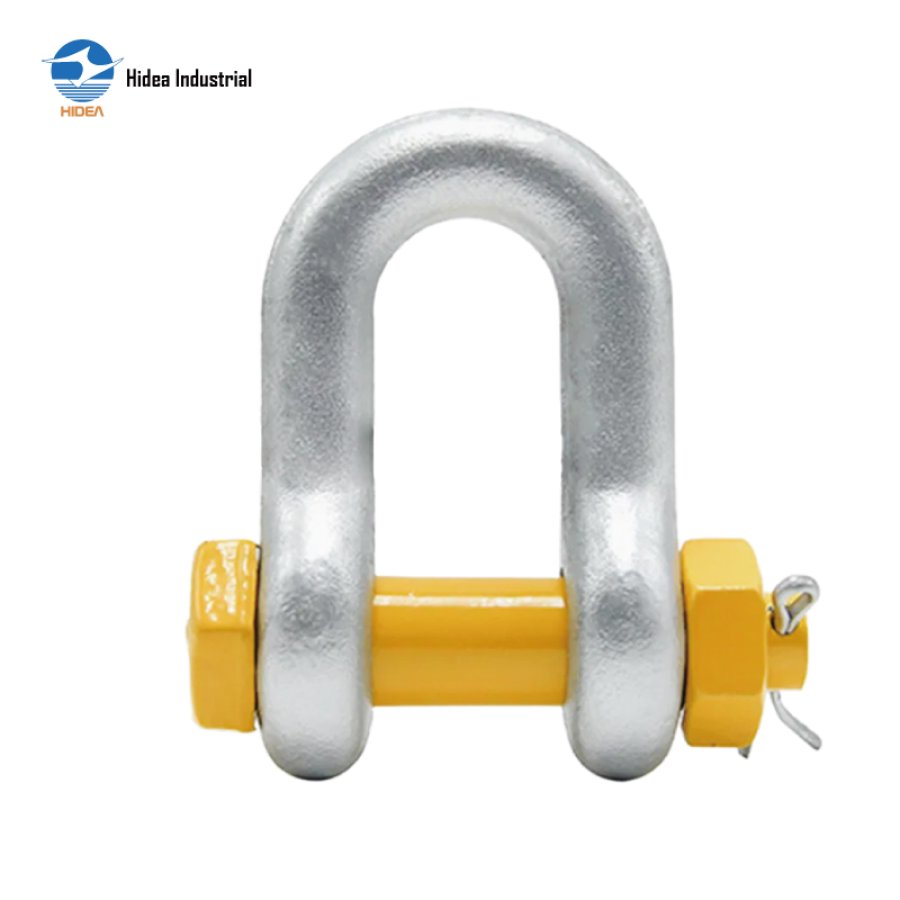

G2150 Galvanized Chain Shackle with Bolt Pin

US TYPE G2150 BOLT TYPE CHAIN SHACKLE

Material: body, carbon steel; pin, alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro-galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271G, Type IVB , Grade A; ASME B30.26
Temperature range: -20 to 200 centigrade degrees

Inquire Now

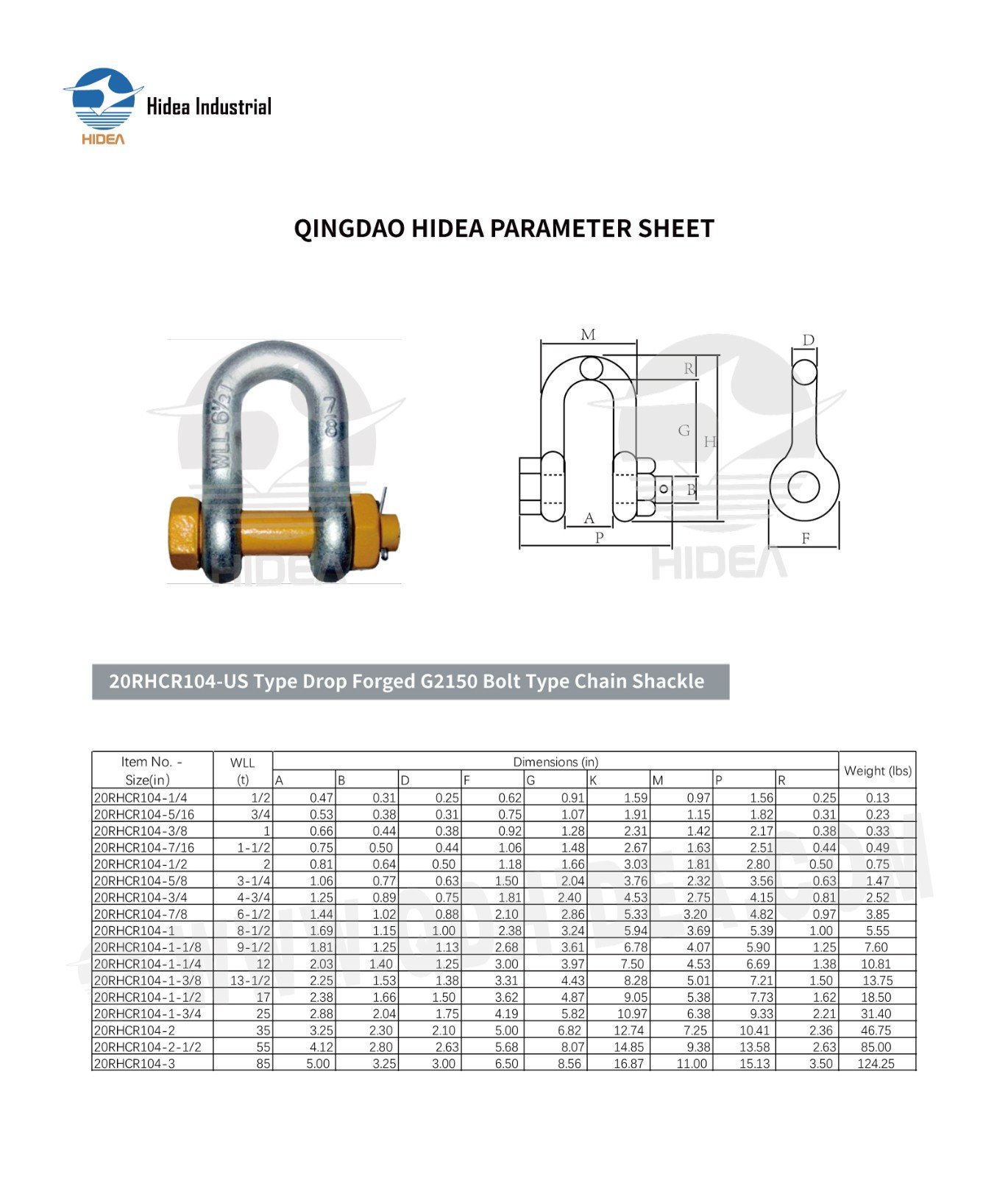

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR104-US Type Drop Forged G2150 Bolt Type Chain Shackle

Item No.- Size(in)	WLL (t)	Dimensions(in)									Weight (Ibs)
Item No.- Size(in)	WLL (t)	A	B	D	F	G	K	M	P	R	Weight (Ibs)
20RHCR104-1/4	1/2	0.47	0.31	0.25	0.62	0.91	1.59	0.97	1.56	0.25	0.13
20RHCR104-5/16	3/4	0.53	0.38	0.31	0.75	1.07	1.91	1.15	1.82	0.31	0.23
20RHCR104-3/8	1	0.66	0.44	0.38	0.92	1.28	2.31	1.42	2.17	0.38	0.33
20RHCR104-7/16	1-1/2	0.75	0.50	0.44	1.06	1.48	2.67	1.63	2.51	0.44	0.49
20RHCR104-1/2	2	0.81	0.64	0.50	1.18	1.66	3.03	1.81	2.80	0.50	0.75
20RHCR104-5/8	3-1/4	1.06	0.77	0.63	1.50	2.04	3.76	2.32	3.56	0.63	1.47
20RHCR104-3/4	4-3/4	1.25	0.89	0.75	1.81	2.40	4.53	2.75	4.15	0.8	2.52
20RHCR104-7/8	6-1/2	1.44	1.02	0.88	2.10	2.86	5.33	3.20	4.82	0.97	3.85
20RHCR104-1	8-1/2	1.69	1.15	1.00	2.38	3.24	5.94	3.69	5.39	1.00	5.55
20RHCR104-1-1/8	9-1/2	1.81	1.25	1.13	2.68	3.61	6.78	4.07	5.90	1.25	7.60
20RHCR104-1-1/4	12	2.03	1.40	1.25	3.00	3.97	7.50	4.53	6.69	1.38	10.81
20RHCR104-1-3/8	13-1/2	2.25	1.53	1.38	3.31	4.43	8.28	5.01	7.2	1.50	13.75
20RHCR104-1-1/2	17	2.38	1.66	1.50	3.62	4.87	9.05	5.38	7.73	1.62	18.50
20RHCR104-1-3/4	25	2.88	2.04	1.75	4.19	5.82	10.97	6.38	9.33	2.2	31.40
20RHCR104-2	35	3.25	2.30	2.10	5.00	6.82	12.74	7.25	10.41	2.36	46.75
20RHCR104-2-1/2	55	4.12	2.80	2.63	5.68	8.07	14.85	9.38	13.58	2.63	85.00
20RHCR104-3	85	5.00	3.25	3.00	6.50	8.56	16.87	11.00	15.13	3.50	124.25
