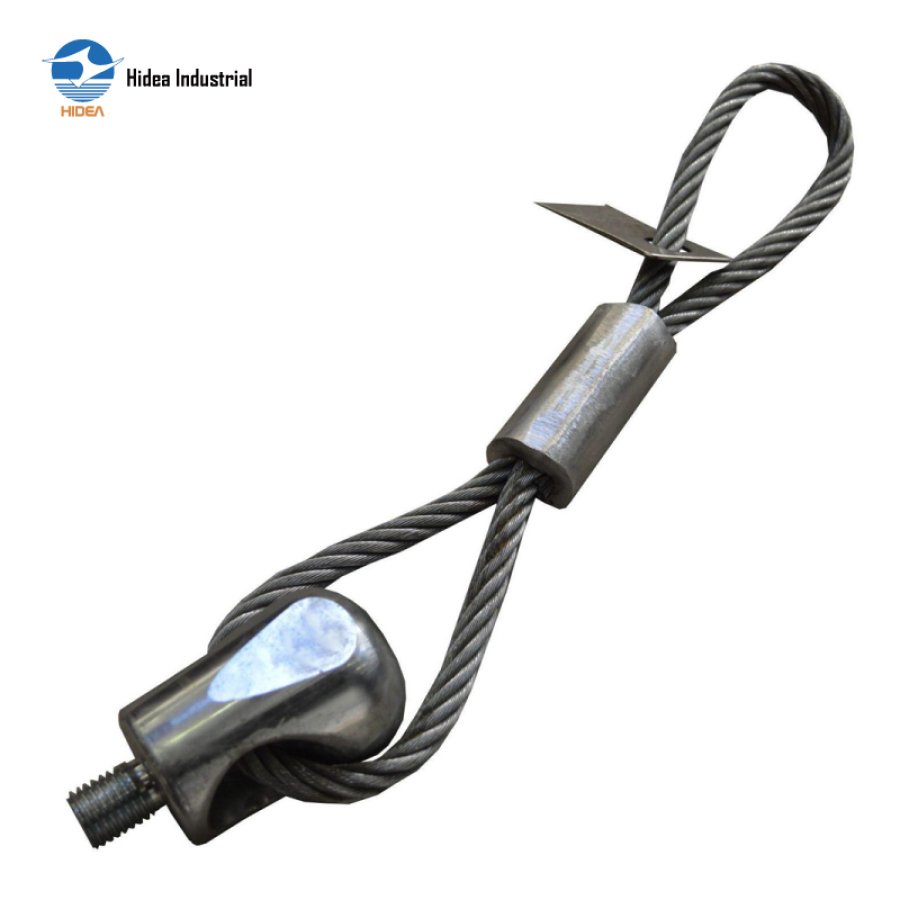

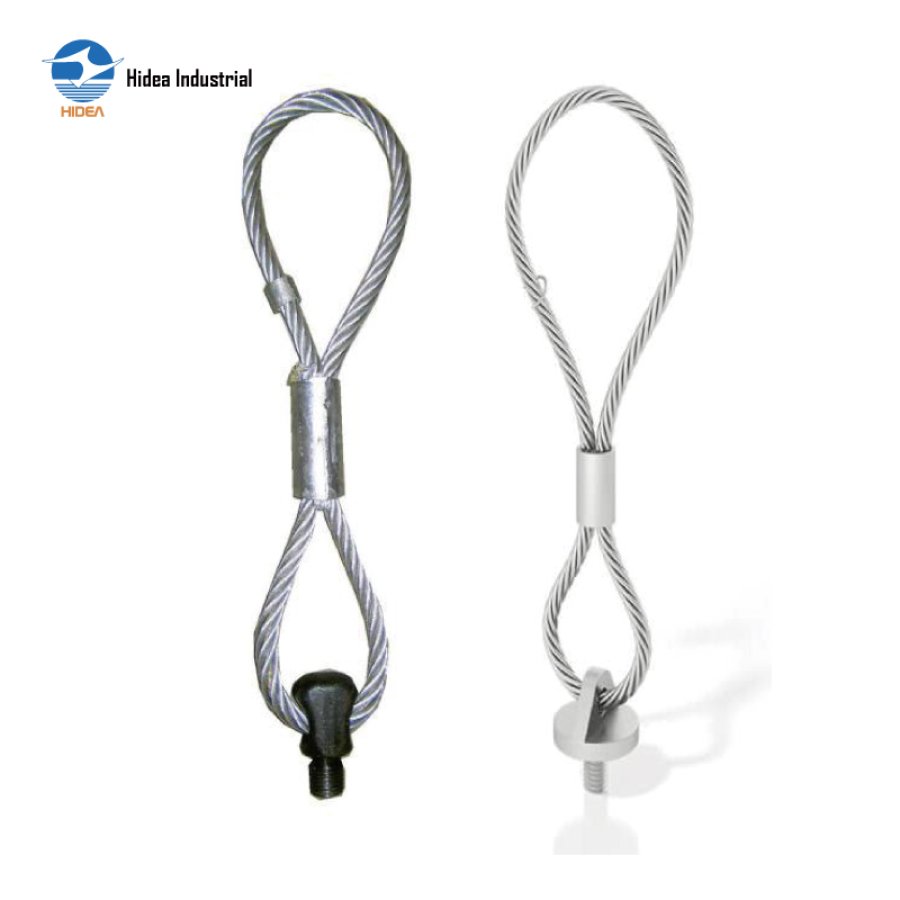

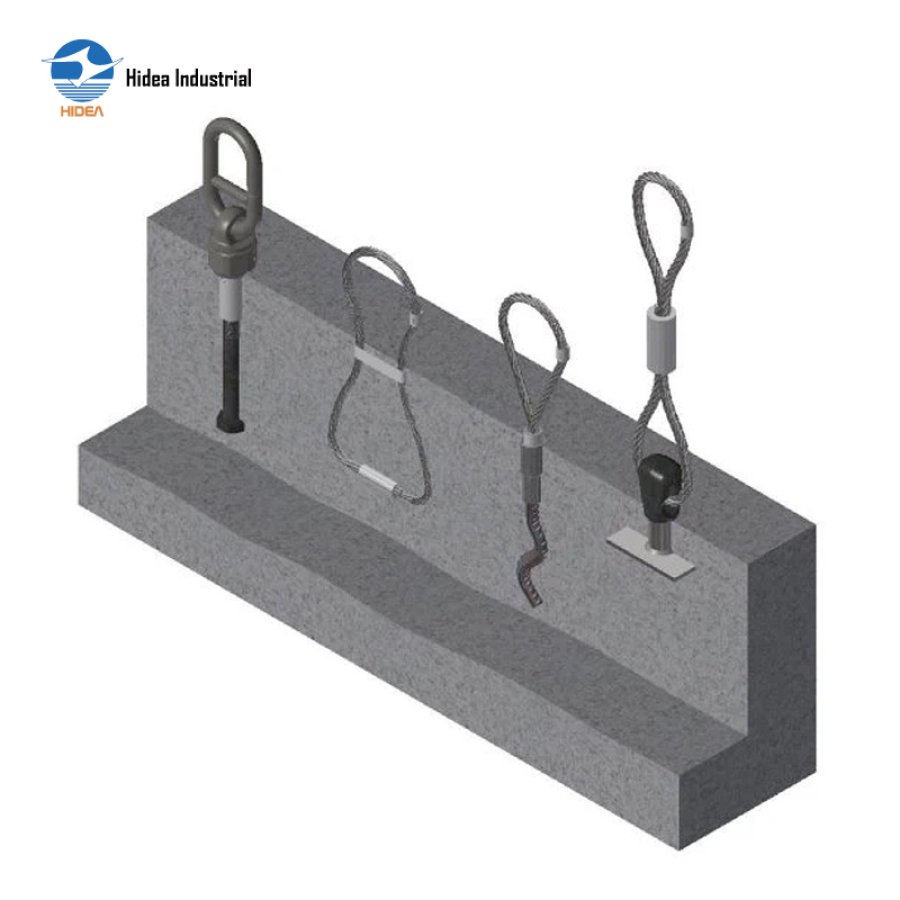

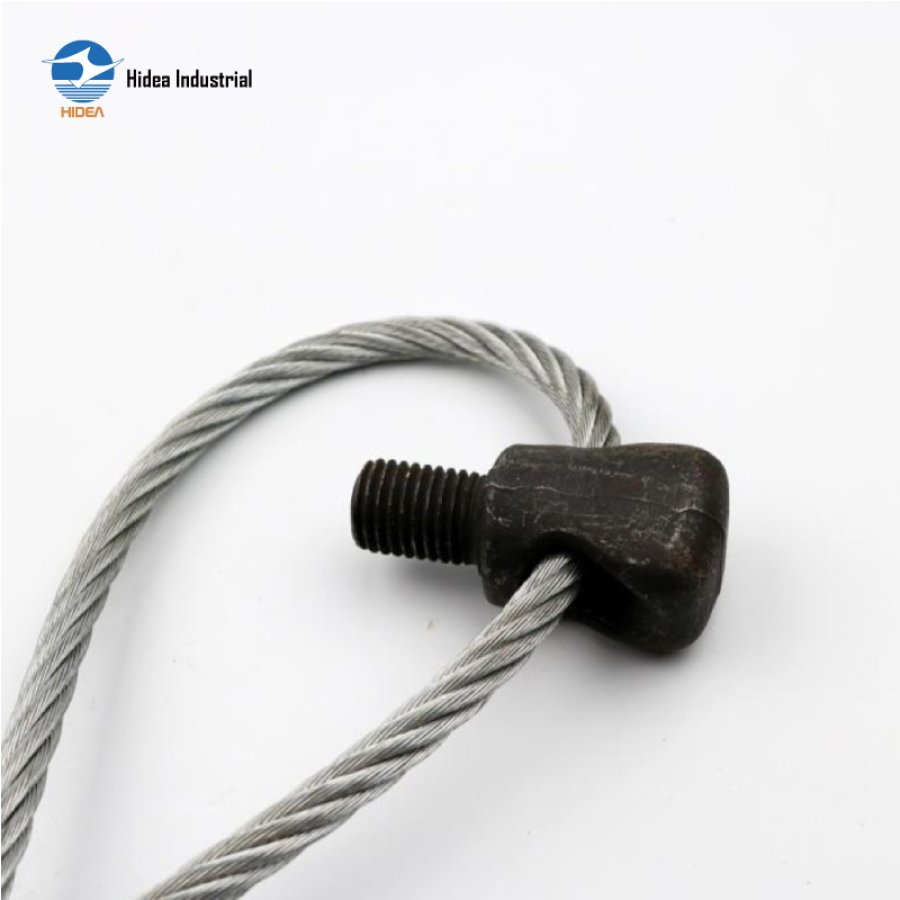

Lifting loops with forged Plate and Goliath are used as lifting device for the lifting anchors of Threaded Lifting System, including bar sockets, waved rebar tail Sockets, threaded sockets.

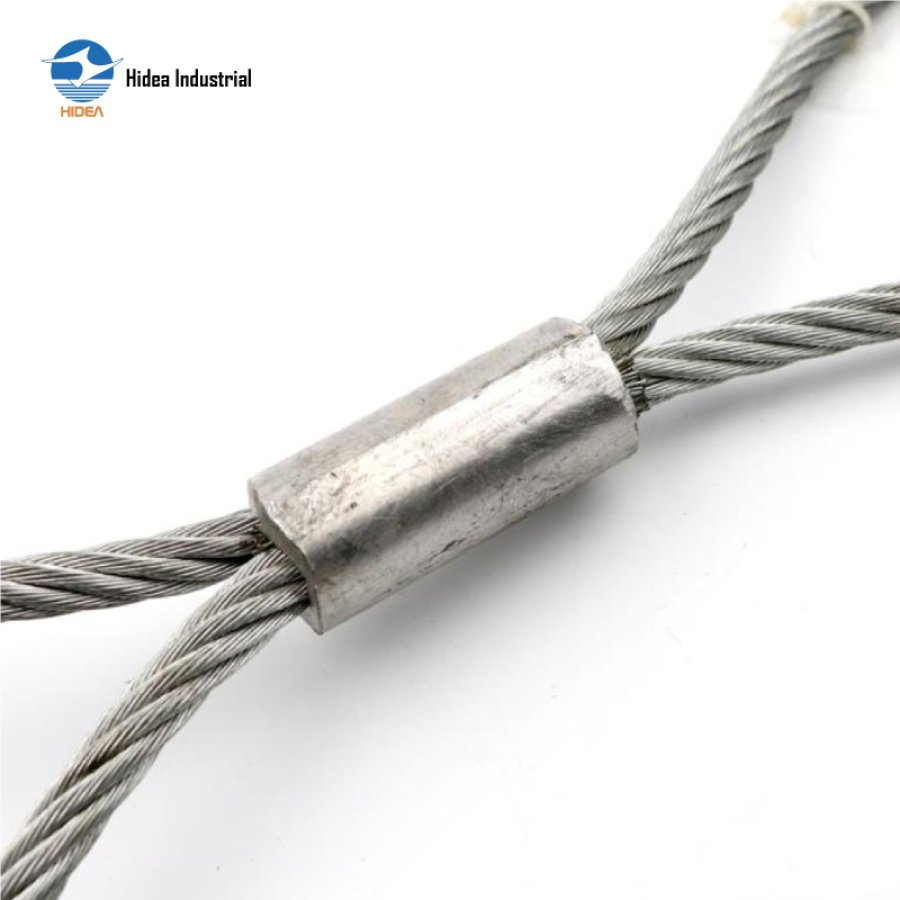

The lifting loop eye is welded on the base plate and the retracted rope loop allows stress forces from all directions.
Lifting Ring Screw can be applied with the thread anchor with appropriate metric or RD thread.
ID label marked with size of thread, maximum working load and various loop sizes available upon request.
QINGDAO HIDEA PARAMETER SHEET FOR
PRESTRESSED/PRECAST CONCRETE ELEMENTS LIFTING DEVICE
| Dimensions of the loop | Dimensions of the Goliath and Forged Plate | ||||||||||||||||||
| Loop | Label | Goliath | Forged Plate | ||||||||||||||||
| Load (t) | DR (mm) | H (mm) | L1 (mm) | D (mm) | d (mm) | φ (mm) | M/Rd (mm) | T1 (mm) | T2 (mm) | C (mm) | D (mm) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | |||
| 0.5 | 8 | 355 | 195 | 37 | 23 | 20 | 12 | 20 | 40 | 30 | 40 | 10 | 8 | 10 | 15 | 10 | |||
| 1.2 | 8 | 385 | 225 | 37 | 23 | 20 | 16 | 22 | 40 | 33 | 40 | 10 | 10 | 10 | 15 | 10 | |||
| 2 | 10 | 470 | 310 | 37 | 23 | 20 | 20 | 25 | 65 | 60 | 49 | 13 | 12 | 13 | 18 | 13 | |||
| 2.5 | 12 | 550 | 340 | 37 | 23 | 20 | 24 | 30 | 65 | 55 | 56 | 14 | 16 | 14 | 24 | 14 | |||
| 4 | 16 | 590 | 390 | 37 | 23 | 20 | 30 | 35 | 70 | 55 | 69 | 18 | 20 | 18 | 30 | 18 | |||
| 6.3 | 18 | 780 | 470 | 52 | 38 | 40 | 36 | 35 | 120 | 90 | 79 | 20 | 24 | 20 | 36 | 20 | |||
| 8 | 20 | 860 | 550 | 52 | 38 | 40 | 42 | 40 | 120 | 90 | 99 | 25 | 30 | 25 | 45 | 25 | |||
| 12.5 | 26 | 1080 | 730 | 52 | 38 | 40 | 52 | 40 | 120 | 100 | 109 | 28 | 36 | 28 | 55 | 28 | |||
