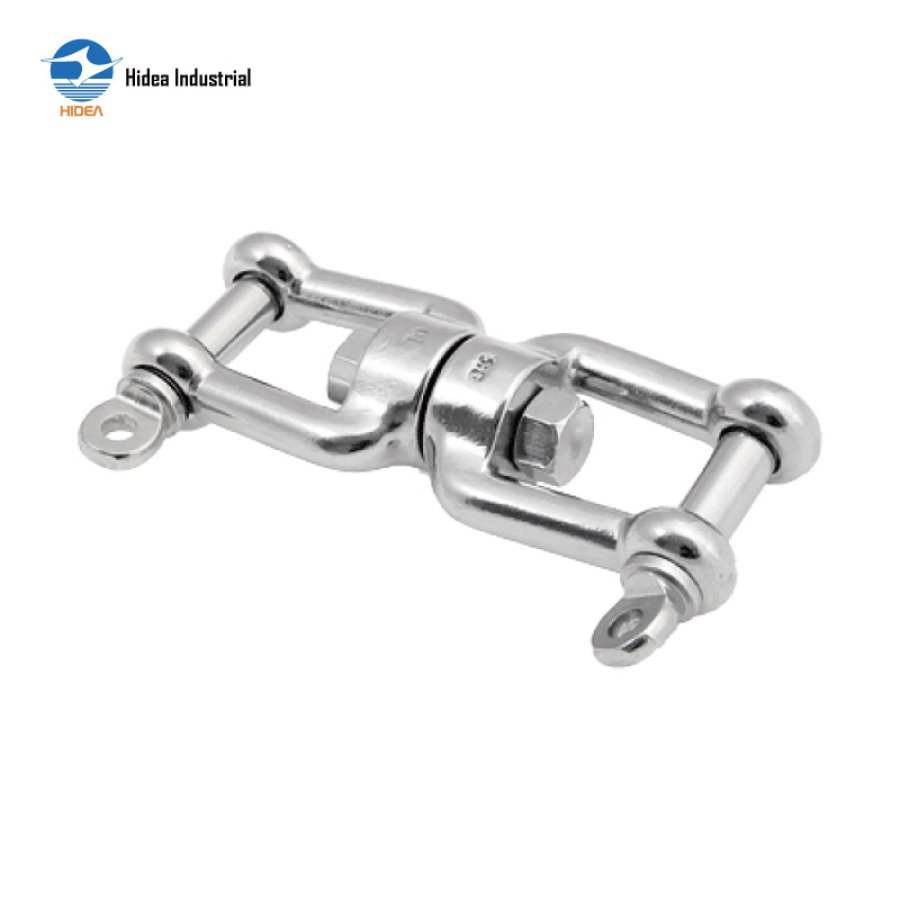

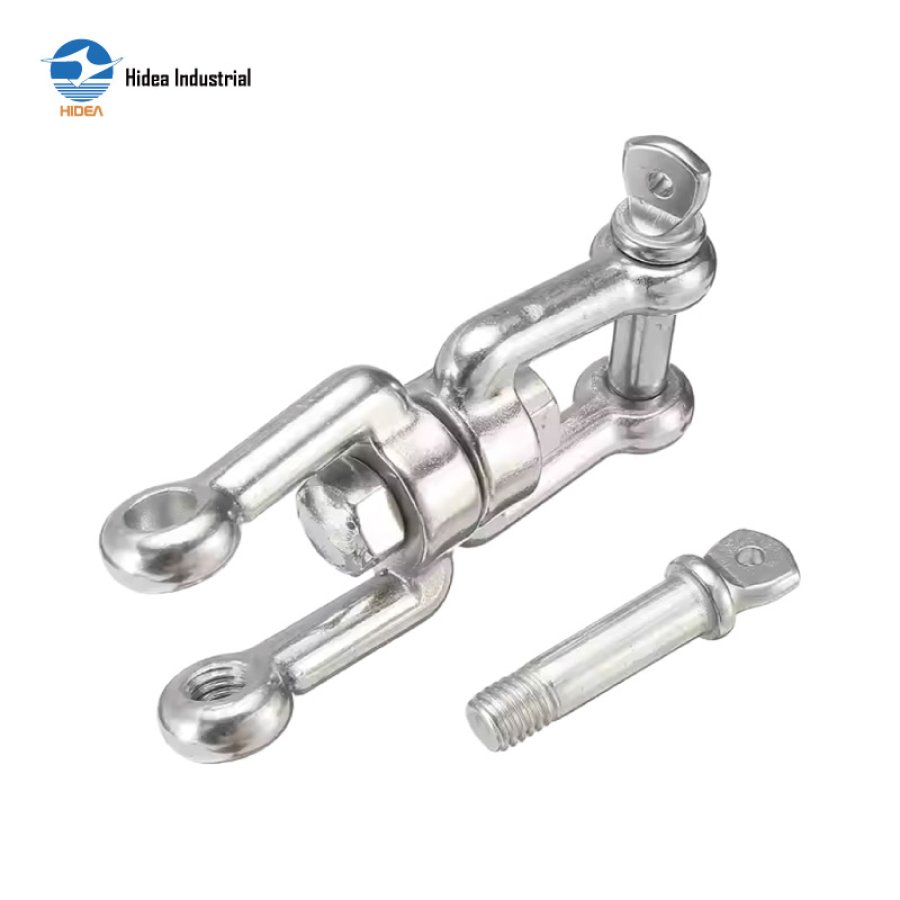

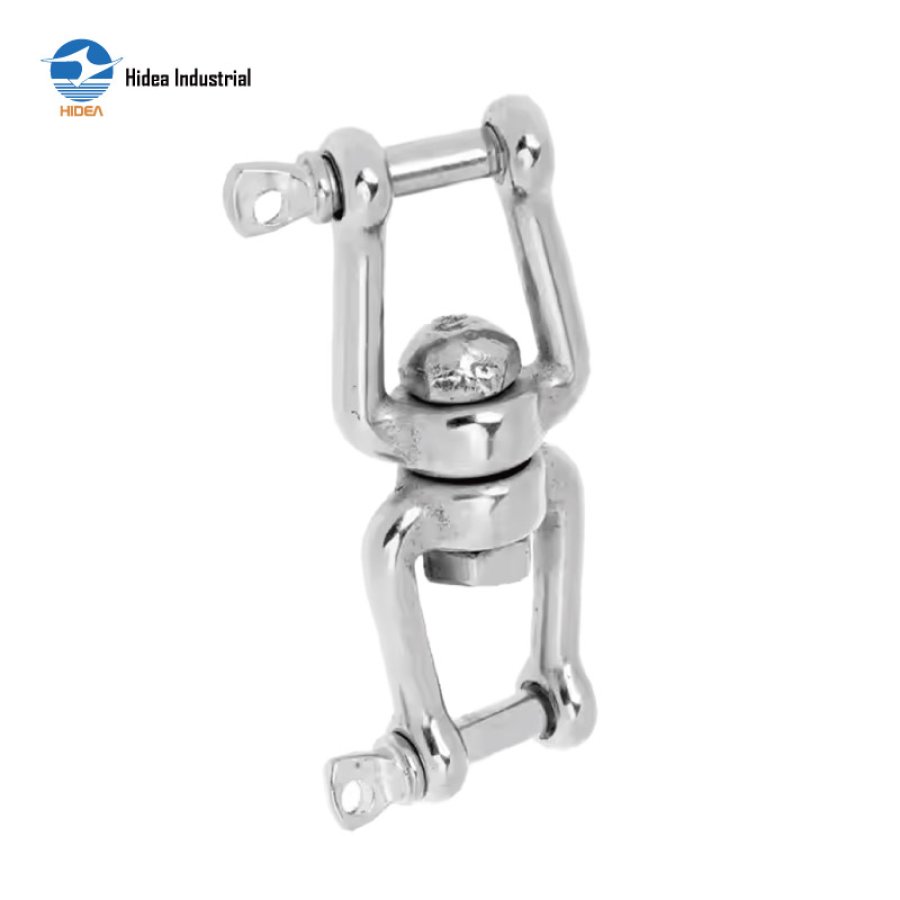

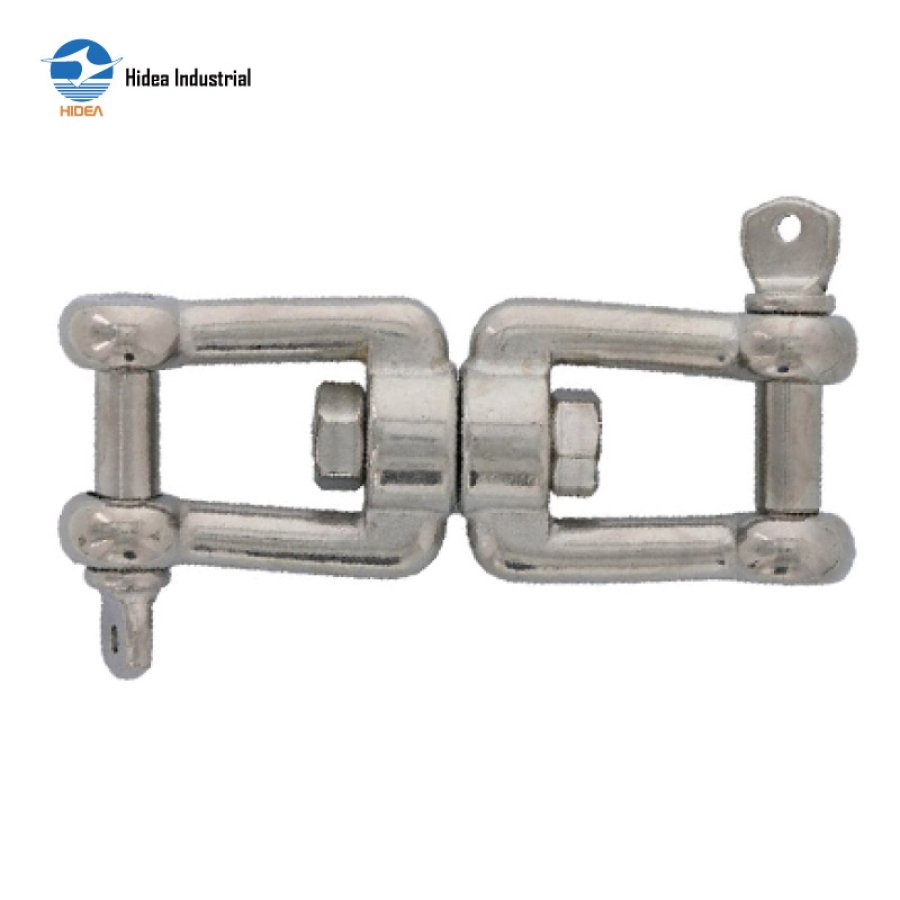

HIDEA Stainless Steel Jaw & Jaw Swivel: Tough, Corrosion-Resistant Swiveling Solution

EU TYPE SWIVEL (JAW AND JAW)

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

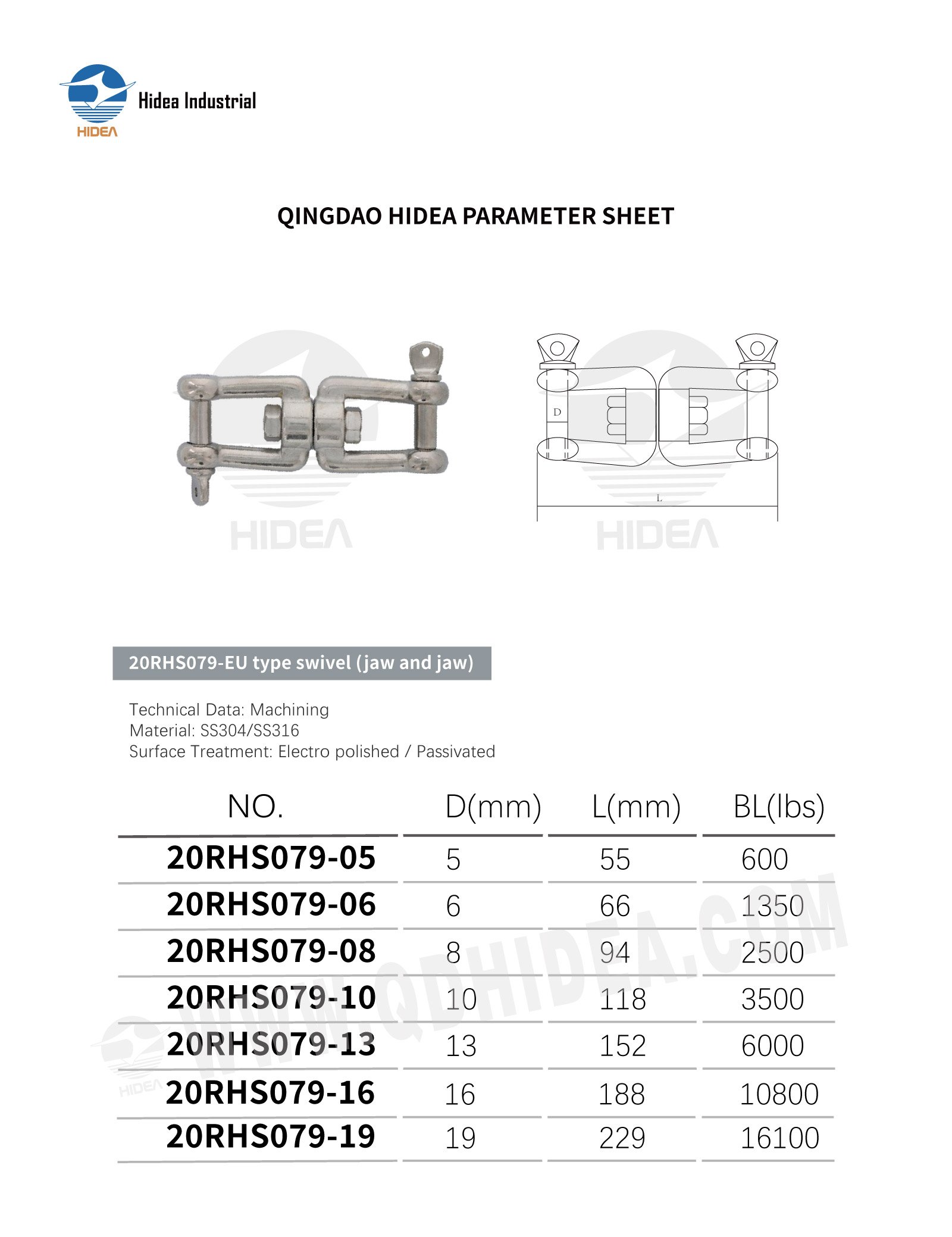

QINGDAO HIDEA PARAMETER SHEET FOR

20RHSO79-EU type swivel(jaw and jaw)

NO.	D(mm)	L(mm)	BL(Ibs)
20RHS079-05	5	55	600
20RHS079-06	6	66	1350
20RHS079-08	8	94	2500
20RHS079-10	10	118	3500
20RHS079-13	13	152	6000
20RHS079-16	16	188	10800
20RHS079-19	19	229	16100
