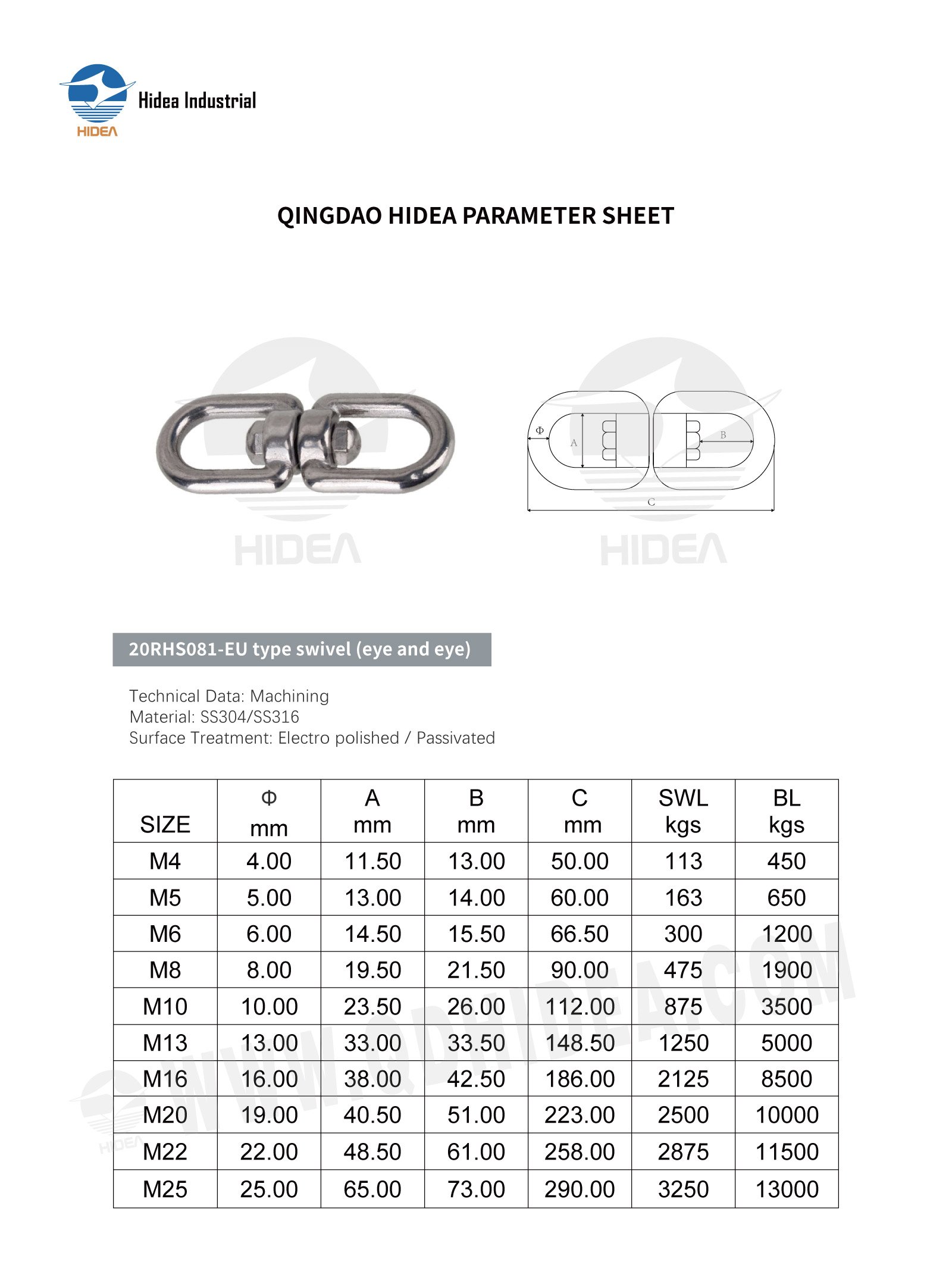

HIDEA Stainless Steel Eye to Eye Swivel: Strong and Corrosion-Resistant

EU TYPE SWIVEL (EYE AND EYE)

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

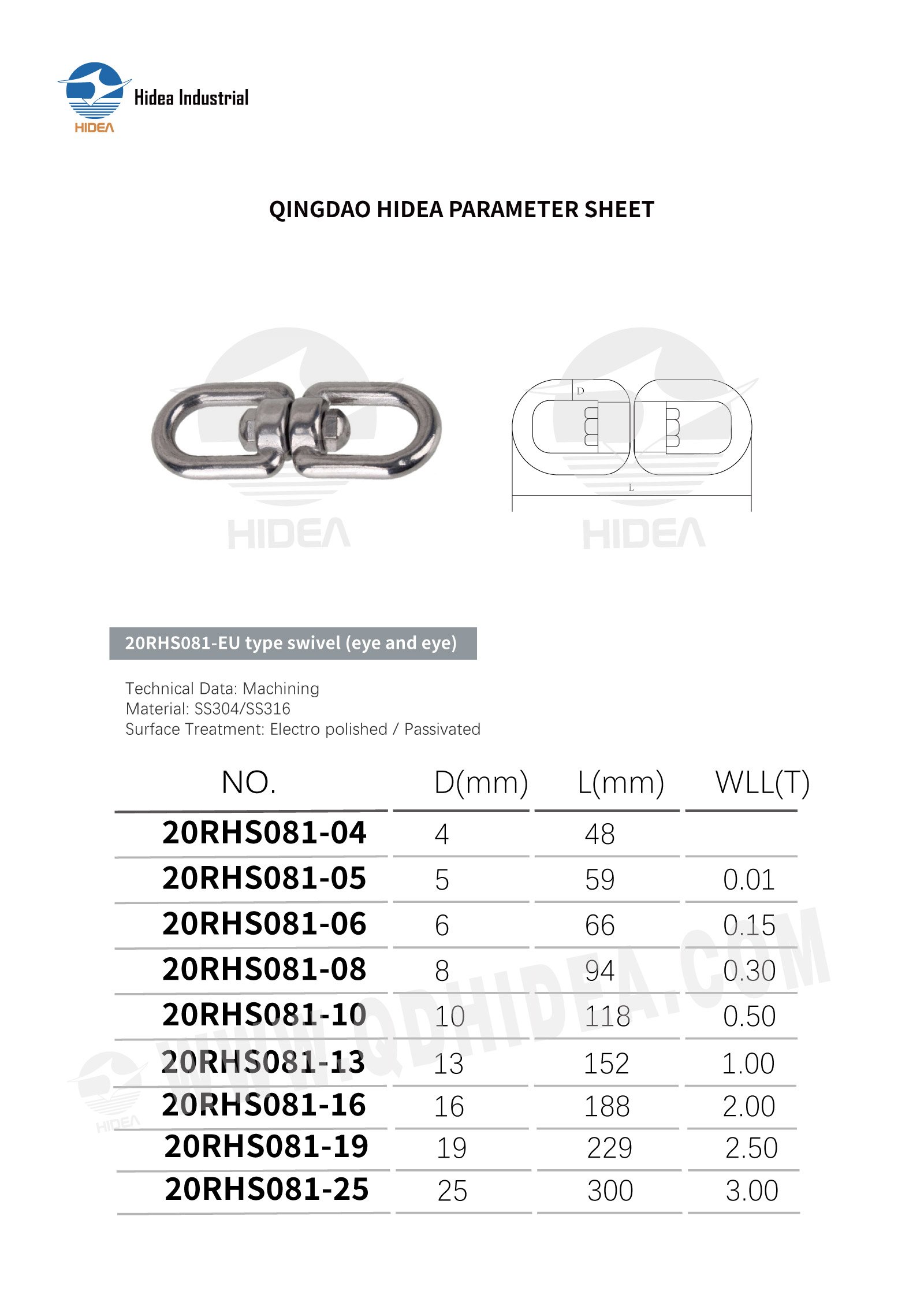

QINGDAO HIDEA PARAMETER SHEET FOR

20RHSO81-EU type swivel(eye and eye)

NO.	D(mm)	L(mm)	WLL(T)
20RHS081-04	4	48
20RHS081-05	5	59	0.01
20RHSO81-06	6	66	0.15
20RHS081-08	8	94	0.30
20RHS081-10	10	118	0.50
20RHS081-13	13	152	1.00
20RHS081-16	16	188	2.00
20RHS081-19	19	229	2.50
20RHS081-25	25	300	3.00
