Forged super alloy steel-Quenched and Tempered
Suitable for G100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Sample tested at 1.5 times Working Load for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder coating
Colour code: Blue RAL5015
QINGDAO HIDEA PARAMETER SHEET FOR

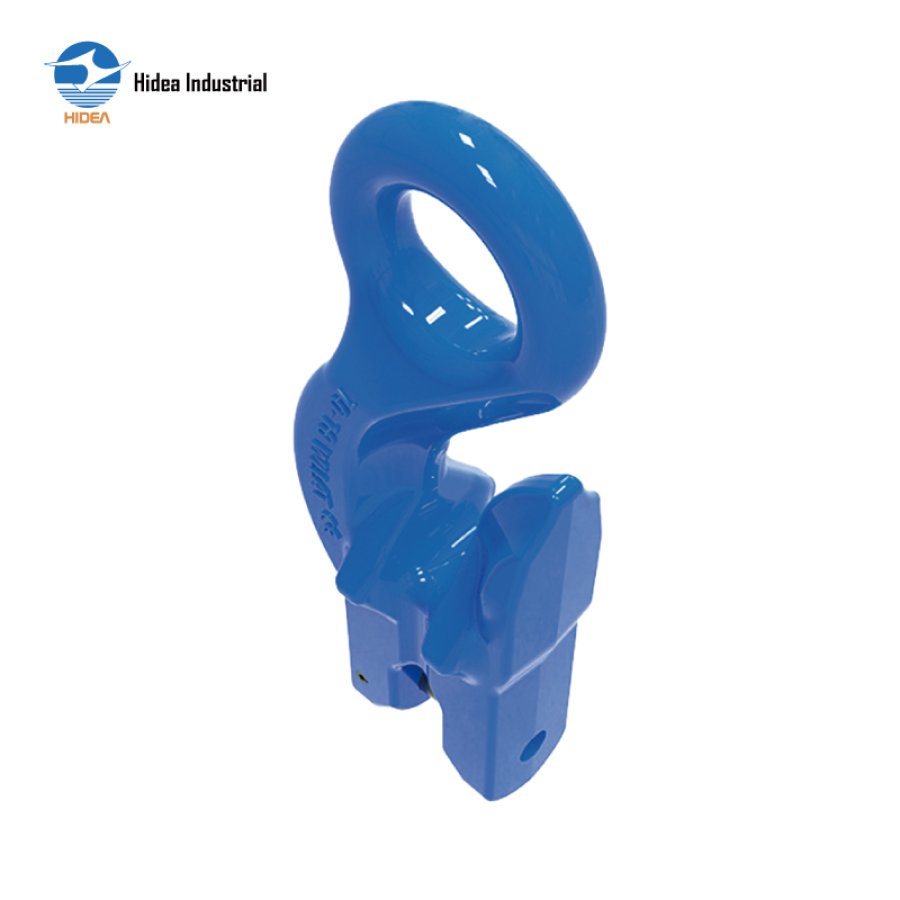

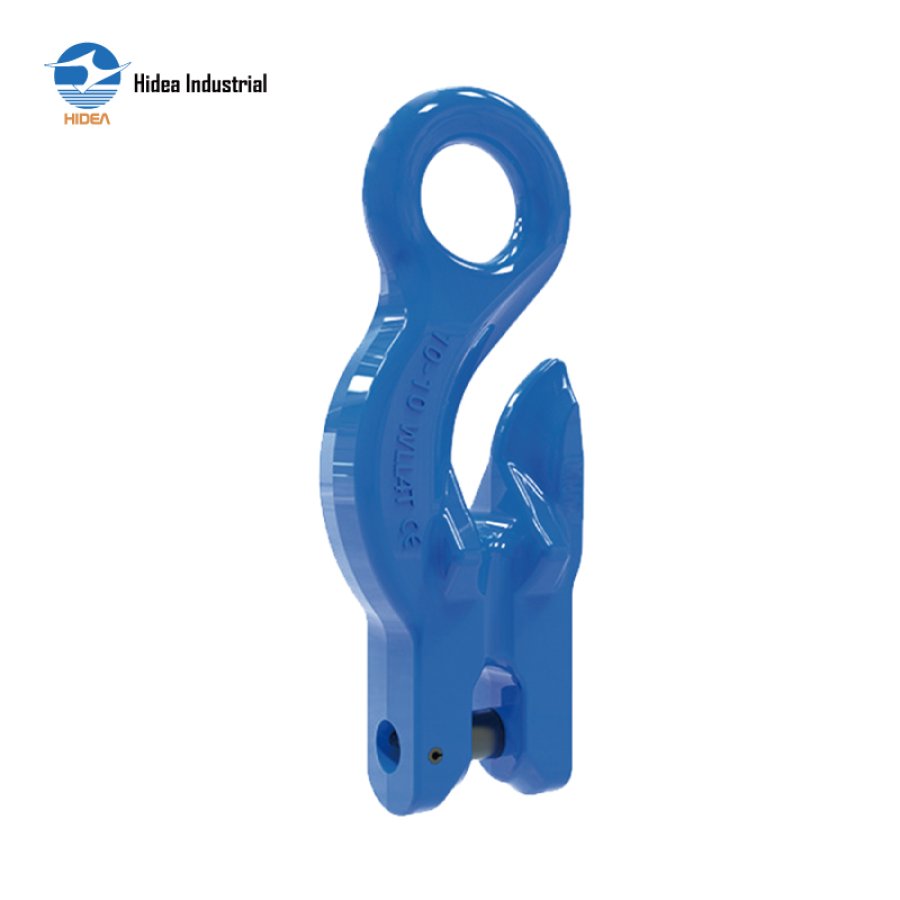

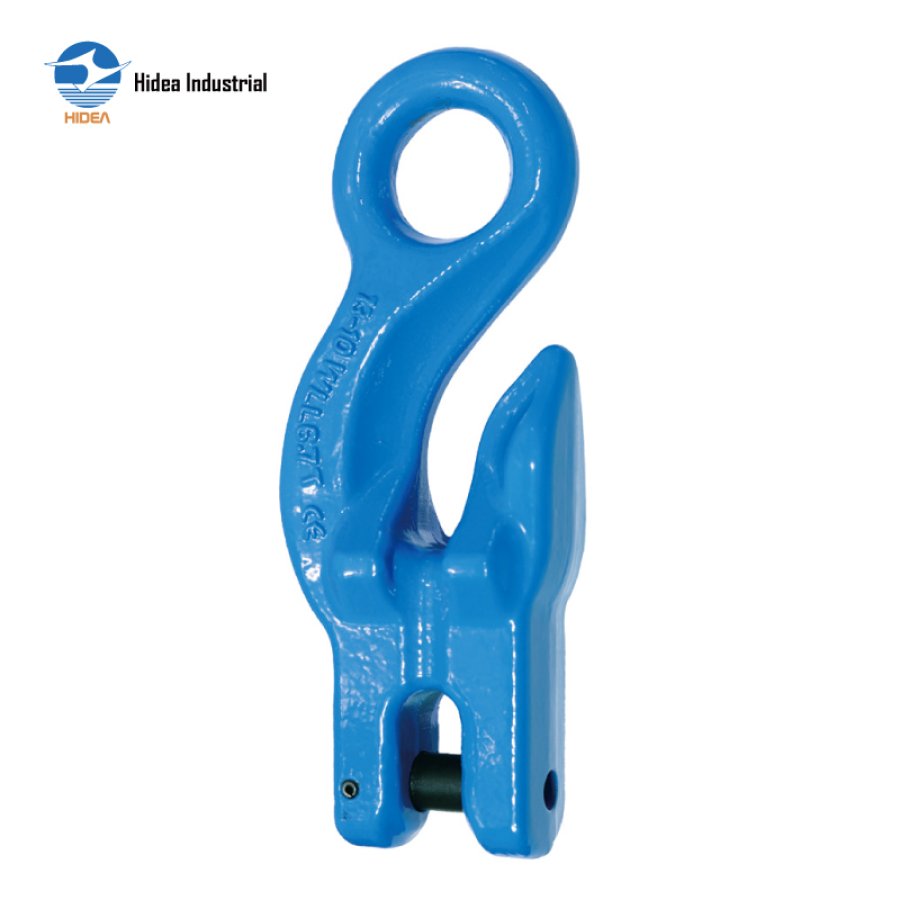

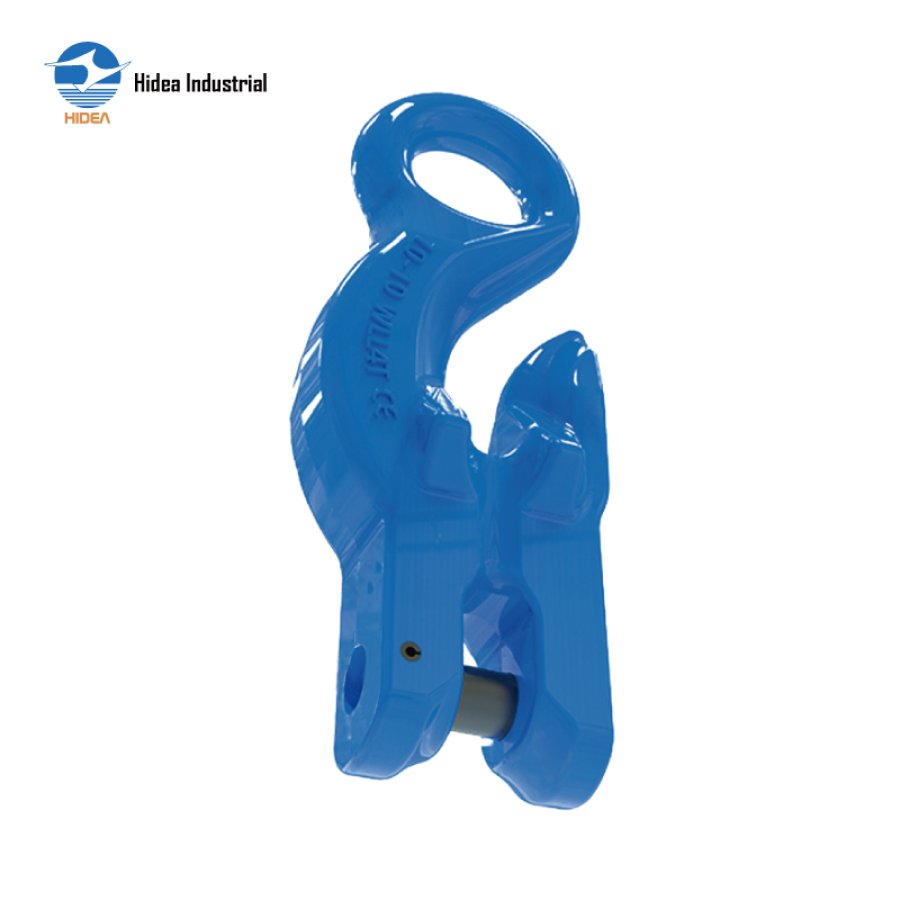

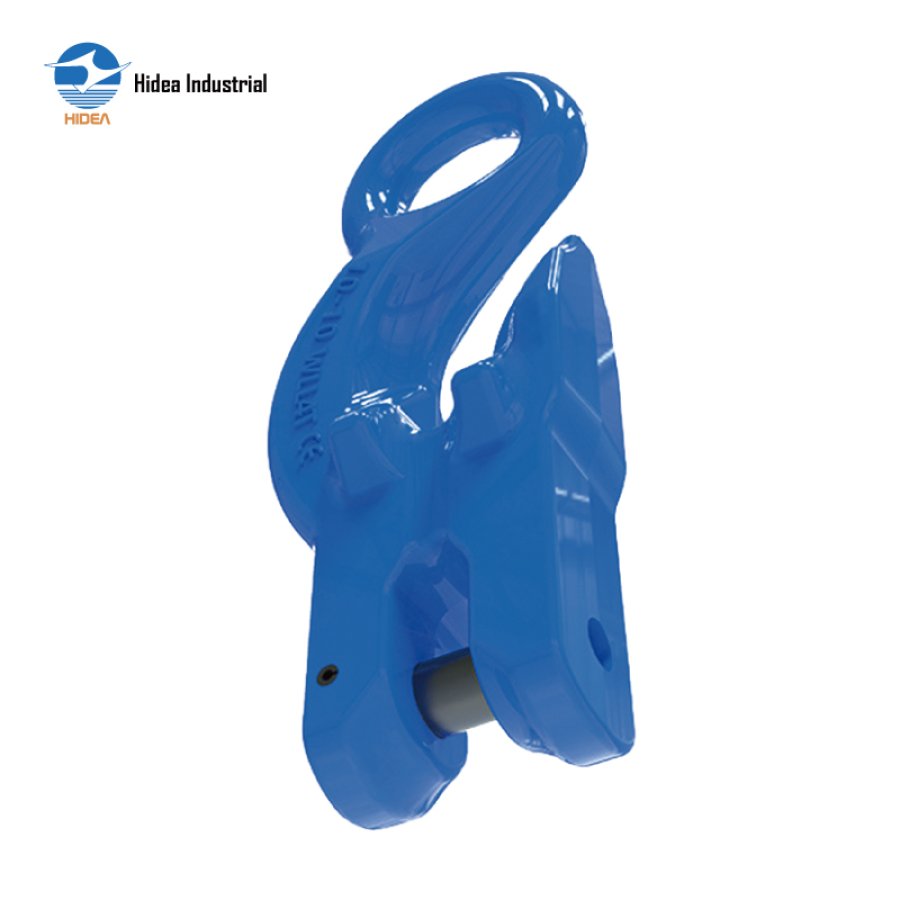

20RH1501-G100 CLEVIS EYE GRAB HOOK

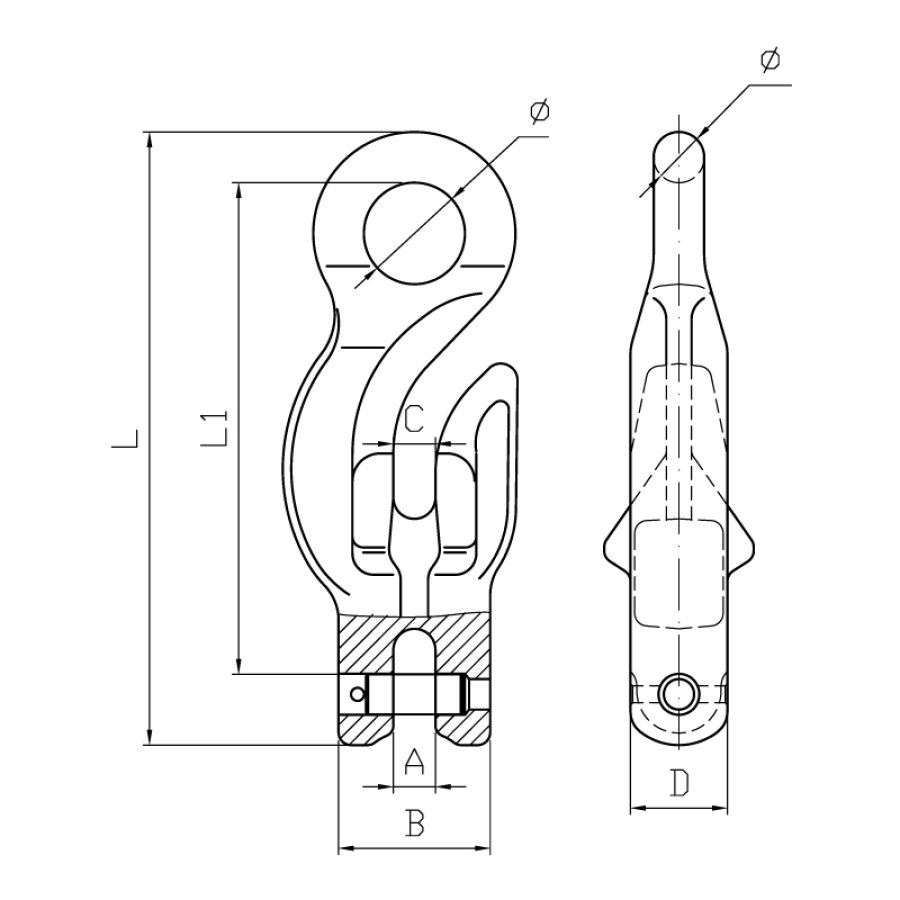

| ITEM CODE | WEIGHT | WLL | B.L | Φ±2 | A±0.5 | B±2 | C±0.5 | L1±2 | L±3 | Φ’±1 | D±1.5 |
| (kg) | (T) | (T) | |||||||||
| 20RH1501-6 | 0.3 | 1.4 | 5.6 | 18 | 8 | 32 | 8 | 88 | 112 | 9 | 17.5 |
| 20RH1501-8 | 0.69 | 2.5 | 1 | 24 | 10 | 36 | 10 | 116 | 145 | 12 | 23 |
| 20RH1501-10 | 1.33 | 4 | 16 | 30 | 12.5 | 48 | 12.5 | 145 | 184 | 15 | 28.5 |
| 20RH1501-13 | 2.36 | 6.7 | 26.8 | 37 | 15.5 | 59.5 | 15.5 | 178 | 223 | 18 | 35 |
| 20RH1501-16 | 4.5 | 10 | 40 | 45 | 19 | 70 | 19 | 216 | 273 | 22 | 42 |
| 20RH1501-20 | 9 | 16 | 64 | 58 | 24.5 | 85 | 24.5 | 278 | 351 | 28 | 52 |
