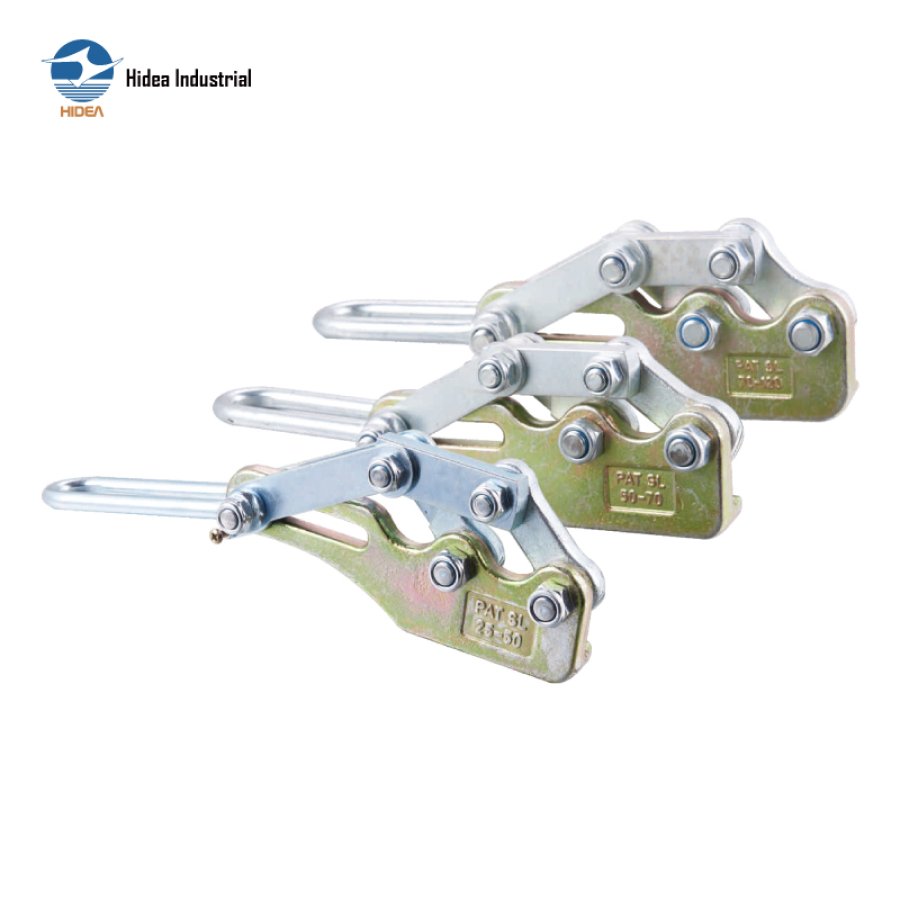

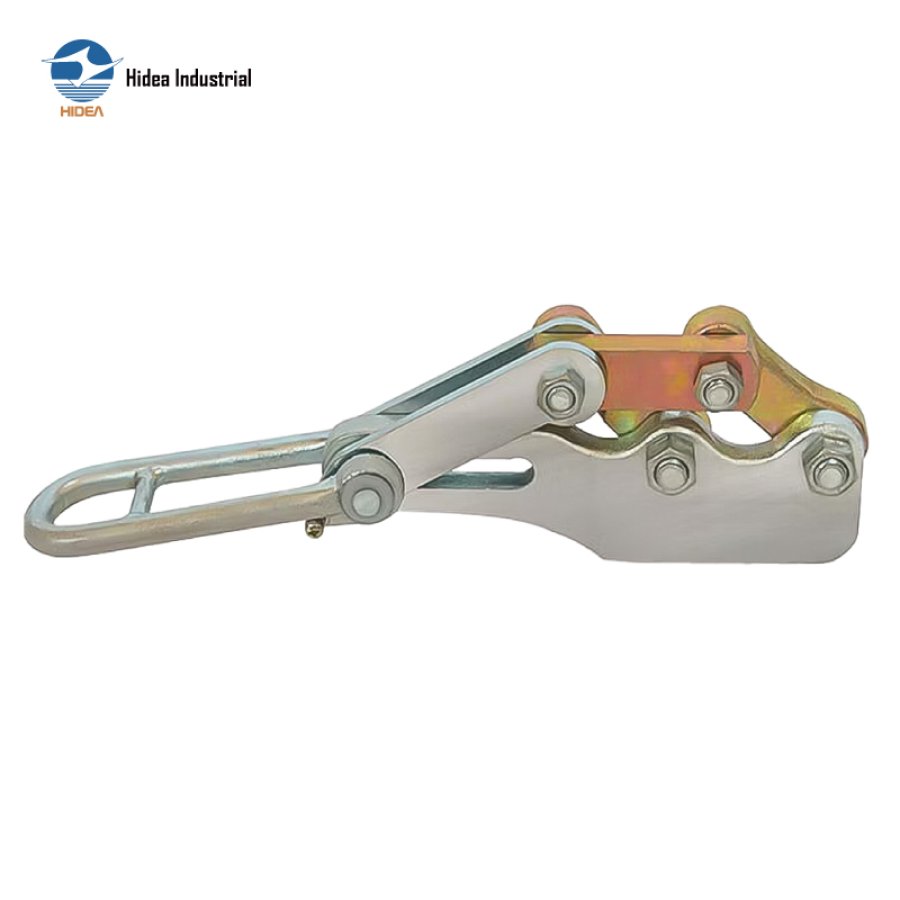

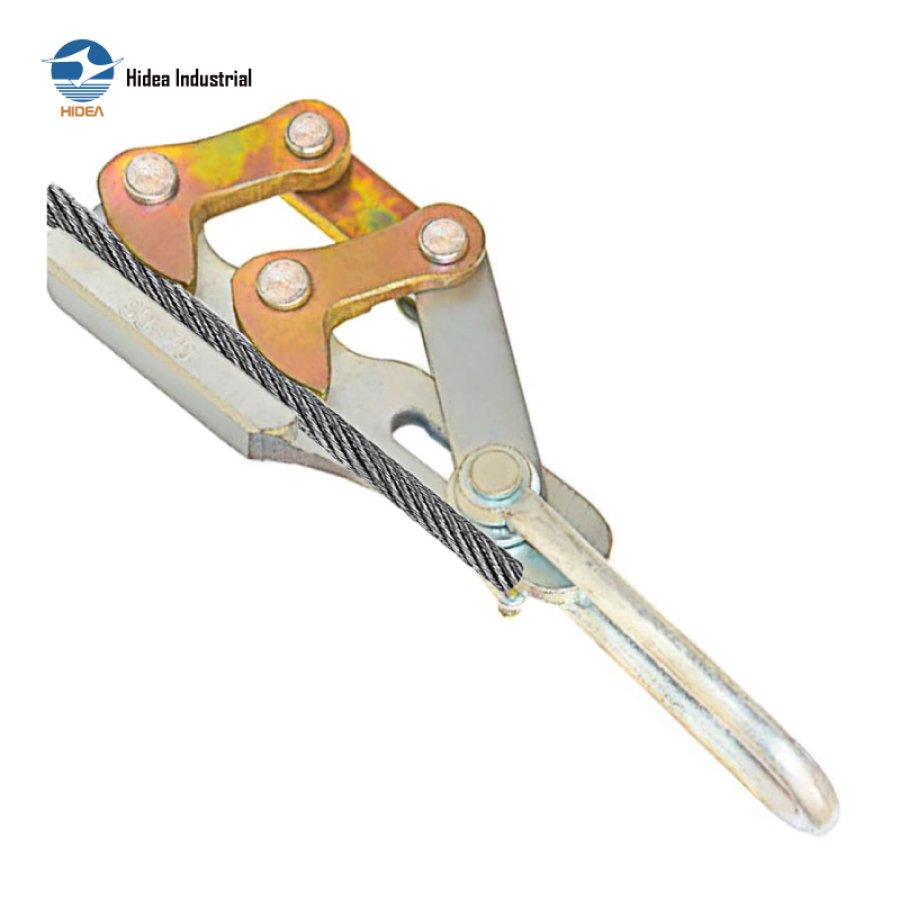

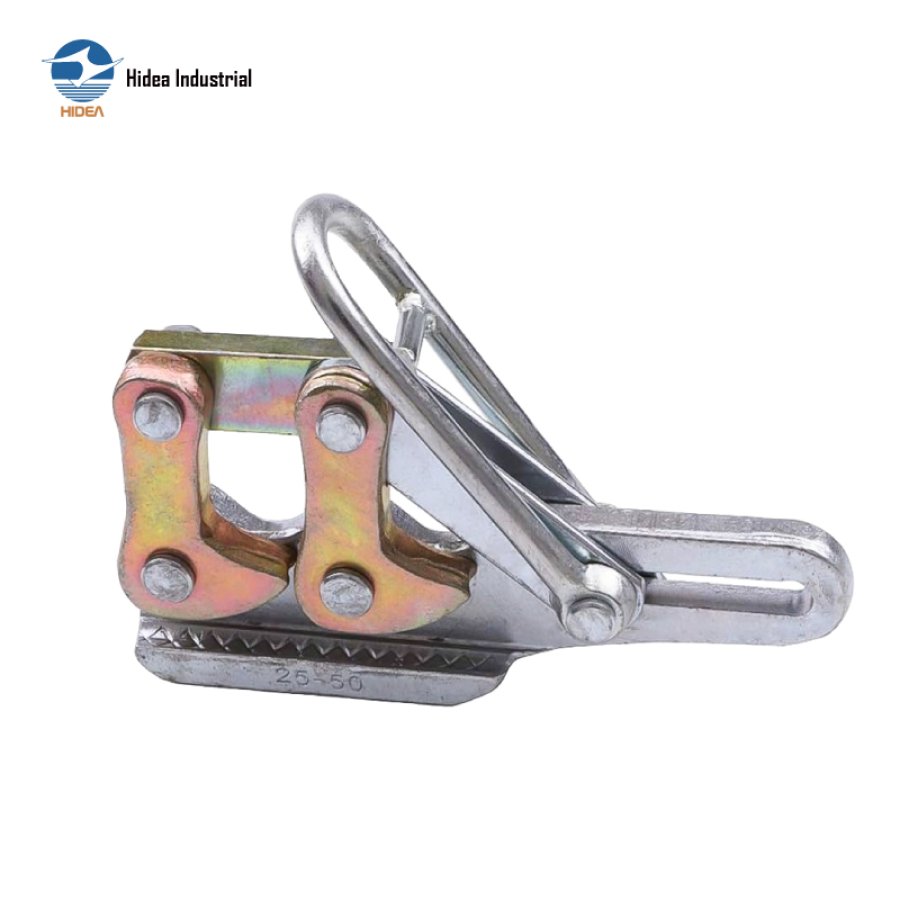

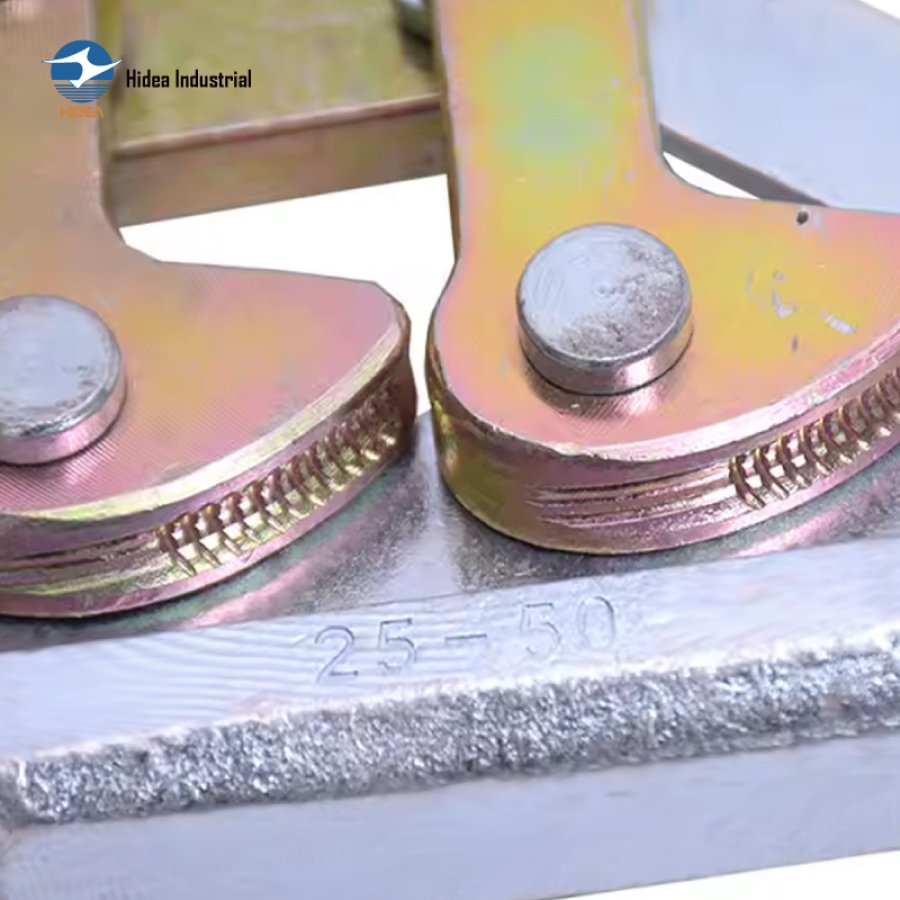

The double cam strand cable clamp, also known as transmission line clamps or cable adapter, is a device used to connect an electrical cable to a grounding source or for overhead electric transmission power lines, it typically has two cams and is designed to grip the wire tightly while making a secure and safe electrical cable connection
The double cam strand cable clamps are manufactured from high quality carbon steel and die forged, properly heat treated; rated from 10kN up to 30kN, and with a strand cable application range of GJ25-50, GJ50-70 and GJ70-120 and gripping range from 11mm to 15mm
The double cam strand cable grips are improved in aspects of the gripping and occlusal force in use; sturdy and durable and with stable performances
The double cam strand cable clamps meeting standards of and in conformity with IEC 60900:2004, DIN EN 50143 and other IEC and IEEE norms
QINGDAO HIDEA PARAMETER SHEET FOR
DOUBLE CAM STRAND CABLE CLAMP
| Part No. | Applied Cable(GJ) | Rated Load(KN) | Grip Range(mm) | N.W. (kg) |
| 60MT-CGD1 | GJ25-50 | 10 | 11 | 1.9 |
| 60MT-CGD2 | GJ50-70 | 20 | 13 | 2.4 |
| 60MT-CGD3 | GJ70-120 | 30 | 15 | 3.5 |
