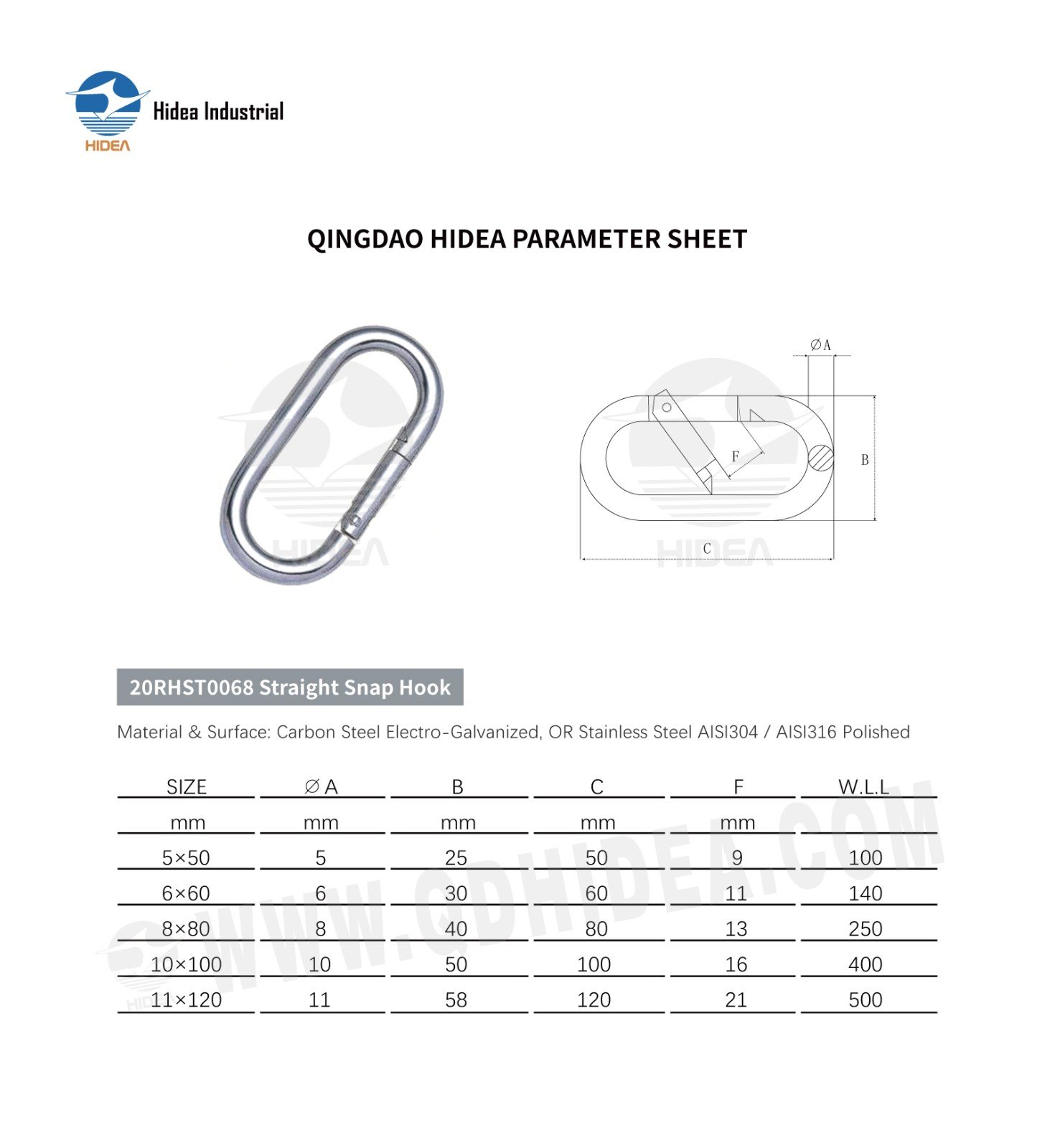

QINGDAO HIDEA PARAMETER SHEET FOR
20RHST0068 Straight Snap Hook
| SIZE | ØA | B | C | F | W.L.L |
| mm | mm | mm | mm | mm | |
| 5×50 | 5 | 25 | 50 | 9 | 100 |
| 6×60 | 6 | 30 | 60 | 11 | 140 |
| 8×80 | 8 | 40 | 80 | 13 | 250 |
| 10×100 | 10 | 50 | 100 | 16 | 400 |
| 11×120 | 11 | 58 | 120 | 21 | 500 |
