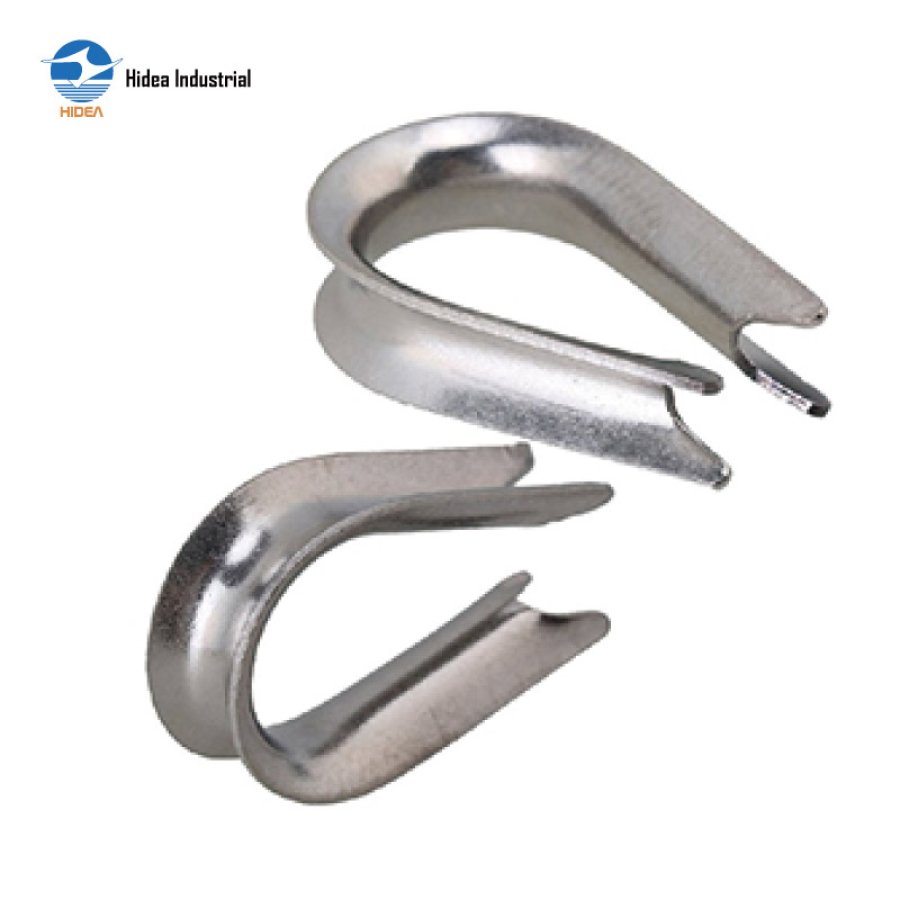

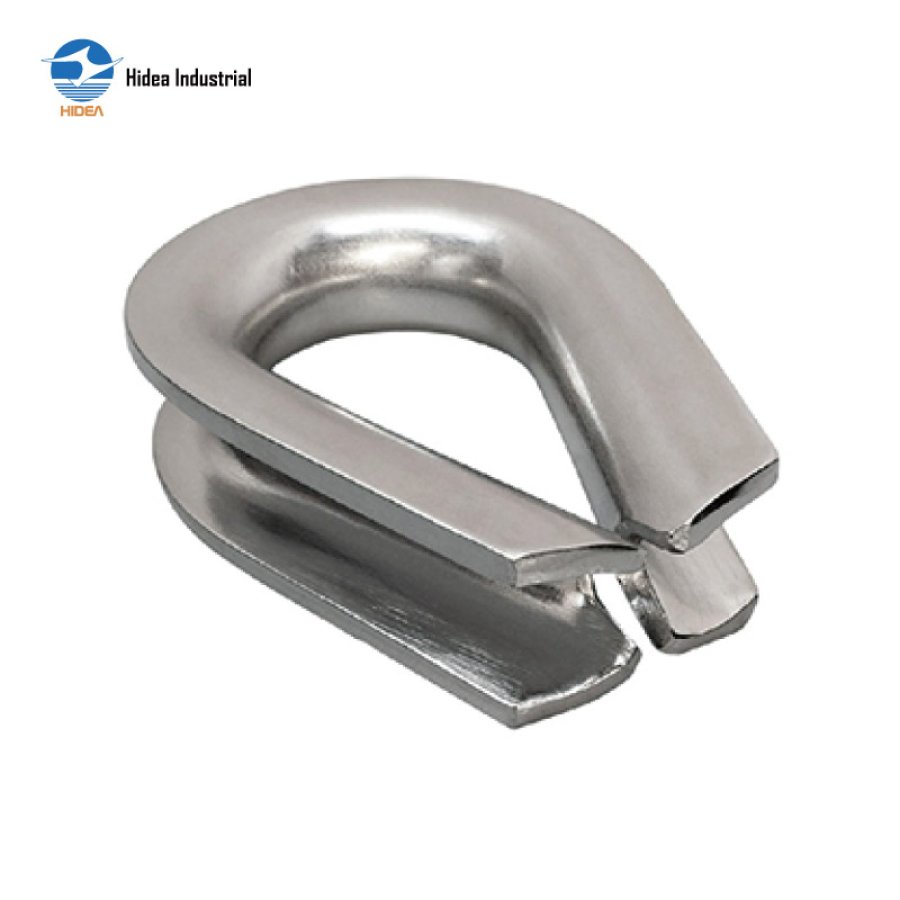

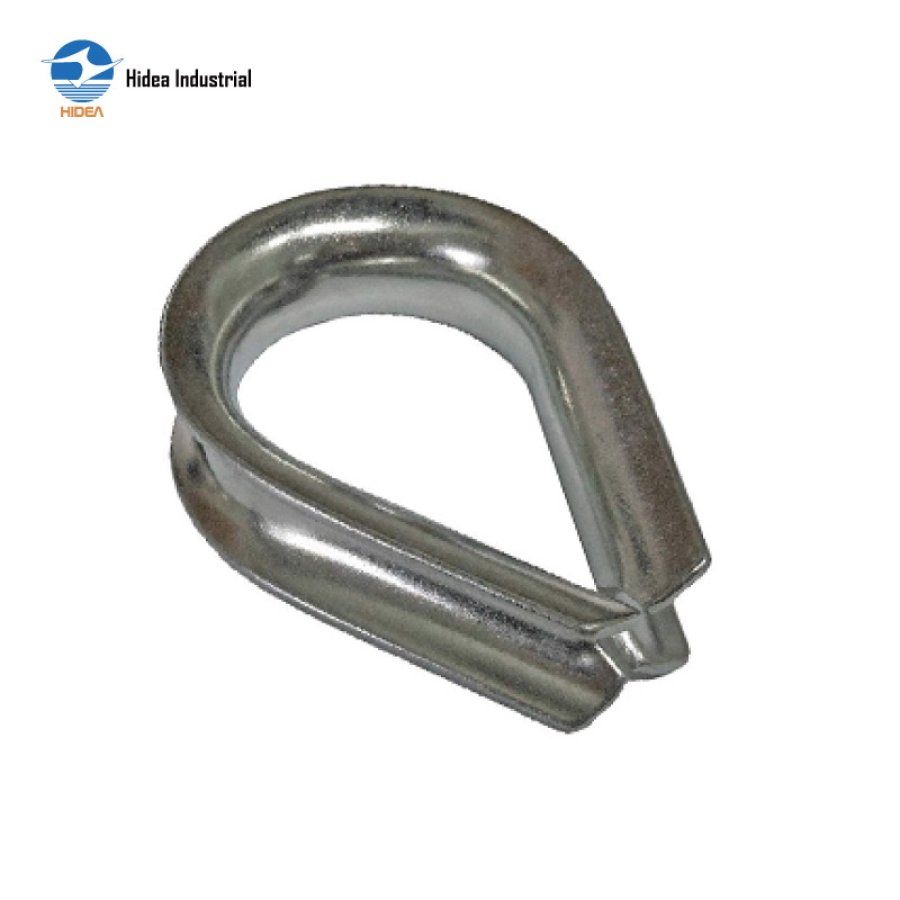

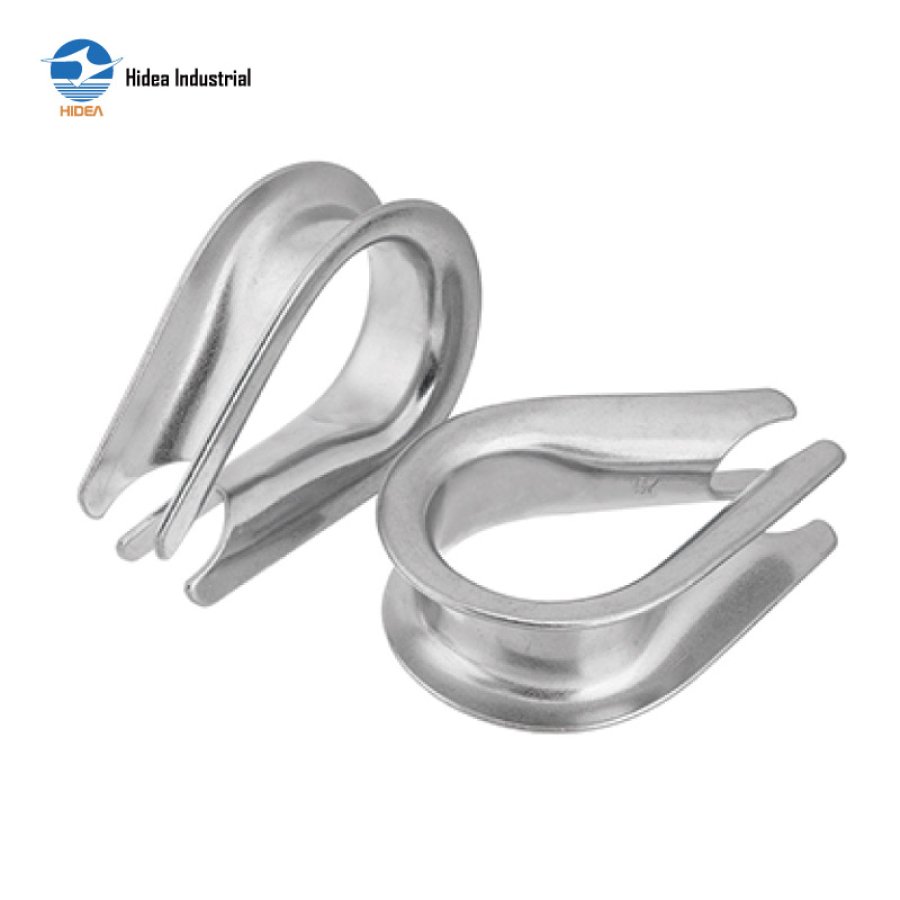

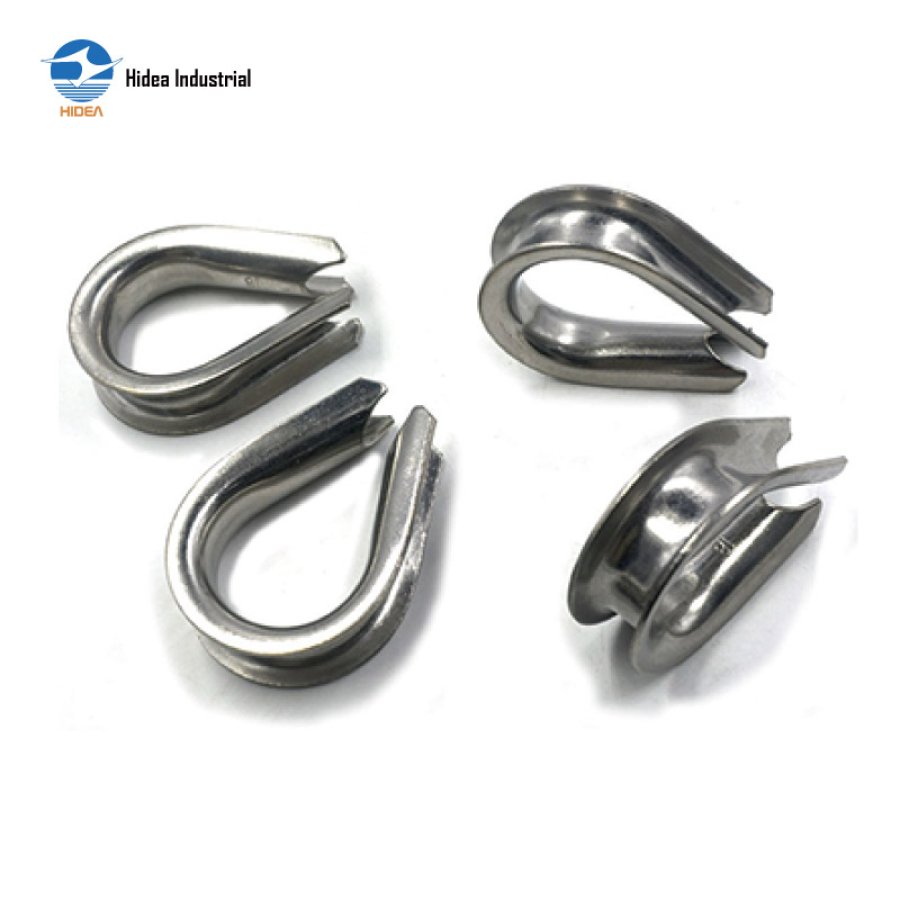

Durable Hidea B-DIN 6899 Thimbles for Reliable Wire Rope Protection

DIN6899B THIMBLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

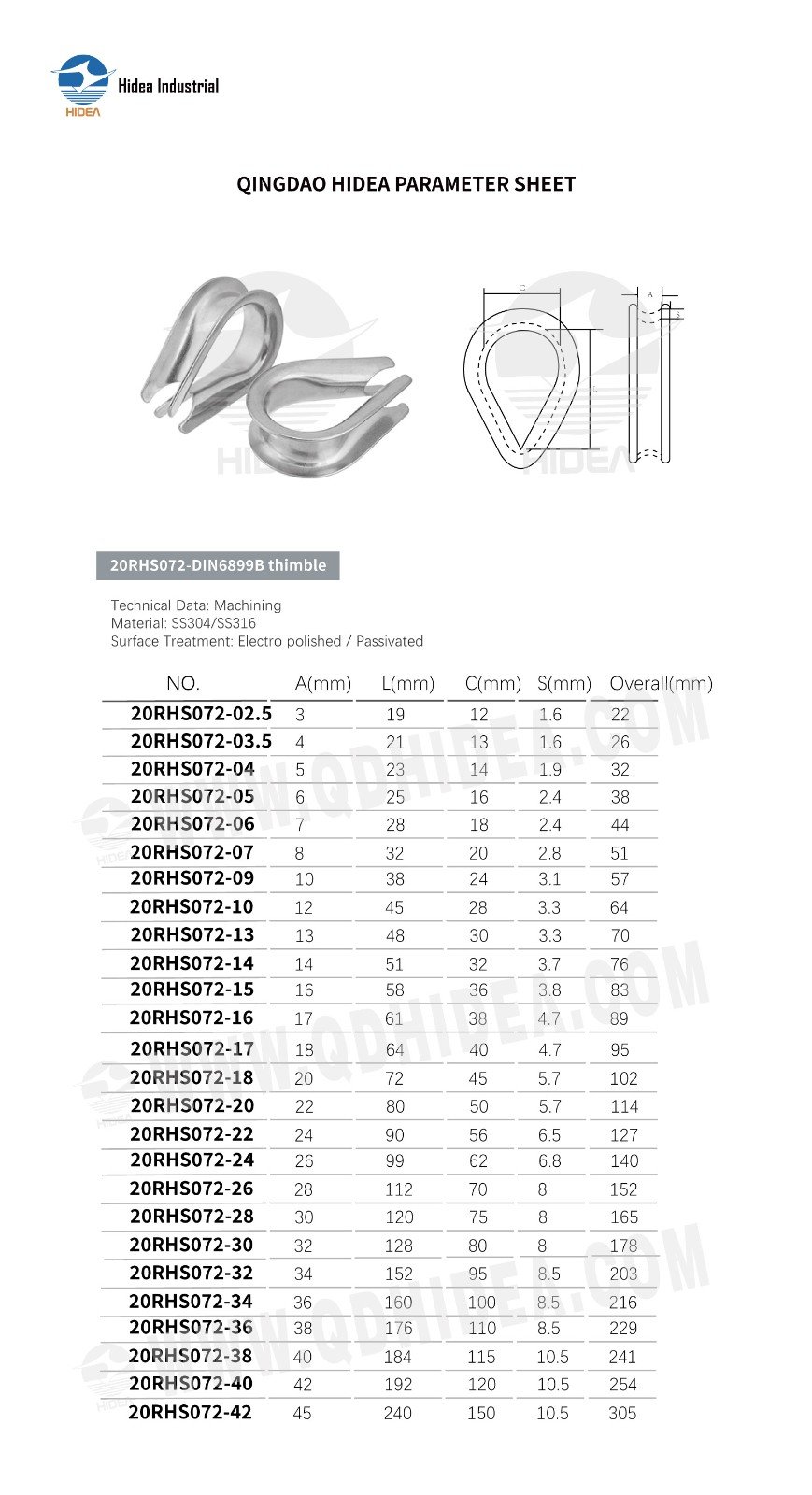

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS072-DIN6899B thimble

NO.	A(mm)	L(mm)	C(mm)	S(mm)	Overall(mm)
20RHS072-02.5	3	19	12	1.6	22
20RHS072-03.5	4	21	13	1.6	26
20RHS072-04	5	23	14	1.9	32
20RHS072-05	6	25	16	2.4	38
20RHS072-06	7	28	18	2.4	44
20RHS072-07	8	32	20	2.8	51
20RHS072-09	10	38	24	3.1	57
20RHS072-10	12	45	28	3.3	64
20RHS072-13	13	48	30	3.3	70
20RHS072-14	14	51	32	3.7	76
20RHS072-15	16	58	36	3.8	83
20RHS072-16	17	61	38	4.7	89
20RHS072-17	18	64	40	4.7	95
20RHS072-18	20	72	45	5.7	102
20RHS072-20	22	80	50	5.7	114
20RHS072-22	24	90	56	6.5	127
20RHS072-24	26	99	62	6.8	140
20RHS072-26	28	112	70	8	152
20RHS072-28	30	120	75	8	165
20RHS072-30	32	128	80	8	178
20RHS072-32	34	152	95	8.5	203
20RHS072-34	36	160	100	8.5	216
20RHS072-36	38	176	110	8.5	229
20RHS072-38	40	184	115	10.5	241
20RHS072-40	42	192	120	10.5	254
20RHS072-42	45	240	150	10.5	305
