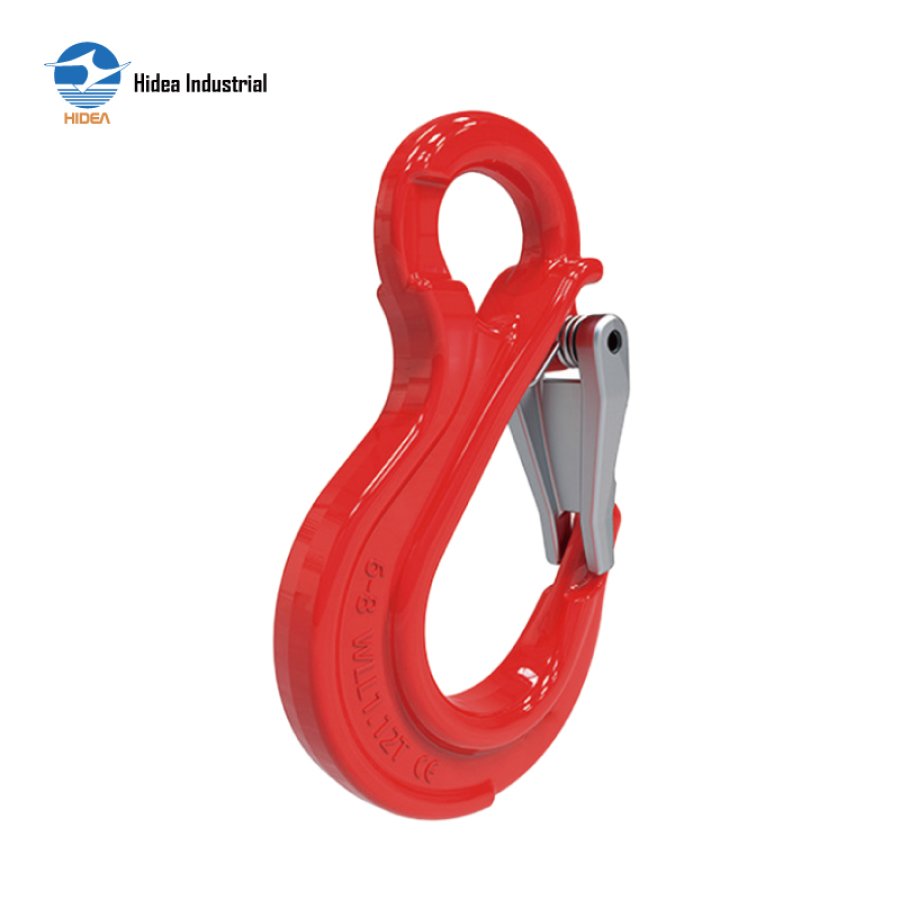

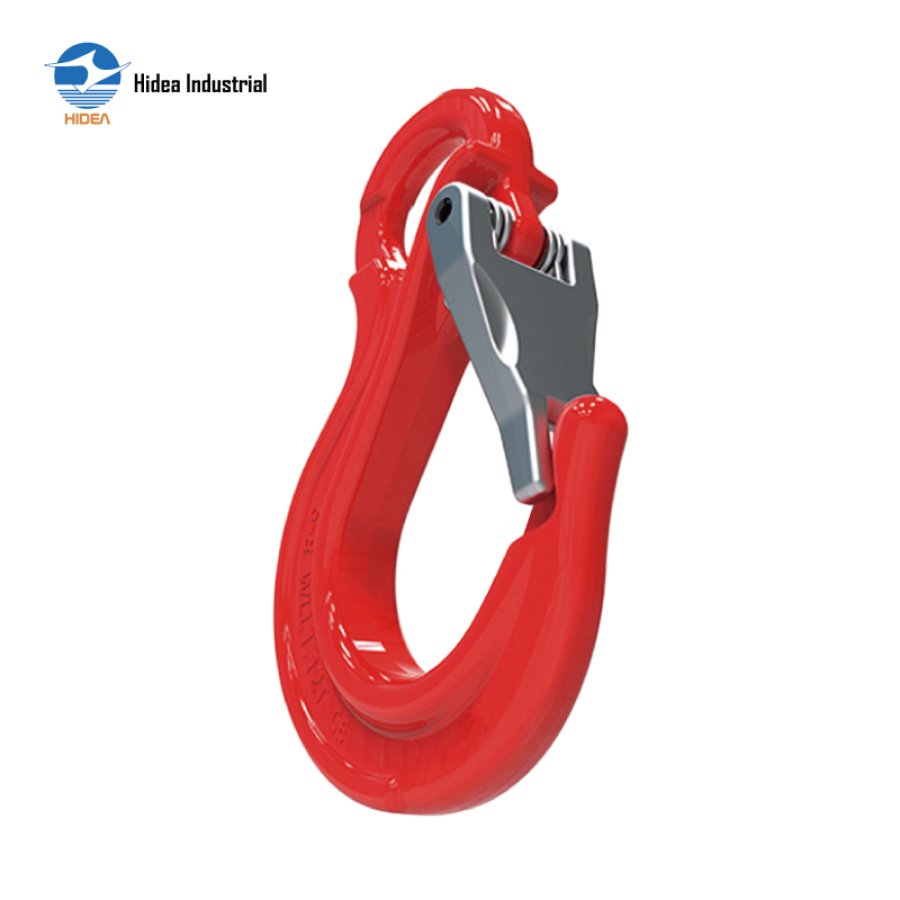

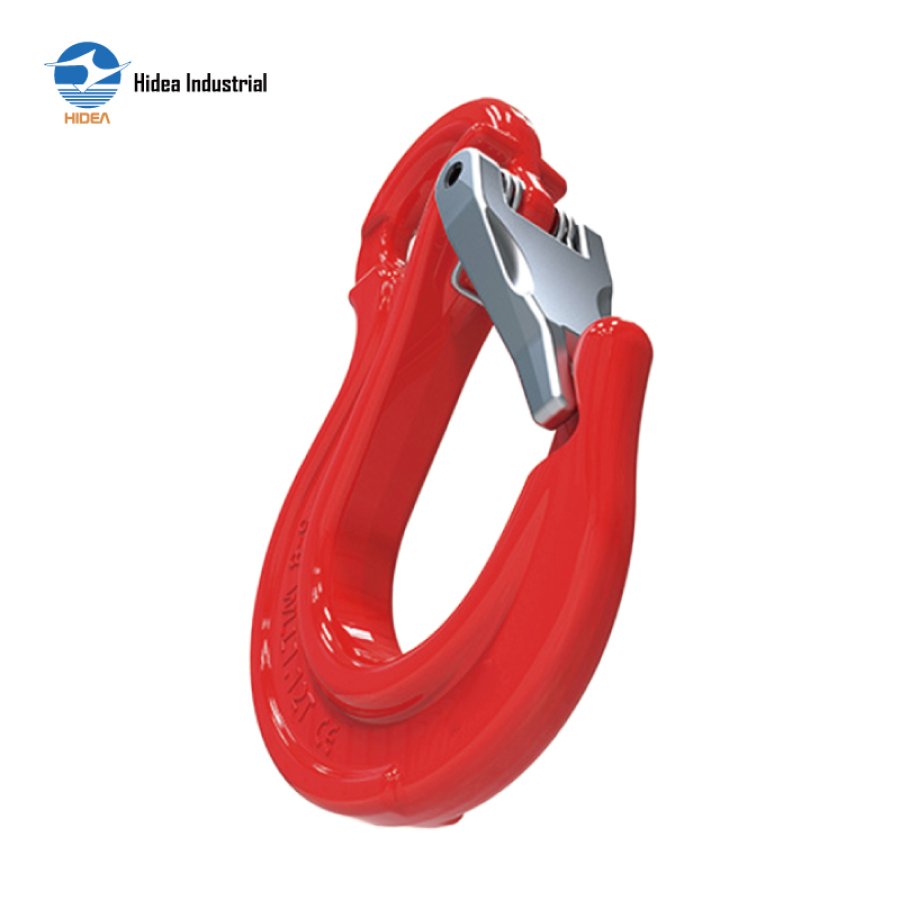

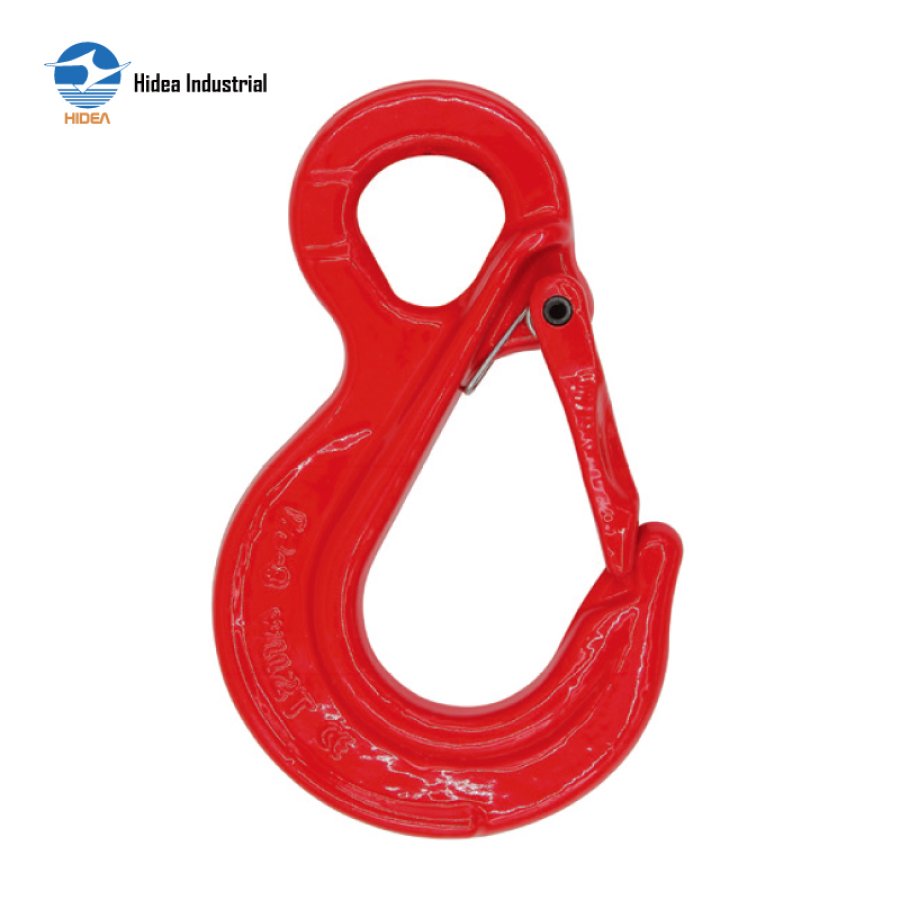

Hidea Grade 80 Eye Sling Hook with Triangle Eye for Secure Lifting

G80 EYE SLING HOOK WITH TRIANGLE EYE

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

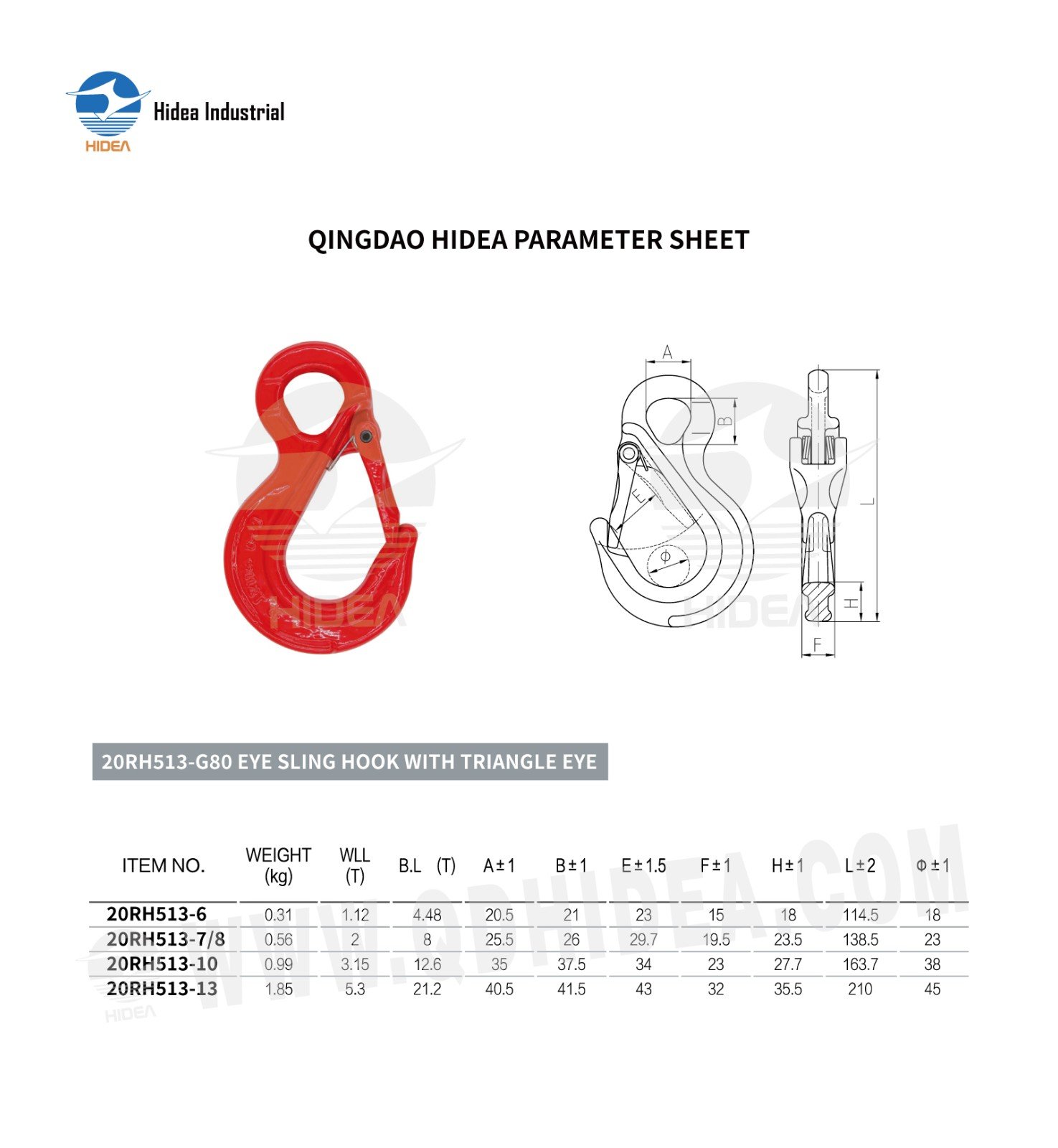

QINGDAO HIDEA PARAMETER SHEET FOR

20RH513-G80 EYE SLING HOOK WITH TRIANGLE EYE

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L(T)	A±1	B±1	E±1.5	F±1	H±1	L±2	Ф±1
20RH513-6	0.31	1.12	4.48	20.5	21	23	15	18	114.5	18
20RH513-7/8	0.56	2	8	25.5	26	29.7	19.5	23.5	138.5	23
20RH513-10	0.99	3.15	12.6	35	37.5	34	23	27.7	163.7	38
20RH513-13	1.85	5.3	21.2	40.5	41.5	43	32	35.5	210	45
